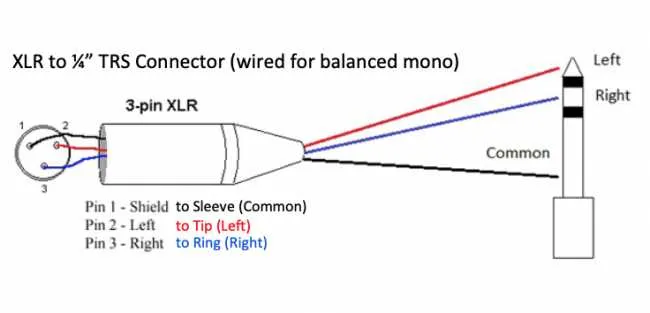

XLR Jack Wiring Diagram for Audio Equipment Connections
For high-quality audio signal transfer, ensure proper connection of the three-pin connectors. Start by correctly identifying the pins: pin 1 is ground, pin 2 is positive, and pin 3 is negative. Connecting these pins in the right order will prevent signal interference and ensure clear audio transmission.
When attaching the wire to the connector, use a soldering iron to securely attach the conductors to the corresponding pins. Make sure the shield wire is properly grounded to pin 1 to avoid noise issues. A solid, clean connection is key for optimal performance.
Tip: To avoid short circuits, double-check the insulation around the wires, ensuring no bare wire touches another pin or the metal casing of the connector.
For durability and to reduce wear, choose high-quality connectors and cables that are designed for long-term use. A well-assembled connection will maintain signal integrity over time, even with frequent plugging and unplugging.
Wiring a Balanced Audio Connector
For proper audio signal transmission, ensure pins are correctly assigned for a balanced connection. Pin 1 should be connected to ground, providing shielding to the signal. Pin 2 is typically used for the positive signal (hot), while pin 3 carries the negative (cold) signal. This setup allows for noise rejection, as any interference is canceled out when the signals are recombined at the receiving end.
Use high-quality cables with appropriate shielding to minimize signal degradation. When connecting the components, ensure that all connections are secure and that no short circuits occur between the pins. A proper soldering technique ensures longevity and stability in the connection.
Always check the polarity and grounding before connecting the system to avoid damaging the equipment. Verify continuity using a multimeter to confirm correct wiring. For most standard professional audio setups, this configuration will provide reliable and interference-free audio performance.
How to Connect a Standard 3-Pin Audio Plug for Devices
To connect a 3-pin audio connector for balanced audio equipment, start by preparing the cable with three wires: one for the ground, one for the positive signal, and one for the negative signal. Strip the insulation from the wire ends about half an inch to expose the conductors.
For the male connector, solder the ground wire to the pin that is typically located at the top or center of the connector. This is usually pin 1. Next, solder the positive (hot) signal wire to pin 2, and the negative (cold) signal wire to pin 3. Ensure the connections are clean and well-soldered to avoid any signal loss or interference.
For the female connector, repeat the process in reverse order. Pin 1 will also carry the ground wire, pin 2 will be for the positive signal, and pin 3 will carry the negative signal. Make sure the wires are securely attached and that there is no short circuit between them.
Once the connectors are soldered, check each connection with a multimeter to ensure continuity and to confirm there are no shorts. Finally, use heat shrink tubing or electrical tape to insulate the soldered connections and protect them from damage.
Identifying Pinouts and Signal Flow in Balanced Connections
To ensure proper signal transmission, it is essential to understand the pinouts and flow in balanced connections. Follow these key points to correctly identify pinouts and trace signal paths:
- Pin 1: Ground or shield. This pin is responsible for the grounding of the signal and noise isolation.
- Pin 2: Hot or positive. This pin carries the signal in its positive phase.
- Pin 3: Cold or negative. This pin carries the inverted signal, used to cancel out noise interference during differential transmission.
Signal flow should always follow the following structure:
- Hot (Pin 2) carries the positive signal from the source.
- Cold (Pin 3) transmits the inverse, ensuring noise cancellation when combined at the receiving end.
- Ground (Pin 1) serves as a reference, keeping the circuit stable and preventing unwanted noise interference.
Maintaining proper pin alignment and ensuring the correct signal flow reduces hum and enhances sound clarity. Double-check connections before use to prevent signal degradation.
Common Mistakes to Avoid When Wiring Audio Connectors
One major mistake is incorrectly connecting the pins. The most common error is swapping the ground and signal pins. Make sure pin 1 is always ground, pin 2 carries the positive signal, and pin 3 is used for the negative signal. This ensures proper functionality and signal integrity.
Another issue arises when the shielding is not properly connected to the ground. Ensure that the shield is securely connected to pin 1 to prevent any electromagnetic interference, which could affect sound quality.
Avoid using low-quality cables or connectors. Substandard materials can result in weak connections, leading to signal loss or distortion. Always choose high-quality connectors and durable cables to ensure reliable performance.
Improper soldering is also a frequent problem. Make sure to use the right temperature when soldering and avoid excessive heat, which can damage the components or cause cold solder joints that may lead to intermittent failures.
Lastly, neglecting to test the completed connections before use can lead to frustration. Always verify the integrity of your work by testing each connector before connecting to audio equipment to catch any issues early on.
