Wiring Speakers: Series vs Parallel – Which is Best for Sound Quality?

When it comes to setting up a sound system, one of the key decisions you’ll have to make is how to wire the speakers. There are two main options: wiring them in series or wiring them in parallel. Each method has its own advantages and disadvantages, and understanding the differences can help you make the best choice for your setup.

Wiring speakers in series means connecting them in a daisy chain, with the positive terminal of one speaker connected to the negative terminal of the next, and so on. The final speaker in the chain is then connected to the amplifier. With this setup, the total impedance of the speakers is increased, which can help protect the amplifier from overloading. However, wiring speakers in series also means that the total power output is divided among the speakers, so each speaker may not be able to reach its maximum potential.

On the other hand, wiring speakers in parallel means connecting them all to the same positive and negative terminals of the amplifier. This setup allows each speaker to receive the full power output of the amplifier, maximizing their potential. However, with speakers in parallel, the total impedance is decreased, which can put more strain on the amplifier and potentially lead to overheating or damage.

In conclusion, the choice between wiring speakers in series or parallel ultimately depends on your specific needs and preferences. If protecting the amplifier from overloading is a top priority, and you don’t mind sacrificing some power output, wiring speakers in series may be the best option for you. However, if maximizing the performance of each speaker is your main goal, and you’re willing to take the risk of putting more strain on the amplifier, wiring speakers in parallel may be the way to go.

Understanding the Differences

The way speakers are wired in a sound system can have a significant impact on the overall performance and sound quality. Two common methods of wiring speakers are in series and parallel. Each method has its advantages and disadvantages, and it is important to understand the differences between them before deciding which one to use.

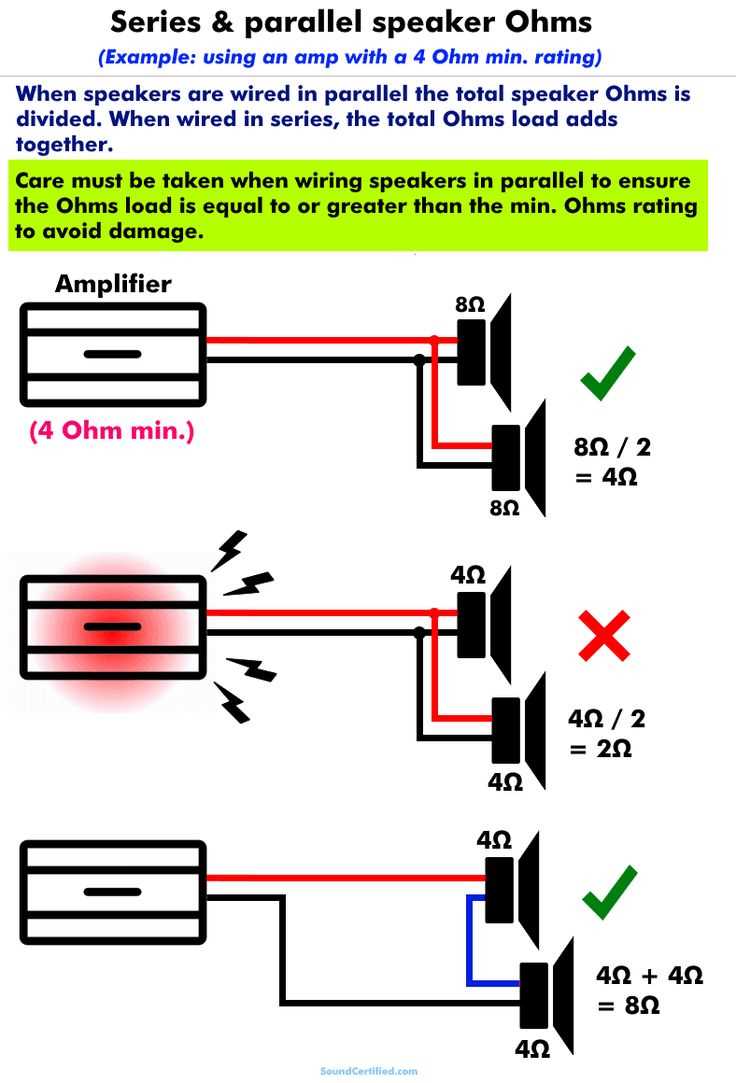

When speakers are wired in series, the positive terminal of one speaker is connected to the negative terminal of the next speaker. This means that the total impedance of the speakers is additive. For example, if two 8-ohm speakers are wired in series, the total impedance would be 16 ohms. One benefit of wiring speakers in series is that it allows for long cable runs without significant signal loss. However, one drawback is that the total power handling capacity is reduced.

On the other hand, when speakers are wired in parallel, the positive terminal of each speaker is connected together and the negative terminals are connected together. This results in a lower total impedance compared to wiring in series. For example, if two 8-ohm speakers are wired in parallel, the total impedance would be 4 ohms. One advantage of wiring speakers in parallel is that it allows for higher power handling capacity. However, one disadvantage is that it can lead to signal loss and decreased sound quality over long cable runs.

In summary, wiring speakers in series is generally better for long cable runs, while wiring speakers in parallel is better for maximizing power handling capacity. It is important to consider the specific needs and requirements of your sound system before deciding which wiring method to use.

Advantages and Disadvantages of Series Wiring

Series wiring is a method of connecting multiple speakers together in a circuit where the positive terminal of one speaker is connected to the negative terminal of the next. This creates a continuous loop of current flow through all the speakers. While series wiring has its advantages, it also has some drawbacks that need to be considered when deciding on the appropriate wiring method.

Advantages:

• Increased impedance: Series wiring increases the total impedance of the circuit. This can be beneficial when using multiple speakers with a lower impedance rating, as it allows for a more compatible match with the amplifier or audio system. It can also help prevent the amplifier from overheating or going into protection mode.
• Easier troubleshooting: When speakers are wired in series, it becomes easier to identify a faulty speaker in the circuit. If one speaker stops working or produces distorted sound, it is easier to trace the issue back to that specific speaker and replace it.
• Even distribution of power: Series wiring ensures that the power from the amplifier is evenly distributed among all the speakers. This can result in a more balanced and uniform sound output, especially when using speakers that have different power handling capabilities.

Disadvantages:

• Lower overall power handling: Series wiring reduces the overall power handling capacity of the speaker system. This is because the total impedance of the circuit increases, which can cause a decrease in the power output from the amplifier. It is important to ensure that the amplifier is capable of providing enough power for the speakers when using series wiring.
• Higher chance of system failure: Since series wiring relies on the continuity of the circuit, any interruption or failure in one speaker can affect the entire system. If one speaker stops working or becomes disconnected, it can cause a complete loss of sound from all the connected speakers.
• Complexity in wiring: Series wiring requires careful attention to detail and precision in connecting the speakers. The polarity must be correctly observed, with the positive terminal of one speaker connected to the negative terminal of the next. This can be more time-consuming and challenging compared to parallel wiring, especially when dealing with a large number of speakers.

Advantages and Disadvantages of Parallel Wiring

Parallel wiring is a method of connecting speakers in which the positive terminals are connected to each other and the negative terminals are connected to each other. This allows each speaker to receive the full amplifier power, resulting in balanced sound distribution and increased volume.

There are several advantages and disadvantages to using parallel wiring for speakers:

Advantages:

• Increased Power Handling: Since each speaker receives the full amplifier power, parallel wiring allows for higher power handling capabilities. It is especially useful for systems that require high volume levels or for speakers with low power handling ratings.
• Balanced Sound Distribution: Parallel wiring ensures that each speaker receives the same amount of power and produces an equal level of sound. This helps to create a balanced sound distribution throughout the listening area and can enhance the overall listening experience.
• Redundancy: With parallel wiring, if one speaker fails or becomes disconnected, the other speakers will continue to operate. This can be useful in professional sound systems or installations where uninterrupted sound is essential.

Disadvantages:

• Decreased Impedance: When speakers are wired in parallel, the total impedance of the system decreases. This can cause an increase in current flow and put additional strain on the amplifier. It is important to ensure that the amplifier can handle the lower impedance load.
• Phase Issues: Parallel wiring can introduce phase issues, especially if the speakers are not exactly matched in terms of impedance and frequency response. This can result in cancellation or reinforcement of certain frequencies and affect the overall sound quality.
• Complexity: Parallel wiring can be more complex to set up compared to series wiring. It requires additional wiring connections and careful consideration of impedance matching and power distribution.

Overall, parallel wiring can be a suitable choice for certain applications where increased power handling and balanced sound distribution are desired. However, it is important to consider the potential disadvantages and ensure proper setup and compatibility with the amplifier and speakers.

Q&A:

What is parallel wiring?

Parallel wiring is a type of electrical circuit in which multiple components are connected side by side, allowing the current to flow from the power source through each component simultaneously.
