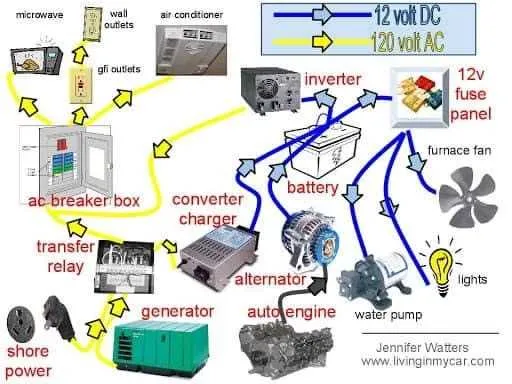

RV Converter Wiring Diagram for Proper Installation and Functioning

Ensure proper installation by following the electrical layout of your RV’s power system. Connecting the battery, shore power, and internal circuits correctly is critical to avoid failures or safety hazards. The power supply must be routed efficiently to manage the electrical load across various appliances and devices. Always check the voltage ratings and current capacity for each component to avoid overloading any part of the system.

Key components include the battery, fuse panel, and the control unit that distributes power throughout the RV. Accurate connections between these parts are essential to maintain stable operations. For instance, the battery should be connected with the proper polarity to ensure correct charging and discharging cycles. Additionally, fuses should be rated correctly for each circuit to protect against overcurrent situations.

Internal circuitry must be routed in a way that minimizes the risk of short circuits. Pay attention to wire gauge and insulation type, as improper wiring can lead to heating or even fires. Identifying and following specific paths between components helps maintain the integrity of the RV’s electrical system over time.

RV Power Supply Connections

To ensure proper electrical distribution in your RV, follow these connection steps:

• Identify the AC input terminal and ensure it’s securely linked to the shore power cord.
• Connect the 12V DC output terminal to the battery system, ensuring correct polarity.
• Double-check the connections for both neutral and live wires to prevent overloads or shorts.

Key points to verify before starting:

• Use a multimeter to test each connection for proper voltage levels.
• Confirm that the ground connection is properly attached to the chassis to avoid electrical hazards.
• Ensure all connections are tight and free from corrosion or wear.

Remember to match the wire gauge size to the electrical load requirements to prevent overheating. Always refer to the manufacturer’s specifications for voltage ratings and recommended wiring practices.

Understanding the Power Input Connections in an RV Power System

The power input terminals are crucial for ensuring safe and efficient electrical operation in an RV setup. Typically, two main connections are involved: the AC and DC inputs. Properly identifying and connecting these terminals ensures that the electrical system runs smoothly and prevents damage to the components.

For AC input, connect the power supply wire to the designated terminal, ensuring it’s rated for the correct voltage and current. The neutral wire should be linked to the neutral terminal, while the ground wire must be connected to the ground terminal. Double-check the connections for any loose wiring that could cause a short circuit or power loss.

DC input connections are similarly important. These terminals usually include a positive and negative connection. It is vital to ensure that the positive wire is connected to the correct terminal to avoid reverse polarity, which could damage the system. The negative wire should always be securely attached to the negative terminal to maintain proper function.

Before making any electrical connections, confirm that the power is switched off to avoid risk of shock. Also, regularly inspect the terminals for corrosion or wear, as these factors can significantly affect performance. Using appropriately rated cables and connectors is essential for preventing overheating and power loss during operation.

Identifying the Correct Wire Colors in RV Electrical Systems

For accurate connection of components in your RV electrical system, it’s critical to follow standard wire color codes. Each color represents a specific function, ensuring safety and consistency. Here are the most common wire color codes used:

Black wires typically carry 120V AC power. These are the hot wires used for powering appliances and outlets.

White wires are neutral, completing the circuit by providing a return path for the current.

Green wires are designated for ground connections, offering a safety route for any stray electrical currents.

Red wires often serve as secondary hot wires, especially in 240V circuits, or they may be used for specific components like switches or dedicated circuits.

Blue and yellow wires are usually reserved for special applications like control circuits or for running a dedicated 12V DC power supply.

When working with 12V DC systems, it’s common to find color-coding variations. However, following these standards will help you identify each wire’s role accurately and ensure your connections are safe.

Step-by-Step Guide to Troubleshooting RV Converter Wiring Issues

Check the 120V AC input at the fuse panel with a multimeter. Ensure it reads between 110–130V. If the input is absent, inspect the shore power connection or generator output.

Verify output terminals supplying 12V DC to the battery bank. Normal range should be 13.6V–14.4V when active. Readings below 12.5V indicate a malfunction or overload.

Inspect all fuses on both AC and DC sides. Use a continuity tester, not just visual inspection. Replace any open fuses with exact amperage ratings–never substitute values.

Test the DC output cable connections to the battery. Look for corrosion or loose terminals. Clean with a wire brush and secure tightly. Apply dielectric grease to prevent future oxidation.

Disconnect the unit and measure resistance across output terminals. Infinite resistance may indicate a blown internal component. In that case, remove the unit for bench testing or replacement.

Scan the distribution panel for signs of overheating–discoloration, melting, or burnt smell. These symptoms often point to poor grounding or undersized wires causing high resistance.

Assess battery voltage directly at the terminals. If the power source appears functional but voltage at the battery is low, trace the path between the source and battery for inline breakers or loose crimps.

Monitor fan operation during load. A non-functioning fan often signals thermal shutdown, commonly caused by dust buildup or seized bearings. Clean with compressed air or replace the fan assembly.
