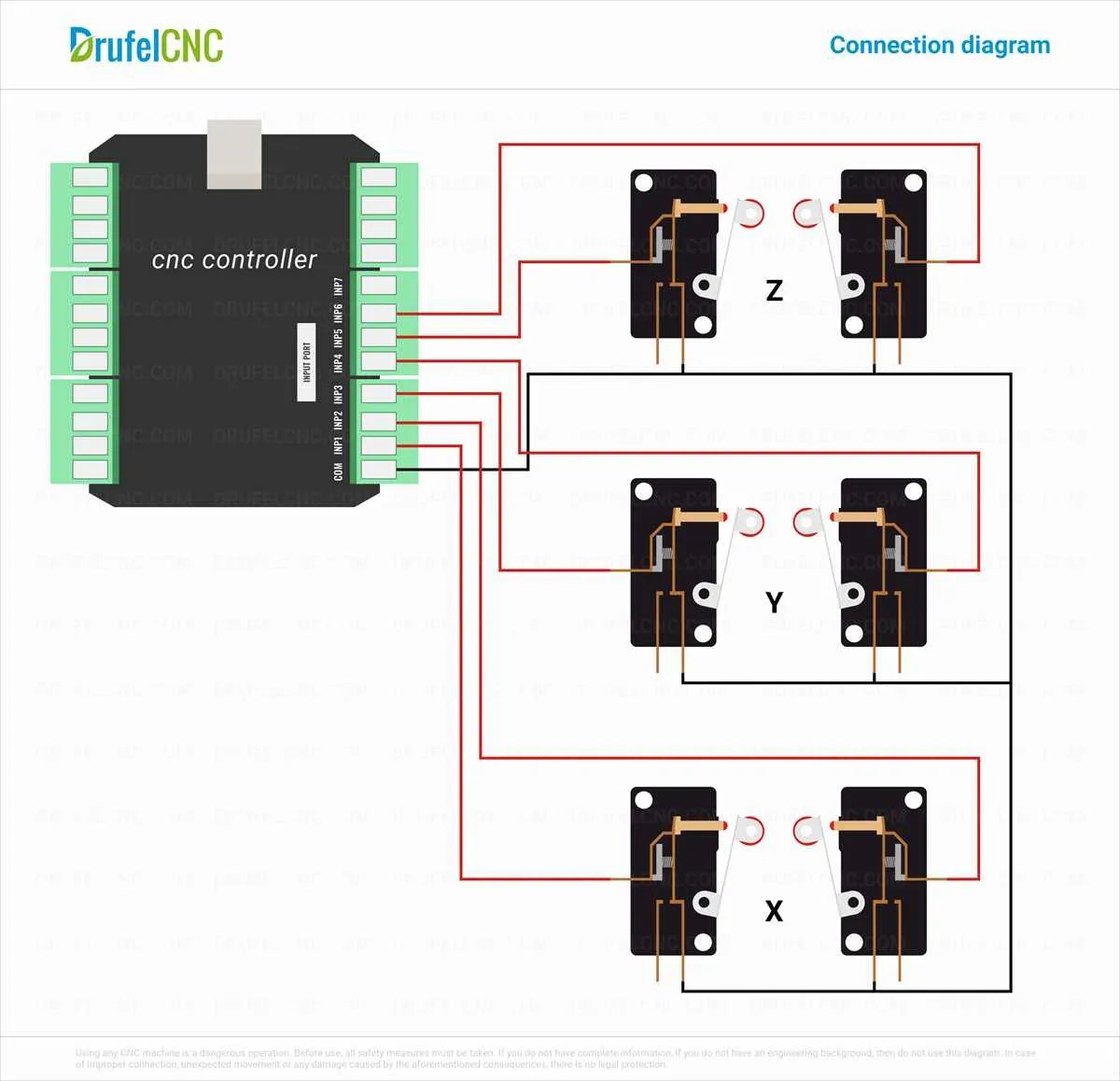

Wiring Diagram for Limit Switch Installation and Connection Guide

To ensure accurate operation of a position sensor, it is critical to follow a clear schematic layout. First, connect the sensor’s terminals to the control circuit. Typically, two main connections are required: one for the power supply and one for the output signal.

Power Supply Connection: The positive terminal of the power supply should link to the sensor’s input terminal. The negative terminal should be connected to the ground. Verify the voltage specifications before making the connection to prevent damage.

Signal Output Connection: The output signal wire from the sensor should be routed to the control system’s input, ensuring compatibility with the sensor’s output type (e.g., NPN, PNP). For a reliable connection, double-check the pinout of the control system to avoid errors in signal detection.

Note: It is important to maintain proper insulation and secure all connections with appropriate terminal connectors to minimize the risk of shorts and signal loss.

Wiring Setup for Position Detection Device

To connect a position sensor to your control system, follow this clear sequence. First, ensure the sensor’s terminals are properly aligned with the input lines of your system: one terminal should be connected to the positive voltage source, and the other to the control device or PLC input. The third terminal typically connects to the ground or common line.

Verify the operating voltage range of the sensor before starting. Common values include 24V DC or 110V AC, depending on the model. Be mindful of polarity when connecting the power supply, as reverse connections can damage the component.

For activation, ensure that the device’s mechanical mechanism is properly engaged. The contact mechanism should close or open the circuit as intended when the moving part reaches the designated position.

Use appropriate protective components like fuses or surge protectors to safeguard against power spikes, ensuring long-term reliability of your system.

Check continuity with a multimeter after connections are complete to confirm the circuit is functioning correctly. If the system requires multiple units, ensure all similar devices share a common ground and maintain consistency in wiring layout to prevent errors in operation.

How to Connect a Limit Switch in a Basic Circuit

Start by identifying the common terminal, which serves as the reference point for the device. Connect the power source to this terminal. Next, link one of the control terminals to the load you wish to activate or deactivate. Ensure that the second control terminal is connected to the ground or negative side of the circuit.

Important: If using an N.O. (Normally Open) type, the device will close the circuit when activated, while an N.C. (Normally Closed) type will open it. Choose according to the desired operation of your system.

For circuits with higher current, consider using relay modules to avoid directly powering the device through the control terminals. This protects the components from potential overloads.

Finally, ensure proper insulation of all connections to prevent short circuits. Verify that the device is securely mounted and free from mechanical interference to guarantee reliable operation.

Identifying Correct Connections for Normally Open and Normally Closed Contacts

When connecting a device with normally open (NO) and normally closed (NC) contacts, ensure that the NO terminal is linked to the circuit only when the actuator is triggered. The NC terminal, conversely, remains engaged when the actuator is in its default position.

For NO contacts, connect the input terminal to the positive or live wire and the output to the connected device. When the actuator is activated, the connection will be established, completing the circuit. For NC contacts, wire the input to the output side and ensure it completes the circuit when the actuator is inactive.

Verify continuity for each contact type to confirm proper operation. An NO contact should show continuity only when actuated, whereas an NC contact should always show continuity until the actuator is engaged. Incorrect wiring may lead to malfunction, potentially damaging components.

Double-check the specifications of the actuator and device to ensure compatibility with the chosen contact configuration. The incorrect association of contacts can cause operational failure or hazardous conditions.

Troubleshooting Common Connection Problems in Mechanical Sensors

Ensure all terminals are securely fastened. Loose connections are the leading cause of malfunction. If the signal does not trigger or the device shows erratic behavior, recheck all connections for tightness.

• Inspect the sensor’s terminals for corrosion or dirt. Clean any build-up with contact cleaner to restore a reliable connection.
• Verify the polarity of the wires. Reversed connections can prevent the device from responding as expected. Always follow the manufacturer’s recommendations for the correct orientation.

Check the integrity of the cables. Frayed or damaged wires can lead to intermittent failures. Replace any compromised cables to ensure stable performance.

• Test the cable insulation. A short circuit can occur if the wire is exposed, especially at bends or where it enters the sensor housing.
• Use a multimeter to detect continuity. Ensure that no wires are broken internally, even if the outer insulation appears intact.

Examine the power supply voltage. Low or fluctuating voltage can cause the sensor to misbehave or fail to activate. Compare the actual voltage to the recommended range provided by the manufacturer.

• If voltage levels are unstable, consider using a voltage stabilizer or check for issues in the power source that might be causing irregularities.
• Ensure that the supply voltage is consistent across all connected devices to avoid overloading and potential failures.

Grounding issues are common culprits. Ensure the device is properly grounded to prevent electrical interference. A poor ground connection can lead to unreliable readings and operational inconsistencies.

• Use a continuity tester to confirm the ground connection is intact.
• Inspect grounding rods or connections to ensure they are not corroded or loose.
