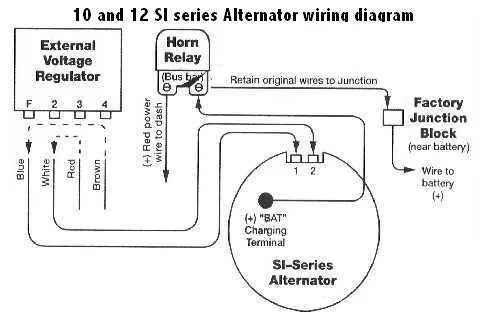

Wiring Diagram for Chevy Alternator Setup and Connections Explained
When working with the charging unit of a vehicle, it’s crucial to connect the three primary terminals correctly: the B+ terminal, the ground terminal, and the field terminal. The B+ terminal connects to the battery’s positive terminal, ensuring power transfer. The ground terminal, often marked with a “-” sign, must be securely attached to the engine block or another solid ground point to avoid malfunctions.
The field terminal plays an essential role in regulating the unit’s output. Ensure the wire leading to this terminal is properly insulated to prevent short circuits. A voltage regulator manages the output by adjusting the current flowing to this connection, based on the vehicle’s electrical demand. Incorrect wiring here could lead to fluctuating voltage, which might damage sensitive electronics in the vehicle.
Double-check the integrity of all wiring connections before powering on the system. Weak or corroded connections often lead to underperformance or complete failure of the electrical components. Use high-quality connectors and cables to minimize the risk of failure.
For the best results, always follow the manufacturer’s recommendations regarding wire gauge, routing, and connection specifications. A secure, well-maintained electrical system will extend the lifespan of the entire charging setup.
Electrical Setup of the GM Charging Unit
Ensure that the battery positive terminal connects directly to the large post of the charging device. The small terminal on the unit should be connected to the dashboard warning light. The ground connection must be securely attached to the vehicle chassis, ensuring a solid connection for proper grounding.
The excitation circuit, controlled by the voltage regulator, must be wired to allow current flow when the engine is running. Always verify the integrity of the wires before making any connections to avoid shorts. Properly fuse the output cable to safeguard the system from overcurrent situations.
Ensure the alternator is mounted firmly and that all connections are clean and free from corrosion. Test the system after installation by running the engine and checking the voltage at the battery terminals, ensuring it reads between 13.5 to 14.5 volts for proper charging functionality.
Identifying Key Wires in a Chevy Alternator System
The critical connection that links to the battery is the heavy gauge wire, typically red, which carries the charge. This wire is directly attached to the output terminal, ensuring power is sent to the battery when the engine runs. Make sure the terminal is tightly secured to prevent any loose connections that could lead to charging failure.
The second most important wire is the smaller one, usually yellow or green, connected to the voltage regulator. This wire plays a crucial role in controlling the electrical output by monitoring the charge levels. If this wire is damaged or loose, the system may fail to regulate the charge, leading to overcharging or undercharging the battery.
Additionally, the ground wire, often black, ensures proper flow of electricity between the system and the vehicle’s frame. Check for any signs of corrosion or wear on the ground connection, as it directly affects the performance of the entire charging setup.
If the system has a field wire, it is typically a thin wire that connects the regulator to the field coil, allowing the alternator to adjust output as needed. Ensure this wire is intact to maintain the system’s efficiency.
Step-by-Step Guide for Proper Connection Setup
Ensure all tools and components are prepared before starting the installation. Safety gloves and eye protection are essential when working with electrical systems.
- Disconnect the battery negative terminal to prevent accidental short circuits.
- Locate the charging unit and its corresponding terminal leads. Check the condition of all components to ensure they are free from damage.
- Connect the positive terminal to the main power output, ensuring a firm and secure connection. Tighten the nut without over-tightening to avoid damaging the connector.
- Identify the smaller terminal used for the signal wire. Attach the wire to this terminal, making sure it is properly crimped and secured to prevent loosening during operation.
- Attach the ground wire to a clean, unpainted metal surface on the engine block or chassis to ensure a stable connection.
- Inspect the connections for any potential interference with other components. Ensure wires are neatly routed and securely fastened to prevent rubbing or shorting.
- Reconnect the negative terminal on the battery once all wires are properly connected and secure.
- Test the system by starting the engine and measuring the output voltage at the battery. A healthy system should produce between 13.8 and 14.4 volts.
- If the voltage is too low or too high, recheck the connections and the condition of the components. Ensure there are no loose or corroded connections.
By following these steps, the electrical system will function efficiently, providing reliable power to the vehicle’s components.
Common Electrical Issues and How to Troubleshoot Them
If the vehicle’s charging system is malfunctioning, the first step is to check the connection between the battery and the power generator. A loose or corroded terminal can cause poor contact, leading to inconsistent voltage delivery. Ensure that all terminals are clean and tightened properly.
Another common problem arises from the ground connection. A faulty or loose ground can prevent the system from properly completing the circuit, causing low output or no charge. Inspect the ground cable for wear or damage, and ensure it’s securely attached to the vehicle’s frame.
If the voltage regulator is malfunctioning, it can cause overcharging or undercharging. Use a multimeter to measure the voltage output at the battery. A reading higher than 14.8 volts suggests an issue with the regulator, while a reading lower than 13.5 volts indicates insufficient charging.
Examine the rotor and stator for wear. A worn-out rotor may lead to inconsistent electrical flow, while a damaged stator may result in low output. These components should be inspected for visible damage, and resistance should be checked using a multimeter.
Damaged fuses or relays can disrupt the flow of electricity to the system. Inspect these components closely, and replace any that show signs of damage or wear. A blown fuse is a clear indicator of an electrical overload or short circuit.
Finally, ensure that all connections are free of fraying wires or signs of heat damage. Frayed wires may cause short circuits, leading to intermittent charging or no charging at all. Repair or replace any damaged wiring to restore proper function.
