Detailed wiring diagram guide for understanding and installing an AC unit safely
Ensure the main power supply is turned off before attempting any work on the control panel or compressor terminals. This precaution eliminates risk of electric shock and prevents damage to sensitive components.
The control board requires connection to a dedicated 240V circuit breaker, typically rated at 30 amps. Use copper conductors sized 10 AWG or thicker to comply with most residential electrical codes and support the compressor’s startup current.
Secure grounding wires to the designated lug inside the service panel and verify continuity with a multimeter. Proper earthing is critical to avoid electrical faults and improve system safety during operation.

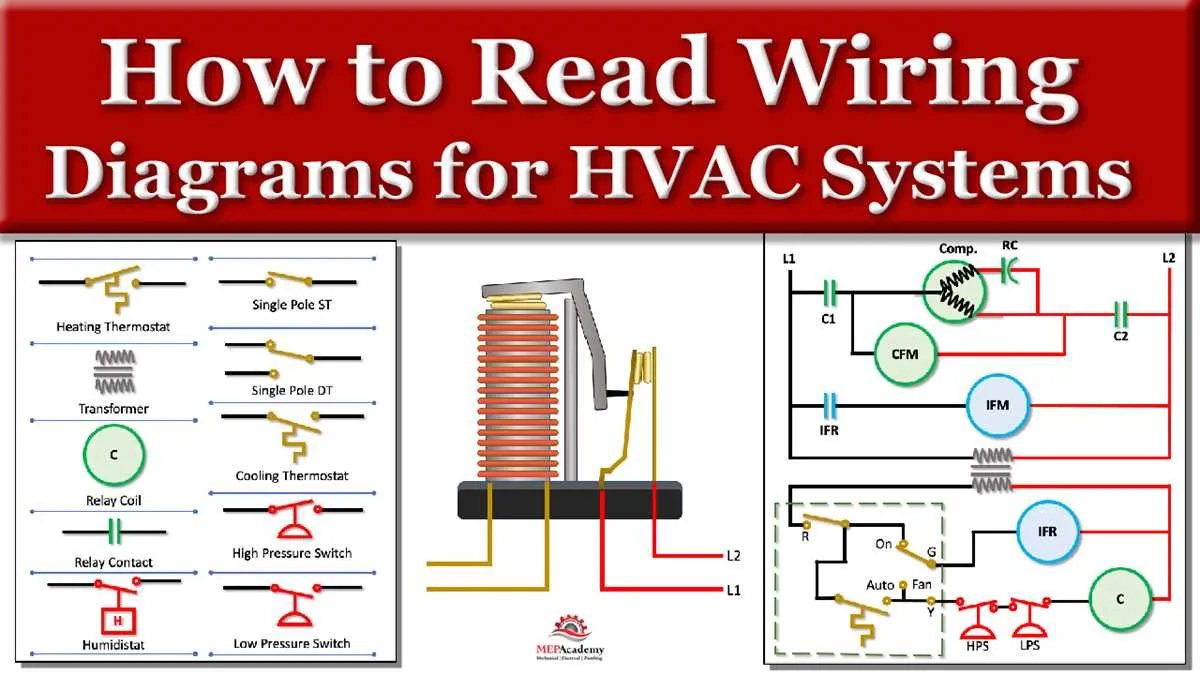

Connection Layout of an AC System
Always verify the color coding of electrical cables before starting installation. Typically, black or red indicates the live wire, white the neutral, and green or bare copper the ground. Ensure the power supply matches the voltage requirements, usually 220-240V for residential models.
Identify the terminals on the compressor and fan motor: common (C), start (S), and run (R). Connect the capacitor correctly between start and run terminals to prevent motor damage. Use a multimeter to check continuity and proper contact points.
Integrate the thermostat control wires carefully, usually low voltage (24V), distinguishing the R (power) and Y (cooling) leads. Secure all connections with appropriate wire nuts or terminal blocks, avoiding loose contacts that could cause shorts or overheating.
Include a disconnect switch near the main power line for safety during maintenance. Ground all metal components following local electrical codes to prevent electric shock hazards. Label each wire clearly to simplify future troubleshooting.
Test the entire electrical setup before powering the system fully. Confirm that all protective devices, such as fuses or circuit breakers, are rated correctly to handle the load without nuisance trips.
How to Identify and Connect Power Supply Wires
Always turn off the main breaker before handling any electrical leads to prevent shocks. Locate the incoming service cables, typically consisting of a black (hot), white (neutral), and green or bare copper (ground) wire.
Use a voltage tester to verify which conductor carries current. The hot wire will show voltage, the neutral remains at zero potential, and the grounding wire is connected to the metal frame or earth ground.
Match each supply lead to its corresponding terminal on the compressor’s contactor or junction box. Connect the black conductor to the L1 or line terminal, the white conductor to the neutral bar or terminal marked N, and the green or bare copper to the grounding screw or bus bar.
Ensure all connections are tight and secured with proper wire connectors or terminal screws. Avoid mixing neutral and ground paths; this can cause electrical hazards or improper operation.
After securing connections, recheck all leads with a continuity tester to confirm correct continuity and absence of shorts between lines and ground. Finally, restore power and monitor the system for proper startup and stable current flow.

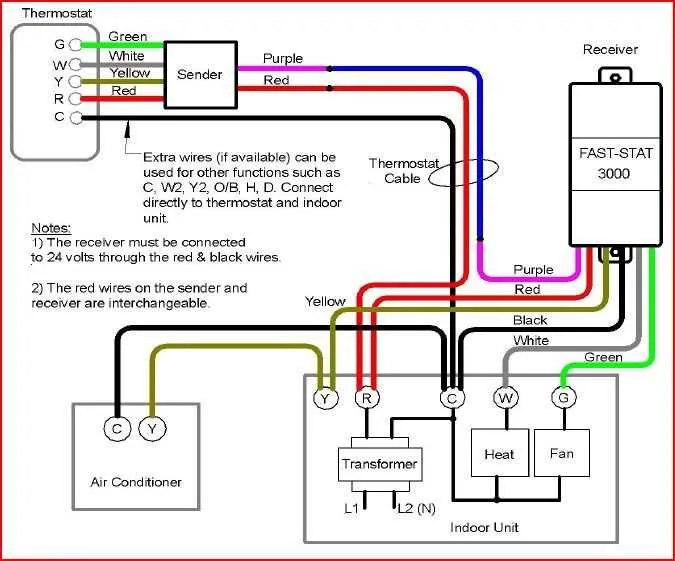

Step-by-Step Guide to Connecting the Thermostat for AC Control
Begin by cutting power to the system at the main breaker to ensure safety. Use a voltage tester to confirm there is no electricity flowing to the control board.
- Remove the thermostat cover and locate the terminal block with labeled screw connectors.
- Identify the following wires commonly present:
- R (Red): Power from the transformer (24V)
- W (White): Heating control
- Y (Yellow): Cooling control
- G (Green): Fan relay
- C (Blue or Black): Common wire providing continuous 24V return
Always follow manufacturer instructions specific to your model and consult a professional if unfamiliar with electrical safety procedures.
Troubleshooting Common Electrical Issues in Air Conditioning Systems
Check if the power supply is stable. Verify that the breaker is not tripped or the fuse blown. If the circuit is intact but there’s no power, inspect the main switch and connectors. Damaged terminals often cause interruptions.
If the system fails to start or shuts off intermittently, examine the control board for faulty relays or burnt components. Faulty connections to the thermostat may also lead to inconsistent performance.
Corrosion in the terminal block or connectors can disrupt power flow. Ensure the contacts are clean and secure. Loose wires contribute to poor contact and potential short circuits. Tighten connections and check the condition of the insulation.
Unusual buzzing or sparking noises suggest a short between conductors or grounding issues. Turn off the power immediately and inspect for any exposed wiring or damaged insulation that might cause a short circuit.
Frequent system resets or failures could indicate an overload or faulty capacitor. Test the capacitor with a multimeter and replace if necessary, as it stores and releases energy required for starting the compressor motor.
If the cooling function is erratic, inspect the connections between the compressor and other components. Voltage irregularities or poor grounding can disrupt motor operations. Use a multimeter to test voltage consistency.
Ensure the cooling system is properly grounded. A poor ground connection can lead to erratic behavior and even damage sensitive electrical components. Run continuity tests to confirm proper grounding.
