The Ultimate Guide to Wiring a Boat Fuse Panel
When it comes to boating, safety should always be a top priority. One important aspect of ensuring the safety of your boat is properly wiring the fuse panel. A fuse panel acts as a protective device that helps prevent electrical fires and damage to the boat’s electrical systems. It is responsible for regulating the flow of electricity and shutting off power in case of an overload or short circuit.
Why is wiring a boat fuse panel important? Properly wiring a boat fuse panel is essential for several reasons. It helps protect the boat’s electrical system from damage caused by overloading or short-circuits. In the event of a fault, the fuse panel will cut off power to the affected circuit, preventing further damage or potential fire hazards. Additionally, a well-organized and labeled fuse panel makes it easier to identify and troubleshoot electrical issues on your boat.
How to wire a boat fuse panel: Wiring a boat fuse panel requires careful planning and adherence to safety guidelines. The first step is to determine the appropriate location for the fuse panel. It should be easily accessible and away from areas prone to water exposure. Once the location is chosen, the next step is to calculate the total electrical load of the boat and choose an appropriately sized fuse panel. It is important to select a fuse panel that can handle the maximum possible load of your boat to prevent any safety issues.
What is a Boat Fuse Panel and Why is it Important?
When it comes to electrical systems in boats, safety is of utmost importance. A boat fuse panel is an essential component that helps protect the boat’s electrical system from potential short circuits and overloads. It serves as a central hub for all the electrical connections and houses the fuses or circuit breakers that control the flow of electricity throughout the boat.
The boat fuse panel is typically located in a convenient and accessible location, such as the helm or electrical compartment. It is designed to withstand the harsh marine environment and is often constructed with corrosion-resistant materials. The panel is usually labeled and organized, making it easier for boat owners to identify and troubleshoot any electrical issues that may arise.
One of the main reasons why a boat fuse panel is important is that it helps prevent electrical fires. In the event of an electrical fault or overload, the fuses or circuit breakers in the panel will trip or blow, cutting off the flow of electricity and preventing further damage or potential hazards. This not only protects the boat and its occupants but also ensures the longevity and reliability of the electrical system.
Additionally, a boat fuse panel allows for easy customization and expansion of the electrical system. As boats often have various electrical components, such as navigation lights, pumps, and stereo systems, having a centralized panel makes it easier to add new circuits or accessories. This flexibility is especially crucial for boat owners who may want to upgrade or modify their onboard electrical setup.
In summary, a boat fuse panel is a vital component for maintaining the safety and functionality of a boat’s electrical system. It provides protection against electrical faults, allows for easy troubleshooting, and enables customization and expansion of the electrical setup. Investing in a high-quality fuse panel and ensuring proper wiring and installation can help boat owners enjoy their time on the water with peace of mind.
Understanding the Function and Significance
When it comes to wiring a boat fuse panel, it is important to understand the function and significance of this component. The fuse panel serves as a centralized hub for all the electrical circuits on the boat, ensuring their proper functioning and protection. It houses a series of fuses or circuit breakers that act as safety devices, preventing electrical overloads and short circuits from damaging the boat’s electrical system.
The function of the fuse panel: The main function of the fuse panel is to distribute electrical power to different circuits on the boat. It receives power from the boat’s battery or the main power source and distributes it to various devices and systems, such as lighting, navigation equipment, pumps, and accessories. Each circuit is connected to a fuse or circuit breaker, which acts as a protective device. In case of an electrical overload or short circuit, the fuse or circuit breaker will trip, cutting off power to the affected circuit and preventing any damage.
The significance of the fuse panel: The fuse panel is a crucial component in ensuring the safety and reliability of the boat’s electrical system. By having a centralized location for all the fuses and circuit breakers, it becomes easier to manage and troubleshoot any electrical issues. The fuse panel also allows for neat and organized wiring, preventing wire clutter and reducing the risk of accidental damage or shorts. Additionally, the fuse panel typically includes labels or diagrams that indicate the different circuits and their corresponding fuses or circuit breakers, making it easier to identify and replace any blown fuses.
- Proper installation: To fully utilize the function and significance of the fuse panel, it is important to ensure proper installation. This includes selecting an appropriate location for the panel, preferably in a dry and easily accessible area. The wiring should be done following the manufacturer’s instructions and using the correct gauge wires for the different circuits. It is also important to regularly check and test the fuses or circuit breakers to ensure they are in working condition. Any damaged or blown fuses should be replaced immediately.
- Maintenance and troubleshooting: Regular maintenance of the fuse panel is essential for the continued reliability of the boat’s electrical system. This includes inspecting the wiring for any signs of wear or damage, cleaning any corrosion or debris from the fuses or circuit breakers, and ensuring all connections are secure. In case of any electrical issues on the boat, such as a malfunctioning device or a circuit not receiving power, the fuse panel should be one of the first areas to check for any faults or blown fuses.
In conclusion, understanding the function and significance of a boat fuse panel is crucial for the safety and reliability of the boat’s electrical system. It acts as a centralized hub for distributing power to different circuits and protecting them from electrical overloads. Proper installation, maintenance, and troubleshooting of the fuse panel are essential to ensure its optimal performance and prevent any electrical issues on the boat.
How to Wire a Boat Fuse Panel Step by Step
Wiring a boat fuse panel is an important task that ensures the safety and functionality of the electrical system on your boat. A properly wired fuse panel protects your boat’s electrical components from damage caused by overloading or short circuits. Here is a step-by-step guide on how to wire a boat fuse panel.
Step 1: Gather the necessary materials
- A boat fuse panel
- Marine-grade wire (sized appropriately for the electrical load)
- Fuse holders and fuses
- Wire connectors
- Wire stripping and crimping tools
- Heat shrink tubing (optional, for added protection)
Step 2: Determine the location of the fuse panel
Choose a location on your boat that is easily accessible and away from sources of moisture or excessive heat. Ensure that the chosen location allows for proper ventilation and does not obstruct any other boat components or access points.
Step 3: Mount the fuse panel
Secure the fuse panel to the chosen location using appropriate screws or mounting hardware. Make sure it is securely attached and will not move or vibrate while the boat is in motion. Consider using rubber or foam pads to dampen vibrations and reduce the risk of damage to the fuse panel.
Step 4: Connect the power source
Identify the main power source for the boat’s electrical system, such as the battery. Connect one end of a marine-grade wire to the positive terminal of the power source and the other end to the positive input terminal of the fuse panel. Repeat the same process for the negative terminal of the power source, connecting it to the negative input terminal of the fuse panel.

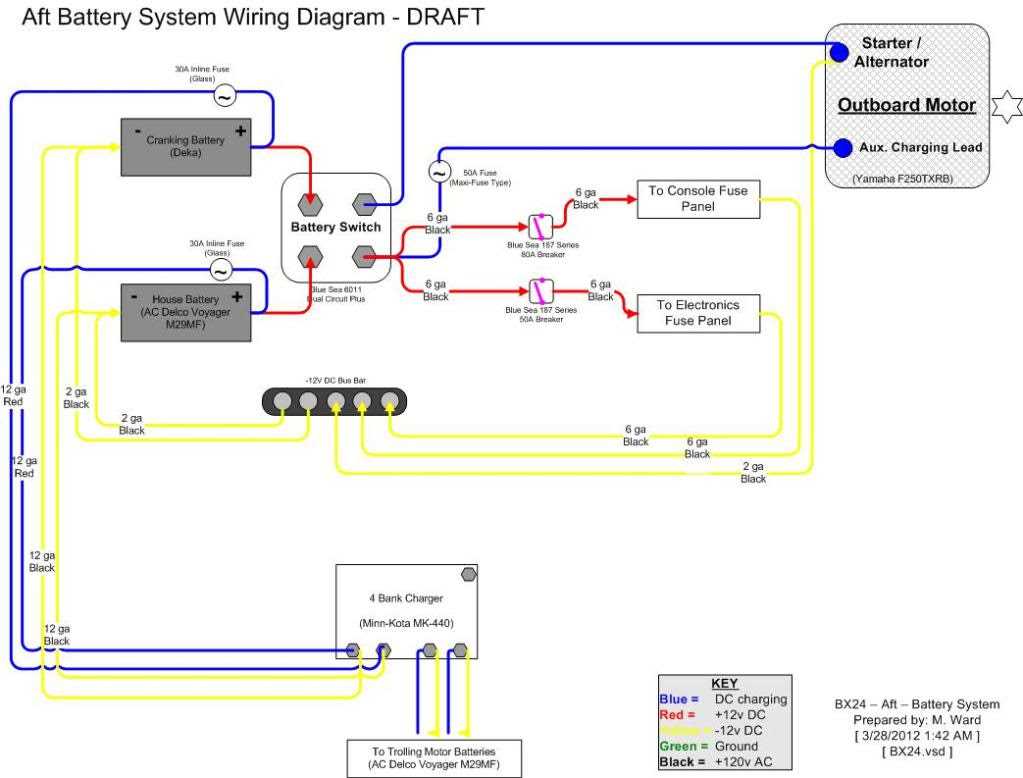

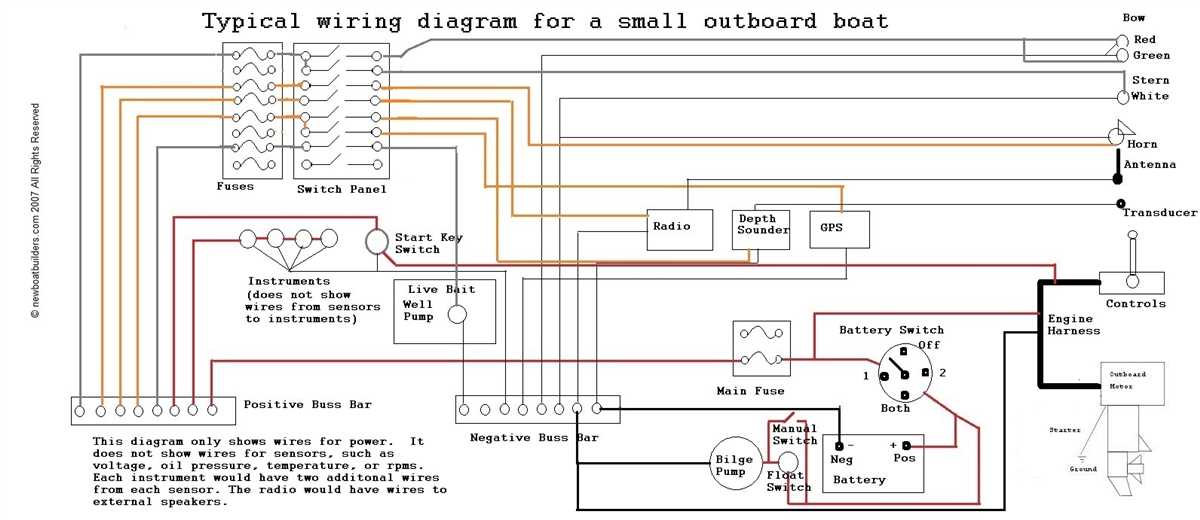

Step 5: Wire the individual circuits
Using marine-grade wire, connect each electrical component or circuit to the appropriate output terminal on the fuse panel. Strip the wire ends, insert them into the appropriate wire connectors, and crimp them securely. Make sure that the wires are properly sized for the electrical load and that they are connected to the correct terminals on the fuse panel.
Step 6: Install fuse holders and fuses
Install a fuse holder and fuse on each individual circuit. The fuse size should be appropriate for the electrical load of the component or circuit it is protecting. Insert the fuse into the fuse holder and make sure it is securely seated. This will provide protection against overloading and short circuits.
Step 7: Test the electrical system
Before closing up the fuse panel, double-check all connections and make sure everything is properly wired. Once you are confident in your wiring, turn on the boat’s electrical system and test each individual circuit to ensure everything is functioning correctly. If any issues are detected, troubleshoot and make necessary adjustments.
Following these steps will help you wire a boat fuse panel properly and ensure the safety and functionality of your boat’s electrical system. If you are unsure or uncomfortable with electrical work, it is always recommended to seek professional assistance to ensure the job is done correctly.
A Comprehensive Guide to Proper Wiring
Proper wiring is essential for the safe operation of any electrical system, especially in a boat. Whether you are installing a new fuse panel or conducting repairs and upgrades, following the correct wiring practices is crucial. This comprehensive guide will provide you with the necessary information to ensure your boat’s electrical system is wired properly.

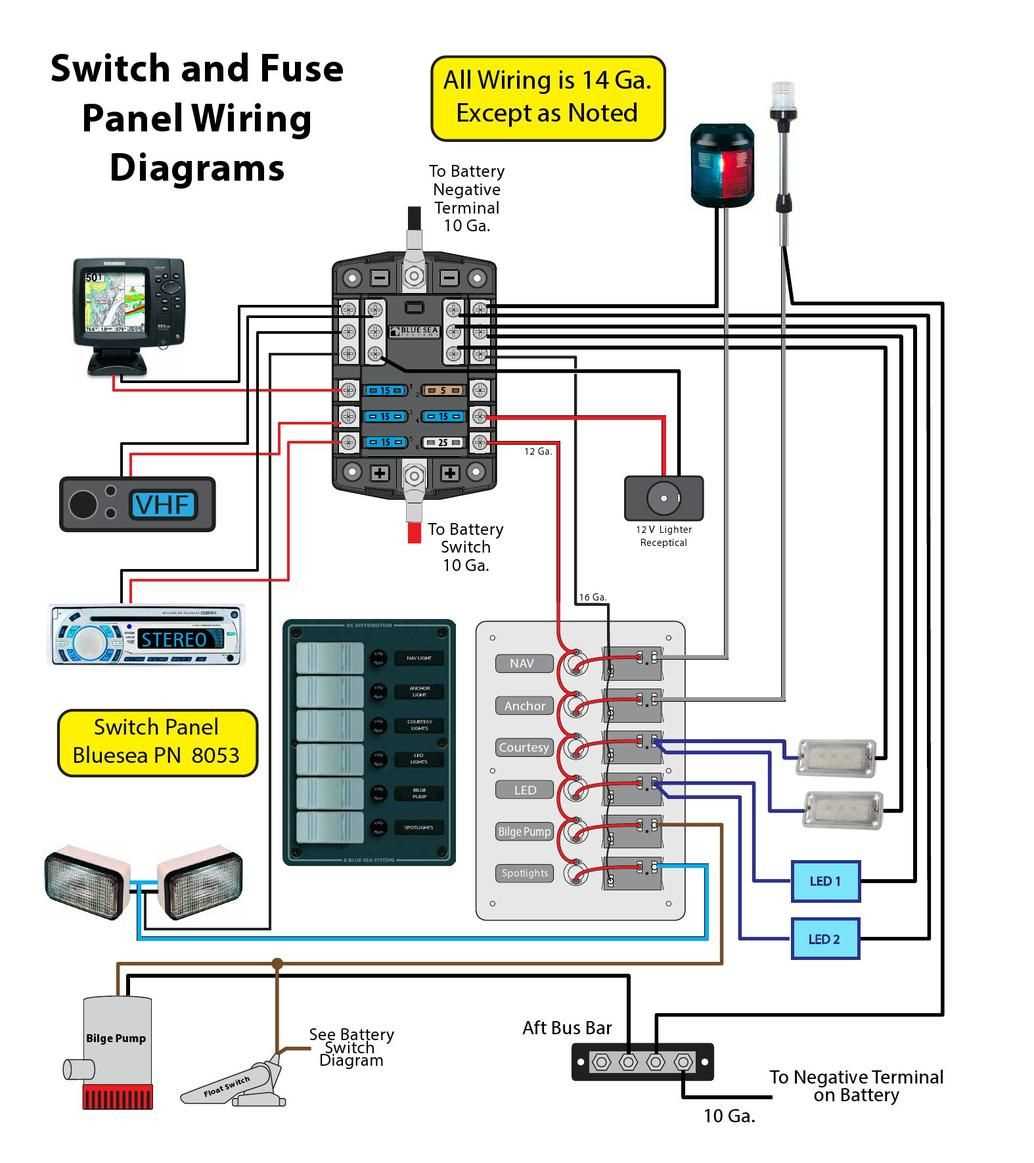

1. Plan Your Wiring System
Before starting any wiring project, it is crucial to carefully plan your electrical system. Identify the different components that require power, such as lights, pumps, and instruments, and determine their positions on the boat. This will help you determine the length and routing of the wires, as well as the size of the fuse panel you need. Additionally, make sure to consider the voltage and amperage requirements of each component to select the appropriate wire size.
2. Gather the Right Tools and Materials
- Wire strippers
- Crimping tool
- Marine-grade wires
- Fuse panel
- Fuses
- Heat shrink tubing
Having the right tools and materials is essential for a successful wiring project. Make sure to use marine-grade wires, which are specifically designed to withstand the harsh marine environment. Additionally, investing in a good crimping tool and wire strippers will make the process much easier and ensure secure connections. Don’t forget to choose a fuse panel that suits your needs and install the appropriate fuses for each circuit.
3. Follow Wiring Standards and Best Practices
When wiring your boat’s electrical system, it is essential to follow wiring standards and best practices. These include:
- Using the correct wire size for each circuit based on its amperage requirements
- Properly securing and protecting the wires to prevent chafing and exposure to moisture
- Using heat shrink tubing or electrical tape to insulate and protect the connections
- Labeling each wire and connection for easy identification and troubleshooting
By following these standards and best practices, you can ensure a reliable and safe electrical system on your boat.
4. Test and Inspect the Wiring
After completing the wiring project, it is crucial to thoroughly test and inspect the wiring before putting it into operation. Use a multimeter to check for proper voltage and continuity in each circuit. Inspect all connections for tightness and secure any loose ones. Additionally, test all components and systems to ensure they are functioning correctly. Taking the time to test and inspect the wiring will help identify and resolve any issues before they become a problem.
By following these guidelines and taking the necessary precautions, you can ensure proper wiring in your boat’s electrical system. It is always recommended to consult an experienced electrician or marine technician if you are unsure about any aspect of the wiring process. Remember, safety is paramount when working with electricity, so take the necessary time and care to ensure your boat’s electrical system is wired properly.
Tips for Maintaining and Troubleshooting a Boat Fuse Panel
A boat fuse panel is an essential component of the electrical system, ensuring the safety and proper functioning of various devices and circuits on board. To maintain your boat fuse panel and troubleshoot any issues that may arise, consider the following tips:
Maintaining Your Boat Fuse Panel:
- Regular Inspection: Periodically inspect the fuse panel for any signs of damage or corrosion. Make sure all connections are secure and free of debris. Replace any damaged fuses or terminals.
- Proper Wiring: Ensure that all wiring connections are properly secured and insulated. Use marine-grade wires and connectors to prevent corrosion and enhance durability.
- Cleanliness: Keep the fuse panel and its surroundings clean and free of dirt, dust, or moisture. Regularly clean the terminals and contacts to maintain good conductivity.
- Labeling: Clearly label each fuse and circuit to facilitate identification and troubleshooting in case of a problem. This will save time and effort in locating the faulty circuit.
Troubleshooting Your Boat Fuse Panel:
- Check for Power: If a circuit or device is not functioning, first check if there is power reaching the fuse panel. Use a multimeter or test light to test for voltage at the fuse terminals.
- Fuse Inspection: Check each fuse for continuity using a multimeter or a test light. Replace any blown fuses with the correct rating to avoid overloading the circuit.
- Follow a Systematic Approach: If multiple devices or circuits are not working, start troubleshooting from the source and work your way to the affected circuits. Check the battery, main fuse, and connections before narrowing down the issue.
- Consult the Manual: Refer to the boat’s manual or wiring diagram to identify the correct fuse for each device and circuit. This will help you locate the problem more accurately.
- Seek Professional Help: If you are unable to troubleshoot or repair the boat fuse panel on your own, it is advisable to seek professional assistance from a qualified marine electrician.
By regularly maintaining and troubleshooting your boat fuse panel, you can ensure the proper functioning of the electrical system and avoid potential issues while out on the water. Taking the time to inspect and repair any problems will provide peace of mind and enhance the safety of your boating experience.
