Choosing the Right Wire Size for a 60 Amp Disconnect: A Comprehensive Guide

When it comes to electrical installations, proper wire sizing is crucial for safety and efficiency. One important aspect of wire sizing is determining the appropriate wire size for a 60 amp disconnect.

A 60 amp disconnect is a component of an electrical system that is designed to disconnect power in case of an overload or other electrical issues. The wire size for a 60 amp disconnect is determined by several factors, including the electrical load, the distance of the wire run, and the insulation type.

The National Electrical Code (NEC) provides guidelines for wire sizing based on these factors. For a 60 amp disconnect, the NEC recommends a wire size of at least 6 AWG (American Wire Gauge) copper or 4 AWG aluminum. This wire size allows for adequate capacity to carry the current without significant voltage drop.

It is important to remember that wire size is not only determined by the ampacity of the disconnect but also by the ampacity of the connected equipment. If the equipment connected to the disconnect has a lower ampacity, a smaller wire size may be acceptable.

In addition to wire size, it is also crucial to consider other factors, such as voltage drop and temperature rating. Voltage drop can affect the performance of electrical devices, and it is recommended to keep it below 3% for optimal efficiency. Temperature rating is important for ensuring that the wire can handle the heat generated by the current flow.

In conclusion, proper wire sizing for a 60 amp disconnect is essential for safe and efficient operation of an electrical system. Following the guidelines provided by the NEC, using the appropriate wire size based on the electrical load, distance, and insulation type will help ensure the proper functioning of the disconnect and connected equipment.

Understanding the 60 amp disconnect

A 60 amp disconnect is an electrical device used to safely disconnect power from a circuit in residential or commercial settings. It is typically installed between the main electrical panel and a specific appliance or area of the building. Understanding the purpose and requirements for a 60 amp disconnect is important for ensuring the safety and efficiency of the electrical system.

The 60 amp rating of the disconnect refers to the maximum amount of current that it can safely handle. This means that the disconnect should be connected to a circuit that has a maximum load of 60 amps or less. It is important to size the wire appropriately to handle this level of current. Using wires that are too small can result in overheating and potentially cause a fire.

When selecting the wire size for a 60 amp disconnect, it is important to consult the National Electrical Code (NEC) and local regulations. The NEC provides guidelines for the minimum wire size based on the maximum current, length of the wire run, and the type of wire being used. Copper wire is commonly used for 60 amp disconnects due to its high conductivity and ability to handle higher temperatures.

• Wire size: The recommended wire size for a 60 amp disconnect is typically 6 AWG (American Wire Gauge) for copper wire or 4 AWG for aluminum wire. This size ensures that the wire can handle the maximum current without overheating.
• Conduit size: The size of the conduit used to protect the wire should also be considered. It should be large enough to accommodate the wire size and provide adequate ventilation to prevent overheating.
• Installation: Proper installation of the 60 amp disconnect is crucial for its safe and effective operation. It should be mounted in a location that is easily accessible and clearly labeled for identification.

Overall, understanding the requirements for a 60 amp disconnect is essential for ensuring the safety and reliability of the electrical system. Consulting the NEC, following local regulations, and using the appropriate wire size will help to prevent electrical hazards and ensure the smooth operation of the connected appliances or areas.

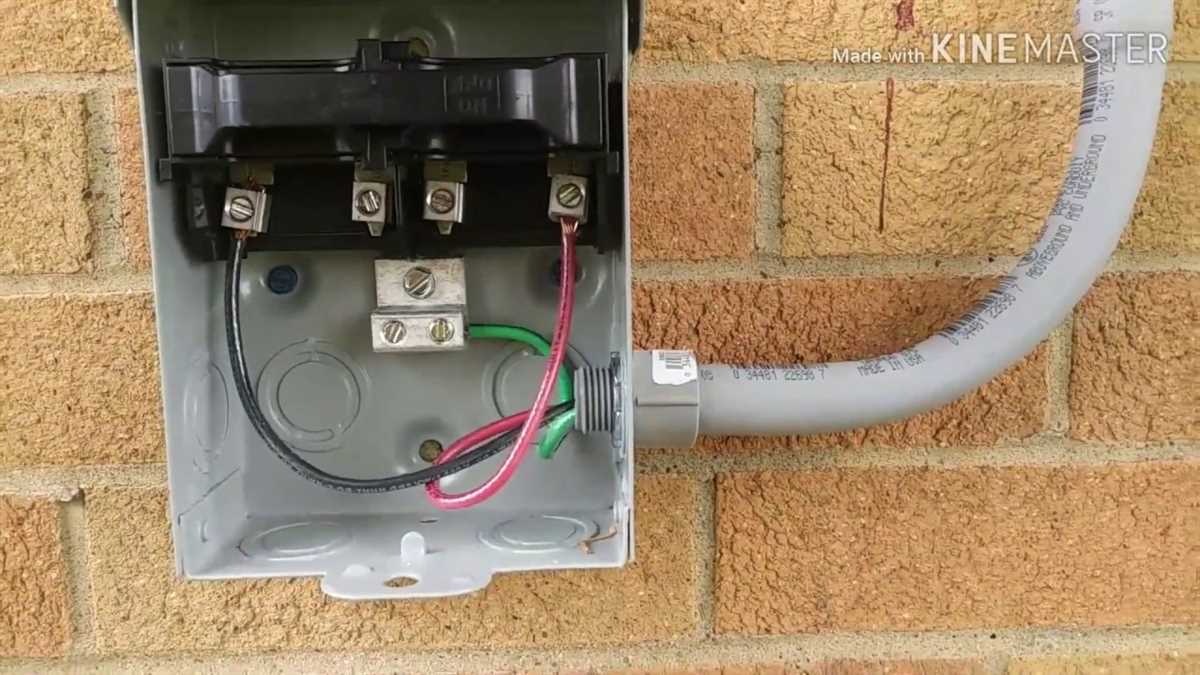

Choosing the Right Wire Size

Choosing the right wire size is crucial when installing a 60 amp disconnect. The wire size determines the amount of current that can safely flow through it, and using the wrong size can result in overheating and potential fire hazards. Here are some important considerations to keep in mind:

1. Ampacity: The wire size should be able to handle the maximum current that will be drawn through it. For a 60 amp disconnect, the wire should have an ampacity rating of at least 60 amps. It is recommended to choose a wire size with a higher ampacity rating to allow for any future upgrades or changes in usage.

2. Voltage Drop: Consider the length of the wire run and the desired voltage drop. Longer wire runs will have higher resistance, which can result in a higher voltage drop. It is important to choose a wire size that will minimize voltage drop to ensure efficient and reliable operation of the electrical system.

3. Wire Type: Different wire types have different ampacity ratings and temperature ratings. Make sure to choose a wire type that is suitable for the specific application and environment. Consult local electrical codes and regulations to ensure compliance.

4. Insulation Type: The insulation type should match the wire type and be suitable for the specific installation. Insulation protects the wire from damage and should be able to withstand the operating temperature and environmental conditions.

Overall, choosing the right wire size involves considering the ampacity, voltage drop, wire type, and insulation type. It is recommended to consult with a qualified electrician or refer to the National Electrical Code (NEC) and local electrical codes for specific requirements and guidelines. By selecting the appropriate wire size, you can ensure safe and efficient electrical installations.
