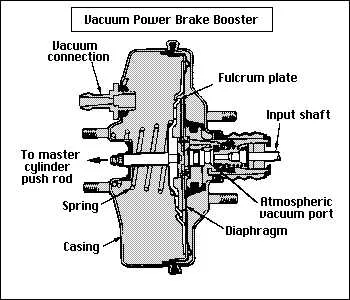

Detailed Diagram of Vacuum Brake Booster Components and Functions

When designing or diagnosing a stopping assistance system, knowing the precise layout of components is crucial for both effective performance and safety. The interaction between the primary actuator and auxiliary mechanisms plays a key role in ensuring the system operates efficiently under varying conditions. Focusing on the mechanical links and their alignment ensures that force transfer occurs smoothly, leading to a reliable response when needed most.

Identifying Key Parts in the system, such as the diaphragm housing, control valve, and intake connection, is essential. These elements work together to amplify force exerted on the main mechanism, ensuring that even minimal pressure applied by the operator results in the desired effect. Improper setup or a breakdown in any part of this chain can lead to significant reductions in effectiveness.

Precise Mapping of the system’s internal pressure circuits reveals how atmospheric air assists in enhancing the mechanical movement within the actuator. Maintaining correct air intake pathways and ensuring that they are free from leaks are fundamental steps in prolonging the lifespan of the entire assembly and optimizing responsiveness.

Regular checks and understanding of the component layout allow for quicker diagnosis in case of malfunction. For those working on repairs or installation, a clear understanding of how these interconnected parts operate ensures that corrective actions can be taken swiftly without compromising system integrity.

Understanding the System Layout

For efficient operation, ensure that the master cylinder is connected securely to the force multiplier unit. This is critical for the smooth transfer of pressure. The input and output valves must be sealed properly to avoid leakage and ensure the system works without any air infiltration.

• The primary function of this component is to amplify the force applied on the pedal by the driver, converting it into sufficient pressure for the braking mechanism.
• Check the connection points regularly to ensure there is no wear or rust, as these can lead to malfunction.
• The diaphragm and sealing components should be inspected frequently for any tears or signs of degradation, which can compromise system efficiency.

Ensure the air intake valve is clean and unobstructed to allow smooth operation. The vacuum source must provide a steady flow of air to maintain consistent performance. Any interruption in airflow can result in reduced responsiveness when applying the brakes.

• The control valve linked to this mechanism should be free of any debris or residue that could cause blockages.
• Periodic testing of the pedal force required to engage the system should be carried out to verify optimal sensitivity and response times.
• After checking the entire system, make sure all hoses and connections are secured tightly to avoid leaks that could affect the overall functionality.

Key Components of a Vacuum Brake Booster System

The primary elements of this system are the servo mechanism, vacuum chamber, diaphragm, and check valve. The servo mechanism serves as the main unit for amplifying the force applied to the pedal. It works in conjunction with the vacuum chamber, which ensures the necessary pressure is maintained for proper operation.

The diaphragm acts as a barrier between the vacuum chamber and the atmosphere, enabling the controlled movement of the servo mechanism. Its durability is crucial for maintaining system performance. Meanwhile, the check valve ensures the vacuum pressure remains constant by preventing air from escaping the chamber, even when the engine is not running.

Regular inspection of these components is essential for the system’s reliability. A malfunctioning diaphragm or check valve can lead to decreased performance, requiring more pedal force and causing strain on the user. It’s recommended to replace worn-out parts immediately to prevent further issues.

Common Issues and Troubleshooting in Vacuum Brake Booster Circuits

If the vehicle experiences a decrease in pedal response or increased effort, the most common cause is air leaks in the system. Inspect all hoses for cracks or disconnections, particularly those connecting to the engine’s intake. Replace any damaged components immediately to restore normal operation.

Another frequent issue is a malfunctioning check valve. This valve prevents the loss of pressure needed for the system to operate correctly. If you notice inconsistent braking or a hissing noise when the pedal is pressed, test the valve by disconnecting it from the system. A faulty valve will need replacement to maintain optimal pressure retention.

A faulty master cylinder can also cause inconsistent braking force, often linked to internal leakage. Check for signs of fluid around the master cylinder and ensure the piston is functioning correctly. If the system is losing fluid, inspect the seals for wear or damage and replace as necessary.

In cases where the pedal feels excessively hard, it may be a result of insufficient air supply to the mechanism. This can be caused by a blocked or restricted hose or valve. Perform a thorough inspection of all connections to ensure proper airflow and clear any obstructions that may impede the vacuum flow.

Lastly, ensure that the engine’s vacuum source is functioning properly. A failing engine vacuum pump or an issue with the intake manifold can significantly reduce the performance of the system. Check for any signs of engine performance issues that could be linked to a vacuum leak or a malfunctioning pump.

Steps to Properly Interpret a Vacuum Brake Booster Diagram

Start by identifying the vacuum source. This is typically connected to the engine’s intake manifold. Look for the intake line’s connection to the central unit, which should show a valve regulating air flow. Verify that all the lines leading to the primary chamber are intact and not leaking.

Next, examine the control valve system. The valve typically operates under different pressure levels, allowing air to move freely within the unit when the pedal is pressed. Check for the presence of a one-way valve that prevents backflow, ensuring the pressure remains consistent during operation.

Study the connection points of the pushrod. The pushrod is crucial for transferring force from the pedal to the main piston. Ensure that it aligns with the master cylinder, allowing fluid flow through the lines when engaged. Misalignment could lead to inefficient force transfer.

Pay attention to the diaphragm and its mounting. The diaphragm acts as a barrier to separate the chambers inside the unit. It should be properly sealed and show no signs of wear or deformation, which would affect the unit’s overall performance.

Lastly, inspect any actuators that control air flow. These components usually interact with sensors to adjust the vacuum within the system. Confirm that these sensors are in good working condition and that there is no blockage in the actuator’s path, as this could impair the system’s responsiveness.
