Three Way Lighting Circuit Diagram and Wiring Configuration Guide

three way lighting circuit diagram

If you need to control a single light fixture from two different locations, this method offers a straightforward solution. By wiring two separate switches to the same bulb, you can turn the light on or off regardless of your position in the room or hallway. This configuration is particularly useful for large rooms or stairways.

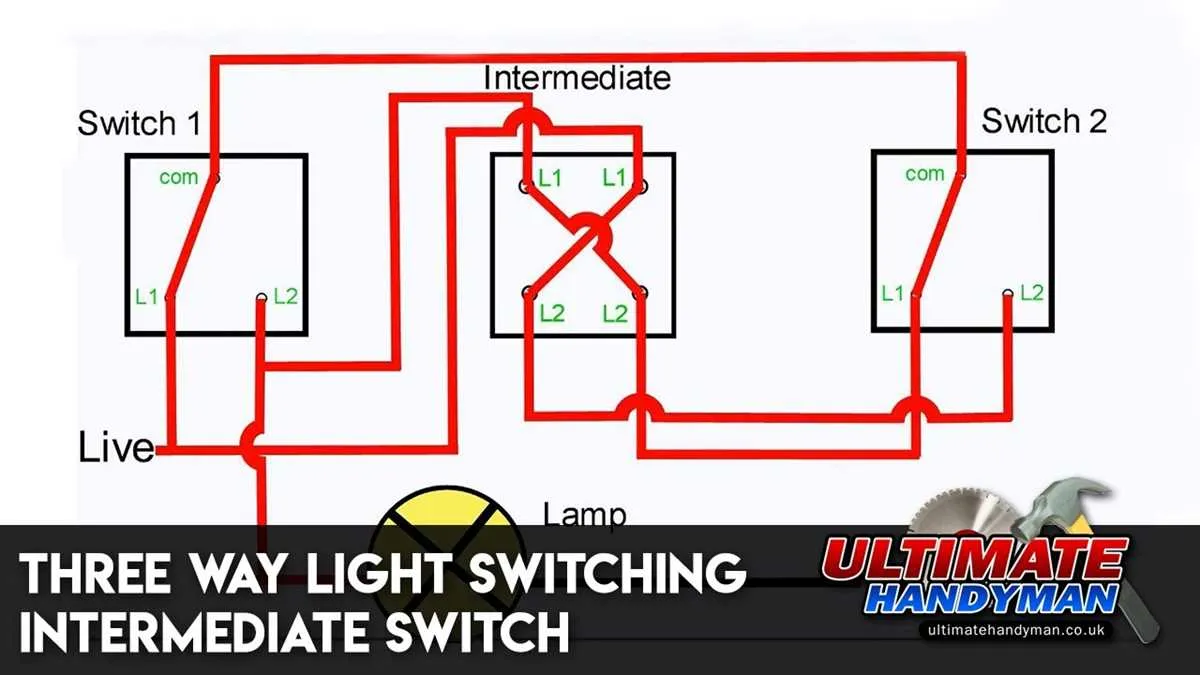

Ensure that you use a compatible switch type designed to handle dual switch points. Properly identifying the terminals on each switch is crucial, as connecting the wrong ones will result in malfunction. A typical setup involves two intermediate switches that interact with the light’s live wire, allowing you to alternate its state from multiple points.

Start by connecting the power source to the first switch, then run wires to the second switch, and finally to the light. Make sure to keep a consistent wiring pattern to maintain the system’s reliability. The inclusion of traveler wires between the switches allows for seamless control, while a common terminal serves as the reference for both switches.

By following these basic steps, you’ll achieve full control over your lighting, enhancing both the functionality and convenience of your living space.

Optimal Wiring Setup for Controlling a Single Lamp from Multiple Locations

three way lighting circuit diagram

To create an efficient system for controlling one light fixture from two different switches, it’s essential to use a system that includes two-way control. This setup allows you to control the same bulb from different points in a room or across a hallway, enhancing convenience and functionality.

Key Components: The setup requires two special switches–called reversing switches–and a compatible bulb holder. Each switch is equipped with a specific terminal configuration to alternate the flow of electricity, enabling control over the lamp’s state.

Wiring Connections: Start by connecting the power source to the common terminal of the first switch. Then, run a wire to the common terminal of the second switch. In between, connect the travelers to both switches, ensuring proper polarity for consistent performance. The bulb socket is then connected to the load terminal of the second switch.

Testing the Setup: After completing the wiring, test the system by flipping the switches at both locations. The bulb should toggle on and off correctly, regardless of which switch is used. Ensure all connections are secure and that no wires are exposed.

For best results, use quality materials and adhere to electrical safety standards. This configuration is widely used in home and office environments where multiple access points to control a light are needed.

Wiring Connections for a Multi-Switch Setup

three way lighting circuit diagram

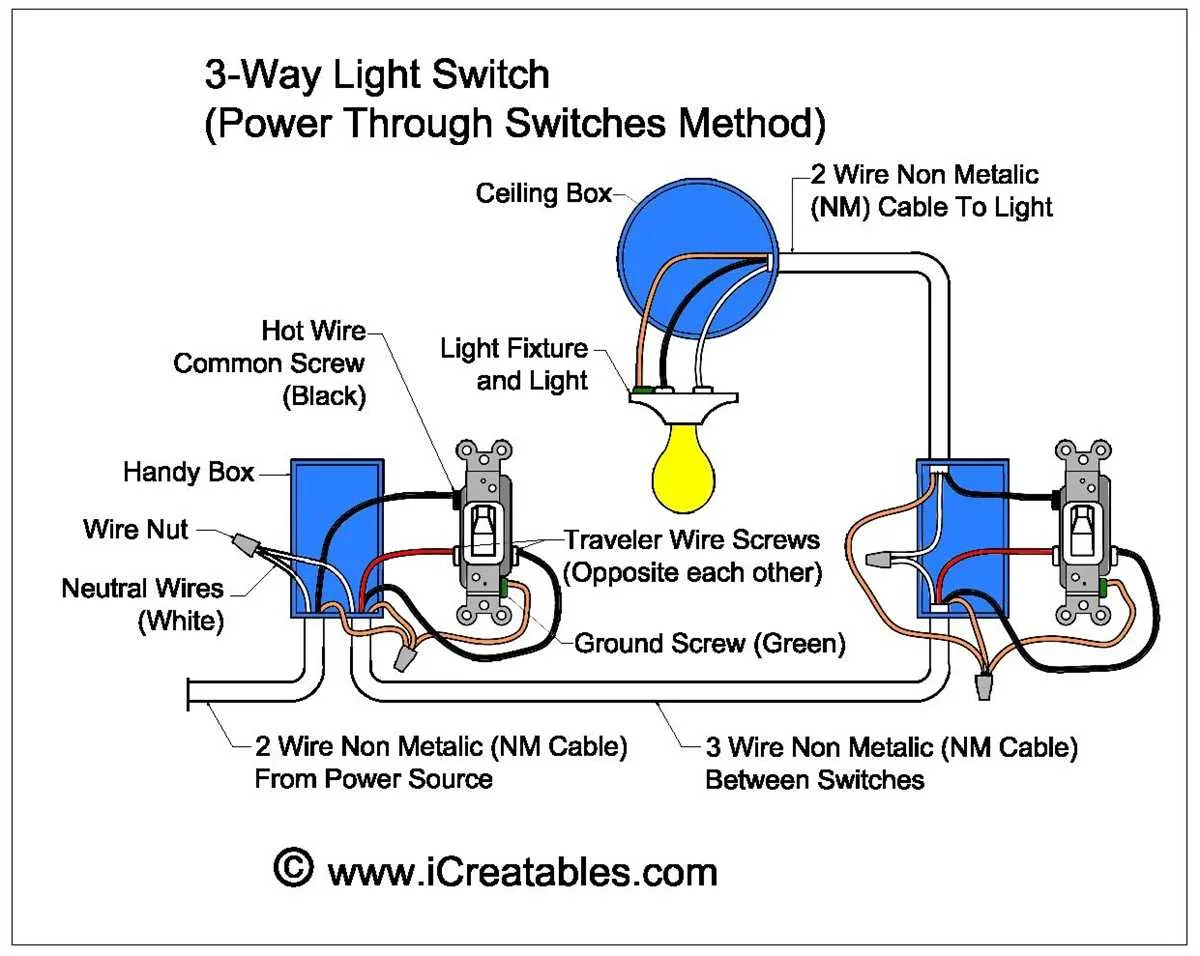

To properly wire a dual-control switch system, ensure the common terminal of the first switch connects to the incoming power supply. The traveler terminals on this switch will then connect to the corresponding terminals on the second switch. For the second switch, the common terminal should be linked to the load (light fixture), while the traveler terminals connect back to the first switch’s traveler terminals. Use a 14/3 or 12/3 cable, which includes a ground wire, to maintain proper connections between the switches and avoid potential hazards.

Ensure all connections are secure, with no exposed copper, and confirm proper grounding for both switches. The black (hot) wire carries current, while the red and white wires are used for the traveler connections. The white wire may need to be marked with black tape to indicate its function as a traveler wire, rather than neutral.

Verify that all wiring is up to code by checking your local electrical standards. Properly functioning connections should allow the switch system to control the light from two different locations with no flickering or malfunctions.

Common Issues and Troubleshooting in Multi-Location Switching Systems

three way lighting circuit diagram

Start by checking for faulty connections at the switch boxes. Loose or corroded terminals can cause intermittent behavior. Ensure all connections are tight and free from rust or wear.

  • Problem: Light stays on/off regardless of switch position
  • This is often caused by improper wiring or a failed switch. Verify that the traveler wires are connected correctly between switches. If the wiring is intact, consider replacing the switch with a new one to rule out mechanical failure.

  • Problem: Switches do not control the light simultaneously
  • This issue can arise from incorrect wire placement at one or both switches. Double-check the positioning of the common terminal and traveler wires on each switch. If necessary, rewire the connections to ensure proper functionality.

  • Problem: Flickering light when switching
  • Flickering may occur due to loose wire connections or a damaged switch. Inspect each connection carefully and tighten any that are loose. If flickering persists, replacing the switch may be the most effective solution.

To troubleshoot more complex issues, test the continuity of each wire with a multimeter to ensure they are properly connected. Also, verify the integrity of the power supply to avoid interruptions in the flow.

Understanding the Role of the Traveler Wires in Multi-Switch Systems

Traveler wires are essential in ensuring seamless control over a fixture from two different points. These conductors allow current to travel between two switches, enabling users to operate the connected device from multiple locations. Without proper implementation of traveler wires, users would be limited to controlling the fixture from a single switch, defeating the purpose of the setup.

Each traveler wire is connected to a switch, and when toggled, it sends a signal to the corresponding switch to either complete or break the circuit, thus controlling the flow of electricity. These wires are typically installed alongside the common wire, which is responsible for carrying the power into the system. It’s important to ensure that these conductors are appropriately wired, as improper connections can lead to malfunction or even electrical hazards.

To achieve reliable performance, pay attention to wire color codes and ensure that each traveler is linked to the correct terminal on each switch. Properly installed traveler wires not only offer flexibility in controlling the fixture but also contribute to the safety and longevity of the overall electrical system.
