Detailed Diagram and Explanation of Tandem Axle Trailer Suspension Components and Function

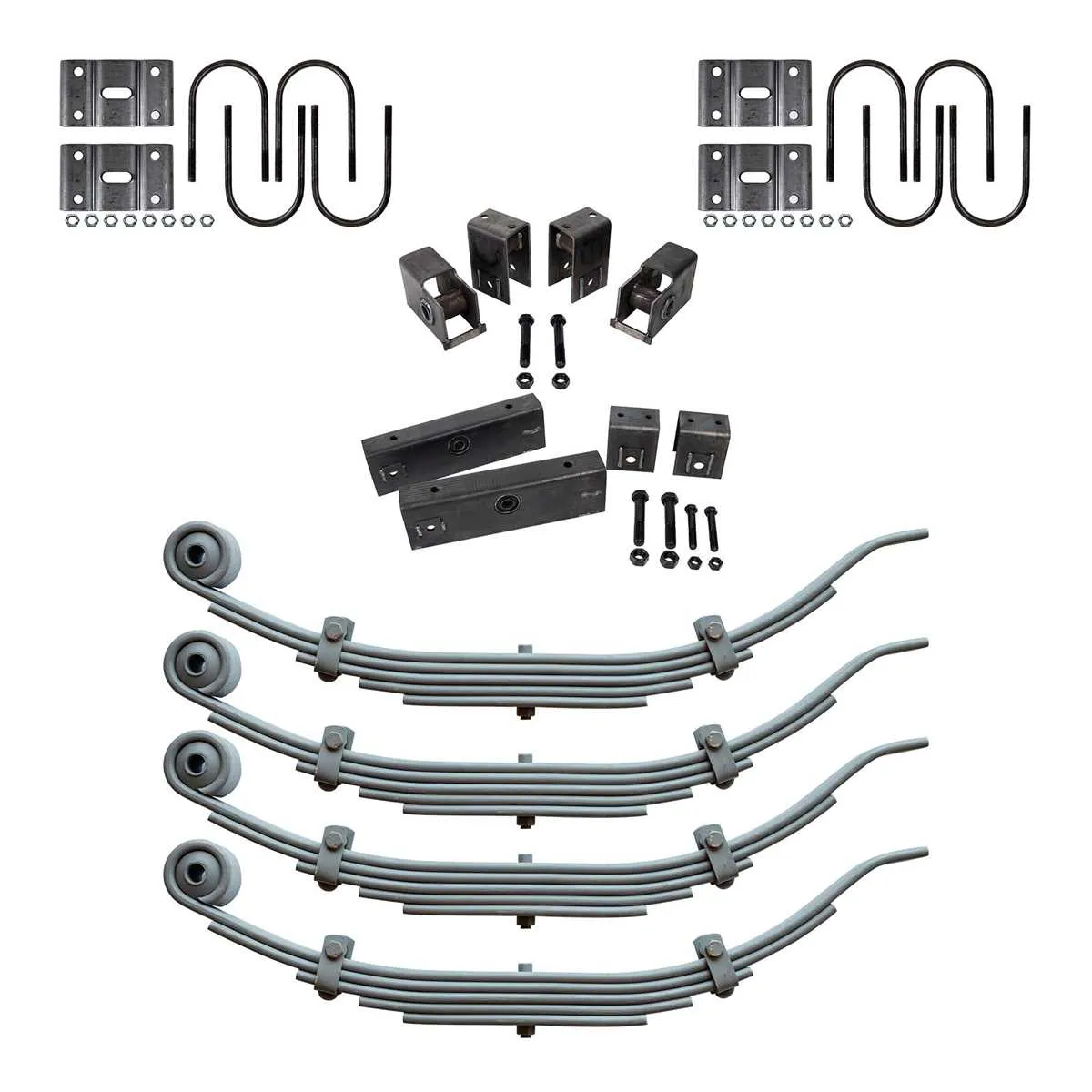

tandem axle trailer suspension diagram

To ensure maximum stability and load distribution, position the leaf springs parallel to the chassis frame rails with equal spacing between each support point. Use reinforced hangers and shackle assemblies rated for at least 20% above the gross vehicle weight for durability under heavy loads.

Key components include heavy-duty equalizers to balance forces across the two rolling units, minimizing uneven tire wear and improving road handling. Proper alignment of pivot points reduces stress on the framework and extends the lifespan of flexible mounting elements.

Precision in assembly is critical: torque all fasteners to manufacturer specifications and inspect bushings regularly for signs of fatigue or deformation. Integrating shock absorbers calibrated for load capacity further enhances ride quality and reduces vibration transmission to the cargo bed.

Dual-Wheel Carriage Support System Layout

For optimal load distribution and stability, use a leaf spring setup connecting two parallel wheel assemblies via a shared frame bracket. Position the springs with a slight arch to allow controlled flex under weight. Attachments must include U-bolts securing the springs to the wheel hubs, ensuring minimal lateral movement.

Integrate shock absorbers mounted near the inner side of the wheel mounts to reduce oscillations during transit. Use grease fittings on pivot points to maintain smooth articulation and prevent premature wear. Ensure equal spacing between wheel units for balanced weight support and consistent road contact.

Utilize a cross member beam with reinforced welding at connection points to enhance structural integrity. For increased durability, choose high-tensile steel components treated with corrosion-resistant coatings. Regularly inspect bushings at hinge locations for signs of cracking or deformation to maintain suspension responsiveness.

Identifying Key Components in a Dual-Wheel Chassis Support System

Focus on these critical parts to understand the structural and functional layout effectively:

  • Leaf Springs: Multi-layered steel strips designed to absorb shocks and maintain load stability across the frame.
  • Equalizer Beam: A pivoting bar that balances the load between two adjacent wheel assemblies, ensuring even weight distribution and smoother handling.
  • Shackles and Hangers: Connectors that attach the spring pack to the frame, allowing necessary movement and flexibility.
  • Axle Housing: The cylindrical casing that encases and protects the rotating shafts linking the wheels to the drivetrain.
  • U-Bolts: Fasteners that secure the leaf spring assembly firmly to the axle housing, preventing unwanted displacement.
  • Shock Absorbers: Hydraulic or gas-filled dampers installed near the wheels to reduce rebound and oscillations from rough terrain.
  • Frame Rails: Main longitudinal beams that support the entire chassis, providing attachment points for all suspension components.

Recognizing these elements in technical sketches or engineering schematics aids in troubleshooting mechanical issues and optimizing load management.

Interpreting Load Distribution and Spring Placement

Ensure even weight distribution to avoid excess stress on specific components. Positioning springs at appropriate points directly influences how weight is spread across the unit, reducing wear and preventing damage. The load should be evenly distributed between the front and rear, maintaining balance for better stability and performance.

Spring placement significantly impacts the handling of the unit. Ideally, place the springs closer to the center of the structure to achieve optimal force balance. If they are positioned too far apart, the unit can become prone to instability, particularly under uneven loads.

Measure load centers before making any adjustments to the suspension system. Ensure the primary load-bearing points align with the midpoint of the supporting structure to achieve uniform weight distribution. This reduces the likelihood of overloading specific sections, thereby enhancing durability and longevity.

Spring stiffness should be matched to the anticipated load. Overly stiff springs can cause an uncomfortable ride and poor performance, while under-stiff springs may lead to excessive sagging and loss of control. Proper spring selection based on the weight carried will provide the best handling and reliability.

Weight shift can occur when the load is improperly placed, causing unnecessary strain on one end. To prevent this, place heavier items toward the center and lighter items toward the edges. This balance ensures that the load remains stable during transport.

Diagnosing Common Suspension Issues Using the Diagram

Start by visually inspecting the load-bearing system for uneven wear on components like springs and shock absorbers. If you notice one side sagging lower than the other, it could indicate a malfunction in the spring or its attachment points. Check the alignment of all parts, as any misalignment can lead to an uneven distribution of weight and cause further damage.

Excessive Bounce: If the system is overly bouncy when driving, it suggests that the dampers are failing. The dampers should prevent any excessive movement. Look for signs of fluid leakage or physical damage to the shock units as these are key indicators of malfunction.

Unusual Noise: Any clunking or rattling sounds when the vehicle is in motion can be a sign of worn-out bushings or loose connections in the framework. Pay particular attention to areas where metal parts meet, as this is a common wear point.

Uneven Tire Wear: Check the tire treads for signs of uneven wear. This can often be traced back to misalignment in the load-bearing system, leading to improper contact with the ground. Consistent wear patterns should be maintained for optimal performance.

Corrosion: Inspect the metal parts for rust or corrosion, especially in areas exposed to moisture. Corrosion weakens components and accelerates wear, leading to potential failure if not addressed.

By focusing on these key areas, you can identify and address issues early, preventing more costly repairs in the future. Regular inspection based on these observations will significantly extend the lifespan of the entire system.
