Stratocaster Wiring Diagrams for Different Pickup Configurations and Series

To achieve a broader range of sounds on your electric instrument, modifying the circuit configuration can make a significant difference. One common modification is the inclusion of an extra switch or a unique wiring pattern to change the role of pickups, improving tonal flexibility. This can allow you to blend sounds that are typically unavailable with standard setups, making your instrument more adaptable to various playing styles.

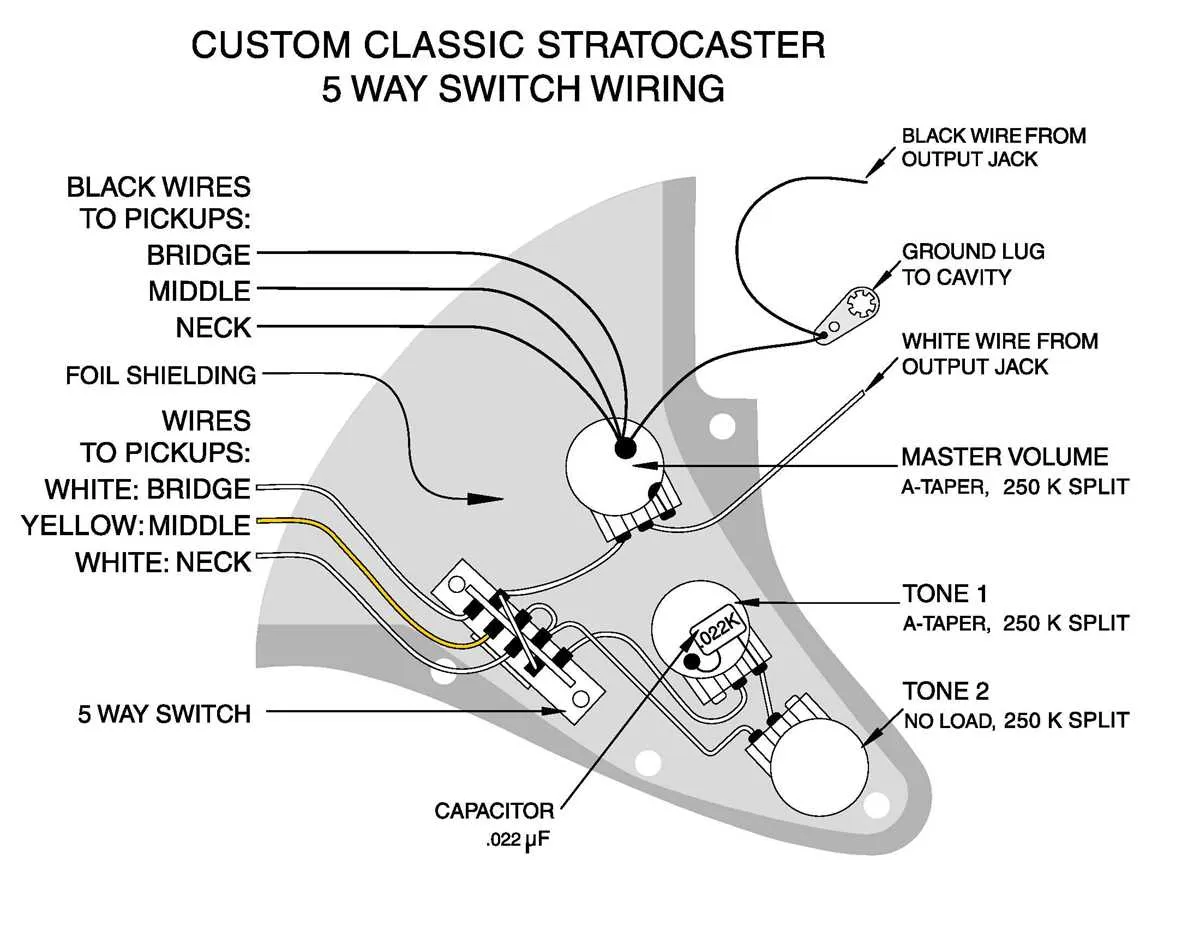

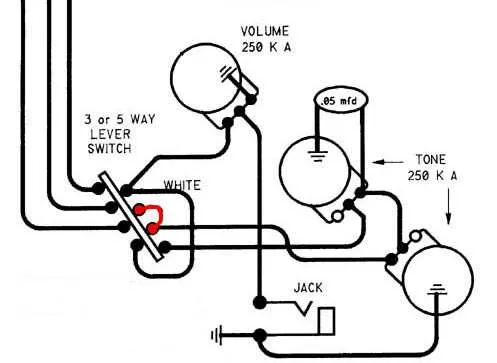

Consider using a 5-way switch with a split coil option to enhance the output options. This setup not only introduces new tonal textures but also provides the ability to isolate each pickup more clearly. The advantage of adding these features is that they offer a better dynamic response, allowing players to quickly adjust to different musical genres.

If you’re aiming for a more complex sound, a phase-reversed connection might be worth exploring. It can create a subtle yet noticeable shift in frequency response, allowing you to experiment with new harmonics. For players looking to blend vintage tones with modern clarity, this configuration offers a satisfying middle ground.

For the most optimal sound experience, it’s essential to use high-quality components like capacitors and potentiometers, as these elements play a key role in the overall performance. Keep in mind that precise soldering and correct component placement are critical for achieving clean, noise-free output.

Improving Your Guitar’s Electronic Configuration

For enhanced tone flexibility, opt for a 5-way switch with a humbucker in the bridge position. This modification allows for more options compared to the standard setup, enabling both brighter and warmer tones depending on your needs. If you prefer a smoother, vintage sound, consider wiring the tone control to affect only the neck and middle pickups.

Another useful modification is adding a tone bypass option, which preserves the full signal for more clarity. This is especially effective for players who desire maximum brightness from the bridge pickup. In contrast, integrating a treble bleed circuit between the volume pot and output jack ensures high-end clarity even at lower volumes.

For those seeking increased control, consider isolating the ground path for each pickup individually, giving you the ability to fine-tune your tonal response and reduce unwanted hum. Additionally, using high-quality capacitors in the signal chain can noticeably improve overall tonal richness and dynamic range.

Always ensure proper grounding throughout the system to avoid electrical interference. For instance, make sure the bridge and output jack share a common ground point to prevent buzzing or signal loss. A solid connection here is key to achieving a quiet and stable setup.

How to Choose the Right Setup for Your Pickup Configuration

If you’re aiming for a versatile tone range, use a five-way switch with standard single-coil pickups. This will give you access to the classic neck, bridge, and middle combinations, along with in-between settings that provide a “quacky” sound, ideal for funk or country.

For a smoother, warmer tone, consider using humbuckers in the neck and bridge positions, with a single-coil in the middle. A 3-way toggle switch will simplify your setup while still offering a rich, full sound from the humbuckers and a brighter tone from the middle pickup.

Active pickups often require a different approach. These pickups need a power source, typically a 9V battery, so make sure your control cavity has enough space. Pair them with a push-pull pot to switch between passive and active modes for maximum flexibility.

For tonal versatility, a coil-split setup allows humbuckers to function as single-coils at the flip of a switch. This gives you access to both punchy humbucker sounds and a more traditional single-coil tone, perfect for players who want to cover more sonic ground.

If you want to add more tonal variety, consider using a treble bleed circuit. This allows you to maintain high-end frequencies as you lower the volume, preserving clarity even at lower settings.

Step-by-Step Guide to Soldering a Guitar’s Electrical Components for Beginners

Start by preparing your workspace. A clean, well-lit area with a stable surface will ensure that you can focus on each step. Have the following tools ready:

• Soldering iron (preferably 25-40 watts)
• Solder (rosin core recommended)
• Soldering iron stand
• Wire cutters and strippers
• Heat shrink tubing or electrical tape
• Small Phillips screwdriver
• Multimeter (optional, for testing connections)

Now, follow these steps for a clean and reliable connection:

1. Heat the Soldering Iron: Turn on your iron and allow it to heat up for 5-10 minutes. Make sure the tip is clean and shiny. Use a damp sponge to wipe off any excess solder.
2. Prepare the Wires: Strip about 1/4 inch of insulation from the ends of the wires you will be working with. Avoid damaging the wire strands.
3. Attach Ground Wires: Grounding is crucial for noise reduction. Begin by soldering all ground wires to a common ground point, such as the back of a potentiometer (volume/tone control). Use a small amount of solder to create a secure connection.
4. Soldering Potentiometers: Attach the pickup leads to the input lugs of the potentiometer. Use just enough solder to cover the connection; excessive solder can cause shorts.
5. Connect the Switch: Identify the lugs on the switch and make sure you know which ones correspond to the pickups and the output jack. Solder the appropriate leads from the potentiometers to the switch, ensuring a tight connection without excess solder.
6. Output Jack Connection: Solder the output lead to the tip lug of the output jack. Ensure the sleeve (ground) connection is secure by soldering it to the sleeve lug.
7. Double-Check for Shorts: Before moving on, inspect all solder joints. Look for stray solder bridges that could cause shorts. Use a multimeter to check for continuity and ensure everything is connected properly.
8. Insulate and Secure Wires: Once you’re confident that all connections are correct, use heat shrink tubing or electrical tape to insulate exposed wires. Make sure nothing is left to risk a short circuit.
9. Test the Setup: After soldering and insulating, plug in your guitar and test all controls (volume, tone, pickup switch). Listen for any crackling or static sounds, which may indicate a poor connection or short.

By following these steps, you can successfully solder the electrical components of your guitar with precision and confidence. Always take your time to avoid mistakes, and don’t hesitate to reflow a joint if you’re unsure about its quality.

Upgrading Your Guitar: Adding a Tone Capacitor to Improve Sound

Adding a tone capacitor to your instrument’s electrical circuit can significantly enhance its tonal flexibility. A high-quality capacitor helps shape the treble frequencies, allowing you to control brightness and warmth more effectively. This small but impactful upgrade can result in a smoother, more refined sound, especially in the mid-to-high range.

The key to choosing the right capacitor lies in its value. For most players, a 0.022µF capacitor is the standard for achieving a classic sound, but experimenting with values like 0.047µF or 0.1µF can yield different tonal results. A higher value capacitor provides a greater reduction in treble frequencies when the tone knob is rolled off, leading to a smoother, darker sound.

Installing a capacitor is a straightforward process. Locate the tone pot on your control panel, and connect the capacitor between the tone pot and ground. Ensure that you are using a high-quality, reliable capacitor, as cheaper ones may degrade your overall sound. Ceramic and polyester capacitors are common choices, with polyester providing a warmer tone compared to ceramic.

Additionally, consider the overall impact on your tone stack. A capacitor works in conjunction with resistors to shape frequencies, so if you find the treble too harsh or too subdued, adjusting resistor values alongside the capacitor could offer a more balanced result. As with any modification, test your setup after installation to ensure that it complements your style and needs.
