Understanding the Steel Carbon Phase Diagram and Its Significance in Material Science

To effectively analyze the behavior of iron-based alloys, focus on the equilibrium conditions at different temperatures and compositions. This allows for a precise understanding of solidification, phase transitions, and microstructural evolution within the material. Knowing the exact temperatures at which different phases form can guide metallurgists in controlling the properties of alloys for various applications.

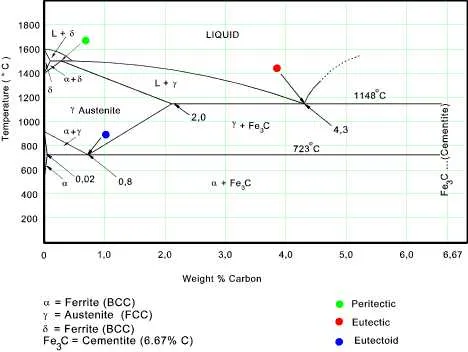

The most critical feature to consider is the eutectoid point, where the mixture of two phases leads to a unique microstructure. It is essential for tailoring the material’s hardness, toughness, and resistance to wear. By manipulating the chemical composition, it’s possible to achieve the desired mechanical properties for a range of industries, from construction to automotive manufacturing.

Thermal treatment processes such as annealing and quenching are directly influenced by the positions of these transformation points. Understanding how the material behaves across different compositions helps in optimizing heat treatment cycles for achieving specific performance criteria. Tracking the transition from one solid phase to another allows for a more precise control over the material’s final structure.

Understanding the Phase Behavior of Iron Alloys

For precise control over the mechanical properties of iron-based materials, focus on the transformation zones between different phases. The critical temperature ranges–such as eutectoid and peritectic points–are key. These thresholds determine the microstructure and, ultimately, the material’s strength, hardness, and ductility.

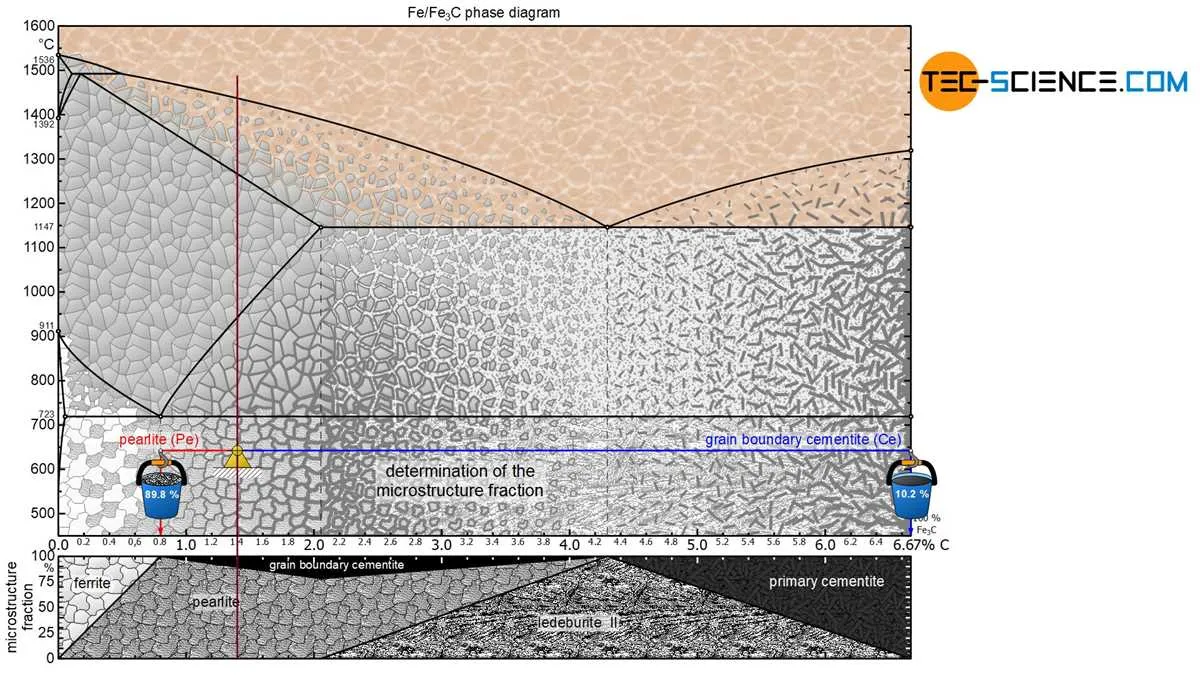

Pay attention to the lever rule when calculating phase fractions in mixtures, especially in the two-phase regions. The cooling rate can significantly alter the final structure; rapid cooling leads to martensitic transformation, which increases hardness, while slow cooling allows for pearlite formation.

It is essential to understand the solubility limits of elements like silicon, manganese, and chromium, as they influence the phases present at any given temperature. The influence of these elements on the temperature-dependent equilibrium states can drastically change the material properties.

Use the equilibrium curves to avoid unwanted phases during heat treatment. The critical lines, such as the A1 and A3 lines, represent phase transitions and should guide you in controlling the cooling rates to achieve the desired hardness or toughness in the final product.

Remember, precise control over heating and cooling cycles is necessary to manipulate the crystalline structure and attain the specific material properties you require for different applications, from industrial machinery to structural components.

Understanding Transitions in Metal Alloys

To optimize the performance of alloys, it is crucial to understand the transformations between solid and liquid states. These transitions are influenced by temperature and composition, where the material undergoes structural rearrangements that impact strength, ductility, and hardness. Key factors include the solubility limit, where one element dissolves in another at certain temperatures, and the temperature at which the material shifts from one crystalline form to another.

For precise control over these transitions, it’s important to focus on critical points such as eutectoid temperatures, where two phases coexist in equilibrium. By adjusting cooling rates, different microstructures can be obtained, leading to varied mechanical properties. In particular, rapid cooling may result in a fine-grained structure, enhancing hardness, while slow cooling may lead to coarser grains with improved toughness.

Additionally, alloying elements play a significant role. Elements like manganese, chromium, and nickel alter the temperature ranges at which these transformations occur. Their addition can modify the stability of solid solutions, shifting the boundaries between different structures. The process of annealing further refines the alloy’s microstructure, allowing for tailored mechanical properties by controlling the rate of cooling and heating.

By understanding the specific temperatures and compositions at which these structural changes occur, manufacturers can predict and optimize the mechanical properties of their products, ensuring reliability and durability in various applications.

Impact of Carbon Content on Material Properties

The amount of carbon in an alloy directly affects its hardness, tensile strength, and ductility. As the percentage of carbon increases, the material becomes harder but less ductile, making it suitable for applications requiring high wear resistance. A 0.2% to 0.3% range generally provides a good balance of strength and formability, while higher levels (0.8% to 1.5%) increase hardness but reduce malleability. In applications where toughness is crucial, lower carbon content (less than 0.2%) is recommended.

Increased carbon concentrations lead to a higher proportion of cementite formation, which significantly enhances the strength but can also make the material more brittle. For example, alloys with 0.6% to 0.8% of carbon exhibit optimal hardenability, while compositions exceeding this level may develop undesirable brittleness unless post-processing treatments like tempering are applied. For tools and cutting-edge applications, higher carbon content is preferable, but for structural components, lower carbon content helps prevent failure under high-stress conditions.

Carbon also influences the material’s ability to undergo heat treatment. Low carbon variants (below 0.3%) are easier to weld and reshape but provide lower strength. Conversely, high-carbon versions (above 1%) are much more difficult to process but offer superior wear resistance and hardness after heat treatment. These properties should be considered when selecting materials for specific industrial needs, as the choice of composition will affect performance in extreme conditions, such as high temperatures or high-impact environments.

Practical Applications in Heat Treatment

When selecting optimal heat treatment processes, it is crucial to understand how temperature and composition influence microstructure transformations. Proper control of these parameters ensures desired mechanical properties and material performance.

• Hardening Process: Heating to specific temperatures followed by rapid cooling transforms the material’s microstructure, increasing hardness. By knowing the critical points, such as the austenitization temperature, operators can achieve maximum hardness without causing brittleness.
• Tempering: After hardening, the material undergoes tempering to reduce internal stresses. The cooling rate and final temperature determine whether the material maintains hardness or gains toughness. Proper tempering relies on precise knowledge of the alloy’s behavior at different stages.
• Annealing: To achieve softer, more ductile materials, a controlled heat treatment allows the microstructure to reach equilibrium. Heating to a particular temperature range allows for optimal recrystallization and grain growth, making the material easier to machine or shape.

Specific compositions require particular heat treatment cycles to avoid undesirable outcomes such as cracking or distortion. These cycles help to balance strength and toughness while mitigating the risk of phase transitions that could affect material performance.

• Quenching: Understanding how the alloy responds to rapid cooling is essential for ensuring uniform hardening. Too fast a quench can lead to internal stresses, while too slow might not achieve the desired hardness.
• Critical Temperature Control: It is important to avoid overheating past critical temperatures, as this can cause grain growth, reducing mechanical properties.

Mastering these techniques enhances the material’s ability to resist wear, deformation, and fatigue, ensuring long-term reliability in demanding applications.
