The diagram can be used as a boiler with a pump overrun as well, you just take the pump live / neutral / Earth from the wiring center and run it. Got an S plan to wire next week Reading through the wiring diagram and it shows a permanant supply to the boiler along with a switch feed.

This article shows a typical S Plan wiring diagram and gives an overview of the electrical control wiring connections for a Sundial / Honeywell. The diagram set includes wiring plans for a number of popular configurations of central heating systems, C Plan, W Plan, Y Plan, S Plan, S Plan+ etc.

and you. This scheme uses separate two-port valves, one for hot water and another for heating. It can be easily extended to include additional heating zones by adding an extra valve and room thermostat for each zone – this is typically called S Plan Plus.

This video covers the wiring and.Wiring Diagram of S Plan Central Heating System. by Editor on February 22, This article shows a typical S Plan wiring diagram and gives an overview of the electrical control wiring connections for a Sundial / Honeywell SPlan or Drayton Twin Zone Central Heating system.

The Sundial W Plan is designed to provide independent temperature control of both heating and domestic hot water circuits in fully pumped central heating installations. The W Plan uses a two position diverter valve which is normally installed to give priority to the domestic hot water circuit.

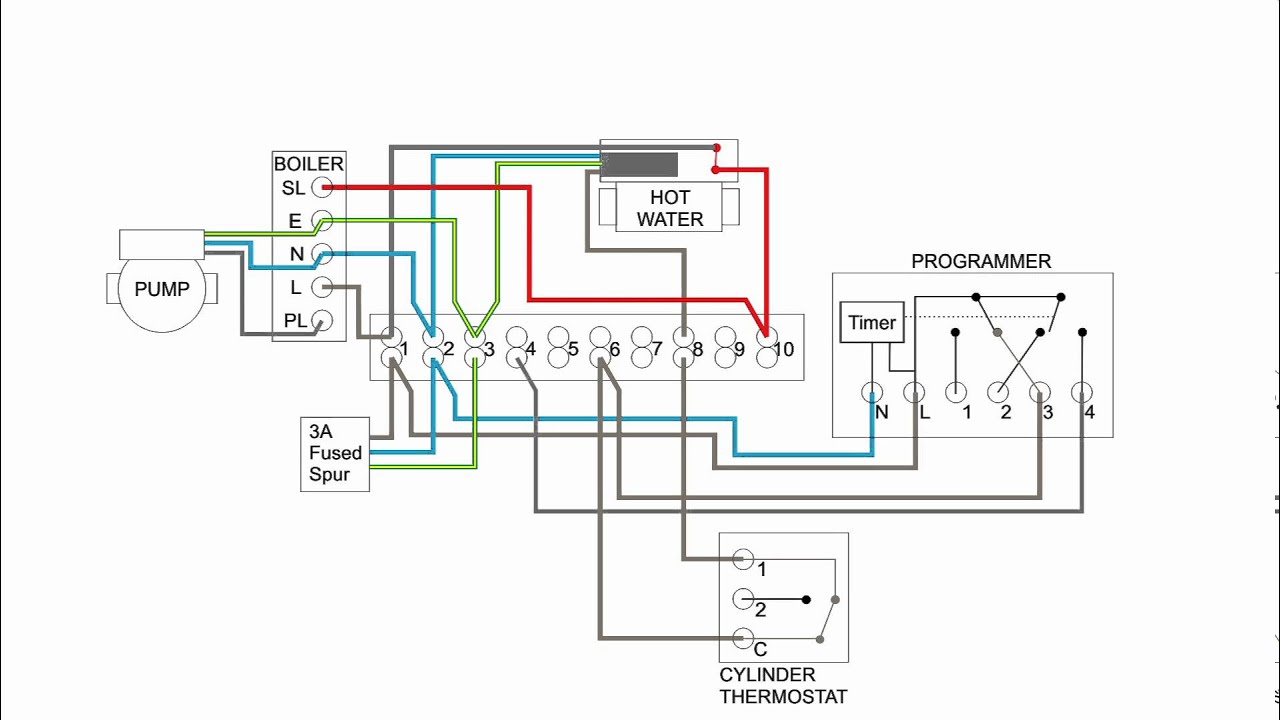

This video covers the wiring and electrical operation of an S plan system with two 2-port valves. Wiring diagrams and further information continues below. View on Youtube.

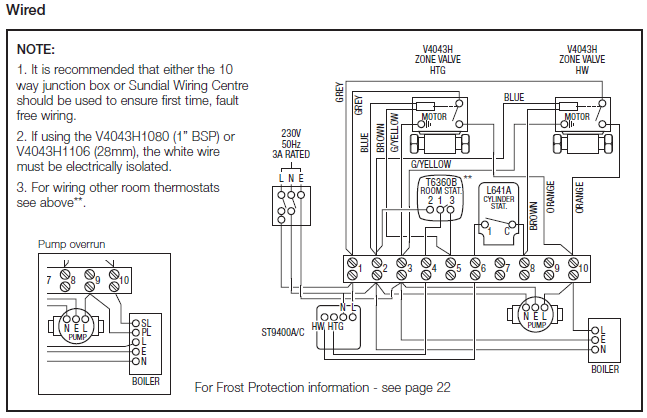

System Wiring. This diagram shows the wiring layout using the most typical components.

Here, coloured wires indicate the permanent mains supply to the boiler and programmer. Jul 07,  · Why run the extra N and E from boiler to wiring centre for the pump?

That’s just a waste of cable. You diagrams suggest that some parts do not require an Earth in the S plan but do in the Y plan? And the numbers are wrong for a lot of room thermostats.

S Plan Plus. Here’s a wiring diagram for the Honeywell S Plan Plus 3 zone system which can be used for connecting additional zones for radiators or UFH.

(View as a larger image) 3 Channel Programmer. It’s standard practice to use a 2 channel programmer to control the HW and a single (CH) heating zone.Wiring Diagram for S Plan Zoned Central Heating SystemsCentral Heating Wiring Diagrams
