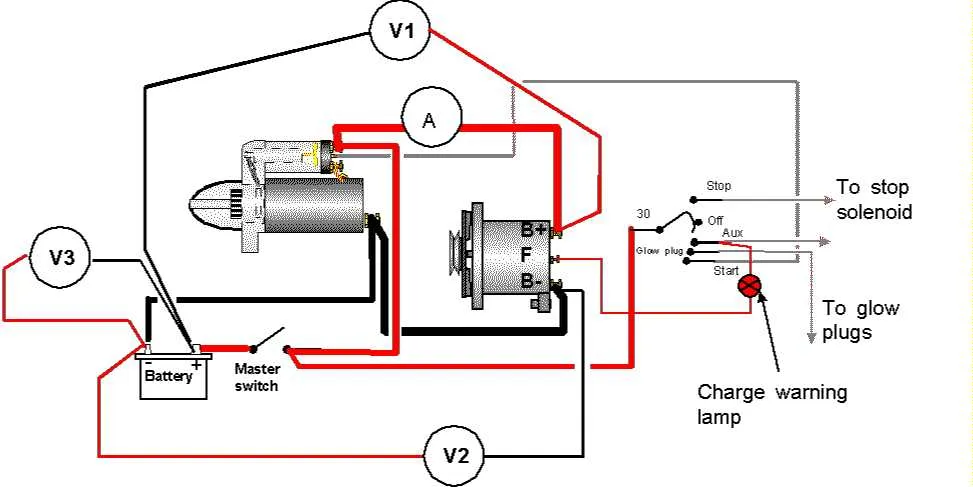

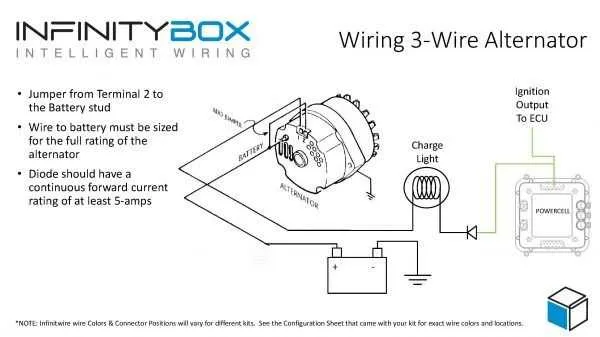

Wiring Diagram for Simple 3 Wire Alternator System
Start by locating the three essential connections: battery, field, and ground. The battery terminal connects to the positive post of the charging unit, ensuring proper power supply. The field connection regulates the alternator’s output, while the ground terminal should be attached to a solid metal part of the vehicle chassis to maintain a stable electrical flow.
Ensure that all terminals are clean and free from corrosion. If necessary, use a wire brush to remove any debris before securing the connections. Tighten each connection firmly to prevent any loose wiring that could disrupt the electrical system.
The field wire typically connects to the voltage regulator, which controls the output based on the vehicle’s load demands. Double-check this link for proper insulation to avoid any accidental short circuits that could lead to malfunction.
After completing the connections, test the system using a voltmeter to ensure that the system is generating the correct voltage. It should read between 13.5V and 14.5V when the engine is running. This confirms the proper functioning of the charging unit and the vehicle’s electrical system.
3-Pole Electrical Connection Setup
To establish a proper connection for a 3-terminal charging system, follow this process carefully. First, connect the battery terminal to the regulator input. This terminal is crucial for the system to monitor the charge level. Next, attach the field terminal to the ignition switch for correct activation when the engine starts. Lastly, the third terminal should be linked to the battery or the load, ensuring the proper flow of current to power the vehicle’s electrical systems.
For optimal performance, ensure each connection is secure and free from corrosion. Proper grounding is essential to prevent electrical interference and ensure stable operation. Check the voltage output after installation to confirm the charging system is functioning within specifications.
Understanding the Three-Wire System in Alternator Wiring
In a three-wire setup, the most crucial component is the exciter terminal. This terminal connects to the field coil, controlling voltage output. A dedicated signal wire runs from the exciter terminal to the voltage regulator, which adjusts the charging voltage based on system needs.
The second key component is the output terminal, which delivers current to the battery or electrical system. This connection is often fused to prevent overcurrent damage and is responsible for maintaining system voltage stability.
Finally, the ground connection ensures the circuit’s integrity, allowing for proper current flow and preventing potential electrical faults. A reliable ground is essential for minimizing electrical interference and ensuring smooth system performance.
Proper installation of each terminal is critical for optimal functionality. Always verify the secure connections to avoid voltage irregularities and prevent system malfunctions.
How to Connect the Wires: Step-by-Step Guide
Follow these steps to properly connect the three main cables in your setup:
- Identify the Components: Make sure you have the three main terminals: positive, ground, and the signal output. Ensure they are easily accessible.
- Attach the Positive Lead: Connect the red lead from your device to the terminal marked with a “+” symbol. This is the power supply cable that charges the battery.
- Secure the Ground Connection: The second wire should be grounded. Connect it to the frame or designated ground terminal, ensuring a solid metal-to-metal connection to avoid resistance.
- Install the Output Terminal: The third wire, often connected to the control system or regulator, should be secured on the appropriate output port. Double-check its secure fit to prevent loose connections.
- Check the Connections: Inspect all points to confirm they are tight and correctly placed. Loose connections could lead to inefficiency or failure.
- Test for Functionality: Once everything is in place, perform a test to verify voltage readings and ensure the unit is operating within the expected parameters.
By following these steps, you ensure a secure and efficient setup for reliable operation. If unsure, consult the specific instructions for your model to avoid mistakes. Always use the right tools and avoid forcing connections, as they can lead to damage.
Common Issues with 3-Wire Electrical System and Troubleshooting Tips
If the charging system isn’t working, the first thing to check is the voltage regulator connection. A loose or corroded terminal on the regulator can cause the system to fail. Make sure the regulator’s connection is secure and clean.
Another frequent issue arises with the ground connection. A poor ground can lead to erratic performance, such as fluctuating voltage levels or a complete lack of output. Inspect the ground wire for any signs of wear or damage and ensure it’s tightly secured to a clean metal surface.
Check the stator leads for continuity. Broken or frayed stator wires can cause reduced power output, even if the regulator and ground are functioning properly. Use a multimeter to test for continuity in all leads and replace any damaged wires.
If the voltage output is too high or too low, the regulator may be faulty. Ensure the regulator is designed for your system’s specifications. Testing the voltage across the battery terminals while the engine is running should give you a reading of 13.8 to 14.4 volts. Anything outside of this range could indicate a problem with the regulator.
Lastly, ensure the connection between the positive terminal and the battery is clean and tight. A loose or corroded battery connection can prevent the system from charging properly, leading to a drained battery even with a working generator.
