Mechanical endstop wiringall.com Eagle light schematic: File:Mechanical endstop wiring wiringall.com When the switch is off.
RAMPS has six connectors for endstops, max and min each for X, Plug in one of your endstop wires to one of the minimum endstop pins (I.
TwinTeeth uses an Arduino Mega and a Ramps board which holds the .

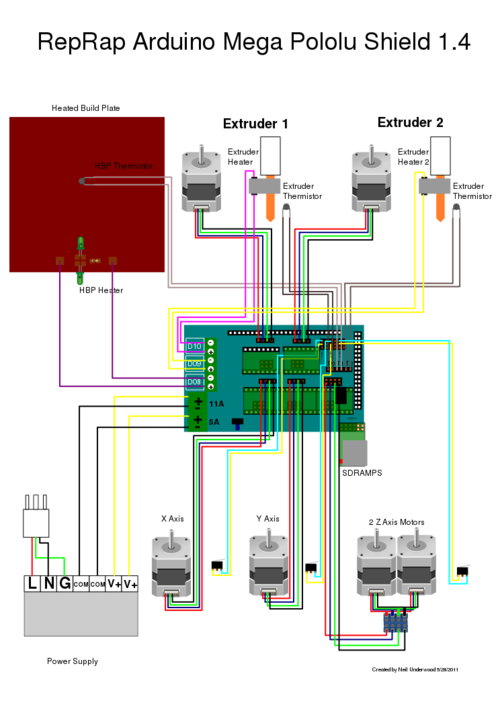

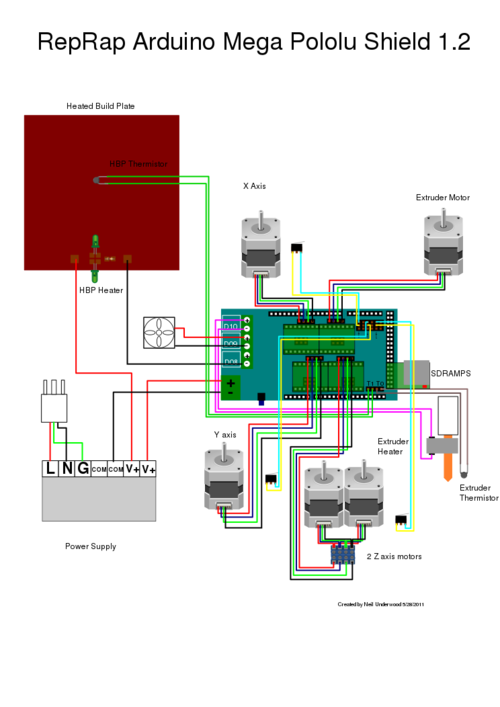

Adjust the wire length of the endstop switches and solder also a 2-pin female. Wiring. It is relatively simple to wire up the RAMPS.

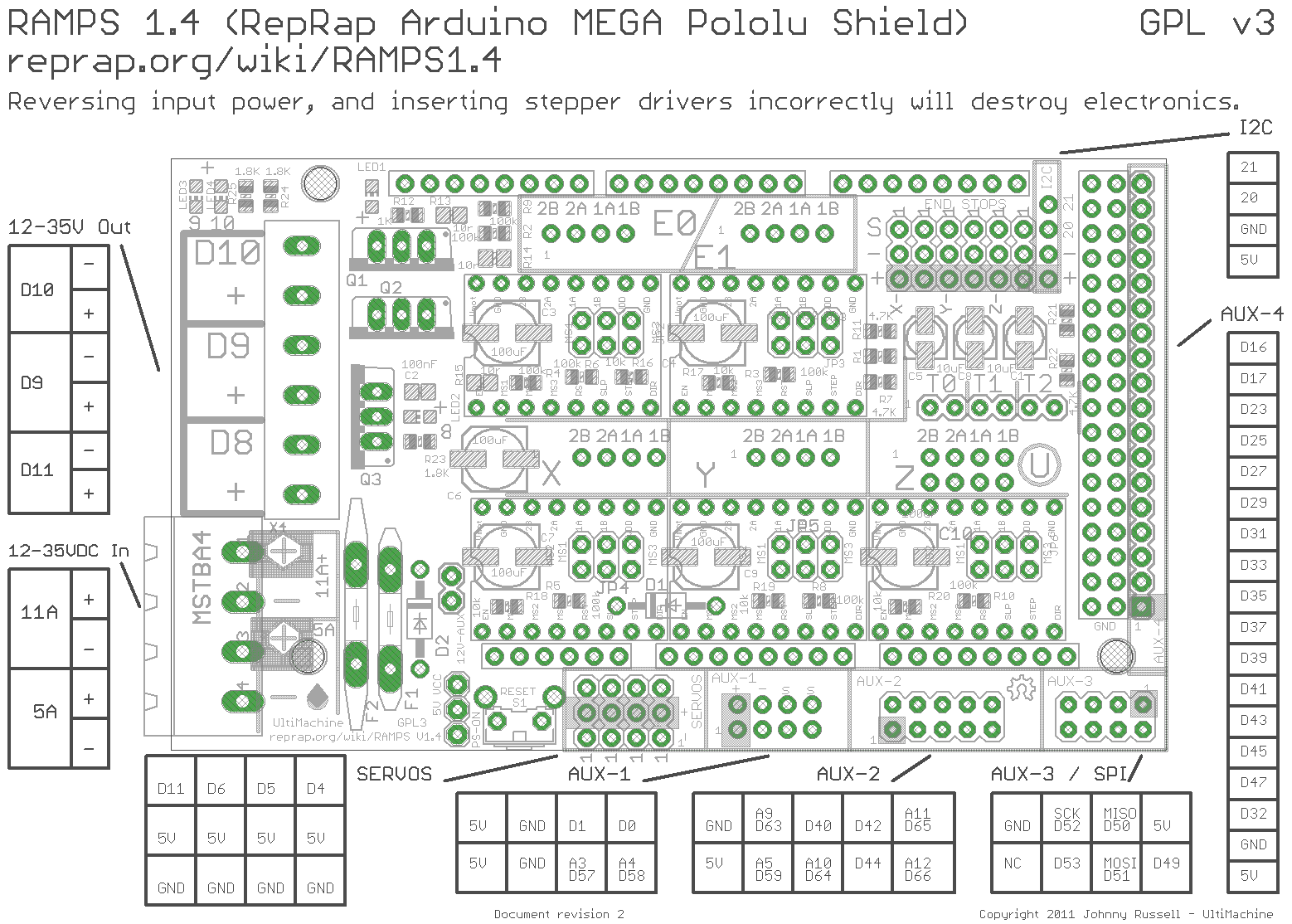

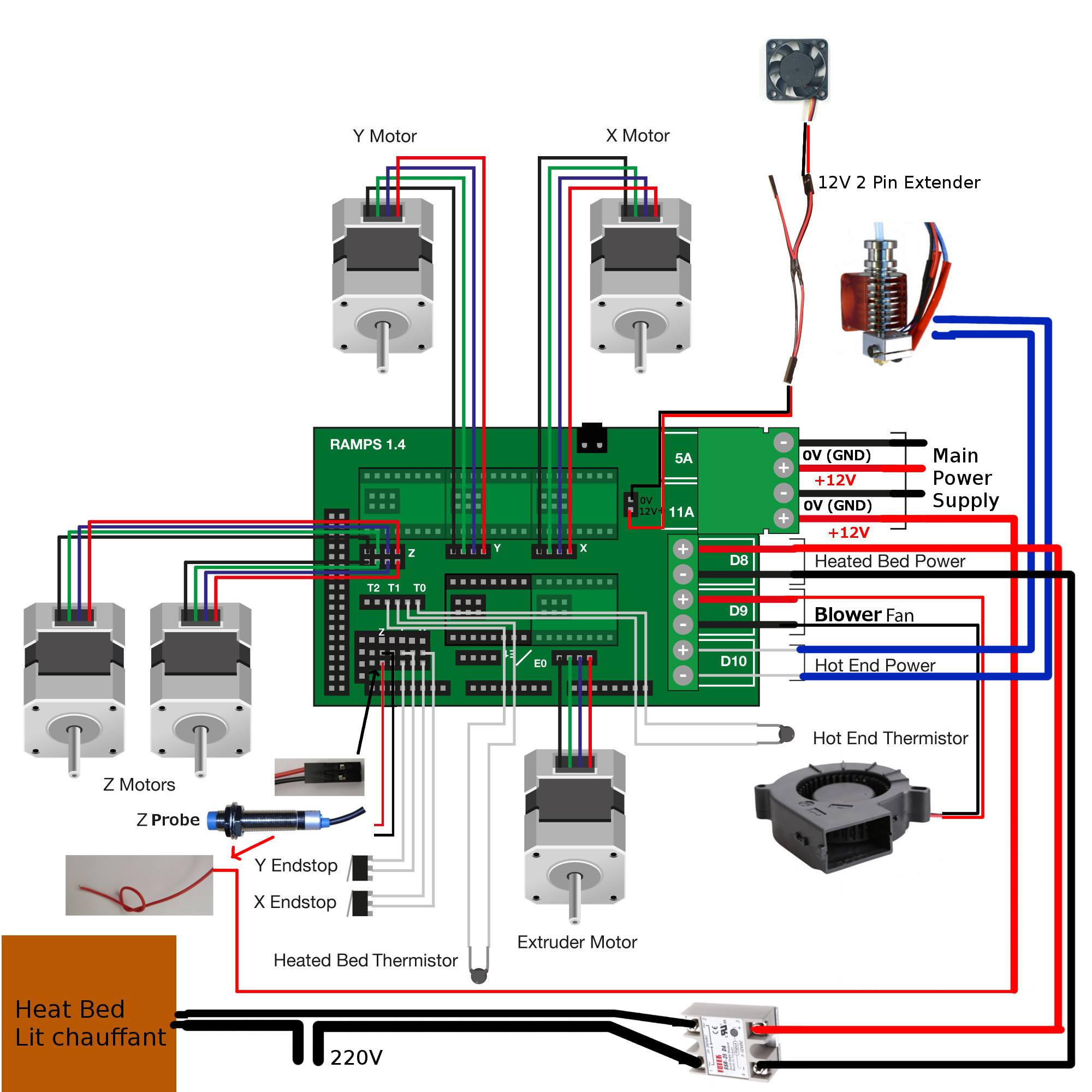

Just add the T0 pins on middle right right, and wire up the steppers and endstops. Explorer physical endstop pin-layout on Ramps board.
limit-switch as our endstop, shown on an image here, which only uses 2 wires, we.Switch wiring. Eagle light schematic: File:Mechanical endstop wiring wiringall.com When the switch is off (like in the schematic above), it connects signal to ground.
Mechanical Endstop
When the switch is triggered, the ground connection is cut and the signal is connected to 5v through the pull up resistor. Jan 28, · * RAMPS * Three cables labeled “endstop” with 3-pin female connectors on either side * Three MakerBot mechanical endstops I didn’t closely inspect these items until tonight, and I’ve got an issue.
RAMPS expects three pins. The 3-pin cable expects three pins.
But the MakerBot endstops wait for it have four pins. Dec 02, · The existing end stops will not work with a ramps.
They do not hsve the current limiting resistors built in as those are on the Da Vinci main board. Soldering RAMPS includes both surface mount and through hole soldering. The surface mount can be done a few ways.
Since all the SMT components on this board are large 2 pad parts you can do pin by pin soldering pretty easy with normal soldering equipment. In this chapter we are going to wire the electronics.
TwinTeeth uses an Arduino Mega and a Ramps board which holds the Pololu A Motor Drivers and other electronic circuitry. This low-cost board was designed for the RepRap 3D printer and now is very popular.Mechanical Endstop – RepRapMechanical Endstop – RepRap
