Hayward Pool Plumbing Diagram for Efficient System Setup and Maintenance

Start by ensuring that your filtration system is connected correctly to the water circulation components. The flow should be smooth, with minimal resistance, and the filter positioned to capture all debris efficiently. Focus on the key elements that control water flow: skimmer, return jets, and drain lines. These need to be installed with proper alignment to ensure a steady, consistent flow and prevent blockages or backflow.

Next, verify the correct sizing of pipes to prevent leaks or unnecessary pressure build-up. Opt for high-quality, durable pipes with appropriate diameter to maintain optimal circulation rates. Installing unions at key points allows for easy disassembly and maintenance when needed, without disrupting the overall setup. Remember to account for the type of water movement you desire and tailor your system accordingly.

Lastly, use check valves to prevent reverse flow, especially in the system’s return line. This simple yet effective measure keeps water from flowing back into the wrong direction, safeguarding against potential damage. If unsure, always consult a professional to confirm that your configuration meets the specific requirements of your setup.

Efficient Water Flow Setup for Your System

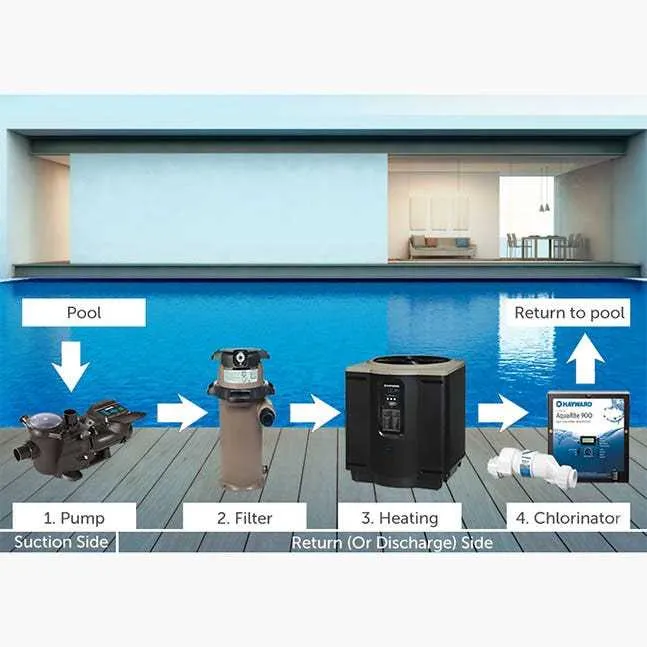

Ensure the circulation system is properly configured with a focus on maximizing water flow and filtration. Use the correct size for pipes, valves, and fittings to minimize friction loss and enhance efficiency. Begin by connecting the main intake to the pump, followed by the appropriate valve placement for precise flow control. Ensure the filtration unit is linked directly to the pump with minimal obstruction in between.

Install the heater downstream of the filter, ensuring it’s adequately insulated to maintain temperature control. Include a return line from the heater to direct water back to the system, and incorporate shut-off valves for maintenance and winterizing. A bypass system can help reduce wear on the pump when the heater is not in use.

Consider adding a skimmer for surface debris removal, placed near the waterline, and positioned to prevent clogging. Suction lines should be angled and kept clear to maintain optimal flow. Check the location of the drain, ensuring it’s positioned at the lowest point to avoid standing water.

Regular maintenance of seals and gaskets is crucial to prevent leaks and ensure long-term functionality. Periodically check the pressure gauges and flow meters to detect any issues early. A system that has balanced inflow and outflow will work more efficiently, providing better performance and longevity for all connected components.

Understanding the Key Components of a Hayward Pool Plumbing System

The filtration system, including the pump, filter, and associated valves, is essential for water circulation and cleanliness. The pump moves water through the system, while the filter traps dirt and debris. Choose a pump with the appropriate horsepower to match the size and flow requirements of the installation.

Inlet and return lines connect the various components, ensuring efficient water movement. Correct sizing of pipes is crucial to minimize resistance and maximize flow. Typically, 1.5-inch or 2-inch diameter pipes are recommended for residential setups. For optimal efficiency, ensure the pipework is smooth and free from kinks or obstructions.

Skimmer and main drain serve as the primary suction points. The skimmer collects floating debris, while the main drain helps remove dirt settled at the bottom. Ensure that the skimmer is properly positioned and regularly maintained to avoid clogging.

The heater, if installed, controls the water temperature and should be connected to the system in a way that prevents backflow into the unit. A check valve or bypass valve is typically used to protect the heater from damage caused by reverse water flow.

Valves and fittings manage the distribution and flow direction. Multi-port valves are often used to control functions like backwashing or draining. Ensure valves are regularly checked for leaks or wear and replace them when necessary to maintain system efficiency.

Step-by-Step Guide to Installing Hayward Pool Plumbing Parts

Start by shutting off the power supply to the pump and ensuring all valves are closed before any work begins.

1. Step 1: Begin with positioning the filter, pump, and heater. Place them in a location that allows for easy access to all components.
2. Step 2: Connect the suction side first. Attach the intake pipe to the pump’s inlet, ensuring the connections are tight and secure. Use proper sealant if necessary to prevent leaks.
3. Step 3: Next, connect the discharge pipe to the pump’s outlet. Again, ensure tight seals at all connection points to avoid water flow issues.
4. Step 4: For the filter connection, place it inline with the flow direction, ensuring all seals are properly tightened. Use a wrench to secure the nuts but avoid over-tightening, which could crack the components.
5. Step 5: Install the heater by attaching both the inlet and outlet pipes. Ensure the flow direction matches the markings on the heater’s body.
6. Step 6: Verify that all valves are correctly oriented. The bypass valve should be positioned to control the flow of water when necessary.
7. Step 7: Once all connections are made, perform a pressure test to check for leaks. Turn on the system to ensure proper water flow and verify that all components are functioning correctly.

After installation, regularly check the system for leaks, proper flow, and any signs of wear. Proper maintenance is crucial to extending the life of your equipment.

Troubleshooting Common Issues in Hayward System Schematics

When the filtration system stops functioning efficiently, check for clogged or misaligned valves. Ensure that the main intake valve is fully open and that there are no obstructions in the skimmer basket or pump housing.

If there’s low water pressure, inspect the pump motor for wear. It may need lubrication or a motor replacement. Verify the pump’s impeller is free from debris or damage, which can prevent proper suction.

Leaking connections are a frequent issue. Examine all joint seals and connections for cracks or gaps. Tighten or replace any faulty fittings to avoid water loss, which can strain the system’s performance.

For uneven water distribution, check that all return lines are unobstructed. Ensure that check valves are functioning to prevent backflow, and confirm that pressure gauges on the return side read as expected.

If air is trapped inside the system, bleed it by opening the air relief valve on the filter. Air in the system can lead to poor circulation and inefficient filtration. Make sure the tank lid is securely sealed to avoid introducing more air into the system.

Lastly, verify that the system is operating within the manufacturer’s specified pressure range. Consistent deviations from recommended pressures can indicate issues with the filter media or other system components that need immediate attention.
