Phase Change Diagram Answer Key for Understanding State Transitions and Equilibrium

To properly interpret the visual representation of material states during temperature fluctuations, focus on the critical points where transitions between solid, liquid, and gas occur. These key markers indicate specific temperatures and pressures where phase shifts happen, affecting the substance’s properties. Pay attention to the precise melting, boiling, and sublimation temperatures, as they are essential for practical applications.

Melting point is a key factor when identifying when a solid begins to turn into a liquid under standard pressure conditions. This value can vary slightly with changes in pressure, so it’s important to use a reference chart for accurate data depending on the material.

Boiling temperature defines the point where the liquid transitions to a vapor phase. It’s particularly crucial when dealing with fluids in industrial processes or laboratory settings, where precise control over the transition is necessary.

For systems that involve sublimation, understanding the specific conditions where a solid moves directly into the gas phase is critical. This phenomenon is most evident in materials such as dry ice (solid carbon dioxide), which bypasses the liquid stage completely under standard atmospheric pressure.

Understanding the Transitions Between States of Matter

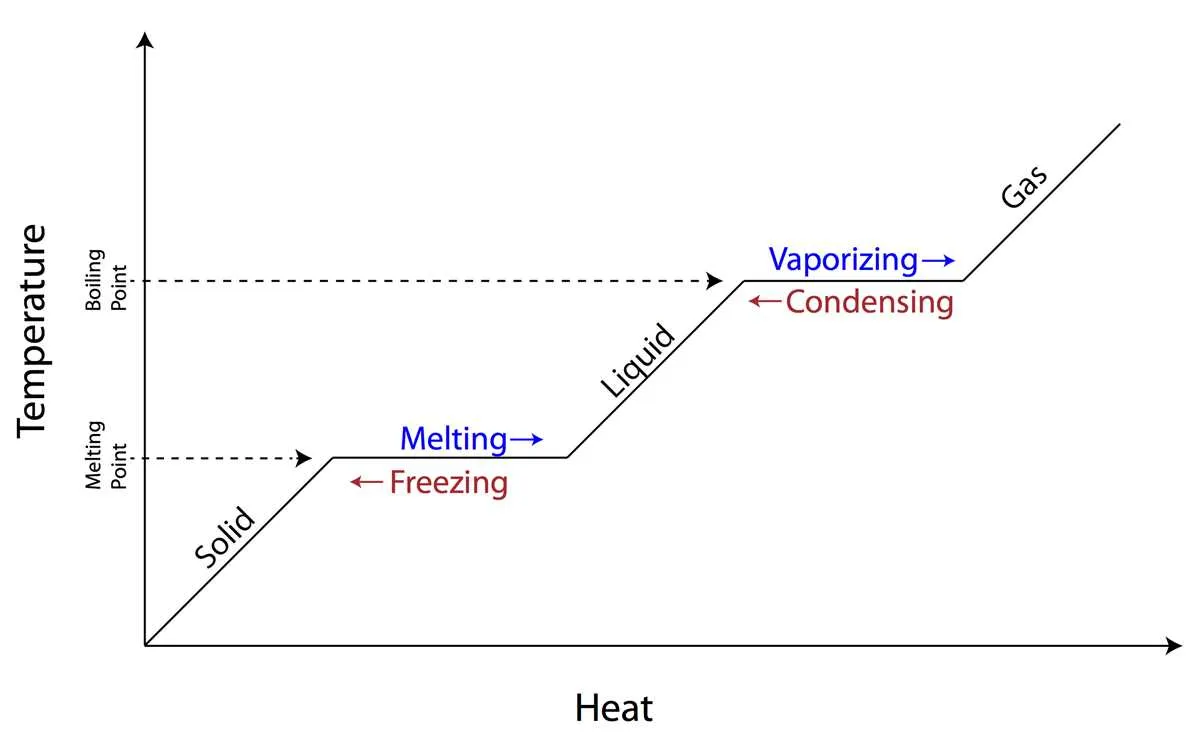

Identify critical points: Solid-liquid transition occurs at the melting point, while liquid-gas transitions take place at the boiling point. These phases are dependent on the system’s temperature and pressure. Observe the horizontal plateaus on the graph; these represent the steady-state intervals where the material undergoes a transition without changing in temperature.

Study slopes: Sloped regions indicate the material’s temperature variation during phase shifts. The steeper the slope, the faster the temperature changes as heat is applied or removed. For materials with higher specific heat, the slope will be less steep, showing slower temperature variations compared to those with lower specific heat.

Critical temperature and pressure: Beyond the critical point, the substance enters a supercritical state, where the properties of liquid and gas converge. The specific temperature and pressure at which this occurs are crucial for understanding how substances behave at extreme conditions.

Behavior across curves: The lines separating different states represent equilibrium conditions. Each curve’s position can shift depending on external conditions such as pressure and temperature. A material’s state is determined by where the temperature and pressure lie in relation to these boundaries.

Latent heat values: The energy required to transition between states without changing temperature is known as latent heat. Materials with high latent heat need more energy to undergo a phase transition, impacting processes like melting, boiling, and condensation.

Interpreting Transition Points in a Thermodynamic Curve

Start by identifying critical regions where the substance shifts from one state to another. At these junctures, pay close attention to the temperature and pressure values. These are often marked as borders between solid, liquid, and gas states.

Melting and Freezing Points: These are the exact temperatures where a substance changes between solid and liquid states. Look for horizontal lines, indicating no temperature increase during the transition at constant pressure.

Boiling and Condensation: The transition between liquid and gas is marked by a steady temperature at a given pressure. For water, the boiling point is 100°C at 1 atm, but this varies with atmospheric pressure.

Triple Point: This is the unique set of conditions where solid, liquid, and gas exist in equilibrium. It is marked by a single point on the graph, where all phases coexist. For water, this is 0.01°C at 0.006 atm.

Critical Point: Beyond this temperature and pressure, a substance can no longer exist as a liquid or gas, only as a supercritical fluid. Recognize this point as the end of the liquid-gas boundary.

Each transition point provides essential information about how substances behave under different thermodynamic conditions. Understanding these junctures allows for predicting material behavior in industrial, chemical, and physical processes.

Practical Applications in Engineering

Understanding material behavior under different temperature and pressure conditions is critical for engineers. Such knowledge allows the optimization of processes like alloy production, manufacturing, and material selection for various applications.

• Alloy Design: In metallurgy, these tools are used to determine the ideal composition for creating alloys with specific properties. By analyzing the composition and cooling rates, engineers can predict hardness, corrosion resistance, and thermal stability.
• Heat Treatment: Understanding solidification and recrystallization helps refine heat treatment techniques. This is essential in processes such as annealing and tempering, where precise control over temperature and cooling is necessary to achieve desired mechanical properties.
• Material Selection: In industries like aerospace, automotive, and electronics, choosing materials that perform well under extreme conditions is crucial. These resources assist engineers in selecting materials that offer the best performance under the expected service conditions.
• Welding: Knowledge of melting points and phase stability is vital for welding applications. It helps engineers avoid defects like cracks or undesirable microstructures in welded joints, ensuring stronger and more reliable bonds between materials.
• Polymers and Composite Materials: Understanding how different phases interact within composite materials is crucial for creating products that meet specific strength-to-weight ratios, durability, and flexibility demands. Such knowledge is applied in the design of high-performance components in industries like aviation and marine engineering.

In summary, leveraging these tools enables engineers to predict material behaviors, optimize manufacturing processes, and ensure long-term durability in a wide range of engineering projects.

Common Misconceptions and Errors in Thermodynamic System Analysis

One common mistake is assuming that a substance behaves in a purely linear manner during transitions between states. In reality, the relationship between pressure, temperature, and structure can be nonlinear and often involves complex interactions. Always verify the specific conditions under which transitions occur rather than relying on general assumptions.

Another error is neglecting the impact of impurities or alloying elements. In multi-component systems, impurities can significantly alter the boundaries of stability for different phases. It’s crucial to account for compositional variations when interpreting equilibrium regions, as the presence of other elements can shift phase boundaries.

Misunderstanding the critical point is also frequent. The critical point represents the condition where liquid and vapor phases become indistinguishable. Many incorrectly interpret it as a simple temperature or pressure threshold, but it’s a unique combination of both factors that leads to this behavior. Always ensure both axes are properly considered when analyzing these regions.

Failing to distinguish between equilibrium and metastable states often leads to incorrect conclusions. Systems may temporarily exist in metastable states, but these do not represent true equilibrium. It’s important to focus on stable configurations when interpreting system behavior.

Another issue arises when interpreting boundaries in complex systems. Phase boundaries can be more intricate than expected, especially in ternary or quaternary systems. These regions may involve multiple phases coexisting, requiring careful analysis to determine the true phase relationships under the specified conditions.

Lastly, neglecting to account for temperature and pressure dependencies of phase boundaries is a significant oversight. The positioning of these lines can vary greatly with external conditions. Always check the temperature and pressure conditions under which the system operates to avoid inaccurate predictions.
