Detailed P J Bass Wiring Diagram Guide for Accurate Setup and Troubleshooting

For optimal performance of your P J model, start by connecting the pickups to a standard 3-way toggle switch, which allows seamless blending between the Precision and Jazz-style units. Use a high-quality 250k audio taper potentiometer for volume control to preserve tonal clarity and avoid muddiness.

When configuring the tone control, pair it with a 0.047µF capacitor to achieve a balanced midrange roll-off without losing definition. Wiring the bridge and neck pickups in parallel rather than series maintains the characteristic punch and brightness associated with this setup.

Ensure solder joints are clean and secure to prevent signal loss and unwanted noise. Shielding the cavity with conductive paint or copper foil further reduces interference, enhancing overall sound quality. This configuration supports both vintage warmth and modern articulation, suitable for diverse playing styles.

P J Bass Setup Guide

For optimal tone, connect the split-coil pickup to the volume pot via the middle lug, grounding the shield at the back of the control cavity. The single-coil unit should feed the tone capacitor directly from its hot lead, typically a 0.047µF capacitor works well for midrange clarity.

Recommended pots: Use 250k linear pots for both controls to maintain a balanced frequency response. Wiring the pickups in parallel preserves brightness, while series connection boosts output and thickness.

Grounding: Ensure all grounds converge at a common point to reduce hum. The bridge ground wire must be securely soldered to the back of the volume pot casing.

Shield the control cavity with conductive paint or copper foil to minimize interference. Use cloth-covered or shielded cables to maintain signal integrity between pickups and preamp section.

How to Connect a P J Pickup Configuration

To properly set up a P J pickup layout, start by identifying the two separate coils: the split single-coil (P) and the single-coil jazz-style (J). Follow these steps for optimal signal flow and tone clarity:

1. Connect the ground wires from both pickups to the back of the volume pot to ensure noise reduction.
2. Attach the hot lead of the split coil to the first terminal of the P volume control.
3. Run the hot lead from the single-coil pickup to the J volume pot’s input lug.
4. Link the outputs of both volume pots to the input of the tone control pot.
5. From the tone pot, connect the signal to the output jack’s hot terminal.
6. Ensure the output jack’s ground is connected to the common grounding point on the control plate.

Key points to consider:

• Use shielded wire for all hot leads to minimize interference.
• Maintain solid solder joints for reliable conductivity.
• Check continuity between grounds to avoid hum.
• Adjust pot values if needed; typical volume and tone pots range from 250k to 500k ohms.

This connection sequence preserves individual pickup dynamics and allows seamless blending through separate volume controls, enhancing tonal versatility.

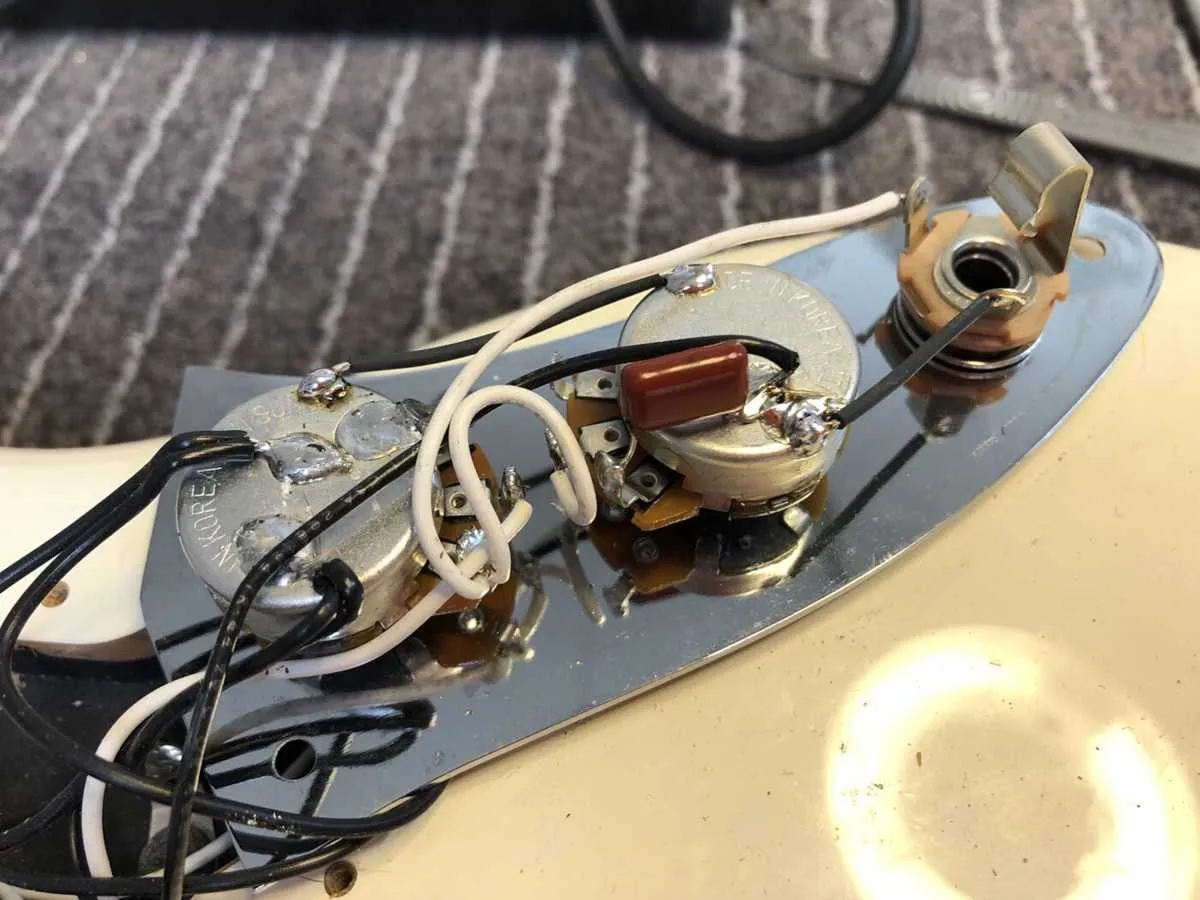

Connecting Volume and Tone Controls in P J Circuits

Start by wiring the volume potentiometers as master controls for each pickup section. Use 250k or 500k pots depending on desired brightness–500k retains more treble. Connect the input lug of each volume control to its corresponding pickup lead, and ground the casing properly to reduce noise.

For tone controls, place 250k potentiometers with 0.047µF capacitors between the output lug and ground. This capacitor value balances midrange cut without overly darkening the signal. Connect tone pots after the volume pots in the signal chain to maintain consistent tone shaping as volume adjusts.

Ensure all ground wires converge to a common point, typically the back of a potentiometer casing, to prevent ground loops. Use shielded cable for all internal connections to minimize interference. When combining P and J pickup outputs, wire the volume pots independently before merging signals at the output jack to preserve control precision.

Test the circuit by gradually adjusting each knob and confirming smooth response without crackling or signal loss. If volume drop occurs, verify solder joints and consider using higher-quality pots with a logarithmic taper for more natural control behavior.

Troubleshooting Common Issues in P J Circuit Setup

Check all solder joints for cold or broken connections first–these cause intermittent sound or no output. Reflow any suspicious spots with a soldering iron.

Ensure the selector switch is correctly positioned and making firm contact. Dirty or oxidized contacts often lead to signal dropouts; clean them using electronic contact cleaner.

Verify the ground connections at the control plate and bridge. Poor grounding causes unwanted hum or buzzing noise. Tighten screws and resolder if necessary.

Inspect the output jack for loose wiring or corrosion. A faulty jack frequently results in crackling or no sound. Replace or clean the jack to restore proper signal flow.

Test the pickup leads for continuity using a multimeter. A broken wire inside the coil can cause total loss of signal from one pickup.

Confirm potentiometers (volume and tone controls) are functioning smoothly without scratchy sounds. Replace any that exhibit wear or inconsistent resistance.

Examine capacitor connections on tone circuits for secure attachment; cold joints here reduce tone control effectiveness.

When combining signals from the two units, ensure no shorts occur between the separate coils. Use shielded wire and separate pathways to minimize noise interference.

Check wiring colors against trusted references to avoid swapped leads that invert phase or mute output.

Finally, use a signal tracer or audio probe to isolate where the signal is lost along the chain, starting from pickups through to the output jack.
