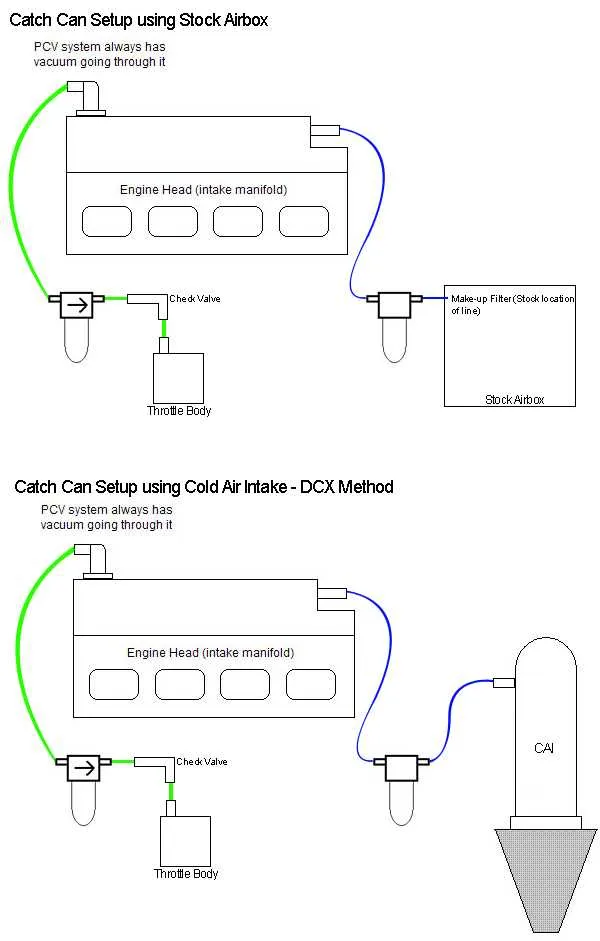

Oil Catch Can Installation Diagram for Improved Engine Performance and Maintenance

For optimal engine performance, installing a fume collection system is essential. It effectively prevents harmful vapors from circulating through your engine’s intake. Ensure you mount it in a location where airflow is unrestricted, such as near the valve cover, allowing easy access for future maintenance.

Start by selecting a high-quality unit with sufficient capacity for your engine type. Larger engines or heavily tuned vehicles may require a bigger reservoir to handle the increased volume of gases. Connect the unit to the crankcase vent line, ensuring a tight and secure seal to prevent leaks.

Ensure the outlet side is routed to a location where the accumulated vapors can safely dissipate without causing any damage to nearby components. Pay attention to the tubing used–choose materials that can withstand high temperatures and pressure to avoid cracking or leaks.

Proper positioning is key; place the unit as close as possible to the source to minimize the chance of oil or vapor mixing back into the intake system. Avoid placing it too far from the engine block, as this may reduce its efficiency. Once installed, regularly check the system to confirm it’s collecting effectively and replace any worn-out parts as needed.

Proper Setup of a Separator Tank

Ensure the tank is securely positioned in a location where it can easily collect residue, typically near the intake manifold. Follow these steps:

1. Placement: Select a spot between the engine breather and the intake system. The tank should be mounted vertically to ensure optimal function.
2. Mounting: Secure the container using sturdy brackets or straps to prevent movement during vehicle operation.
3. Inlet Connection: Connect the breather hose from the engine to the input port of the container. Use a high-quality hose that can handle pressure without kinking.
4. Outlet Connection: Connect the output port to the intake system. Ensure this hose runs from the container to the manifold with no bends or sharp turns to allow proper airflow.
5. Drainage: If the tank has a drain valve, ensure it is easily accessible for periodic maintenance and residue removal.

By following these guidelines, you can effectively manage crankcase emissions and prevent residue buildup in critical engine components.

Choosing the Right Reservoir for Your Vehicle

For optimal performance and engine longevity, select a container that suits your engine type and driving conditions. Consider the engine’s displacement, the type of vehicle, and whether you’re using it for daily driving or racing purposes. A larger container is generally preferred for high-performance engines or those with forced induction, as they produce more blow-by gases.

Material is another key factor. Aluminum is lightweight and durable, offering efficient heat dissipation, but stainless steel provides superior resistance to corrosion, making it ideal for vehicles exposed to harsh conditions.

Look for a reservoir with a filtering system that matches your engine’s needs. Some models include internal baffles to reduce oil splashing, while others come with mesh filters for trapping contaminants. A vented cap can also be beneficial for improving the overall system’s efficiency, reducing pressure build-up.

Choose a unit with proper mounting brackets that allow for secure attachment in your engine bay. It’s essential that the reservoir fits well in your vehicle, ensuring no interference with other components or hoses. Ensure there is a drain plug for easy maintenance and oil removal when necessary.

For vehicles with minimal space, a compact design with a high-volume capacity is recommended. Larger reservoirs may be more effective for extended driving periods or high-performance applications, but smaller designs work well for daily commuters.

Step-by-Step Guide to Mounting the Oil Catch Can

Start by selecting a suitable location for mounting the container. It should be easily accessible, typically near the intake manifold or engine bay. Make sure the area allows for proper ventilation and drainage.

Next, secure the bracket or mounting hardware to the chosen spot. Use a drill to create mounting holes if necessary. Ensure the bracket is fixed tightly to avoid movement, which could lead to leakage or damage.

Once the bracket is in place, position the vessel onto it. Double-check that the canister aligns with the hose connections and is at an appropriate angle to prevent any fluid buildup inside.

Now, connect the hoses to the intake and the engine’s vent system. Use high-quality, heat-resistant tubing to avoid deterioration. Ensure the hose connections are tight, sealing them with clamps to prevent leaks.

Finally, inspect the entire setup for any signs of wear or loose fittings. Run the engine briefly to check for leaks or any irregular noises. Tighten all fittings as necessary to guarantee the system operates smoothly.

Proper Hose Routing and Connections for Optimal Performance

Ensure the inlet and outlet hoses are connected directly to the intake manifold and crankcase breather port without any sharp bends. This minimizes airflow restrictions and maximizes ventilation efficiency. The hose should be routed in a way that prevents kinks and ensures continuous air circulation.

Use high-quality, heat-resistant rubber or silicone hoses with the appropriate internal diameter. Avoid hoses that are too wide or narrow, as this can cause issues with pressure regulation and lead to inefficient vapor separation. Double-check that all hose clamps are securely tightened to prevent leaks under higher engine pressure.

Position the filtration unit at a point lower than the intake manifold to ensure proper gravity feed of excess vapors. This prevents any liquid accumulation in the system. It’s also important to route the hoses away from high-temperature areas such as exhaust pipes to avoid premature degradation of the hoses and reduce the risk of leaks.

For the outlet, ensure the hose is directed toward a safe discharge area, often the vehicle’s undercarriage, to avoid residue buildup. Regularly inspect the hoses for signs of wear, cracking, or blockages that could affect performance over time.
