Everything You Need to Know About Network Crossover Cable Wiring Diagrams

A network crossover cable is a type of Ethernet cable that is used to connect two devices directly to each other, without the need for a network switch or hub. This type of cable is commonly used for connecting two computers or two switches together. In order to make a network crossover cable, it is important to understand the wiring diagram that is required.

The wiring diagram for a network crossover cable is different from a standard Ethernet cable, as the wires are crossed over in order to allow for direct communication between the devices. This is necessary because the transmit pins on one device need to be connected to the receive pins on the other device, and vice versa.

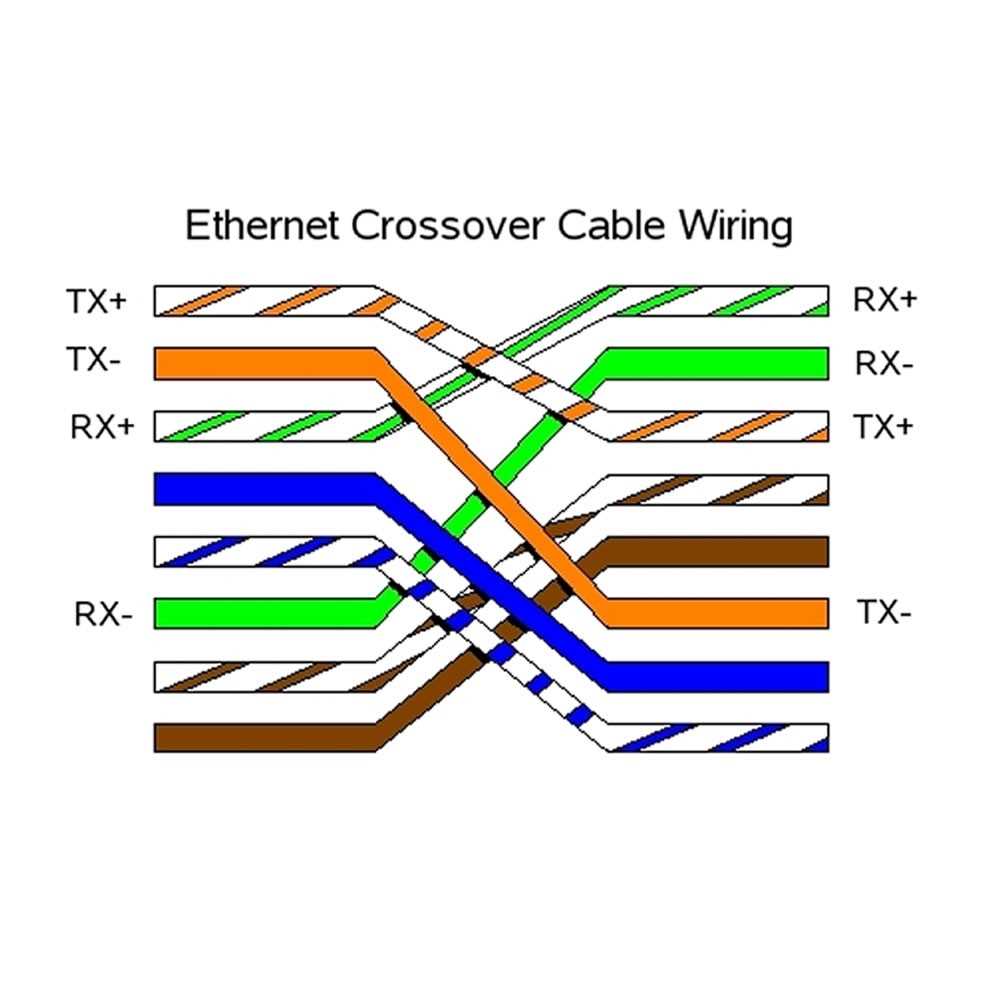

The wiring diagram for a network crossover cable typically involves connecting the transmit pins (1 and 2) on one end of the cable to the receive pins (3 and 6) on the other end of the cable. Likewise, the receive pins (3 and 6) on one end of the cable are connected to the transmit pins (1 and 2) on the other end of the cable. By crossing over these pins, the two devices are able to directly communicate with each other.

It is important to note that not all network devices support the use of a crossover cable. In many cases, modern network devices are equipped with Auto-MDIX technology, which is able to automatically detect and correct for the crossed wires in the cable. However, for older devices or scenarios where Auto-MDIX is not supported, a network crossover cable may be required.

What is a network crossover cable?

A network crossover cable is a type of Ethernet cable that is used to directly connect two computers (or other network devices) without the need for a network switch or hub. It is essentially a special cable that has the transmit and receive wires crossed over at one end, allowing the two devices to communicate directly with each other.

In a standard Ethernet cable, the transmit wires on one end are connected to the receive wires on the other end. This configuration is suitable for connecting a computer to a network switch or hub, where the switch or hub handles the communication between devices. However, when connecting two computers directly, without a switch or hub in between, a crossover cable is required.

A network crossover cable is typically used in scenarios such as peer-to-peer networking, where two computers need to be directly connected for file sharing or other purposes. It can also be used for connecting network devices that do not have an uplink port, such as older routers or switches.

When using a crossover cable, it is important to ensure that the correct end is connected to each device. One end of the cable should be connected to the transmit (TX) port of one device, and the other end should be connected to the receive (RX) port of the other device. This allows the transmit signals of one device to be received by the other device, and vice versa.

Understanding the purpose and benefits of a network crossover cable wiring diagram can greatly assist in the successful setup and configuration of a network. A crossover cable is a special type of Ethernet cable that is used to connect two devices directly, without the need for a hub or switch.

The purpose of a crossover cable wiring diagram is to provide a visual representation of how the individual wires inside the cable should be connected. This diagram helps ensure that each wire is correctly positioned and enables the devices to communicate effectively.

One of the main benefits of using a crossover cable and referring to a wiring diagram is that it eliminates the need for additional networking equipment, such as a hub or switch. This can be especially useful in situations where there are only two devices that need to be connected directly.

Using a crossover cable also allows for a direct and faster connection between devices, as the signals do not need to pass through any additional networking equipment. This can result in improved network performance and reduced latency.

Furthermore, having a clear and accurate wiring diagram helps reduce the chances of human error during the installation process. Following the diagram ensures that the correct wires are connected, preventing any potential damage to the devices or network.

In summary, a network crossover cable wiring diagram serves the purpose of providing a visual guide for correctly connecting two devices directly. It offers benefits such as eliminating the need for additional networking equipment, creating a faster and more direct connection, and reducing the chances of human error during installation.

Step-by-step guide to creating a network crossover cable

In order to create a network crossover cable, you will need to follow a specific wiring diagram. This type of cable is used to connect two devices of the same type, such as two computers or two switches, directly to each other without the need for a router or hub. The crossover cable differs from a regular Ethernet cable in that it swaps the transmit and receive pairs, allowing the devices to communicate effectively.

Here is a step-by-step guide to creating a network crossover cable:

1. Gather the necessary materials for creating the crossover cable. You will need Ethernet cable, wire cutters/strippers, an RJ-45 crimping tool, and crossover cable wiring diagram.
2. Beginning with the first end of the Ethernet cable, use the wire cutters to strip off around 1 inch of the outer insulation, revealing the inner wires.
3. Refer to the crossover cable wiring diagram and arrange the eight wires (four pairs) according to the specified color code. This will entail swapping the transmit and receive pairs (usually wires 1 and 2 with wires 3 and 6).
4. Once the wires are properly arranged, trim them to the appropriate length, leaving enough room for the RJ-45 connector to be inserted.
5. Insert the wires into the RJ-45 connector, ensuring that each wire is fully inserted into its corresponding slot. Use the RJ-45 crimping tool to secure the connector onto the cable.
6. Repeat steps 2-5 for the other end of the Ethernet cable.
7. Once both ends of the cable are crimped, test the connectivity by connecting the devices you want to communicate using the crossover cable.

Creating a network crossover cable requires attention to detail and following the wiring diagram accurately. By carefully arranging and connecting the wires, you can successfully create a crossover cable that allows direct communication between devices without the need for a separate network infrastructure.

Uses and Applications of Network Crossover Cables

A network crossover cable is a specialized type of Ethernet cable that is used to directly connect two devices without the need for a network switch or hub. It is called a “crossover” cable because the internal wiring of the cable is configured in a way that allows the transmission and reception lines to “cross over” from one device to the other, enabling direct communication. While crossover cables are not commonly used in modern networking setups, they still have several important uses and applications in certain scenarios.

Connecting Two Computers: One of the main uses for network crossover cables is to connect two computers directly to each other. This can be useful when transferring large files or performing other types of computer-to-computer communication. Without a crossover cable or the use of special adapter devices, connecting two computers directly using a standard Ethernet cable would not work because the transmission and reception lines would not be properly aligned.

Testing Network Equipment: Network crossover cables are also commonly used for testing network equipment and troubleshooting network connectivity issues. By directly connecting two devices, such as a computer and a network printer, using a crossover cable, network administrators can isolate and diagnose any faults in the network setup.

Connecting Hubs or Switches: In some cases, network crossover cables may also be used to connect two hubs or switches together. This can be useful in situations where a dedicated uplink port is not available or when there is a need to create a separate network segment. However, it is important to note that most modern networking devices have auto-sensing capabilities, which eliminate the need for crossover cables in these scenarios.

• Directly connecting two computers for file sharing or collaboration
• Testing network equipment and troubleshooting connectivity issues
• Connecting hubs or switches in specific scenarios

In summary, network crossover cables have several important uses and applications in certain networking scenarios. They are primarily used for connecting two computers directly, testing network equipment, and occasionally connecting hubs or switches. While crossover cables are not commonly used in modern networking setups, they still play a valuable role in certain situations where direct device-to-device communication is required.

Exploring the Different Scenarios Where a Network Crossover Cable is Needed

A network crossover cable is a type of Ethernet cable that is used to connect two devices of the same type directly without needing a network switch or hub. In most cases, regular Ethernet cables with straight-through wiring are sufficient for connecting devices to a network. However, there are specific scenarios where a crossover cable is needed to establish a direct connection between two devices.

1. Connecting Two Computers:

When you want to connect two computers directly to each other without using a switch or router, a crossover cable is required. This scenario is common when transferring files between two computers or setting up a small network without a dedicated network infrastructure.

2. Connecting Two Switches:

In some cases, when you need to connect two switches together to expand your network, a crossover cable is necessary. This is because switches are generally designed to communicate with other devices using straight-through cables. A crossover cable allows the switches to communicate directly with each other.

3. Connecting a Computer to a Router:

Although most modern routers have built-in capabilities to detect and auto-negotiate the connection, older routers may require a crossover cable to establish a direct connection between a computer and the router. This scenario is rare but can occur in older networking setups.

4. Connecting Network Devices without Auto-MDI/MDIX:

Auto-MDI/MDIX is a feature found in many modern network devices that automatically detects and corrects the wiring configuration, allowing them to work with both straight-through and crossover cables. However, in some cases, when working with older or specialized network devices that lack this feature, a crossover cable may be needed to establish a direct connection.

In conclusion, a network crossover cable is required in specific scenarios where direct connections between devices of the same type need to be established. Whether it’s connecting two computers, two switches, a computer to an older router, or working with devices without Auto-MDI/MDIX support, understanding when and how to use a crossover cable can help ensure smooth network connectivity.
