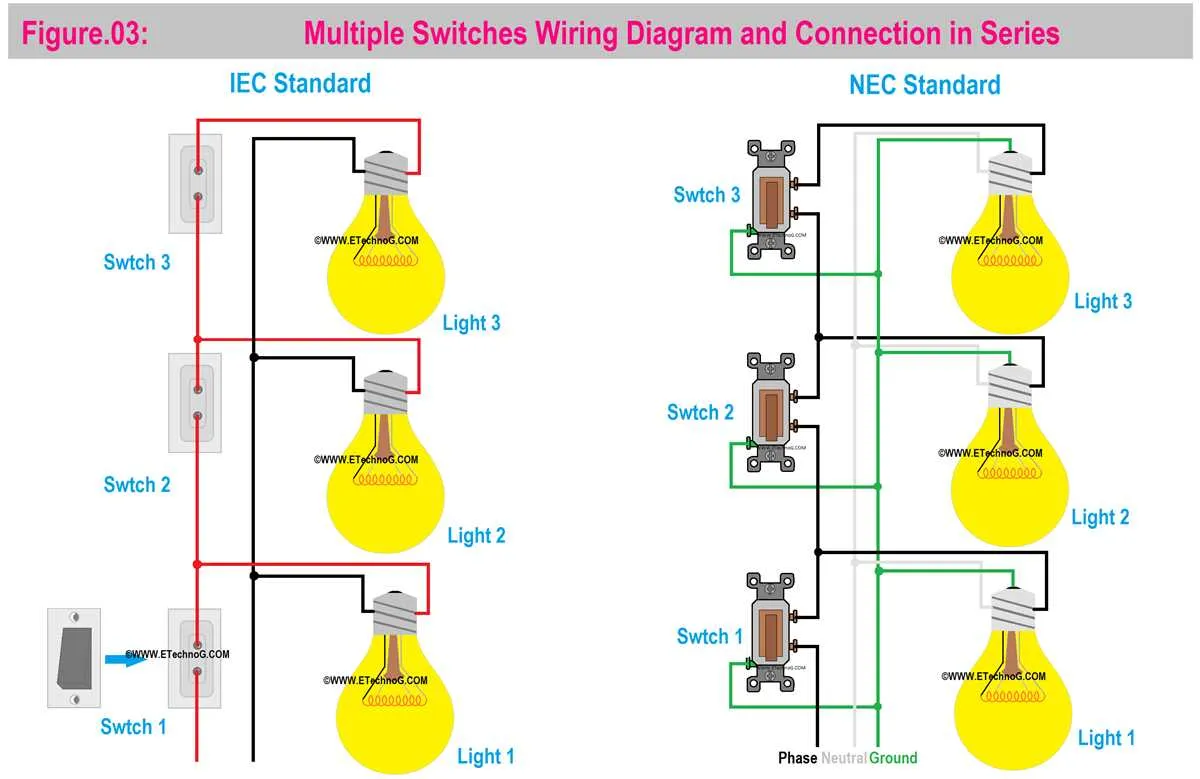

Wiring Diagram for Controlling Lights from Multiple Switch Locations
To control a single ceiling unit from two or more wall points, use a setup based on SPDT (single pole, double throw) mechanisms. The most common solution employs a pair of 3-terminal toggles and optionally one or more intermediate types with four terminals. This configuration ensures consistent activation regardless of which location is used.
Identify the terminal layout: for a 3-way controller, terminals are typically labeled as “common” and “traveler.” Always connect the phase wire to the common of the first device, and the load to the common of the last. The two traveler terminals should link corresponding points between units.
When integrating an intermediate unit (also called a 4-way), place it between two 3-way models. Travelers from the first 3-way enter the intermediate unit and exit toward the second 3-way. The internal cross or straight connection of the intermediate determines the on/off state based on previous input.
Use color-coded wires for clarity: black for phase, red and white for travelers, and another color (typically blue) for load. Always mark conductors at both ends and verify continuity before powering the system.
Safety tip: install all junctions within an accessible box, and label all conductors clearly. Shut off the main breaker during installation, and test each path using a voltage tester before touching any conductor.

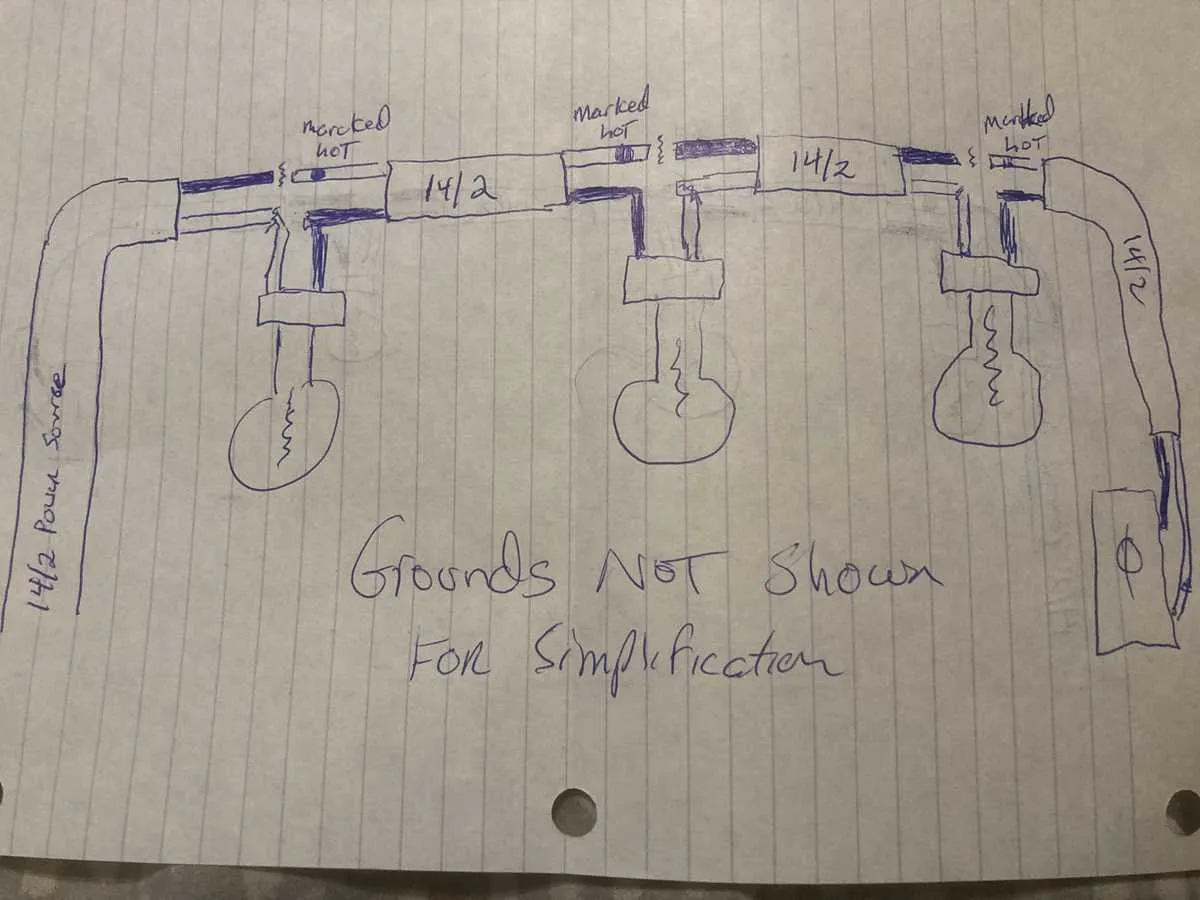

Efficient Setup for Controlling Illumination Points from Several Controls
Begin by determining the number of luminaires and the count of control panels involved. For dual control points, implement a three-way arrangement utilizing two SPDT toggles and a minimum of one three-core cable (live, traveler A, traveler B) between them. Ensure continuity by connecting the common terminals to the power feed and the load respectively.
For tri-location management, incorporate a four-way mechanism between the two end controllers. This intermediary unit must accept two traveler lines from one end and route them directly to the opposing terminal block. Avoid crossing conductors by aligning traveler paths logically through the junction enclosure.
Color code conductors consistently–typically black for phase, red and white (or other distinguishable hues) for intermediate links. Mark all interconnects clearly inside distribution boxes to prevent miswiring during inspection or maintenance.
Utilize deep wall boxes to accommodate extra conductors and ensure strain relief with proper cable clamps. Verify loop continuity with a multimeter before energizing the circuit. Ensure conformance to local electrical standards, particularly regarding neutral availability and earthing continuity.
How to Wire a 3-Way Light Switch with Two Switches Controlling One Light
Start by cutting power at the breaker panel to prevent electrical shock. Confirm with a voltage tester before touching any wires.
Install a 3-conductor cable (with black, red, white, and ground) between the two control units. In the first box, connect the black from the incoming power source to the common terminal (usually black screw) on the first control point.
Link the red and black travelers to the brass or silver terminals on both control units. The white wire between them must be capped off if unused, or marked with black tape if repurposed as hot.
In the second unit’s box, connect the black wire from the ceiling fixture to the common terminal. Join the travelers from the other side to the same colored screws as before. Ensure ground wires are twisted together and bonded to the green terminals.
At the ceiling junction, link the white neutral from the source to the fixture’s white wire. Join the black from the second unit to the fixture’s hot lead. Secure all connections with wire nuts and check all screws are tight.
After restoring power, verify proper operation: the overhead lamp should toggle on/off from either control point regardless of the other’s position.
Wiring a 4-Way Switch Setup with Three or More Switches
Start by placing a standard 3-terminal unit at each end of the setup and a 4-terminal variant between them. This method allows toggling from any location. Ensure consistent terminal color coding: typically, brass for travelers, black for common, and green for ground.
- Use 14/3 or 12/3 cable (depending on load) between the end devices and the central ones, providing two travelers and one ground.
- Between each intermediary controller, run 14/4 or 12/4 cable to accommodate the dual traveler lines and ground.
- Identify the power source–line and load must enter through the end units, never at the center components.
- Connect the incoming hot (black) to the common screw of the first controller.
- Link the two brass screws of the first and second units using traveler wires (typically red and white).
- Repeat traveler connections across any added middle devices, always pairing brass terminals.
- At the final unit, connect the common terminal to the wire leading to the fixture or load.
Use a continuity tester to confirm each traveler path. Label wires before installation to avoid confusion, especially in circuits with more than three control points. All junctions must reside in accessible boxes, and ground wires should be securely bonded throughout the chain.
Identifying Common Mistakes in Multi-Control Circuit Layouts
Always confirm wire identification before connections. Mislabeling conductors, especially when dealing with three- or four-way setups, often leads to non-functional or hazardous configurations. Use a voltage tester to distinguish travelers from common lines rather than relying on color alone.
Avoid joining neutrals from different circuits. Combining return paths from separate feeds in the same junction can trip breakers or create floating voltage issues. Each group of controls must maintain its own neutral integrity.
Do not ignore box fill capacity. Overcrowding enclosures increases fire risk and complicates troubleshooting. Check cubic inch ratings and match them to conductor count including devices and clamps.
Refrain from back-stabbing terminals. Side-screwing provides a more reliable mechanical bond, especially in high-use or multi-point control systems. Loose push-in connections frequently lead to intermittent performance.
Ensure grounding continuity across all control units. Failing to bond metal enclosures or frames compromises safety. Use grounding pigtails and confirm metallic paths with a continuity checker.
Never assume wire routing is consistent between boxes. In older setups, return legs or travelers might be relocated unexpectedly. Map the entire layout visually or with a toner tracer before modifications.
