Step-by-step Kasa 3-Way Switch Wiring Diagram with Clear Connection Instructions
Begin by identifying the traveler terminals on both controllers. These are typically brass-colored and must be correctly matched between devices. One unit should act as the main with the line voltage, while the other serves as the auxiliary. Incorrect pairing will result in inconsistent behavior or failure to sync with smart functions.
Use the neutral conductor at both ends. Many modern programmable dimmers require a continuous neutral to function properly. If your existing setup lacks a white neutral at either box, you may need to run an additional wire from the panel or junction point, or use a specialized no-neutral solution.
Grounding is critical. Attach the bare copper or green wire to the metal box or green terminal. Skipping this step not only voids safety certifications but may also interfere with wireless reliability due to electrical noise.
Label all conductors before disconnection. Use masking tape and a marker to tag each wire’s function–common, traveler, load, or neutral–prior to removing the legacy units. This step is essential for maintaining proper circuit orientation during reinstallation.
For dual-location control to work flawlessly with automation features, always check compatibility with both wiring layout and the smart hub or app you intend to use. Mismatched protocols or incorrect load wiring will cause delays, flickering, or complete malfunction.

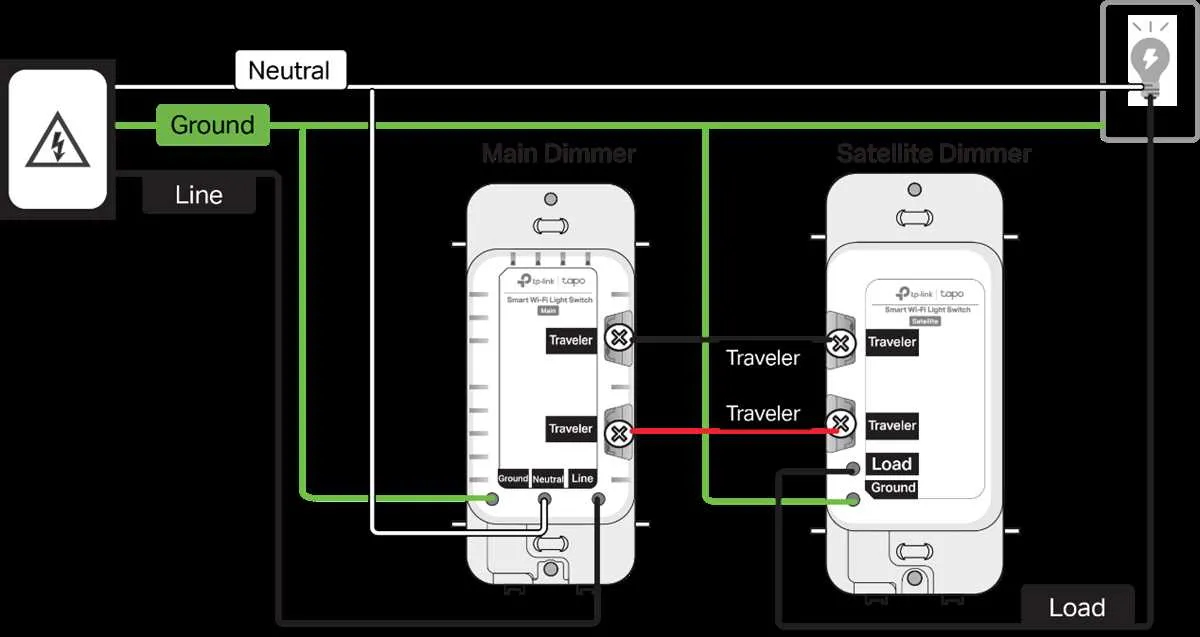

Detailed Setup for Smart Dual-Control Lighting Circuit
Begin by identifying the line (hot) wire in the electrical box, typically black and supplying power from the breaker. Confirm using a non-contact voltage tester. This conductor must be connected to the “Line” terminal on the primary unit.
Locate the traveler conductors, often red and black, running between the two wall boxes. These attach to the marked traveler terminals on both control units. Maintain consistency in traveler placement to avoid signal interference or miscommunication between the units.
Connect the load conductor–usually black or blue–running to the light fixture to the “Load” terminal on the main device. Ensure this lead is not energized when disconnected, as incorrect identification may result in circuit malfunction.
Neutral wires, typically white, must be joined with the corresponding terminal on both devices. If a neutral is missing in either box, the system cannot operate and an additional conductor must be pulled.
Finally, ground all units using bare copper or green wires, bonding them securely to the metal box or ground screw. Tighten all terminal screws, push wires back into the box carefully, and secure the devices with mounting screws before restoring power.

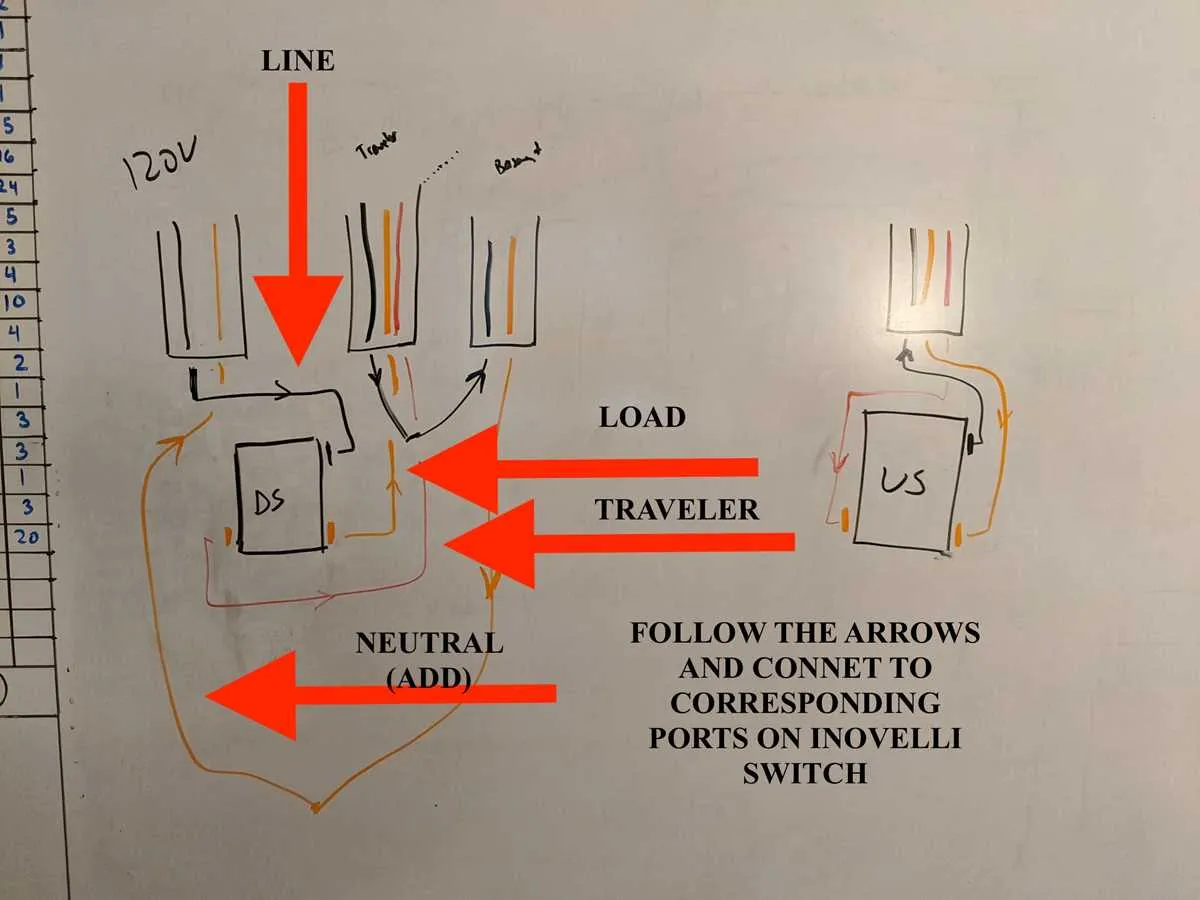

Identifying Line, Load, Traveler, and Ground Wires in a 3-Way Circuit
Start by turning off power at the breaker and using a non-contact voltage tester to confirm all conductors are de-energized. Open both electrical boxes and gently pull the devices forward to inspect wire connections.
The line wire, supplying power from the panel, typically connects to the common terminal, often marked with a black screw. Use a voltage tester with the power temporarily restored to locate the wire consistently hot regardless of switch position – this is the source conductor.
The load wire runs to the controlled fixture and also connects to a common terminal, but only carries voltage when the switches align. To verify, disconnect the wire from the common terminal on the second device and test continuity to the light fitting with the circuit off.

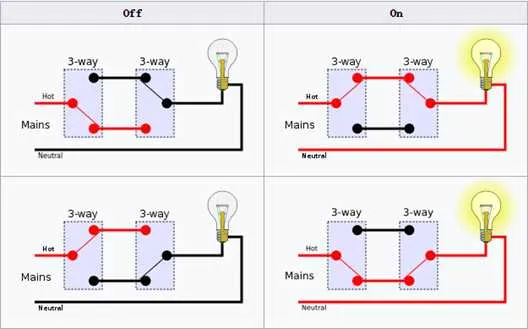

Traveler wires connect between the two control points and are attached to brass or light-colored terminals. There are usually two of them, often red and black, but color is not a guarantee. Identify these by process of elimination and by verifying they change voltage states depending on the position of the opposite control point.
The ground wire, typically bare copper or green, bonds to the metal box (if present) and the green terminal. Confirm its continuity to the panel ground with a multimeter set to resistance mode – it should read near zero ohms.
Step-by-Step Guide to Installing a Kasa Smart 3-Way Switch with an Existing Switch
Begin by disabling power at the circuit breaker to prevent electric shock. Verify power is off using a voltage tester on all connected terminals.
- Remove the wall plate and unscrew the old unit from the wall box. Identify the traveler wires, common (line/load), and ground. Label each with masking tape if needed.
- At the location where the smart control will be installed, connect the black (common) wire to the black terminal marked “COM” or “LINE/LOAD” on the new device.
- Attach the two traveler conductors to the designated traveler terminals–usually marked as “T1” and “T2” or simply as brass-colored screws.
- Join the bare copper or green conductor to the ground terminal. If there is a neutral wire (white), connect it to the neutral port of the smart module–most models require this for proper functionality.
- At the second location, replace the traditional mechanism with the included add-on unit or retain the existing mechanical switch if supported. Wire the traveler conductors and ensure continuity between locations.
- Secure all connections with wire nuts, fold wires neatly into the wall boxes, and fasten both devices with mounting screws. Replace faceplates.
- Restore power at the breaker. Use the companion app to complete pairing and calibration. Follow prompts to assign each side of the circuit and verify control from both ends.
Ensure load does not exceed the device’s rated capacity–typically 5A for lighting loads. Confirm compatibility with LED, CFL, incandescent, or halogen fixtures as specified by the manufacturer.
Troubleshooting Common Wiring Issues in Kasa 3-Way Switch Installations
Always verify load and line wires are not reversed. If the device powers on but fails to control the lighting, swap the terminals connected to the incoming power and the one leading to the fixture. Use a multimeter to identify voltage presence when disconnected.
Ensure the traveler conductors are properly assigned. One of the most frequent missteps is cross-connecting these leads. Confirm both ends of each traveler terminate at the correct screw points on both units. Incorrect pairing results in unpredictable toggling behavior.
Neutral continuity is critical. Check that the white conductor at both wall boxes is a true grounded neutral and not repurposed for another function. A missing or floating neutral causes instability or a complete failure to operate. Use continuity tests across all whites in the circuit.
Inspect the remote location for compatibility setup. In smart-enabled setups, the companion controller must not receive direct voltage on its input. Ensure it only communicates over low-voltage signaling or designated traveler lines, depending on the model.
Replace any dimmable LEDs that flicker or fail to respond. Not all bulbs are compatible with intelligent dimming protocols. Use bulbs marked as TRIAC or listed by the manufacturer for best results. Avoid mixed loads with fluorescent or CFL types.
Pro tip: If the connected lights flicker during operation or delay in response, double-check grounding connections and bonding to the metal box. A floating ground can induce signal interference in some setups.
