John Deere Z445 Drive Belt Diagram and Maintenance Guide

If your riding mower is experiencing issues with power transfer, it’s likely time to inspect and replace the transmission strap. The procedure involves removing the existing component and installing a new one, ensuring the proper function of your mower. Follow these steps for a smooth replacement process and ensure optimal performance.

Start by disconnecting the spark plug to prevent any accidental engine start-ups. Next, elevate the mower to access the undercarriage where the belt is located. The tension on the current part will need to be released, which can be done by loosening the relevant components that hold it in place. Make sure to carefully document the routing of the strap to avoid confusion during reinstallation.

The correct replacement part must match the specifications outlined in the manufacturer’s manual for compatibility. Check the size, width, and material to ensure the new component fits and performs as expected. When reinstalling, double-check the alignment of the replacement part to avoid any wear or damage to surrounding parts.

Finally, after securing the new strap, rotate the pulley system manually to ensure smooth operation. Reconnect the spark plug, and test the mower at low speed to confirm the proper functionality of the power transmission system. This maintenance will keep your machine running efficiently for years to come.

Maintenance Tips for the Lawn Mower Pulley System

If you’re experiencing issues with the power transmission system, check the routing of the pulley chain. First, ensure that the component is correctly placed around each wheel and engine sprocket. Pay attention to the path running from the engine to the rear wheels, as this is the most critical area for movement.

Common Symptoms of misalignment or wear include poor engine response or irregular movement of the mower. Inspect the tension regularly, ensuring the linkage is neither too tight nor too loose, as this can cause excess strain on both the motor and drive assembly.

Step-by-step maintenance involves verifying that the belt follows its proper loop through the pulleys. Any deviation could lead to slippage or excessive wear. Also, lubricate all rotating parts to prevent friction and possible damage. Ensure the spring tensioner operates correctly for smooth performance.

For replacing components, make sure to align the new system in the same configuration as the original, paying attention to the sequence of pulleys. Incorrect installation can lead to frequent repairs or mechanical failure.

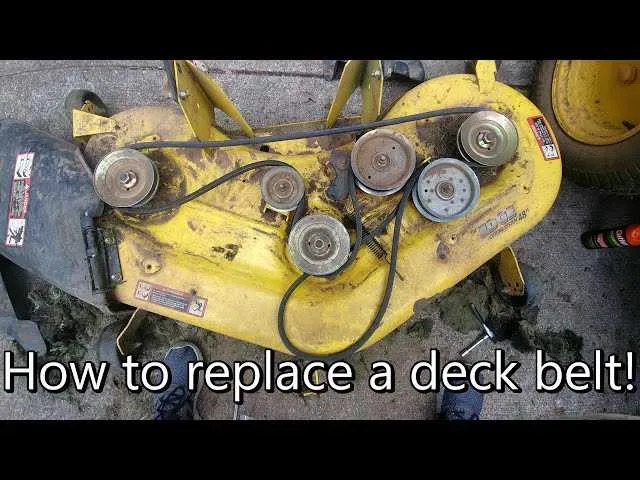

How to Replace the Drive Belt on John Deere Z445

Start by lifting the deck of the mower. Ensure the engine is off and the ignition key is removed. Next, remove the mower deck by detaching the pins and supports. You’ll need access to the underside to begin the replacement process.

Loosen the tensioner pulley. This will release the tension on the existing component. Once released, carefully remove the old piece, noting its routing through various pulleys for reference when installing the new one.

Install the new component by routing it through the same path as the old one. Pay close attention to ensure the orientation matches the diagram or previous configuration. Tighten the tensioner pulley to apply the correct amount of tension to the new component.

Reinstall the mower deck by reversing the removal process. Ensure that all pins are secured properly. Start the engine and test the mower to ensure smooth operation.

Note: Always use OEM parts to avoid performance issues and ensure compatibility with your machine.

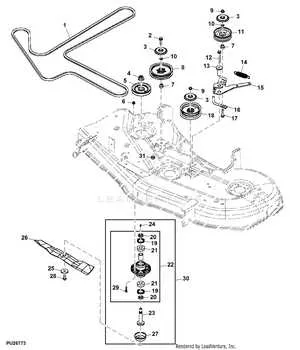

Identifying Key Components in the Drive Mechanism Layout

To effectively troubleshoot or replace components in the lawn mower’s power transmission system, focus on these crucial parts: the primary tensioner, pulleys, and the connecting pathways that lead to the engine and deck. The tensioner, responsible for maintaining proper tightness, ensures the correct movement of the system. The pulleys, with their varying sizes and positions, determine the speed ratios and direction of force transmission.

Next, observe the routing of the power transfer elements. Note how the parts interact with the engine and the cutting deck, ensuring that the system operates smoothly under various load conditions. The layout should also indicate where wear typically occurs–often around the pulleys and guides. These areas should be checked for any visible signs of damage or excess wear.

Lastly, when assessing the layout, prioritize understanding the flow of motion. This involves recognizing how each component supports the operation of others. The efficiency of this interconnected system can be significantly impacted by misalignments, loose parts, or incorrect tension. Keep these elements in mind for proper maintenance and repair procedures.

Common Issues with the Belt System and How to Fix Them

When experiencing issues with the belt mechanism on your lawn mower, start by checking for common problems like wear, misalignment, or debris interference. Here are some key troubleshooting steps and fixes:

• Excessive Wear: Over time, friction can cause the belt to lose its grip or tear. Inspect the surface for any signs of cracking or fraying. If the belt feels loose or appears damaged, replacing it with a new one is the most effective solution.
• Misalignment: Misalignment of the pulleys can lead to uneven tension on the belt, causing it to slip or jump off. Check the alignment of the pulleys and ensure they rotate smoothly. Adjust the pulley positions as necessary and verify that the tension is evenly distributed.
• Improper Tension: A loose belt can result in poor performance or slippage. On the other hand, if the belt is too tight, it could wear out prematurely or cause excessive strain on the system. Adjust the tensioner to achieve optimal tightness, typically measured by about half an inch of deflection at the midpoint.
• Debris Blockage: Grass clippings, twigs, or dirt can accumulate around the pulleys, causing them to become obstructed. Clean all debris from the area, especially around the pulleys and tensioners, to prevent unnecessary wear and improve system efficiency.
• Incorrect Installation: Sometimes the belt may be installed incorrectly, leading to frequent dislodging or premature damage. Refer to the manufacturer’s manual to ensure the belt is routed properly through the various pulleys and components.
• Worn Pulleys: Check the condition of the pulleys. If they have grooves or grooves are damaged, they may not grip the belt properly, causing slippage. Replace any worn pulleys to restore full functionality.

Regular maintenance is key to extending the lifespan of the belt system. Inspect the components frequently, especially during peak usage seasons, to avoid more significant repairs down the line.
