The upgrade to 3 Hoppers requires using two DPP44 switches (or one DPP44 and one DPP33 switch).
This requires a significant F = Connection between Solo and Duo Nodes (creates a single network for all 3 Hoppers). The two power supplies for .
I am wired exactly like that diagram. August 25, ••The only switch compatible with the DPP + LNBF is the DPP44 Switch.
Hopper. Whole-Home HD.
DVR. 1 x x.
Joey. Joey.
Whole-Home HD. DVR.
1 x x. ..
The following installation diagrams are the approved configurations for extending the UHF and. UHF Pro DPP33 switch.
• DPP For detailed installation diagrams, visit Hopper Receiver Installation Can a DPP switch such as a DPP 44 or DPP 33 be used to connect a Hopper Duo?. Use a DISH Pro 34 (DP34) switch, DISH Pro Plus 33 (DPP33) switch, or For switch installation with DISH Pro + LNBF: Connect the switch cables from the .
If I remove the Solo Node and do another check switch, the Hopper will Well, I see that my diagrams got screwed up when making the post.Jul 11, · DISH Pro Hybrid Switch (DPH42) Now Available I’ve been waiting for this switch so that I can upgrade from a Hopper 1 to a 3 while sticking with my proLNB setup.
The DPH42 allows for multiple wiring solutions that are of particular interest to RVers P Smith likes this. • Ground each antenna used to one of the ground lugs located along the top of the switch.

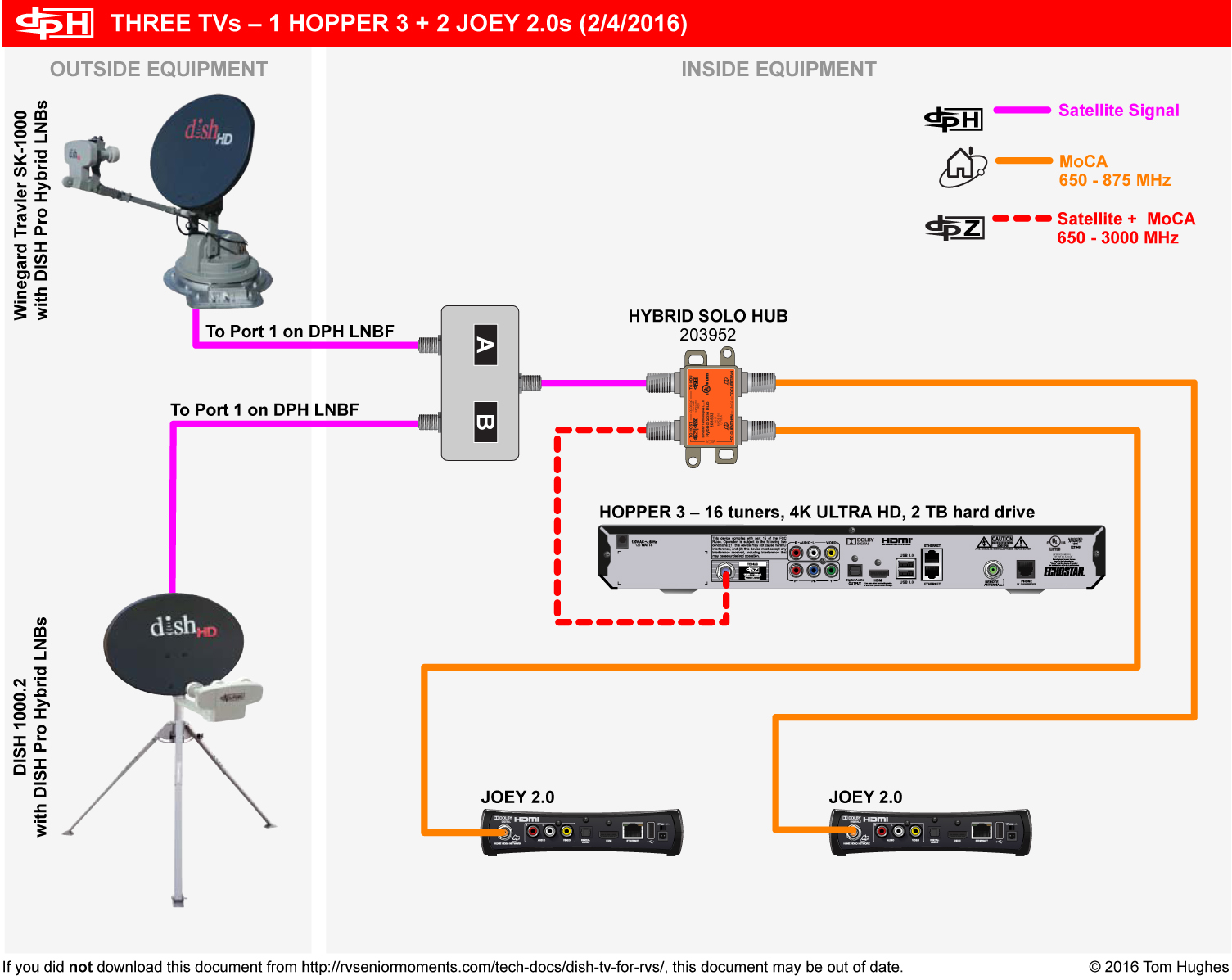

• You can use messenger cable from the DISH to the switch, but must use #10 ground wire from the switch to the ground source. As of the writing of this document the DPP33 switch is the only switch . Hopper 3 DISH Pro Hybrid Solo Hub RG-6 Coax To Splitters and then Joeys (As shown on previous wiring diagram) Max 6 Joey thin-client receivers in same video network as each Hopper 3 (Joeys, 4K Joeys, Wireless Joeys) Hopper 3 RG-6 Coax Amplifier DISH Pro Hybrid 42 Switch RG-6 Coax Switch Power Inserter RG Coax will work, RG-6 Coax recommended.
Jan 08, · I currently have 2 original Hoppers with the Dish/LNB that came with them, and a Duo Node Switch. I am wanting to add a 3rd Hopper, and it is a Hopper I have seen diagrams where it showed you needed a DP44 and a DPP33 and Single Node switch, but I also read a vague old post about not needing all that.
