A Comprehensive Guide to Wiring a Honeywell Smart Thermostat: Step-by-Step Diagram Included

If you’re looking to install a Honeywell smart thermostat in your home, one of the most important things you’ll need to know is how to properly wire it. The wiring diagram is a crucial tool that will guide you through the installation process and ensure that your thermostat functions correctly. In this article, we’ll provide you with a detailed overview of the wiring diagram for a Honeywell smart thermostat.

First and foremost, it’s important to understand the different wires that are typically used in thermostat installations. The most common wires include the C wire, R wire, W wire, Y wire, G wire, and the O/B wire. Each of these wires serves a specific purpose in the thermostat’s operation, and understanding their functions is essential when it comes to proper wiring.

The wiring diagram for a Honeywell smart thermostat will illustrate how these wires should be connected to the thermostat’s terminals. For example, the C wire will usually be connected to the C terminal, while the R wire will be connected to the R terminal. It’s crucial to ensure that each wire is connected to the correct terminal, as any incorrect connections can result in the thermostat not functioning properly.

Honeywell Smart Thermostat Wiring Diagram

The wiring diagram for a Honeywell smart thermostat can vary depending on the specific model and HVAC system being used. However, there are some general guidelines and common components that can be found in most wiring diagrams. It is important to carefully follow the wiring instructions provided by Honeywell and consult a professional if needed.

Here is a basic overview of the wiring diagram for a Honeywell smart thermostat:

• The thermostat will typically have labeled terminals for different wires. These labels may include R, C, W, Y, G, O/B, and others.
• The R terminal is for the power supply from the HVAC system. It is usually connected to a wire providing 24 volts AC.
• The C terminal, if available, is for the common wire from the HVAC system. This wire provides a return path for the 24 volts AC.
• The W terminal is for the heat relay, which controls the heating system.
• The Y terminal is for the cooling relay, which controls the air conditioning system.
• The G terminal is for the fan relay, which controls the HVAC system’s fan.
• The O/B terminal is used to control the reversing valve in a heat pump system. It determines whether the system is in heating or cooling mode.

These are just some of the common terminals and connections found in a Honeywell smart thermostat wiring diagram. It is important to refer to the specific wiring diagram provided by Honeywell for your model and HVAC system to ensure proper installation and functionality.

Overview

Honeywell smart thermostats are advanced devices that allow users to control their heating and cooling systems remotely and efficiently. These thermostats offer a range of features, including programming options, energy management, and integration with smart home systems.

The wiring diagram for a Honeywell smart thermostat outlines the connections between the thermostat and the HVAC system. It provides a visual representation of the electrical connections, ensuring proper installation and operation of the smart thermostat.

In general, Honeywell smart thermostats require a low-voltage power source, typically 24 volts, to operate. The wiring diagram will typically show the connections for the Rh (power supply for heating), Rc (power supply for cooling), C (common wire), and W (heat) terminals. Additionally, there may be terminals for Y (cooling), G (fan), and O/B (heat pump).

Following the wiring diagram is crucial for a successful installation of a Honeywell smart thermostat. It ensures that the thermostat is correctly connected to the HVAC system, allowing for proper functioning of the thermostat’s features. If in doubt, it is recommended to consult a professional HVAC technician for assistance.

Step-by-Step Guide for Wiring a Honeywell Smart Thermostat

Wiring a Honeywell smart thermostat can be a straightforward process if you follow the right steps. Here is a step-by-step guide to help you with the wiring process:

1. Turn off the Power

Before you begin wiring your smart thermostat, it is crucial to turn off the power to your HVAC system. Locate the circuit breaker or fuse box and switch off the power supply to ensure your safety during the installation process.

2. Remove the Old Thermostat

Next, remove the cover of your old thermostat to access the wiring. Take a picture of the existing wiring or make note of the wire connections to help you during the installation of the new thermostat. Disconnect the wires and remove the old thermostat from the wall.

3. Prepare the New Thermostat

Take out your new Honeywell smart thermostat and familiarize yourself with its components. Read the installation manual provided by Honeywell to understand the wiring requirements specific to your model. Ensure you have the necessary tools and materials ready for the installation process.

4. Mount the Thermostat Baseplate

Using the provided screws, mount the baseplate of your thermostat onto the wall in the desired location. Ensure that the baseplate is level and securely attached to the wall. Make sure to leave enough space for the wiring connections behind the baseplate.

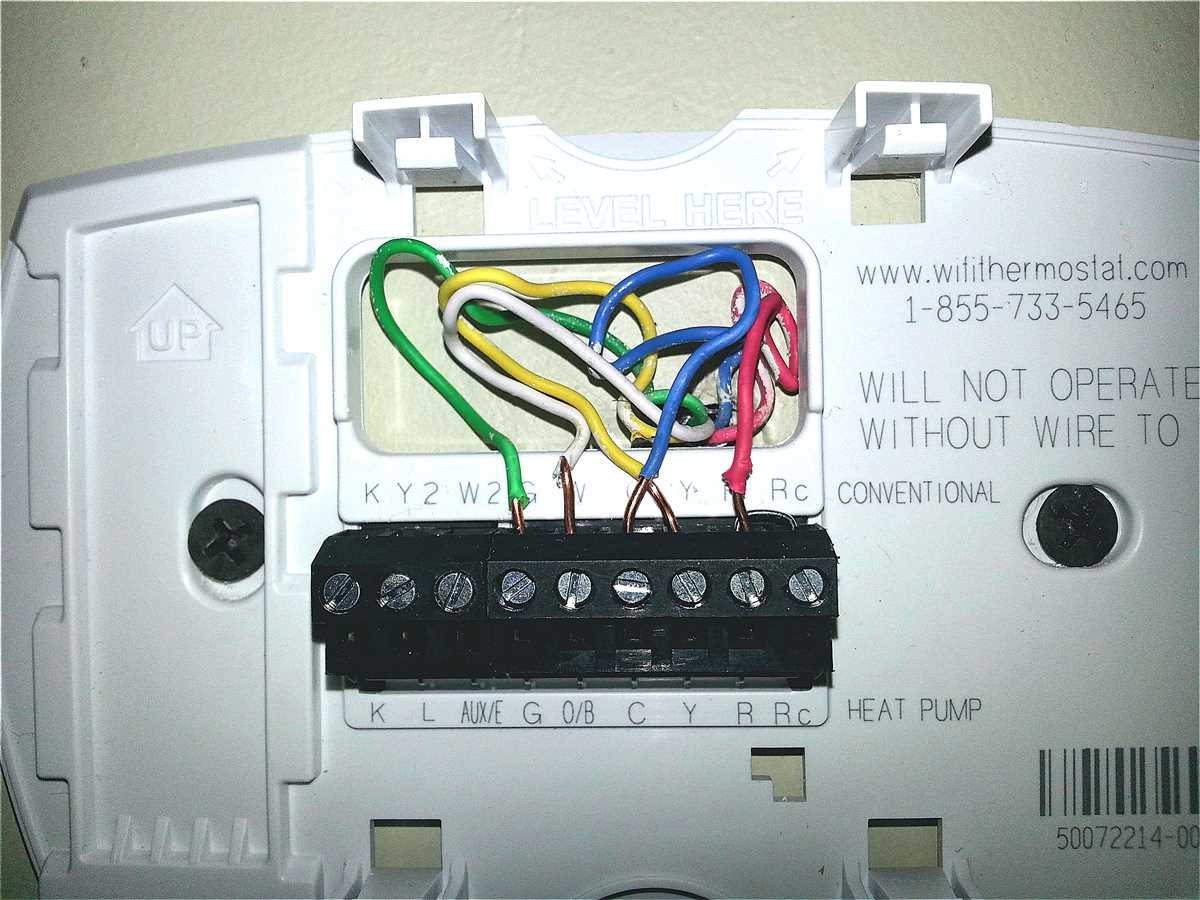

5. Connect the Wires

Referencing the picture or notes you took earlier, connect the corresponding wires to the labeled terminals on the new thermostat’s baseplate. Each wire should be securely inserted into the appropriate terminal, ensuring good contact. Double-check your connections to ensure they are accurate according to the wiring diagram provided by Honeywell.

6. Attach the Thermostat

Once all the wires are properly connected, carefully line up the thermostat with the baseplate and push it into place. The thermostat should securely snap onto the baseplate. Give it a gentle tug to ensure it is firmly attached.

7. Restore Power and Test

After completing the wiring and attaching the thermostat, restore power to your HVAC system by turning on the circuit breaker or switching on the fuse. The thermostat should power up and display its initial setup screen. Follow the on-screen instructions to complete the installation process and customize your thermostat settings.

By following this step-by-step guide, you can easily wire your Honeywell smart thermostat and enjoy the benefits of a connected and customizable heating and cooling system.

Troubleshooting Tips for Honeywell Smart Thermostat Wiring

If you are experiencing issues with the wiring of your Honeywell smart thermostat, there are a few troubleshooting tips that can help you resolve the problem. Here are some common issues and their potential solutions:

1. Incorrect Wiring Connections

Check if the wiring connections are properly made according to the wiring diagram provided by Honeywell for your specific thermostat model. Ensure that each wire is connected to the correct terminal and securely tightened. If any wires are loose or incorrectly connected, recheck and fix the wiring.

2. Compatibility Issues

Confirm that your smart thermostat is compatible with your heating and cooling system. Some thermostats may require additional relays or adapters for certain HVAC systems. Consult the compatibility chart provided by Honeywell to ensure compatibility. If your thermostat is not compatible, consider upgrading to a compatible model.

3. Power Issues

Make sure that your smart thermostat is receiving power. Check the circuit breaker to ensure it is not tripped. Verify that the R (power) wire is connected and receiving power. If the thermostat has batteries, ensure they are not depleted and properly inserted. If needed, replace the batteries.

4. Fuse Issues

Inspect the control panel or control board of your HVAC system for any blown fuses or tripped circuit breakers. If you find any, replace the fuse or reset the circuit breaker as necessary. This can restore power to the thermostat.

5. Wiring Damage

Inspect the wiring leading to and from the thermostat for any signs of damage, such as frayed or exposed wires. If any damage is found, carefully repair or replace the affected wiring. Be cautious and turn off power to the HVAC system before making any repairs.

6. Professional Assistance

If you have followed the troubleshooting tips above and are still experiencing issues with your Honeywell smart thermostat wiring, it may be necessary to seek professional assistance. Contact a licensed HVAC technician or electrician for further diagnosis and repair.

Remember, when dealing with electrical wiring, always prioritize safety and consider consulting a professional if you are unsure or uncomfortable with performing any troubleshooting or repairs yourself.
