Honeywell HZ311 Wiring Diagram and Installation Guide for Thermostat Systems

Ensure the proper installation of your device by following these precise connection instructions. The control unit requires the correct linking of the terminals for seamless operation. Always confirm the wiring corresponds to the color codes: red for power, white for heating, green for the fan, and yellow for cooling. Verify each wire is securely attached to avoid potential malfunctions.

Power connections must be checked first. The system is powered through the red wire, typically connected to the R terminal. If your system supports an auxiliary power source, such as a C-wire, ensure it is properly connected to ensure reliable operation over time.

When connecting the signal wires, identify the terminal for heating (usually marked W), cooling (marked Y), and the fan (marked G). These connections are essential for correct functionality. Double-check each connection for stability and ensure no wires are loose or improperly positioned. An improper setup can lead to system malfunctions or failure to respond to settings.

If you have additional components like a secondary heating element, confirm their respective terminals are appropriately linked. Always consult the system’s manual to ensure the correct configuration of all components.

Wiring Connections for HZ311 Control Module

For proper installation, ensure the following steps are followed to connect the terminals of your device correctly:

1. Power Supply: Connect the power supply to the 24V terminals, ensuring correct polarity. The positive wire should go to the “+” terminal, and the negative wire to the “-” terminal. Make sure the voltage input is 24V AC.

2. Heat and Cool Mode Wiring: The terminals for heat and cool settings must be connected to the respective heating or cooling equipment. Use the correct configuration for your system, either for heating or cooling operation based on your climate control needs.

3. Fan Terminal: The fan terminal should be wired to the system’s fan control. This allows the module to activate the fan when necessary, based on the mode settings.

4. Signal Inputs: Attach any external signal inputs, such as sensors, to the appropriate terminals. Ensure that the wiring follows the exact order to avoid miscommunication between components, which can lead to malfunction.

5. Grounding: Properly ground the system by connecting the ground terminal to the system’s earth or ground wire. This step is crucial for safety and for preventing electrical issues.

6. Troubleshooting: If the system isn’t functioning as expected, double-check all connections for loose or incorrect wiring. Use a multimeter to test for continuity and voltage at each terminal to ensure the connections are solid.

7. Final Check: After installation, verify the module’s response by running a test sequence. Ensure that all modes (heat, cool, fan) operate correctly and that the system responds appropriately to commands from the control module.

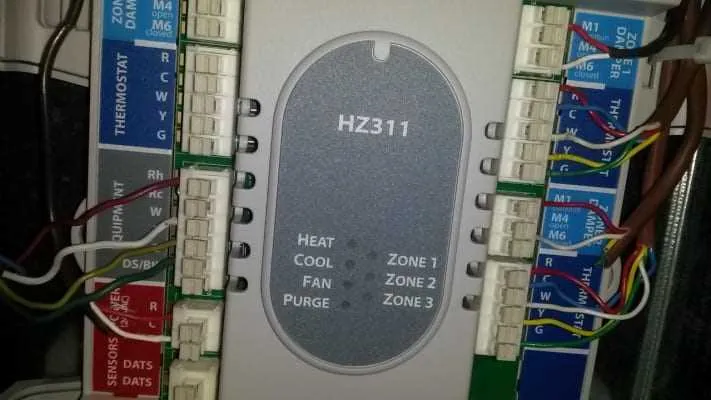

How to Connect the HZ311 to a Multizone System

To integrate the HZ311 into a multizone setup, begin by identifying the terminals for each zone controller. You’ll need to ensure each zone valve is correctly connected to its respective terminal on the system’s central unit. The primary terminals to focus on are those for the heating and cooling signals, as well as the common and zone outputs.

For each zone, wire the appropriate outputs from the control board to the zone actuators. Use the terminal blocks to link the heat/cool control signals from the unit to the individual zone devices. Make sure to connect the common wire to the common terminal to maintain proper system grounding.

Once the individual zones are connected, verify the power supply. The system should be set up to deliver 24V to each zone actuator when required, activating the respective heating or cooling unit based on the thermostat’s demand.

Check all connections and run a test to ensure each zone responds independently to thermostat commands. This will confirm that the system is properly wired for multizone operation.

Understanding the Wire Colors and Terminal Connections on the HZ311

When connecting the system components, it’s crucial to follow the proper wire color coding and terminal assignments. Here’s what you need to know:

• Red wire: Typically used for the 24V power input, providing constant voltage to the unit. Ensure it connects to the designated power terminal.
• White wire: Usually assigned to the heating control. It connects to the heating terminal on the control panel for activating the heating element when necessary.
• Yellow wire: This wire is linked to the cooling function. It must be connected to the cooling terminal to control the cooling cycle.
• Green wire: Represents the ground or common terminal. It’s essential for safety and should be connected to the designated ground terminal on the unit.
• Blue wire: Often used for the cooling system’s common line, and may be necessary for specific control configurations.

Each wire color must be connected to its corresponding terminal to ensure the system operates correctly and safely. Misconnections can lead to malfunction or system failure.

Recommended Wire Placement:

1. Ensure the red wire goes to the 24V power terminal.
2. Place the white wire in the heating terminal for proper activation of the heating cycle.
3. Connect the yellow wire to the cooling terminal for cooling functionality.
4. The green wire should be attached to the ground terminal to maintain safety.
5. Ensure the blue wire is linked correctly if used for cooling control.

Always double-check your connections before powering the system. Incorrect wiring can lead to performance issues or damage to the components.

Troubleshooting Common Electrical Problems with the HZ311 Model

Verify Proper Power Supply: Ensure that the power source is stable. Check if the unit is receiving 24V AC power. If not, inspect the transformer and associated fuses for faults. A malfunctioning transformer can prevent proper operation of the system.

Check for Short Circuits: A short circuit in the control system can cause malfunction or failure. Examine all connected terminals for signs of damage, corrosion, or improper connections. If any exposed wires are in contact with metal parts, isolate them and correct the issue.

Inspect Signal Connections: Poor or loose signal connections can lead to system errors. Confirm that all control and sensor wires are securely attached to their respective terminals. A loose wire may result in improper system responses or erratic behavior.

Examine the Thermostat Connection: Ensure that the thermostat wiring is properly connected and there are no broken or frayed wires. Incorrect thermostat connections can lead to inaccurate temperature readings or improper system activation.

Test the System’s Grounding: Proper grounding is essential for smooth operation. If the unit is not grounded correctly, electrical interference or erratic behavior may occur. Confirm that the grounding wire is securely attached to the terminal and properly connected to the ground.

Check for Faulty Relays or Control Boards: A malfunctioning relay or control board can prevent the unit from responding as expected. If there are any signs of damage or overheating, consider replacing the affected components to restore functionality.

Verify Circuit Breakers: Circuit breakers protect the system from electrical surges. If the breakers have tripped, reset them and investigate potential causes, such as a surge or short circuit, that may have caused the issue.
