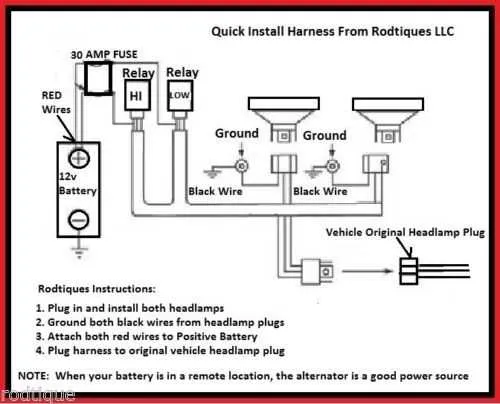

Headlight Plug Wiring Diagram for Accurate Electrical Connections

To ensure the proper functioning of your vehicle’s lighting system, it’s crucial to understand the connection points and electrical paths. The best approach is to begin by identifying the specific terminals that connect your lights to the power source. Using the correct color codes for each wire can significantly reduce the risk of errors and make the installation smoother.

Ensure compatibility between the components before proceeding with any electrical work. It’s essential to match the voltage ratings of the light units with the wiring harness you’re using. Mismatched connections can lead to short circuits, malfunction, or even damage to the lights.

Testing continuity is a simple yet vital step after completing any setup. Use a multimeter to verify that there are no breaks in the electrical path. Pay close attention to the grounding connections, as poor grounding is a common cause of lighting failures.

Lastly, always double-check that your connections are securely fastened and insulated. Loose or exposed wires can result in intermittent lighting issues or even hazards on the road. By adhering to these practices, you’ll ensure a reliable and safe lighting system for your vehicle.

Connecting Your Car’s Front Light Components

When installing or troubleshooting the electrical connections for your vehicle’s front illumination, follow the proper color code for each wire to avoid miswiring. The positive lead is typically marked with a color like white or blue, while the negative or ground connection is usually black or brown. Make sure to check the polarity before attaching any components to prevent damage.

Step 1: Identify the terminal types. Most setups will use a simple two-connector system, but some advanced systems may have additional connectors for high and low beam functions. Ensure you use the correct connector type to avoid poor contact.

Step 2: Match the wire to the correct terminal based on the function it serves. The power wire generally connects to the center terminal, and the ground should be attached to the outer terminal. For the beam switch, there may be a third wire, typically color-coded to differentiate it.

Step 3: If you’re dealing with an integrated system, such as a vehicle with automatic adjustment or a fog light system, make sure the corresponding wires are securely fastened. These may be controlled by a relay or sensor that adjusts voltage based on driving conditions.

Tip: Use electrical tape to secure any exposed wires after installation to avoid short circuits or accidental disconnections while driving.

Finally, double-check all connections before reassembling the casing. Incorrect wiring can cause malfunction, leading to costly repairs. If unsure, refer to the vehicle’s specific manual or seek professional help for a precise connection.

Understanding the Connector Pinout for Proper Electrical Connections

Ensure that each terminal is connected to its corresponding wire based on the standard pinout layout for your system. The first terminal typically serves as the ground, which should be linked to a solid metal point on the vehicle chassis. Verify this with a multimeter to avoid electrical faults.

The second terminal is commonly responsible for the positive power feed, usually connected to the vehicle’s battery or fuse box. Always use a fuse rated appropriately for the component to prevent short circuits or overloading. The third terminal is used for a secondary function, such as signal or auxiliary light control. Check the manufacturer’s specifications to confirm the exact purpose and voltage requirements for this connection.

For optimal performance, ensure that connections are clean and free from corrosion. Utilize dielectric grease to protect terminals from moisture and dirt, which can lead to malfunctions. Properly secure each wire with strain relief to prevent accidental disconnections due to vibration or movement.

Tip: When testing the connector, make sure that all pins align correctly with the receptacle. Misalignment can result in poor electrical contact and potential damage to the system.

Note: Always double-check the wire color codes and pin numbers against the vehicle’s specific model documentation before proceeding with installation. This small step ensures safe and effective operation.

Step-by-Step Guide to Replacing a Faulty Headlamp Connector

Start by disconnecting the vehicle’s battery to avoid any electrical shock or short circuits during the replacement process. Make sure to identify the faulty connector; it’s often due to corrosion, frayed wires, or loose connections.

Use a multimeter to check the electrical current at the connector terminal. If the reading is inconsistent or zero, this confirms the need for replacement.

Next, remove the damaged component by gently prying it away from its mounting, being careful not to damage any surrounding elements. If necessary, cut the wires to separate the old part, leaving enough length to work with for the new unit.

Prepare the new connector by stripping back a small portion of the insulation from the wire ends. Ensure the wire is clean and free of corrosion before attaching it to the new part. Use a crimping tool to secure the wires in place, ensuring a firm connection.

Before reattaching the new unit, test the electrical functionality by reconnecting the battery briefly to check for power flow. If the new connector is functioning properly, proceed to install it by securing it to its original mounting location.

Finish the process by reconnecting all wires and ensuring that no exposed metal is visible. Double-check that everything is tightly secured and the connector is firmly in place. Finally, test the light to ensure the issue is resolved and all components are working properly.

Troubleshooting Common Issues in Automotive Lighting Systems

When facing issues with your vehicle’s illumination, focus on the following troubleshooting steps:

• Check for Blown Fuses: Inspect the fuse connected to the lighting circuit. A blown fuse is often the root cause of malfunction. Replace with the correct amperage fuse.
• Inspect for Corrosion: Corrosion on connectors can cause intermittent contact. Clean terminals with a wire brush or corrosion remover to ensure a stable connection.
• Verify Proper Grounding: Poor grounding can result in erratic behavior. Ensure the grounding wire is securely attached to the vehicle frame and is free from dirt or rust.
• Test for Power Continuity: Use a multimeter to confirm voltage flow at the power input. No voltage at the connector points indicates a break or interruption in the power source.
• Check for Loose Connections: A loose connection will often cause flickering or non-functioning lights. Tighten the terminals and ensure they fit securely.
• Examine the Wiring Insulation: Look for damaged insulation that could expose the wiring to the elements, causing shorts. Replace any worn-out sections immediately.
• Assess Switch Functionality: A malfunctioning switch can prevent power from reaching the system. Test the switch for continuity or replace it if necessary.

After diagnosing the issue, consider replacing any faulty components and reassembling the system to restore proper function.
