Detailed Electrical Schematics for Pickup Wiring Configurations and Component Connections

Start by examining the fuse panel near the driver’s footwell; most issues with lighting, dashboard indicators, or power windows originate here. Use a multimeter to verify continuity across the relays and fuses before moving deeper into the system.

If you’re dealing with ignition or starter failures, locate the harness junction behind the steering column. This area often conceals corroded or loose connections, especially in vehicles manufactured between 2004 and 2008. Trace the wire color codes–typically red/light green or yellow/black–for consistent voltage during key rotation.

For audio or infotainment malfunctions, focus on the rear of the center console. Identify signal lines by their gauge and stripe patterns. Power input usually arrives via an 18-gauge yellow or orange line, while speaker outputs split off into matched pairs distinguished by stripe inversions.

Address trailer connectivity or rear lighting anomalies by inspecting the harness trunk under the rear bed. Moisture intrusion frequently causes shorts here. Use dielectric grease after reseating connections to prevent future degradation.

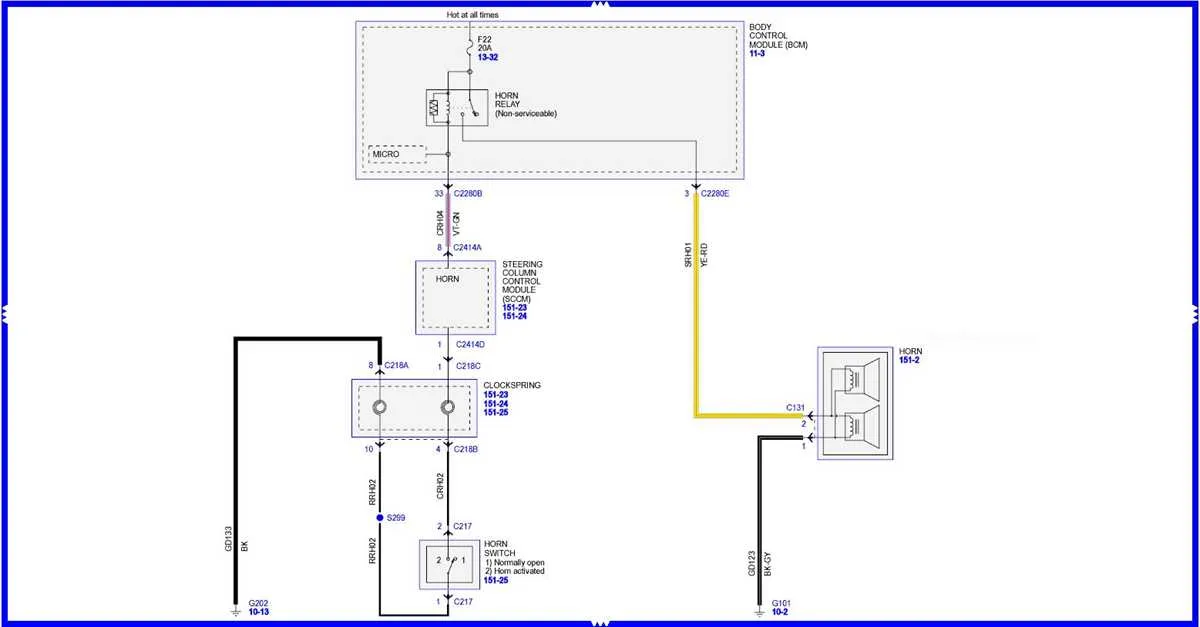

Ford Wiring Diagrams F150

Begin with verifying the exact model year and trim level before referencing any schematics–layout and color codes vary significantly between production batches. For example, the lighting control paths on a 2011 XL version differ from those on a 2011 Lariat, especially in the headlamp relay integration.

Identify circuit groups by their connector IDs (e.g., C2280B for PCM harness connections) to streamline troubleshooting. Pin C175E-12, for instance, commonly supplies ignition voltage to the fuel module, but on select configurations, it may reroute through the smart junction interface. Check splice locations like S202 or S228 to trace anomalies in sensor communication lines.

Use the designated ground references (e.g., G104 near the left kick panel or G203 under the dash) to test continuity and voltage drop during diagnosis. Incorrect grounding often mimics module failure. For power distribution, track paths through the battery junction unit–component F2.34 frequently links to HVAC systems on higher trims.

Color standards follow SAE norms; however, some variants introduce proprietary markings. For example, LB/YE may indicate throttle control circuits, while GY/RD might denote trailer interface links. Cross-reference with chassis harness layouts to avoid misrouting during retrofitting.

Locating Fuse Box and Interpreting Power Distribution Layout

Start by checking beneath the dashboard on the driver’s side–just above the brake pedal–for the cabin module. If absent, inspect the kick panel or behind a removable trim cover near the left footwell. For high-current units, open the hood and scan the engine bay’s driver-side corner near the battery casing. Some models also place a secondary unit close to the firewall junction block.

To decode the current flow chart, refer to the molded numbering on the relay box lid. Cross-reference each slot using the schematic typically adhered to the panel cover or consult the manual index under “electrical distribution.” Always match amperage ratings exactly; swapping a 15A with a 20A may cause overheating risks. If a slot is marked “IGN RUN” or “PCM PWR,” it’s essential for engine control–never bypass it with jumper wires.

Use a test light to confirm live circuits with ignition OFF and ON states. A terminal lighting up under both conditions likely handles memory-retained components like clocks or security modules. If no power appears in expected points, inspect upstream relay contacts or harness grounding under the steering column bracket or near the strut tower. Corrosion in these zones leads to voltage drop and intermittent failures.

Understanding Grounding Points and Common Fault Locations

Begin diagnostics by inspecting the main chassis ground near the battery tray; corrosion here often leads to intermittent electrical issues. Always check the integrity of the ground strap connected to the engine block, especially near the alternator bracket.

• Verify clean, tight contact at the left kick panel ground junction – frequently overlooked, yet critical for dashboard electronics.
• Inspect the bed-to-frame ground at the rear crossmember, particularly if lighting or trailer circuits malfunction.
• On models with extended cabs, examine the rear wall ground splice pack beneath the trim – water ingress causes resistance buildup here.
• Locate and test the G104 point on the left fender apron; it’s essential for PCM reference grounds and sensor stability.
• Check behind the right headlamp for signs of arcing or discoloration on the body harness ground point.

Use a voltage drop test under load conditions to validate suspect paths. Resistance under 0.1 ohm is ideal. Avoid relying solely on visual checks – use a multimeter to confirm continuity and integrity at all body-mounted returns.

Identifying Color Codes and Connector Types for Harness Repairs

Always cross-reference wire colors with the factory service manual before attempting any splicing or rerouting. For example, a solid yellow strand typically indicates a power feed, while a black line with a white stripe often represents ground in many configurations.

Use a digital multimeter to confirm continuity and voltage presence instead of relying solely on hue. Connector housings are frequently marked with alphanumeric IDs molded into the plastic–match these codes with technical reference charts to determine compatibility and function.

Pin layouts vary between rectangular and oval interfaces; always inspect terminal orientation before inserting or removing any contact. Pay attention to locking tabs and secondary retainers to avoid damage. If dealing with a broken link, use crimp-on sealed terminals rather than solder joints to ensure long-term vibration resistance.

When sourcing replacements, verify that terminal size (e.g., 1.5 mm vs 2.8 mm) and cavity position correspond with the original block. Misalignment or incorrect gauge can lead to intermittent faults. For insulated jackets, check temperature and abrasion ratings printed along the sleeve before installing in high-heat zones.
