Wiring Diagram and Connection Guide for Automotive Fog Light Relay Systems
To ensure reliable operation of your auxiliary illumination system, begin by connecting the switch to a 12V power source protected by a 10A fuse. Use a 4-pin electromechanical control device designed to handle the current load without voltage drops.
Start by identifying the power input terminal on the control unit, then connect it directly to the battery’s positive terminal via an inline fuse. The output terminal should be routed to the lamps using appropriate gauge wire, typically 16 AWG for up to 10 amps.
Grounding the control coil properly is critical–attach the negative coil terminal to a clean chassis ground point to avoid erratic switching or failure to activate. The control switch itself should receive power through an ignition-switched circuit to prevent unintended activation when the vehicle is off.

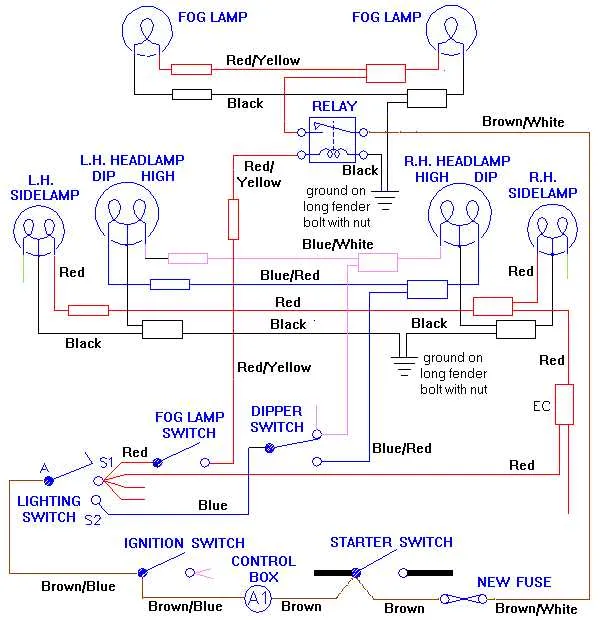

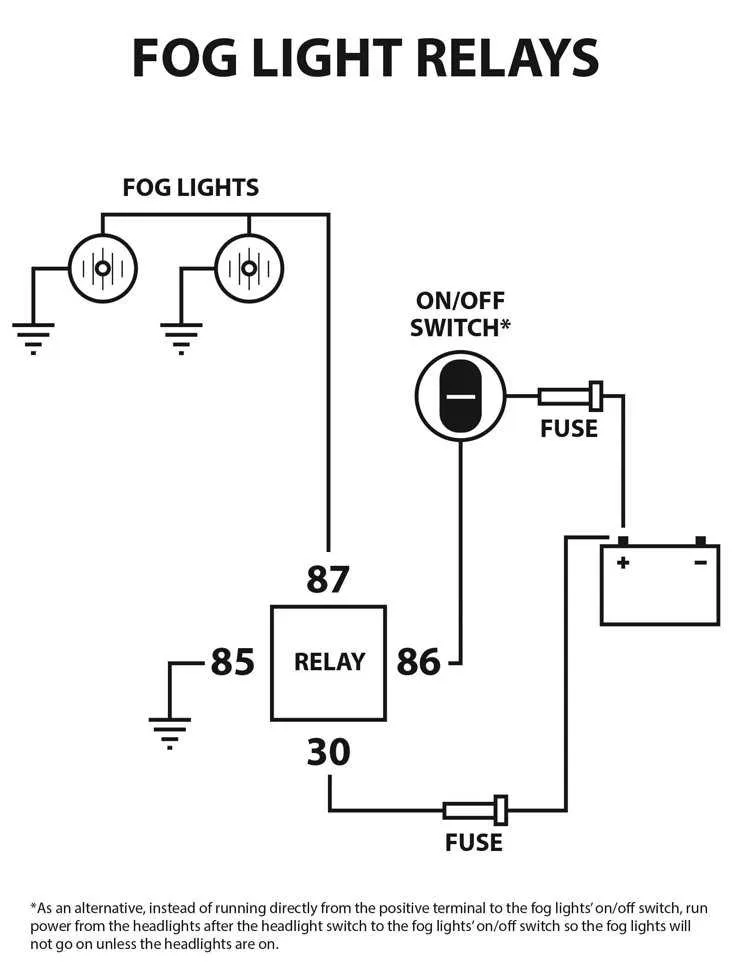

Fog Light Relay Wiring Diagram
For optimal installation of your auxiliary beam switch circuit, connect the power source to the relay coil input using a fuse rated at 15A. Ensure the ground terminal of the coil is secured to a clean chassis point to prevent voltage drop.
Follow these steps for precise assembly:
- Run a 12V positive lead from the battery’s fused output to terminal 30 of the electromagnetic switch.
- Attach the activation wire from the dashboard toggle to terminal 85 of the coil side.
- Connect terminal 86 to a solid ground point to complete the coil circuit.
- Link terminal 87 to the auxiliary lamps’ positive input line, ensuring proper insulation along the run.
- Verify all connectors are weatherproof to avoid corrosion and signal loss.
Key technical notes:
- Use 16-14 gauge wire for current-carrying paths to handle up to 20 amps safely.
- Implement a relay with at least 30A switching capacity to accommodate the load.
- Include an inline fuse close to the battery to protect the entire circuit from short circuits.
- Double-check continuity and absence of voltage drops before finalizing connections.
Selecting the Correct Relay Rating for 12 V Auxiliary Illumination
Choose a switching device rated at least 30 amps to ensure reliable operation with a 12-volt power source. Standard automotive circuits for supplemental driving lamps typically draw between 8 to 20 amps depending on bulb wattage and quantity. For example, a pair of 55-watt bulbs at 12 volts will pull approximately 9 amps each, totaling 18 amps.
Factor in a 25-30% safety margin above the calculated current to prevent overheating and premature failure. A device rated for 30 to 40 amps offers sufficient headroom for inrush current spikes and additional accessories on the same circuit.
Use components with coil voltages matching the 12 V system to guarantee proper activation. Opt for devices with terminals designed for automotive connectors (usually spade type) to ensure secure connections and minimize voltage drops.
Avoid devices with lower amperage ratings as they risk melting contacts or failing under continuous load. Conversely, excessively oversized components may lead to inefficient operation and unnecessary cost.
Always verify the maximum current draw of your supplementary illumination setup and select the switching unit accordingly to maintain system integrity and safety.
Step-by-Step Pinout Connections: Relay to Switch, Battery, and Lamps
Connect terminal 85 directly to the control switch output. This pin activates the electromagnetic coil inside the device. Use a wire rated for 16-18 AWG to ensure reliable signal transmission.
Terminal 86 must be grounded to the vehicle chassis or a solid negative point. Confirm the connection has minimal resistance to avoid intermittent activation.
Terminal 30 serves as the main power input. Connect it to the positive terminal of the battery through an inline fuse rated between 15A and 20A, depending on the current requirements of the lamps.
Terminal 87 outputs power to the illumination units. Use a wire gauge suitable for the total load, typically 14-16 AWG, and route it to the lamp connectors, ensuring secure terminals and protection from abrasion.
Ensure all connections are tight and insulated with heat-shrink tubing or high-quality electrical tape to prevent shorts and corrosion over time.
Troubleshooting Common Electrical Switch Faults and Voltage Drops
Always begin by measuring voltage at the control device terminals under load; a reading below 12 volts indicates excessive resistance or a poor connection. Inspect connectors and terminals for corrosion, looseness, or damaged insulation, as these are primary causes of voltage loss.
Use a multimeter to perform a voltage drop test along the circuit path: test between the power source and the actuator, then between the control device and ground. Any drop exceeding 0.5 volts at rated current signals a compromised connection or faulty cable segment.
Check the continuity of each conductor, including the ground line, to rule out breaks or internal wire damage. Pay close attention to terminals where moisture or dirt can create high resistance points, particularly at splice junctions and fuse blocks.
Replace or tighten any suspect connectors, and apply dielectric grease to prevent oxidation. When upgrading, use cables with adequate gauge to support current demands, minimizing heat buildup and voltage loss over distance.
Confirm the switching device coil receives full battery voltage when engaged; if not, investigate upstream controls or switches for faults. Also verify the actuator’s ground path to ensure a complete circuit without resistance.
