Complete ER Diagram Cheat Sheet for Quick Reference and Study

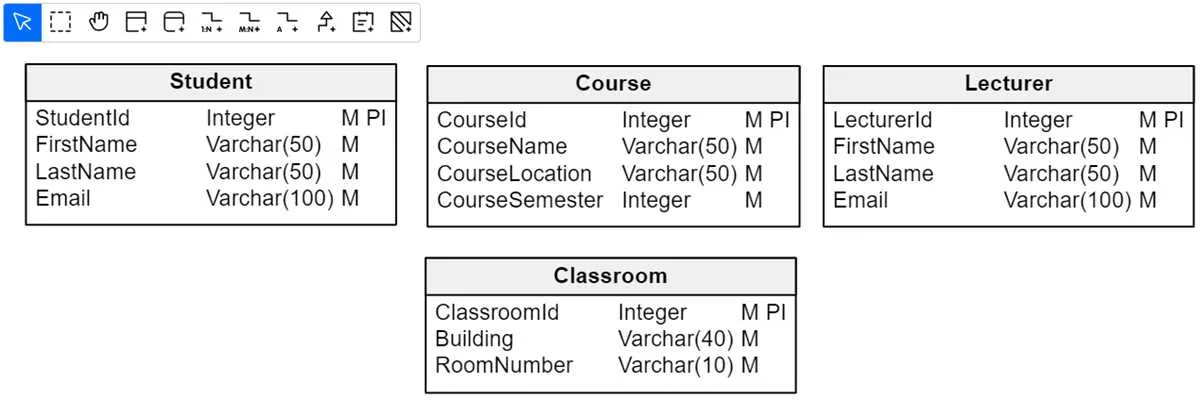

Start by focusing on the key components: entities, attributes, and relationships. Entities represent objects in the system, attributes define their properties, and relationships illustrate how entities interact with one another. These are the foundation for building any effective model. Keep entity names clear and concise, usually in singular form (e.g., “Customer” instead of “Customers”).

Attributes are essential for defining the characteristics of entities. Use underlining to distinguish between primary keys and regular attributes. Foreign keys, which link different entities, should be clearly marked with a different notation. These small distinctions are critical for clarity and correctness.

Relationships are usually represented as lines connecting entities. The cardinality of these relationships (one-to-one, one-to-many, many-to-many) should be clearly indicated, typically with the help of symbols like “crow’s feet” for one-to-many relationships. The clearer these relationships are marked, the easier it becomes to understand data flow and integrity.

Keep it simple and focus on the most essential elements. Avoid overcomplicating with unnecessary details. Only include the attributes and relationships that are directly relevant to your data structure and leave out the rest.

ER Modeling Guide

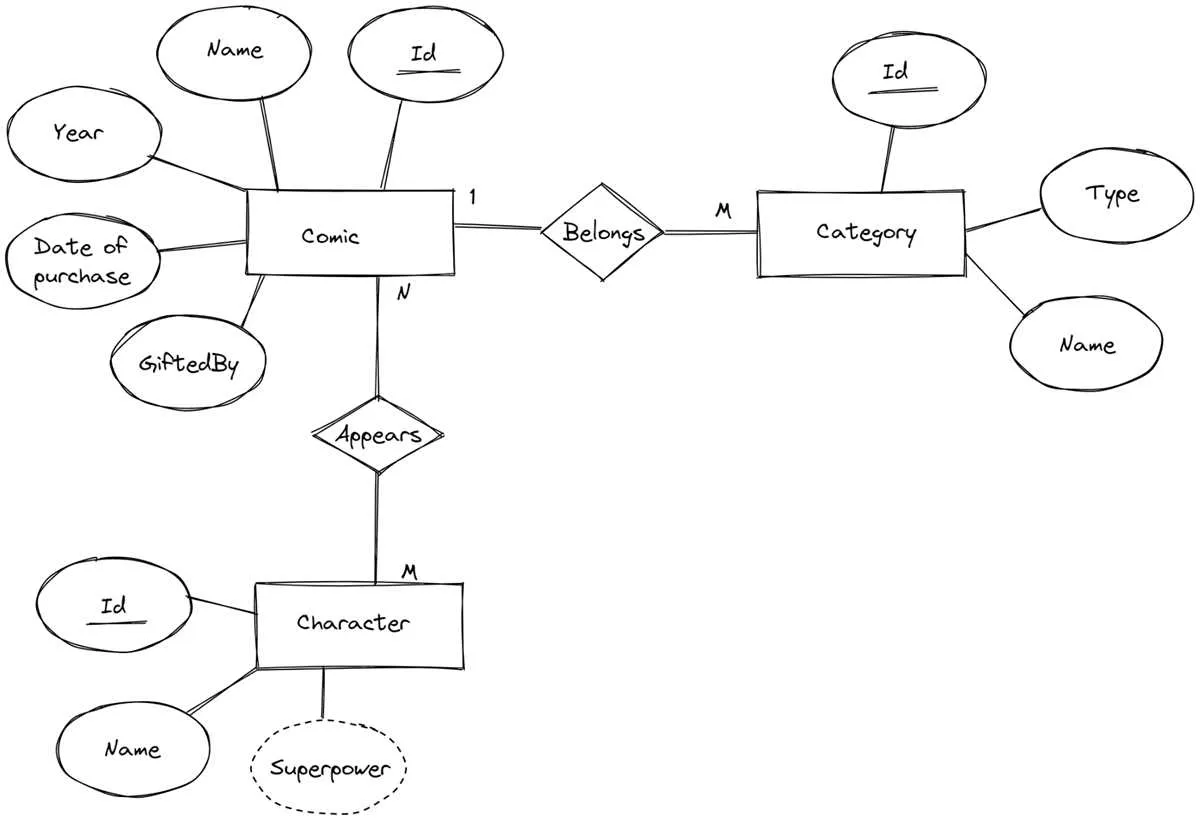

Start with identifying entities as rectangles. Each rectangle should represent a distinct object or concept. For instance, a “Customer” or “Order” can be considered entities.

• Attributes are oval shapes connected to the corresponding entity. These describe properties like “Customer Name” or “Order Date”.
• Relationships are diamonds that link entities together. Use verbs to describe the connection, such as “places” or “belongs to”.
• Use a solid line to represent a one-to-one connection, and a crow’s foot (three lines) for a one-to-many relationship.
• For a many-to-many relationship, use a connecting entity to break it into two one-to-many associations.

Use underlined ovals for primary keys, as they uniquely identify an entity. For optional attributes, use a dashed oval.

Key Symbols

• Rectangle: Represents entities
• Oval: Represents attributes
• Diamond: Represents relationships
• Line: Represents associations
• Crow’s Foot: Represents “many” in relationships

To model weak entities, use a double rectangle. These entities depend on another entity for identification and are connected by a dashed line.

Cardinality Notation

• One-to-One: Each instance of an entity is related to one instance of another entity. Represent with a single line.
• One-to-Many: One entity instance can be associated with many instances of another. Represent with a line ending in a crow’s foot.
• Many-to-Many: Both entities can have multiple associated instances. Use a connecting entity to model.

How to Interpret Entity-Relationship Symbols in ER Models

Start by recognizing the rectangle, which represents an entity. This symbol is used for real-world objects or concepts. If an entity has attributes, they are connected to it with ovals, indicating properties or characteristics of the entity.

Diamonds signify relationships. These are used to show associations between entities. A line connects the diamond to the entities involved in the relationship. Cardinality is crucial here: a line with “crow’s foot” at the entity end indicates “many,” while a straight line represents “one.”

Attributes like primary keys are shown as underlined ovals. When an attribute is multi-valued, a double oval is used. A weak entity is symbolized by a double rectangle, and its relationship with the owner is depicted with a double diamond.

Identifying derived attributes is straightforward: they are depicted as dashed ovals, indicating that these attributes are calculated from others. Subtypes are represented by a triangle shape, with lines connecting them to their parent entity.

Be mindful of the “participation” symbols: double lines on the connecting lines between entities and relationships show total participation, meaning every instance of the entity must be involved in the relationship.

Common ER Mistakes and How to Avoid Them

1. Overcomplicating Relationships

Don’t create too many connections between entities. Each relationship should reflect real-world interactions, and adding unnecessary links makes the model harder to understand. Stick to the essential associations and clarify complex relationships with descriptive attributes or by breaking them into simpler components.

2. Forgetting to Define Cardinality

Always define the cardinality of relationships–one-to-many, many-to-one, or many-to-many. Undefined cardinality leads to confusion and misinterpretation. Be explicit about how many instances of one entity can relate to instances of another.

3. Not Normalizing Data

Normalization helps reduce redundancy and ensures data integrity. If you fail to normalize, the structure becomes inefficient, leading to unnecessary duplication of data and complex queries. Apply standard normalization rules (1NF, 2NF, 3NF) to minimize data anomalies.

4. Missing Attributes for Clarity

Attributes are crucial for understanding the characteristics of entities and relationships. Omitting them or keeping them too vague can make the model ambiguous. Always include essential attributes and use descriptive names for better clarity.

5. Inconsistent Naming Conventions

Consistent naming conventions are key to understanding the structure. Avoid using unclear or inconsistent names for entities, attributes, or relationships. Follow a standard naming format and stick to it throughout the model for easy comprehension.

6. Ignoring Weak Entities

Weak entities should be clearly defined with their identifying relationships. If you ignore these entities, your model can miss important dependencies, leading to incomplete representations of real-world processes. Always make sure weak entities are properly linked to their parent entities.

7. Lack of Primary Keys

Each entity must have a unique identifier, often a primary key. Forgetting to assign primary keys leads to ambiguity and inconsistency. Always include primary keys to ensure that each record is identifiable and can be uniquely referenced.

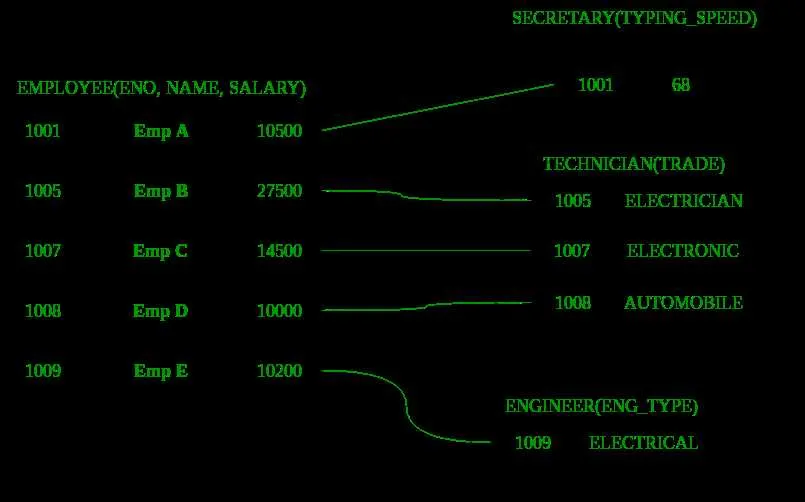

8. Unnecessary Use of Generalization

While generalization can simplify the model by grouping similar entities, overuse or improper application can make the model unclear. Use generalization only when there is a legitimate hierarchical relationship and avoid it when it complicates the understanding of the structure.

9. Not Considering Future Modifications

Models should be flexible enough to accommodate future changes. Hard-coding specific assumptions can lead to difficulties when the database evolves. Design with scalability and adaptability in mind to allow for easy updates and improvements.

10. Overlooking Referential Integrity

Maintaining referential integrity is crucial. Failing to define foreign key constraints properly leads to data inconsistency. Always ensure that relationships between entities are enforceable with proper keys to avoid orphaned records or broken links.

Best Practices for Designing ER Diagrams in Real-World Projects

Keep it simple: Focus on key entities and their relationships. Avoid adding unnecessary complexity by over-optimizing the structure too early. Start with a basic model and expand it as the requirements evolve.

Use clear naming conventions: Ensure entities, attributes, and relationships have descriptive, consistent names. This enhances readability and prevents confusion when the model is handed off to other team members.

Establish proper cardinality: Clearly define the type of relationship between entities (one-to-one, one-to-many, many-to-many). This eliminates ambiguity and ensures accurate database implementation.

Avoid redundancy: Identify and eliminate duplicate attributes or entities. Keep the focus on data efficiency and minimize the risk of inconsistency across the system.

Model with normalization in mind: Apply normalization techniques to reduce data redundancy and improve data integrity. This ensures the data structure remains scalable and maintainable over time.

Think about scalability: Design with future expansion in mind. Consider how the data model will evolve as the project grows, and avoid overly rigid structures that could complicate future updates.

Include meaningful constraints: Define constraints such as primary keys, foreign keys, and unique constraints. These rules help maintain data consistency and integrity throughout the system.

Review and iterate: Continuously review the model with stakeholders and developers. Regular feedback helps refine the structure and align it with real-world use cases, ensuring it supports the project’s goals.
