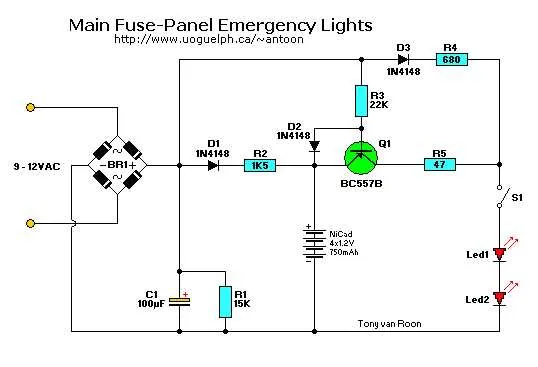

Wiring layout and connection guide for emergency lighting in commercial buildings
Connect self-contained luminaires to a dedicated circuit with unswitched live, neutral, and earth conductors. Use 1.5 mm² copper cables for standard installations, ensuring voltage drop remains within 4% for system efficiency. Place a test key switch in series with the unswitched live for regular inspections.
Central battery-fed units require a distinct configuration. Route dual-core fire-rated cables from the main power source to distribution points, maintaining segregation from general-purpose circuits. Implement proper labeling for quick identification during maintenance or failure scenarios.
In maintained mode setups, integrate the control feed into the local distribution board via a fused spur. Always isolate phase conductors with overcurrent protection devices rated according to load characteristics. Check compatibility of backup modules with circuit topology before deployment.
Install test points at strategic locations to verify autonomy duration and recharge performance. Compliance with BS 5266 or local equivalents ensures functional reliability and legal conformity. Avoid daisy-chaining more than four fittings per branch to minimize cascading failures.
Wiring a maintained emergency light fitting
Connect the live feed from the normal mains circuit to the terminal marked “L” or “Live unswitched”. This ensures continuous power to the internal battery and control gear.
Route a separate switched line, if required, to the “LS” terminal for optional override control during tests. This line should come from the same phase as the unswitched supply to prevent neutral shifting.
Neutral from the same circuit must be linked directly to the “N” terminal. A secure earth connection must be made to the designated “E” or ground terminal to comply with safety standards.
Confirm that the backup cell is pre-installed or fitted according to the manufacturer’s polarity indications. Never apply power before the accumulator is correctly connected.
Use heat-resistant cable rated to at least 90°C, especially in recessed ceiling installations. All joints must be enclosed in a suitable junction box or integrated terminal enclosure with strain relief.
Verify functionality by isolating the main supply; the unit should remain active via its internal power source. For installations requiring remote status indication, use volt-free contacts if available in the control module.
Connecting a non-maintained unit to a test switch
Use a single-pole key-operated switch to verify the operation of a standby luminaire without cutting power to other circuits.
- Connect the live supply (L) to the common terminal of the test switch.
- Route the switched output from the switch to the live input of the control gear (typically marked as L or SwL).
- Ensure the unswitched live (Lpermanent) feeds directly from the distribution board to the charging input of the module.
- Neutral (N) should run unbroken from the board to both the charger and the light source.
- Earth (E), if required by the enclosure, should be bonded to the case using a dedicated terminal.
In the resting state (key not turned), the test switch allows the charging circuit to function normally while the lamp remains off. When the key is turned, the switch interrupts the charging input (Lpermanent), simulating a mains failure and triggering the output to activate.
- Verify correct polarity before energizing.
- Label the switch clearly as “Test – For Standby Use Only.”
- Install the switch in an accessible but controlled location to prevent unauthorized activation.
Dual-circuit setup for central battery systems
Implement two independent feeders–one primary and one secondary–to ensure full redundancy. Each circuit must originate from separate protection devices located in distinct distribution boards to minimize single-point failure risks.
Use separate cable routes for each path, maintaining at least 300 mm physical separation or fire-resistant barriers to comply with BS 5266-1 and EN 50172. Crossovers should be avoided; if unavoidable, fire-resistant segregation is mandatory at intersections.
Select cabling rated for 90 °C continuous operation with circuit integrity of at least 60 minutes (e.g., MICC or enhanced fire-rated LSZH cables) to support sustained functionality under adverse conditions.
Install monitoring relays at the load terminals to detect loss of supply in either path. The system should trigger a fault signal if one feeder fails but continue to operate the connected luminaires through the alternate route.
Ensure control gear compatibility with dual-input detection. The unit must seamlessly switch to the active path without requiring manual intervention or compromising light output consistency.
Conduct periodic isolation tests on each line to verify operational integrity and switch-over response. Use load simulators where possible to avoid service disruptions during live testing.
