Duro Dyne Canada offers user friendly zoning wiring diagrams and installation instructions for different zone panels. All wiring diagrams and instructions are in. DuroZone®.

WIRING DIAGRAM FOR 12 POWER OPEN/CLOSED. 24Vac Transformer.

DAMPERS OR MORE. (See Note-1). Power.

Supply. In-Line Fuse. damper.

INSTALLATION INSTRUCTIONS. DuroZone.

MS SERIES MULTI SIZE DAMPER. MOTOR TERMINALS.

1. Trim 1/4″ off the end of the.

Control Wiring. 2.Wiring Diagram for Control Panels to SD Dampers and Airzone Systems Airzone System Wiring Diagrams SD Series Damper Wiring Diagrams Zone 1 PC X PO Zone 2 PC X PO Zone 3 PC x PO Term 1 Term 2 Term 3 Term 4 Airzone/ Flexdamper Terminals Robert Shaw SZC & SZD Control Panels NOTE: You only have to wire Terminal 1 (black wire) to the 1st Zone common.

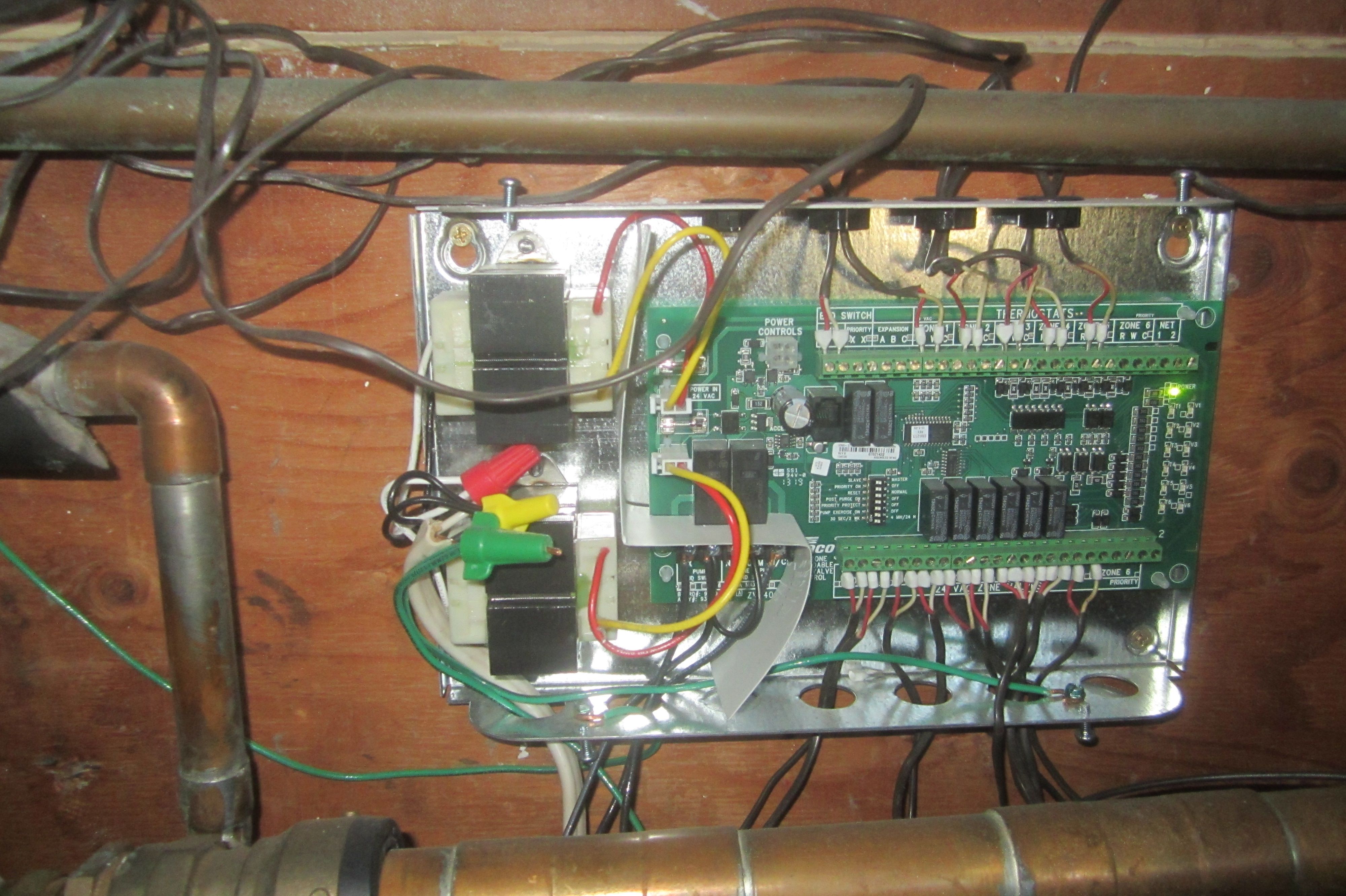

Dec 01,  · so I replaced my old Duro Dyne DuroZone SMZ zone controller with a new Honeywell TrueZone HZ The DuroZone had damper terminals M1 (common), M2 (hot) and M4 (hot on open??) (no M6) and was fully wired.

The new Honeywell has M1 (common), M4 (open) and M6 (close), so there is no hot M2. I have two zones and both dampers have all three wires. Dec 12,  · Durozone 3 wire dampers; Cookie Consent We use cookies to improve your website experience.

The damper is either open or closed, it doesn’t modulate. There are 3 wires, so surely one wire has to be common, one power open, and one power close, no?

Hope your incindiary post script wasn’t directed at renaisance man..? one zone calling for the opposed system.

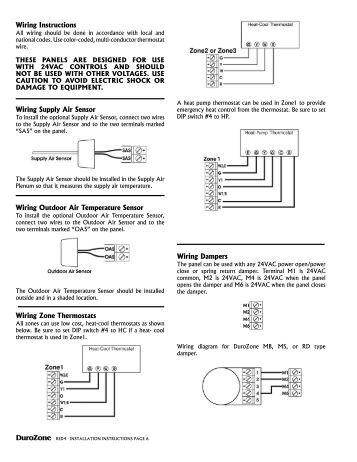

Selecting Use of Zone4 Damper Dip switch #9 selects whether Damper4 is being used as Zone4 damper or as a fresh air damper. When used as a fresh air damper, the minutes per hour of fresh air is set on the panel.

Selecting One-Zone Operation The panel can be operated as a single (one-zone) system. Aug 22,  · I was replacing honeywell manual thermostats through the house and everything was going great until I did not notice and did not realize that wiring on the 2nd floor of the house is different.

i have 2 zones controlled through dempers (1 cooling unit + 1 heating unit) 2 thermostats: 1 in the master bedroom with on/off switch one in guest room without on/off switch.Durozone 3 wire dampers2 Zone Damper 2 Thermostat Wiring Help – HVAC – DIY Chatroom Home Improvement Forum
