The Inner Workings Unveiled: A Comprehensive Diagram of an Automatic Transmission

An automatic transmission, also known as auto, self-shifting transmission, or AT, is a type of motor vehicle transmission that can automatically change gears for the driver. It allows the driver to focus on driving without having to manually shift gears.

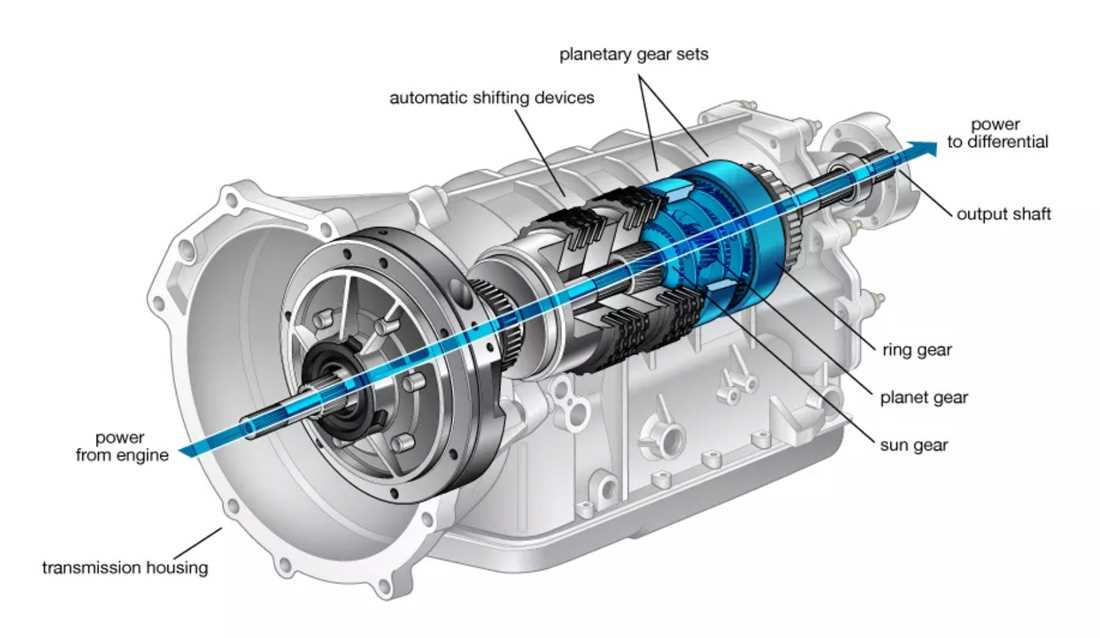

The diagram of an automatic transmission shows the various components that are responsible for the smooth operation of the transmission. These components include the torque converter, planetary gear set, hydraulic system, and control module.

The torque converter is a fluid coupling that is located between the engine and the transmission. It allows the engine to continue running even when the vehicle is at a stop. The planetary gear set is responsible for the different gear ratios in the transmission, allowing the driver to easily accelerate or decelerate the vehicle. The hydraulic system controls the shifting of gears by using pressurized fluid to engage and disengage various components. The control module is the brain of the transmission, receiving input from sensors and determining when and how to shift gears based on driving conditions.

The diagram of an automatic transmission helps to understand the complexity of the system and how all the components work together to provide a seamless driving experience. It also serves as a visual aid for mechanics and technicians when troubleshooting and repairing transmission-related issues.

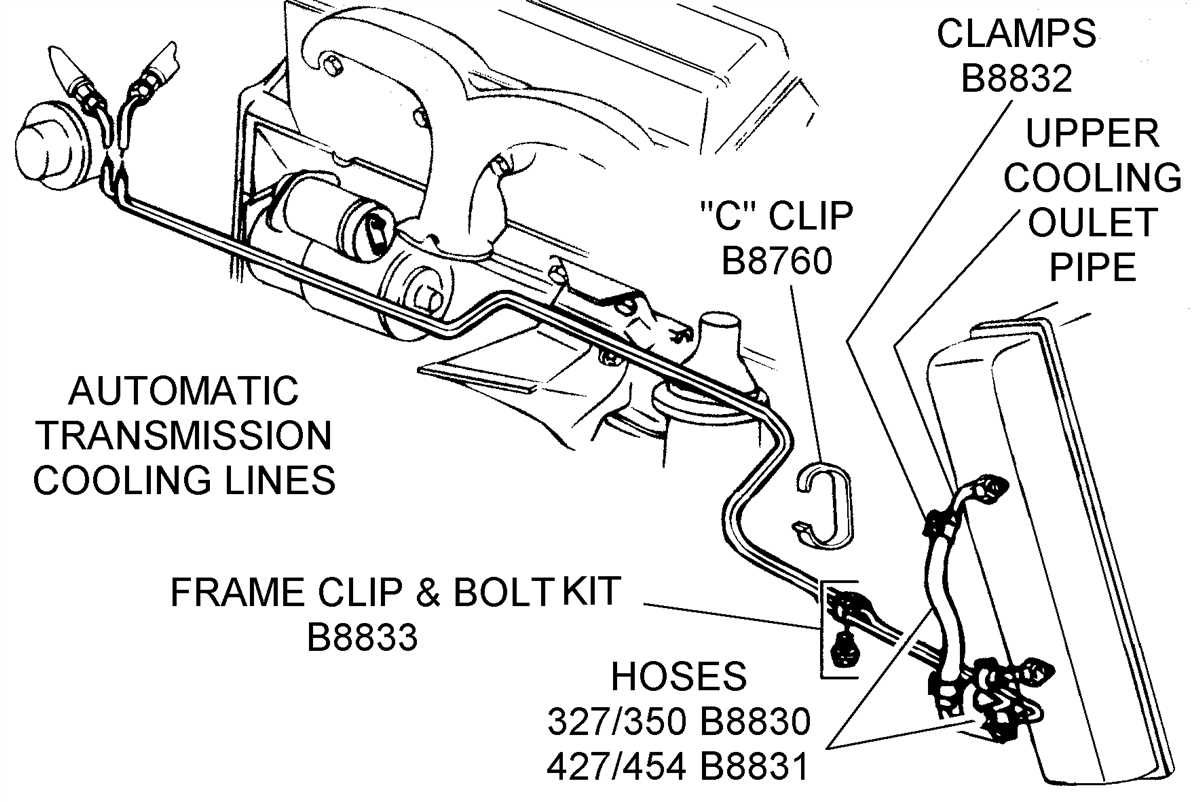

What is an Automatic Transmission?

An automatic transmission is a type of transmission used in vehicles that allows for a smoother and more convenient operation compared to manual transmissions. It is a complex mechanical system that is responsible for changing gears automatically, without requiring the driver to shift gears manually.

The main purpose of an automatic transmission is to transfer power generated by the engine to the wheels of a vehicle, allowing it to move forward or backward at different speeds. It achieves this by using a series of gears and a torque converter. A torque converter is a fluid coupling that transfers power from the engine to the transmission, allowing for smooth and efficient power delivery.

One of the key components of an automatic transmission is the planetary gear set. This gear set consists of multiple gears that rotate and mesh with each other to provide different gear ratios. These gear ratios determine the speed and torque of the wheels, allowing for different driving conditions such as accelerating, cruising, or climbing hills.

Other important components of an automatic transmission include the hydraulic system, which controls the shifting of gears, and the control module, which monitors various inputs such as vehicle speed, engine load, and throttle position to determine the optimal gear to be engaged. The control module also communicates with the engine control unit to ensure smooth and seamless gear changes.

In conclusion, an automatic transmission is a sophisticated mechanical system that allows for easier and more efficient operation of a vehicle. It eliminates the need for manual gear shifting and provides seamless gear changes based on the driving conditions. Overall, it enhances the driving experience and makes driving more convenient and enjoyable.

Overview of Automatic Transmission

An automatic transmission is a type of transmission used in vehicles that allows for automatic gear shifting, without the need for manual clutch operation. It is designed to provide a smooth and effortless driving experience, as it automatically selects the appropriate gear ratios based on the vehicle’s speed, engine load, and driver input.

Automatic transmissions are comprised of several key components, including a torque converter, planetary gearsets, hydraulic control system, and various sensors. The torque converter acts as a fluid coupling between the engine and transmission, allowing for smooth power transfer. The planetary gearsets are responsible for shifting between different gear ratios, while the hydraulic control system regulates the flow of transmission fluid to engage and disengage the gears.

One of the main advantages of automatic transmissions is their ease of use. Unlike manual transmissions, which require the driver to manually shift gears using a clutch pedal and gear lever, automatic transmissions handle all gear changes automatically. This makes them ideal for drivers who prefer a more relaxed and less involved driving experience.

Automatic transmissions also offer improved fuel efficiency and performance compared to manual transmissions. The ability to select the most efficient gear ratio at any given time allows for optimal engine performance and lower fuel consumption.

In addition, automatic transmissions provide enhanced safety and control. They allow the driver to keep both hands on the steering wheel at all times, reducing the risk of distractions and allowing for better control of the vehicle. Automatic transmissions also feature additional safety features, such as torque multiplication for better acceleration and the ability to downshift automatically when needed for increased braking power.

Key Features of Automatic Transmissions:

• Smooth and effortless gear shifting
• Ease of use
• Improved fuel efficiency and performance
• Enhanced safety and control

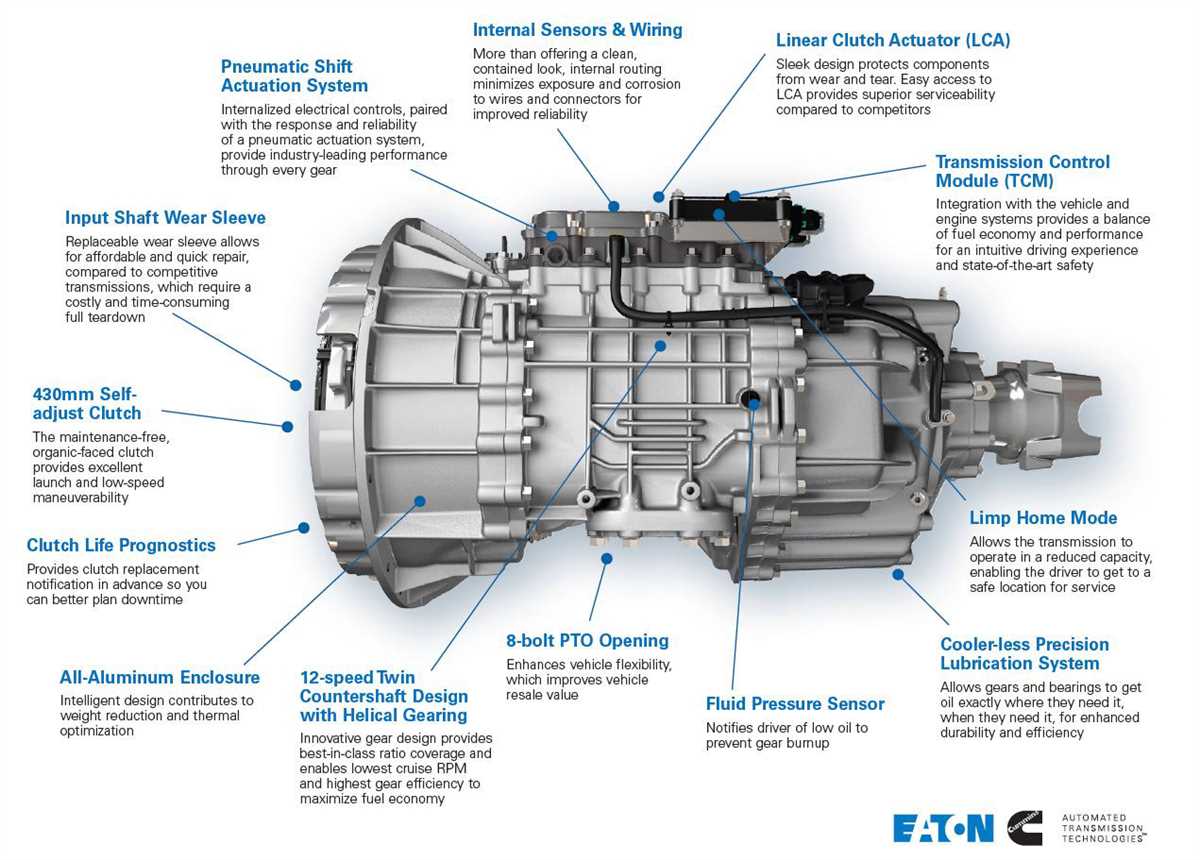

Main Components of an Automatic Transmission

An automatic transmission is a complex system that consists of several main components. Each of these components plays a crucial role in the overall function of the transmission, allowing the vehicle to shift gears smoothly and efficiently.

Gearbox

The gearbox is the central component of an automatic transmission. It is responsible for housing all the gears and shifting mechanisms. The gearbox consists of a series of gears, including the input and output shafts, which transmit power from the engine to the wheels of the vehicle. In an automatic transmission, the gears are shifted automatically by the transmission control unit based on various factors such as vehicle speed and throttle position.

Torque Converter

The torque converter is a fluid coupling that connects the engine to the transmission. It allows the engine to continue running while the vehicle is at a complete stop, without stalling the engine. The torque converter uses a series of blades, or fins, that redirect the flow of fluid to transfer power between the engine and the transmission. It also provides a torque multiplication effect, which helps the vehicle accelerate from a standstill.

Valve Body

The valve body is a control center of the automatic transmission. It contains a complex network of passages, valves, and solenoids that control the flow of transmission fluid. The valve body is responsible for directing the appropriate amount of fluid to the various components of the transmission, such as the clutches and bands, to engage or disengage the gears. It also controls the timing and pressure of the shifts, ensuring smooth and efficient gear changes.

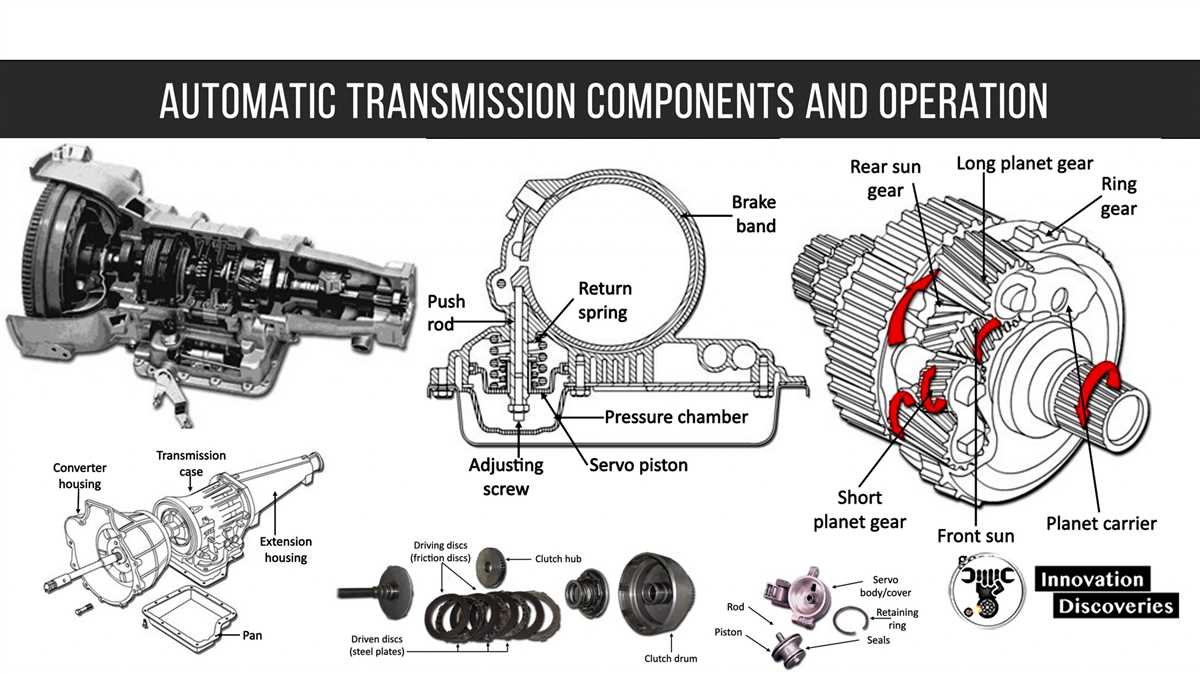

Clutches and Bands

The clutches and bands are the components that actually engage and disengage the gears in an automatic transmission. They consist of friction material that creates a connection or disconnection between the various gear components, allowing the transmission to change gears. The clutches and bands are controlled by hydraulic pressure and are activated by the valve body.

In conclusion, the main components of an automatic transmission include the gearbox, torque converter, valve body, and clutches and bands. Each of these components works together to ensure the smooth operation of the transmission, allowing the vehicle to shift gears automatically and efficiently.
