The Ultimate Guide to Understanding a Sewing Machine: An Illustrated Diagram

A sewing machine is a mechanical or computerized device that is used to stitch fabric or other materials together with thread. It consists of various components that work together to create stitches and allow the user to stitch quickly and efficiently.

The main parts of a sewing machine include the bobbin, needle, presser foot, and feed dogs. The bobbin holds the lower thread, while the needle holds the upper thread. The presser foot holds the fabric in place and applies pressure to ensure smooth feeding of the fabric. The feed dogs are located beneath the presser foot and help to move the fabric through the machine.

In addition to these main parts, sewing machines also have a variety of other features and components. These may include a stitch selector, tension control, stitch length control, and a reverse lever. The stitch selector allows the user to choose from different stitch patterns, while the tension control adjusts the tightness of the upper thread. The stitch length control determines the length of the stitches, and the reverse lever is used to reinforce stitches by sewing backward.

Overall, a sewing machine is a versatile and essential tool for anyone who enjoys sewing or working with fabric. Whether it is a basic mechanical machine or a more advanced computerized model, understanding the diagram and functions of a sewing machine is crucial for successful sewing projects.

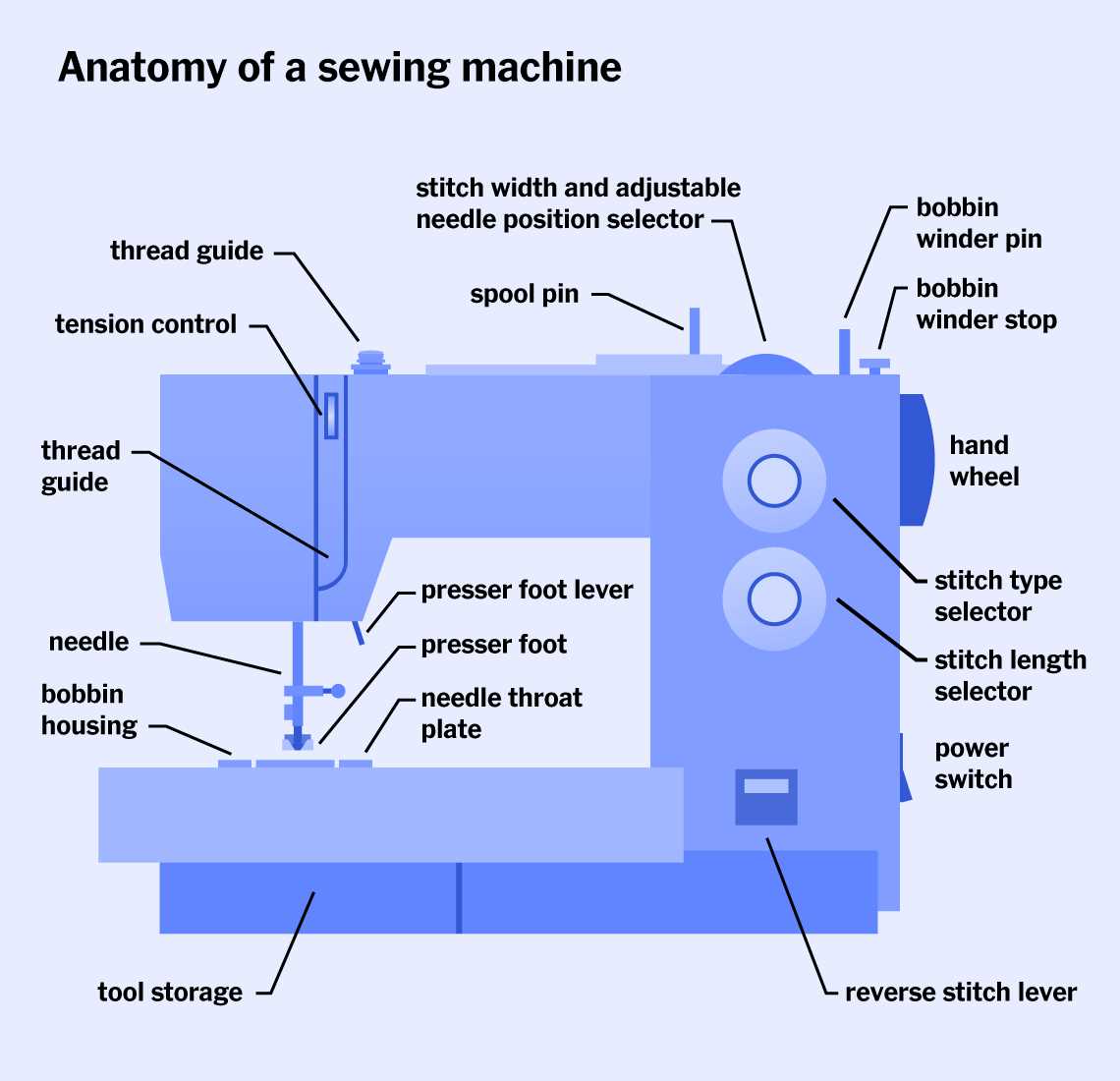

Understanding the Diagram of a Sewing Machine

When it comes to using a sewing machine, it is important to have a good understanding of its different parts and functions. A diagram of a sewing machine can be a helpful tool in achieving this understanding.

Thread Spool Holder

One of the key components of a sewing machine is the thread spool holder, which is responsible for holding the spool of thread in place. This allows the thread to be pulled through the machine smoothly as you sew. It is important to ensure that the thread spool is properly secured on the holder to prevent any tangling or disruptions in the stitching process.

Tension Discs

The tension discs play a crucial role in maintaining the appropriate tension of the thread as it passes through the machine. It is important to adjust the tension discs based on the type of fabric and thread being used to achieve the desired stitch quality. Proper tension ensures that the stitches are neat and even, without any loose or tight areas.

Needle and Bobbin

The needle and bobbin are integral parts of a sewing machine. The needle is responsible for piercing the fabric and creating the stitches, while the bobbin holds the thread that forms the bottom part of the stitch. It is essential to ensure that the needle is installed correctly and is sharp enough to penetrate the fabric easily. Additionally, regular bobbin maintenance is necessary to prevent any thread jamming or tension issues.

In conclusion, understanding the diagram of a sewing machine is essential for anyone looking to use this tool effectively. Being familiar with the different parts, such as the thread spool holder, tension discs, needle, and bobbin, allows for smoother operation and better stitch quality. By taking the time to learn about each component and its function, you can confidently embark on your sewing projects and achieve professional-looking results.

Components of a Sewing Machine

The sewing machine is a complex piece of equipment that consists of various components working together to create stitches and complete sewing tasks. Understanding the different parts of a sewing machine is essential for any sewist, whether they are a beginner or an experienced professional.

Sewing Machine Motor: The motor is the power source of the sewing machine. It drives the needle and controls the speed at which the fabric is sewn. The strength and efficiency of the motor determine the machine’s ability to handle different types of fabric and sewing projects.

Bobbin Spindle: The bobbin spindle is a small rod located on top of the sewing machine. It holds the bobbin, which is a small spool that holds the lower thread. The bobbin spindle ensures that the bobbin thread feeds smoothly and evenly while sewing. It is important to wind the bobbin correctly and place it on the spindle for proper stitching.

Needle Bar: The needle bar is a vertical rod that holds the needle. It moves up and down, creating the stitch formation. The needle bar is responsible for guiding the needle through the fabric and controlling the depth of the needle penetration. It is essential to select the appropriate needle size and type for the fabric being sewn.

Presser Foot: The presser foot is a metal or plastic attachment that holds the fabric in place during sewing. It applies pressure on the fabric, preventing it from shifting or puckering while being stitched. Different types of presser feet are available for various sewing techniques, such as a zipper foot or an embroidery foot.

Thread Tension Dial: The thread tension dial regulates the tension of the upper thread. It controls how tightly the upper thread is pulled while stitching, ensuring balanced and even stitches. Adjusting the thread tension dial is necessary when working with different types of fabric and thread weights.

Stitch Selector: The stitch selector is a mechanism that allows the sewist to choose from a variety of stitch patterns and lengths. It can be a dial or a digital display on more advanced sewing machines. The stitch selector determines the type of stitch being used, such as a straight stitch, zigzag stitch, or decorative stitch.

Feed Dogs: The feed dogs are metal teeth located beneath the presser foot. They move the fabric under the needle, ensuring smooth and even feeding. The feed dogs control the fabric’s movement and prevent it from bunching or stretching while sewing. The feed dog’s height and speed can be adjusted depending on the sewing technique.

These are just a few of the essential components of a sewing machine. Each part plays a crucial role in the sewing process, contributing to the machine’s overall functionality and performance. Understanding how each component works and how to utilize them properly is key to achieving professional-looking stitches and successful sewing projects.

How a Sewing Machine Works: Summary

A sewing machine is a complex piece of machinery that has revolutionized the way we create and repair garments. By understanding its inner workings, we can appreciate the precision and efficiency that goes into every stitch.

At its core, a sewing machine operates by using a needle and thread to create interlocking loops of thread. These loops form stitches that join two pieces of fabric together. The primary components of a sewing machine include the needle, thread, bobbin, feed dogs, and tension discs.

The process begins when the user places the fabric under the needle and lowers the presser foot. As the user operates the foot pedal or turns a hand wheel, the needle moves up and down, piercing the fabric with each stroke. At the same time, the bobbin thread is pulled up by the hook mechanism, creating a loop that secures the thread from the needle.

As the needle continues to move, the feed dogs work to move the fabric forward, guiding it through the machine. The tension discs ensure that the thread remains taut, while the presser foot helps to hold the fabric in place as it is being stitched.

Overall, a sewing machine is a remarkable invention that has greatly simplified the process of sewing. With its various components working together in harmony, it allows us to create beautiful and precise stitches, saving us time and effort in our sewing projects.

Q&A:

What is a sewing machine?

A sewing machine is a device that is used to stitch fabric and other materials together with thread.

How does a sewing machine work?

A sewing machine works by using a needle to create a loop of thread that is then interlocked with another loop of thread to form a stitch.

What are the main parts of a sewing machine?

The main parts of a sewing machine include the needle, thread, bobbin, feed dogs, presser foot, and various mechanical and electronic components.

What is the purpose of the bobbin in a sewing machine?

The bobbin holds the lower thread and helps to create the bottom part of the stitch, which is then interlocked with the top thread to form a complete stitch.

Can a sewing machine stitch different types of fabrics?

Yes, a sewing machine can stitch different types of fabrics, although some fabrics may require different types of needles or thread to achieve the best results.
