D3 Tanabe Sugano Diagram
A Tanabe-Sugano diagram of the spin-allowed and low-lying spin-forbidden transitions for octahedral d3 and tetrahedral d7 complexes is given below. Coordination Chemistry III: Tanabe-Sugano Diagrams and Charge Transfer.
Chapter 11 extra material (to finish Chapter 11). Tanabe-Sugano diagrams are used in coordination chemistry to predict electromagnetic absorptions of metal coordination compounds of.

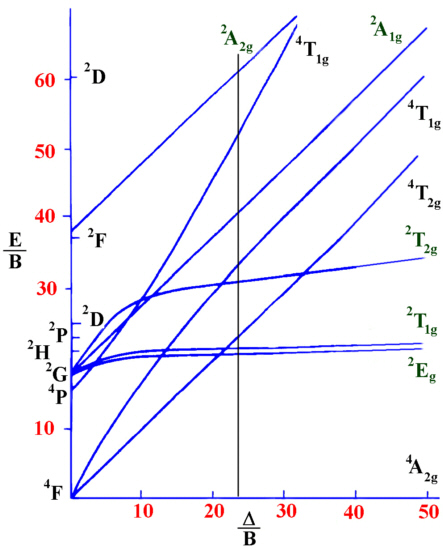

Tanabe-Sugano diagram for d3 octahedral complexes. TS d3 diagram.
Interpolation of the graph to find the Y-axis values for the spin-allowed transitions gives. The different free ion terms for an electron configuration have different energies due to variations in electron-electron repulsion.
▫ The different.Procedure for a Cr(III) system using the d 3 diagram. Print the appropriate Tanabe-Sugano diagram and locate where the ratio of the second to first peak matches that found experimentally. Tabulate the values of v1 / B, v2 / B, v3 / B from the Y-intercepts and Δ/B from the X-intercept.
d7Tanabe-Sugano Diagram E / B ∆o/ B 4F 2G 2Eg 2T1g 2A1g 2T2g 4P 4A 2g 4T 1g (4P) 4T 2g 4T 1g (4F) Complexes with d4-d7 electron counts are special •at small values of ∆o/B the diagram looks similar to the d2diagram •at larger values of ∆o/B, there is a break in the diagram leading to a. d2Tanabe-Sugano Diagram E / B ∆o/ B 3F 3P 3T 1g (3P) 3A 1g 3T 2g (3F) 3T 1g ~15B ~∆o ~∆o E1 E2 E3 E is the energy of the excited state relative to the ground state B is the Racah parameter for e–-e–repulsion The example on page of your text shows how to use this chart to fit the experimental data (E1, E2, and E3) for [V(OH2)6]3+to.
Lecture 4 May Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength.
The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o. The energy of the state is given by E. Title: Microsoft PowerPoint – handout6b Author: Alan Jircitano Created Date: 11/22/ PM.d3 Tanabe-Sugano diagramTanabe–Sugano diagram – Wikipedia
