Contracted Sarcomere Diagram

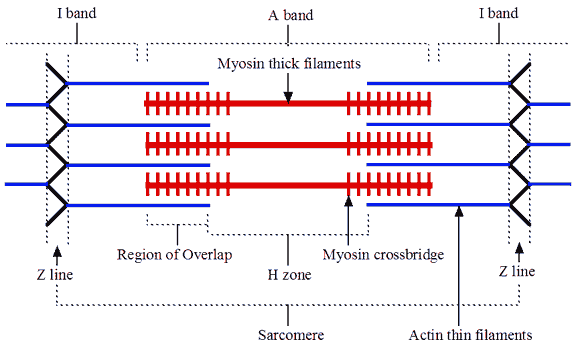

The diagram above shows part a myofibril called a sarcomere.
The diagram above shows a partially contracted muscle where there is more overlapping of the. Draw your own diagram of two sarcomeres.
The first should be of a relaxed muscle. The second should be of a contracted muscle.
Label the Z line, M line. (B) A conceptual diagram representing the connectivity of molecules within a sarcomere. A person Comparison of a relaxed and contracted sarcomere.
The contraction of a striated muscle fiber occurs as the sarcomeres, linearly arranged within myofibrils, shorten as This diagram shows how muscle contracts. Explain length relationships between relaxed and contracted sarcomeres.
• Describe the There are three sarcomeres shown in the diagram below. Sarcomere.Muscles How muscles contract – The Sliding Filament Theory A muscle contains many muscle fibers A muscle fiber is a series of fused cells Each fiber contains a bundle of myofibrils. band, and a sarcomere.
When you have finished, draw a contracted sarcomere in the space beneath the figure and label the same structures, as well as the light and dark bands. Actin filaments O Myosin Z disc Looking at your diaoram of a contracted sarcomere from a slightly different angle, which region of the sarcomere shortens.
looking at your diagram of a contracted sarcomere from a slightly different angle, which region of the sarcomere shortens during contraction- the dark band, the light band, or both? motor unit.
A motor neuron and all of the skeletal muscle cells it stimulates is a called a. Muscle Contraction Skeletal muscle, also called striated muscle tissue, is made up of a series of sarcomeres A sarcomere consists of myosin and actin filaments which overlap upon contraction Myosin bonds with actin to ratchet the tropomyosin down the length of the myosin.
How would the diagram above appear if the sarcomere contracted?
(2 points) How would the H-zone in a contracted sarcomere differ from that of a relaxed sarcomere? (2 points) The H-zone is narrower in a contracted sarcomere.Muscle Contraction Instructor’s GuideSarcomere – Wikipedia
