The Ultimate Guide to Understanding the Bushmaster AR-15 Parts Diagram

When it comes to firearms, the AR-15 is one of the most popular and iconic rifles out there. Among the many manufacturers of this versatile platform, Bushmaster is known for producing high-quality rifles that are trusted by law enforcement, military personnel, and civilians alike. Understanding the different parts of the AR-15 is essential for anyone who owns or plans to own this firearm, and a parts diagram can be a valuable tool in this process.

A Bushmaster AR-15 parts diagram provides a visual representation of all the components that make up this rifle. From the upper receiver to the lower receiver, the diagram shows every major part and their respective locations. This includes the barrel, bolt carrier group, trigger assembly, handguard, sights, and more. Having a clear understanding of each part and how they fit together is crucial for maintenance, repairs, and customization of your AR-15.

The Bushmaster AR-15 parts diagram also serves as a useful reference for those who are interested in learning more about the inner workings of this firearm. Each part has a specific function and plays a role in the overall operation and performance of the rifle. By studying the diagram, you can gain a deeper understanding of how the AR-15 functions, which can be helpful when troubleshooting any issues or when looking to optimize its performance.

Whether you are a seasoned AR-15 enthusiast or a beginner looking to familiarize yourself with this rifle, a Bushmaster AR-15 parts diagram is an invaluable resource. It provides a comprehensive overview of the rifle’s components, enabling you to better understand its construction, functionality, and potential for customization. By studying the diagram and becoming familiar with each part, you can enhance your shooting experience and become a more knowledgeable AR-15 owner.

Understanding the Bushmaster AR-15 Parts Diagram

The Bushmaster AR-15 Parts Diagram is an essential tool for anyone looking to understand the inner workings of this popular firearm. The AR-15 is a versatile and customizable rifle, and having a good grasp of its parts and how they function together is crucial for both enthusiasts and owners.

One of the key components of the AR-15 is the receiver. This is the main body of the firearm and is divided into two parts: the upper receiver and the lower receiver. The upper receiver houses the bolt carrier group, which includes the bolt, bolt carrier, and firing pin. It also contains the barrel, gas system, and handguard. The lower receiver, on the other hand, houses the trigger mechanism, magazine well, and stock.

The trigger mechanism is an important part to understand, as it is responsible for firing the rifle. It consists of several components, including the trigger itself, sear, hammer, and disconnector. When the trigger is pulled, it releases the hammer, which strikes the firing pin and ignites the ammunition. The disconnector ensures that the hammer resets after each shot.

The magazine well is where the magazine is inserted to hold the ammunition. The AR-15 typically uses a detachable box magazine, which allows for quick and easy reloading. The magazine release button, located on the lower receiver, is used to remove the magazine when it is empty.

Other key components of the AR-15 include the buffer tube, recoil spring, and stock. The buffer tube houses the recoil spring, which absorbs the recoil energy and helps provide a more comfortable shooting experience. The stock attaches to the buffer tube and provides a point of contact for the shooter, as well as a way to adjust the rifle’s length of pull.

In conclusion, understanding the Bushmaster AR-15 Parts Diagram is essential for anyone looking to have a comprehensive knowledge of this firearm. From the receiver to the trigger mechanism and magazine well, every part plays a crucial role in the rifle’s function. Whether you’re a beginner or an experienced shooter, taking the time to study and understand these components can greatly enhance your shooting experience and overall appreciation for the AR-15.

Overview of the Bushmaster AR-15

The Bushmaster AR-15 is a popular and versatile rifle that has become a favorite among gun enthusiasts and professionals alike. Built to the same specifications as the original AR-15, the Bushmaster version offers a number of features and accessories that make it a top choice for many shooters.

One of the key features of the Bushmaster AR-15 is its modularity. The rifle can be easily customized and adapted to fit the needs of the individual shooter. The upper and lower receiver of the AR-15 can be easily separated, allowing for quick and efficient maintenance and customization. This modularity also allows for the easy swapping of barrels, stocks, and other components. Whether you are looking for a long-range precision rifle or a compact and lightweight option, the Bushmaster AR-15 can be tailored to your specific needs.

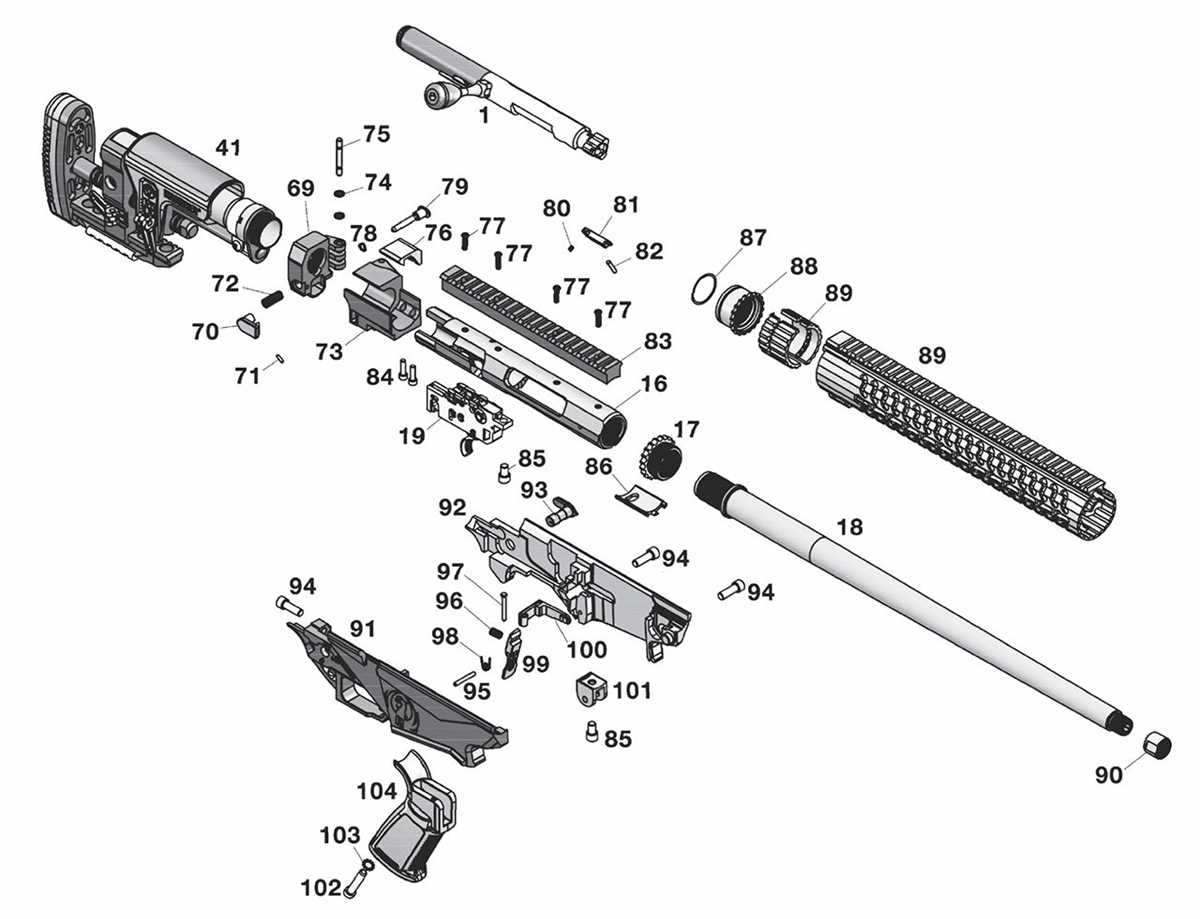

Key Components of the Bushmaster AR-15

• Upper Receiver: The upper receiver houses the barrel, bolt carrier group, and other key components. It is responsible for guiding the round from the magazine to the chamber and ensuring reliable feeding and ejection.
• Lower Receiver: The lower receiver is the main component that houses the trigger group and controls the firing of the rifle. It is also where the magazine is inserted.
• Barrel: The barrel determines the accuracy and effective range of the rifle. Bushmaster offers a variety of barrel lengths and profiles to suit different shooting styles and preferences.
• Stock: The stock is responsible for providing stability and support while shooting the rifle. It can be adjusted for length of pull and cheek height to ensure a comfortable and consistent shooting position.
• Handguard: The handguard is located on the front end of the rifle and provides a gripping surface for the shooter’s support hand. It also protects the barrel and other internal components from damage.
• Sights and Optics: The Bushmaster AR-15 can be equipped with a variety of iron sights, red dot sights, scopes, and other optics to enhance accuracy and target acquisition.
• Accessories: The AR-15 platform is known for its wide range of accessories, and the Bushmaster version is no exception. From foregrips and bipods to muzzle devices and magazine extensions, there are countless options for customizing the rifle to your specific needs and preferences.

In conclusion, the Bushmaster AR-15 is a reliable and customizable rifle that offers versatility and performance. With its modular design and wide range of accessories, it can be tailored to fit the needs of any shooter, whether for recreational shooting or professional use.

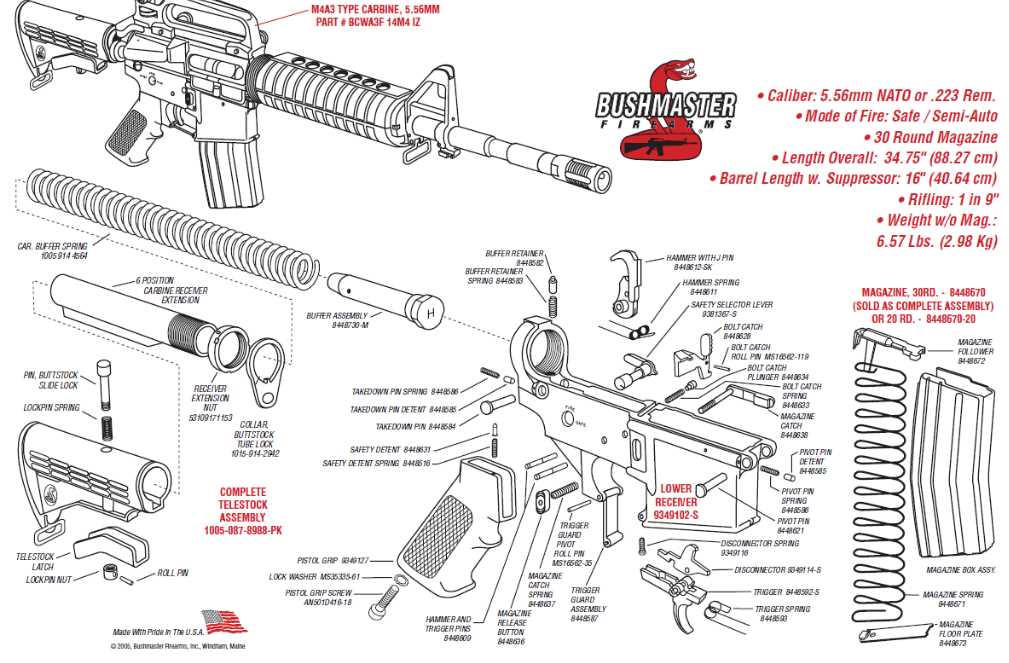

Breakdown of the AR-15 Parts

The AR-15 is a popular and versatile rifle platform that is known for its modularity and customizable features. Understanding the individual parts of the AR-15 is essential for any gun enthusiast or owner. In this breakdown, we will explore the key components of the AR-15 and their respective functions.

Upper Receiver

The upper receiver is the top portion of the AR-15 and houses the barrel, bolt carrier group, and charging handle. It also serves as the attachment point for the handguard and optic. The upper receiver is responsible for chambering and ejecting rounds, as well as housing the gas system.

Lower Receiver

The lower receiver is the main component that is considered the firearm according to the ATF. It contains the trigger assembly, magazine well, and grip. The lower receiver is responsible for housing all the internal parts that make the AR-15 function, including the hammer, trigger, and magazine release.

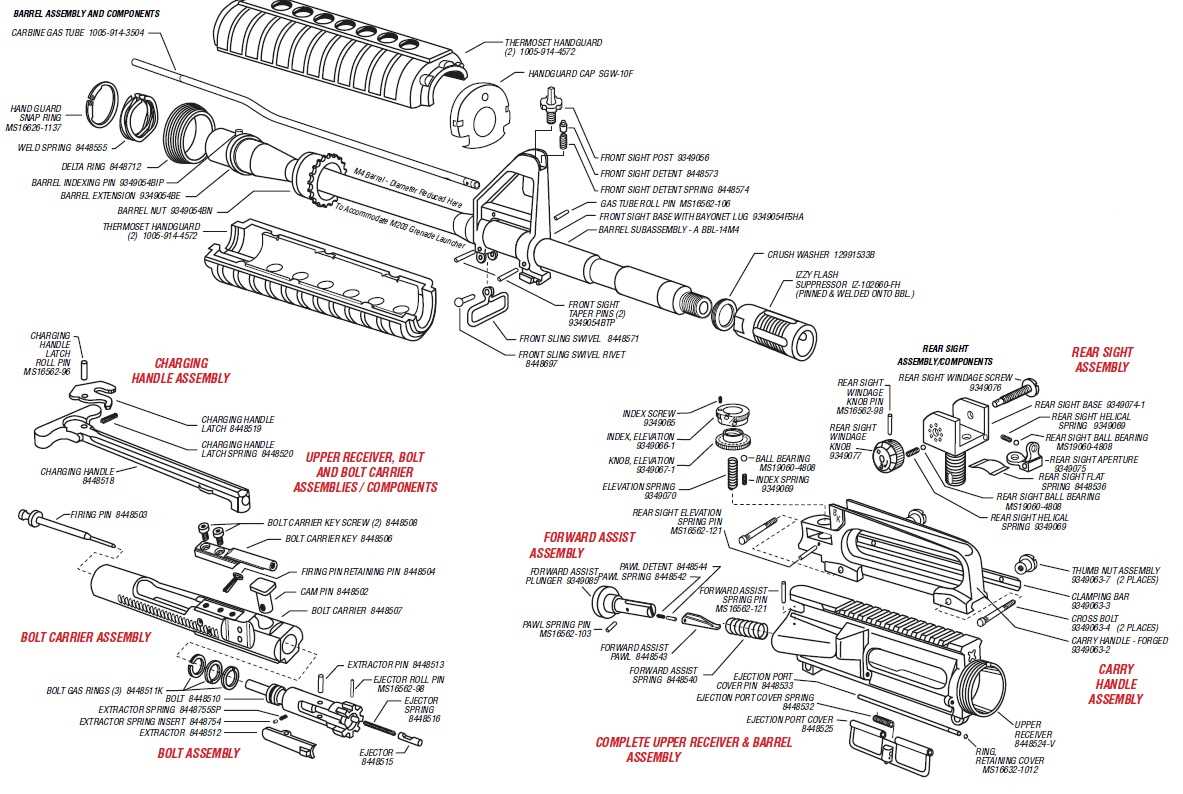

Barrel

The barrel is the long, metal tube that the bullet travels through when fired. It typically has rifling, which is a series of spiral grooves in the bore that impart spin to the bullet for improved stability and accuracy. The AR-15 barrels are interchangeable and come in various lengths and calibers to suit different shooting needs.

Bolt Carrier Group

The bolt carrier group is the heart of the AR-15 and consists of the bolt, carrier, and firing pin. It is responsible for chambering and extracting rounds, as well as striking the primer to ignite the propellant. The bolt carrier group moves back and forth within the upper receiver, cycling the action and allowing for semi-automatic firing.

Handguard

The handguard is the protective covering that surrounds the barrel and provides a grip for the shooter. It can come in different lengths and materials, such as polymer or aluminum. The handguard also serves as a mounting platform for accessories, such as lasers, flashlights, and foregrips.

Stock

The stock is the part of the AR-15 that the shooter uses to stabilize the rifle against their shoulder. It can be adjustable, collapsible, or fixed, depending on personal preference and shooting requirements. The stock also houses the buffer tube, which absorbs recoil and houses the recoil spring.

Muzzle Device

The muzzle device is attached to the end of the barrel and serves various purposes, such as reducing recoil, mitigating muzzle rise, and directing muzzle blast. Common types of muzzle devices for the AR-15 include flash hiders, compensators, and muzzle brakes.

Overall, understanding the breakdown of the AR-15 parts allows shooters to have a deeper knowledge of their firearm and make informed decisions when it comes to customization and upgrades.

Functionality and Maintenance of the AR-15 Parts

The AR-15 is a popular and versatile rifle that offers reliable performance in a variety of applications. To ensure its functionality and longevity, proper maintenance of its parts is essential. Understanding the key components and their function is crucial for effective maintenance.

Upper Receiver

The upper receiver houses the bolt carrier group, charging handle, and barrel assembly. It is responsible for chambering and extracting rounds, as well as directing the fired projectiles. Regular cleaning and lubrication of the bolt carrier group and barrel are necessary to prevent malfunctions and ensure accurate shooting.

Lower Receiver

The lower receiver contains the trigger mechanism, magazine well, and stock assembly. It is responsible for housing the fire control group and providing the ergonomics for the shooter. Regular cleaning of the trigger group, lubrication, and inspection of the stock assembly for wear are crucial for maintaining proper functionality.

Barrel Assembly

The barrel assembly is the heart of the AR-15, where bullets are fired. Regular cleaning and inspection of the barrel bore, gas port, and muzzle crown are necessary to ensure accuracy and prevent fouling or obstruction issues.

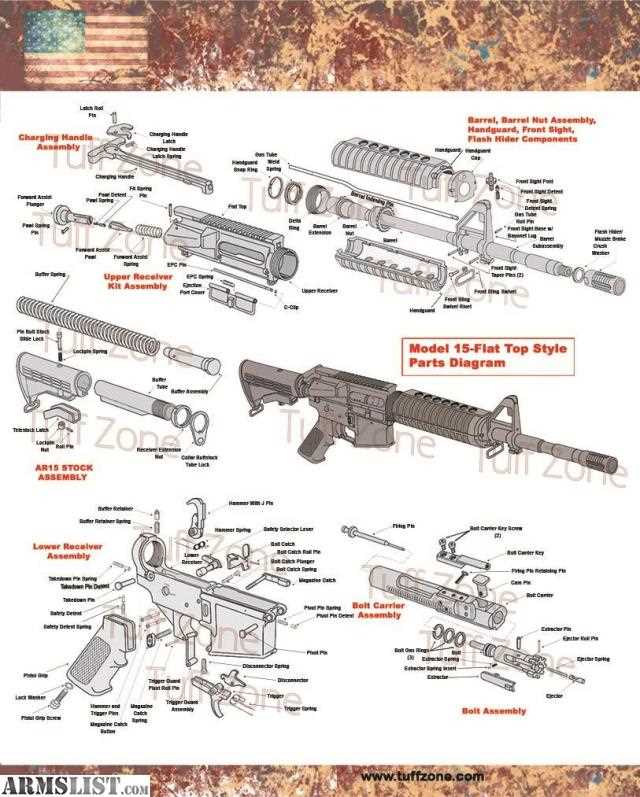

Maintenance Tips

To keep your AR-15 in peak condition:

• Regularly clean and lubricate all moving parts, paying extra attention to the bolt carrier group, barrel, and trigger mechanism.
• Inspect and replace any worn or damaged parts promptly.
• Use high-quality cleaning solvents and lubricants designed for firearms.
• Store your AR-15 in a dry and controlled environment to prevent corrosion.
• Follow the manufacturer’s recommendations for maintenance intervals and procedures.

By following these maintenance tips and understanding the functionality of the AR-15 parts, you can ensure the reliability and longevity of your rifle. Regular cleaning and inspection will help prevent malfunctions and maintain optimal performance, allowing you to enjoy shooting and rely on your AR-15 for years to come.
