Step by Step Guide to Installing the Trigger Mechanism for AR15 Rifle

Begin by carefully aligning the primary unit with the corresponding housing. Ensure that the safety mechanism is in its correct position before inserting the main element into the assembly. Pay close attention to the orientation of the mechanism, as incorrect placement may affect performance.

The next step involves securing the spring-loaded mechanism to ensure it engages correctly with the operating rod. Use a tool with a precise fit to prevent damaging any of the parts during installation. Ensure the tension is balanced so that the firing sequence works smoothly without excessive force or slack.

Once the mechanism is in place, test the action by gently pulling the lever to confirm the resistance feels uniform. If any inconsistencies arise, disassemble and inspect the parts for proper fit. It is crucial that every component moves freely, with no friction or misalignment.

Lastly, double-check all fasteners to confirm they are tightened to the manufacturer’s specifications. Over-tightening can lead to undue stress on the components, while under-tightening may cause instability during use. Test the full mechanism several times before finalizing the assembly to ensure everything operates as expected.

Tip: Always wear safety glasses when assembling and testing the components to prevent any accidents. Practice caution at every stage of the process to maintain both safety and optimal functionality.

Fire Control Group Assembly Guide

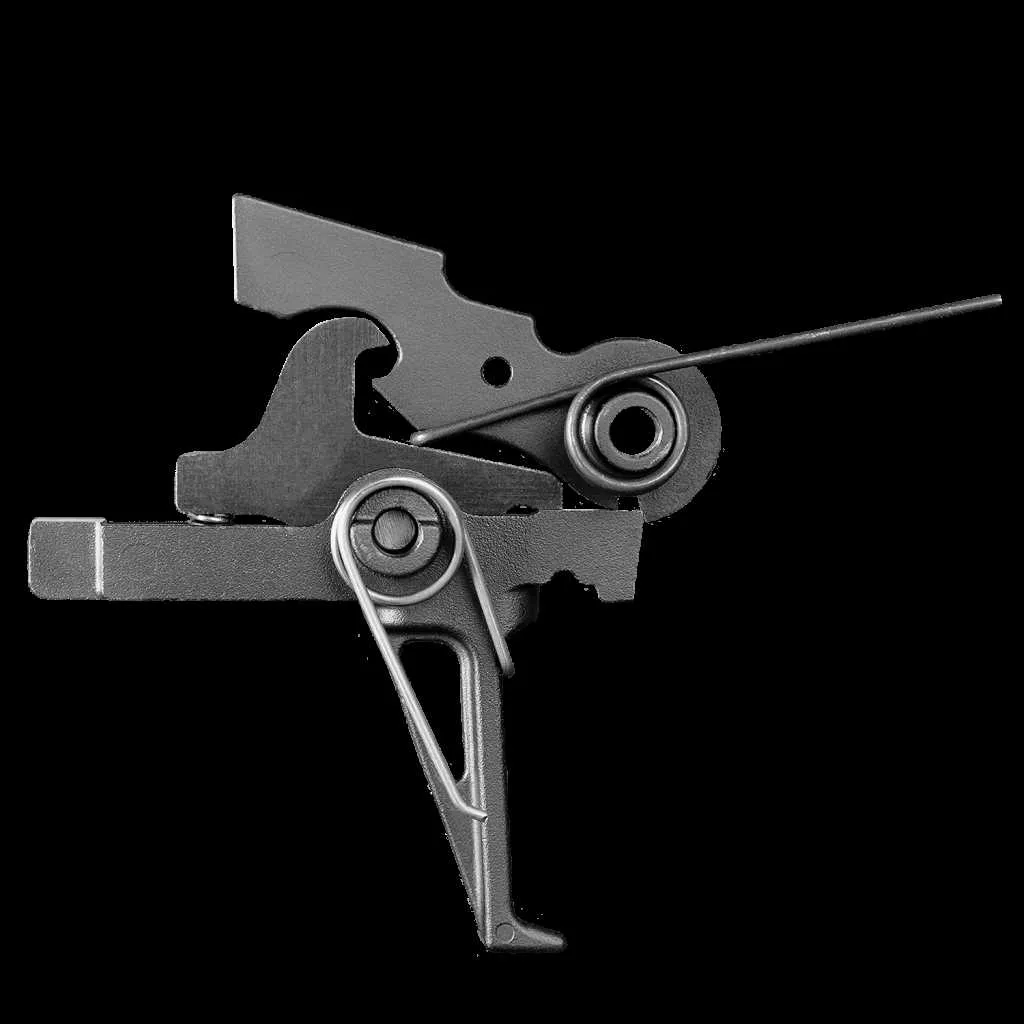

To begin assembly, ensure that you have a solid work surface and all necessary components, including the hammer, sear, and safety. Start by inserting the hammer into its designated cavity within the receiver, aligning it with the corresponding pin holes. Use the appropriate pin to secure the hammer in place, ensuring it moves freely when pressure is applied.

Next, position the sear into the lower receiver, ensuring the sear spring is correctly aligned. The sear should be seated securely in the sear pocket. Insert the sear pin through both the sear and the receiver, ensuring that it holds the sear firmly in place without obstruction.

After the sear is secure, move on to the installation of the safety mechanism. Place the safety selector into the designated hole in the lower receiver, aligning the detent spring and detent pin. Test the selector’s functionality by rotating it through its safe and fire positions to verify smooth operation.

Finally, check the overall assembly. Ensure that all moving parts function smoothly, with no binding or resistance when the components engage. Test the movement of the hammer and sear, as well as the safety selector, to ensure proper operation before reassembling the rest of the firearm.

Preparing the Firearm for Trigger Replacement

Ensure the firearm is unloaded before starting any work. Remove the magazine and check the chamber for any rounds. Use a chamber flag or similar device to visually confirm the firearm is empty.

Disassemble the lower receiver by removing the buffer assembly and detaching the stock. This step is necessary to access the mechanism in the lower assembly. Ensure all pins and components are safely removed and set aside in an organized manner to prevent loss or damage.

Secure the firearm in a stable position, preferably in a vice with padded jaws, to prevent movement while you work. This will allow better control over the disassembly process and reduce the chance of mishandling small parts.

Loosen the necessary pins that secure the housing of the mechanism, ensuring the safety selector remains disengaged to avoid accidental engagement during the process. Use appropriate tools, such as a punch set, to remove the pins cleanly without damaging the surrounding components.

Inspect the internal parts carefully before proceeding. Check for any signs of wear, corrosion, or damage to components like springs or pins, as replacing these parts during the process can help ensure proper function after the new component is installed.

Wear protective gloves to maintain a clean environment and avoid leaving oils or dirt on the internal parts. A clean workspace free of debris is crucial for preventing contamination of small mechanical components.

Step-by-Step Guide to Installing the Firing Mechanism

Start by ensuring the rifle is unloaded and clear of any ammunition. Position the receiver on a stable surface for ease of access during assembly.

First, place the hammer spring onto the hammer, ensuring it is securely seated. Align the hammer with the corresponding holes on the lower receiver. Insert the hammer pin, ensuring it passes through both the hammer and the lower receiver, then secure it with the retaining clips on either side.

Next, install the sear. Insert the sear spring into the sear housing, ensuring the spring is correctly oriented. Slide the sear into the receiver, aligning it with the hammer. Insert the sear pin through both components, ensuring it is properly seated and flush with the housing.

Attach the safety selector by aligning it with the receiver’s safety slot. Insert the safety selector into its designated position, and secure it with the provided pin. Ensure the safety functions correctly before moving on.

For the final step, insert the disconnector into the receiver’s designated channel, ensuring it moves freely. Secure it with the disconnector pin. Verify that all components move smoothly without resistance before reassembling the firearm.

Common Installation Mistakes and Troubleshooting Tips

Ensure the components are fully seated before tightening any screws. Misalignment during assembly is a frequent cause of malfunction.

• Incorrect Spring Placement: Double-check that the spring is positioned correctly. A misplaced spring can cause improper engagement and lead to functionality issues.
• Inadequate Lubrication: Lack of lubrication on contact surfaces can result in resistance and irregular movement. Apply a light coat of oil to critical points to ensure smooth operation.
• Loose Fasteners: Tighten all screws gradually to avoid stripping threads. Ensure that the parts are firmly secured without over-tightening.
• Improper Adjustment: Ensure that any adjustment screws or tension settings are calibrated to the recommended factory settings to prevent inconsistent response or sensitivity.
• Failure to Test Before Reassembly: Before closing everything up, manually cycle the mechanism several times to ensure smooth operation. Test function without full reassembly to identify any issues early.

When encountering an issue, isolate the problem by checking individual components and their interactions. A systematic approach helps identify the exact source of failure and prevents unnecessary rework.

1. Remove the component and inspect for wear or damage.
2. Check for any bent or worn parts that might cause irregular function.
3. Test the system in a disassembled state to identify misalignments or friction points.

In case of persistent issues, consult a professional for a thorough inspection and potential replacement of faulty parts. Sometimes, minor defects can lead to major functionality problems.
