Ez Go 36 Volt Wiring Diagram Guide for Easy Installation and Troubleshooting
If you’re experiencing issues with your Ez Go golf cart’s power system, the first step is to ensure that all connections in the 36V circuit are correct. This is essential to keep the vehicle operating smoothly and efficiently. Double-check the battery pack connections, as these often serve as the root cause of electrical failures.
Focus on the positive and negative terminals of the batteries, making sure that no corrosion has built up over time. If necessary, clean the connections with a wire brush and apply a layer of anti-corrosive spray. Also, verify that the controller is properly receiving power and signals from the batteries.
Next, examine the motor leads for proper routing. Ensure that all wires are connected as specified by the manufacturer’s instructions, and make sure the ground wire is securely attached. A faulty or loose connection here can prevent your golf cart from operating efficiently or even at all.
Finally, review the switches and any other components that could affect power delivery. If you’ve noticed erratic behavior from the vehicle, there may be issues with these control elements, which can lead to inconsistent performance. By systematically checking each part of the circuit, you’ll identify any weak links and ensure a more reliable ride.
Ez Go 36V Electrical System Setup

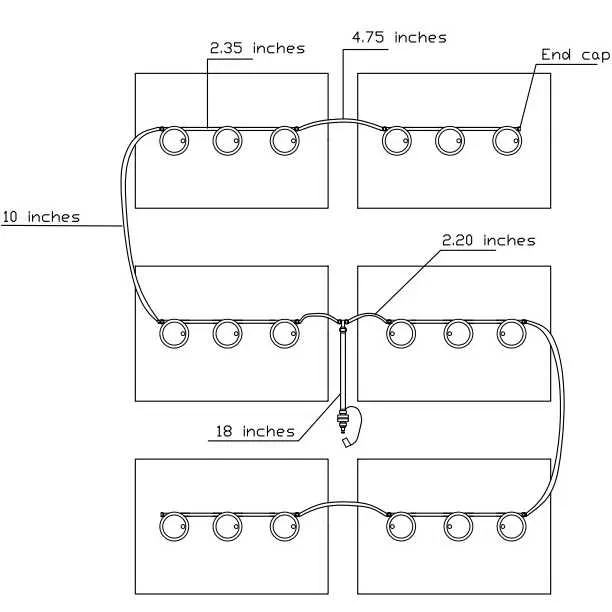

For an efficient setup of your 36-volt Ez Go cart, it’s crucial to ensure correct battery connections. Start by connecting the first battery’s positive terminal to the second battery’s negative terminal, continuing this series for the remaining batteries. The last battery’s positive terminal will connect to the motor controller’s positive input, while the negative terminal links to the frame for grounding.
Make sure the controller’s input and output terminals are properly aligned to maintain proper current flow. The motor should be connected directly to the controller to avoid power loss or irregularities in operation. A fuse or circuit breaker is essential to protect the system from overload, installed in line with the main power source.
To enhance the performance of your setup, double-check that the accelerator pedal switch is connected to the controller to regulate power output efficiently. Also, verify that all cables are of the correct gauge, with no signs of wear, to prevent any potential electrical failures.
Understanding the Key Components of the Ez Go 36 Volt System
To ensure optimal performance and longevity of your Ez Go electric cart, it’s crucial to understand the core components that make up the 36-volt power system. Each part plays a specific role in delivering efficient energy to the vehicle, and proper maintenance is key to avoiding breakdowns.
Battery Pack: The heart of the system. The 36-cell battery pack provides the primary energy source for the entire vehicle. Ensure each individual cell is clean, securely connected, and properly charged to maintain peak performance. A faulty or undercharged pack can severely reduce efficiency.
Controller: This unit regulates power from the battery to the motor. If the controller malfunctions, the vehicle may experience erratic speed or failure to operate. Check for error codes on the controller, and replace it if you notice inconsistent power delivery or overheating issues.
Motor: Converts electrical energy into mechanical movement. When diagnosing motor issues, check for excessive noise or overheating, which may indicate problems like worn brushes or a defective armature. Regular inspection and maintenance will help prevent more serious damage.

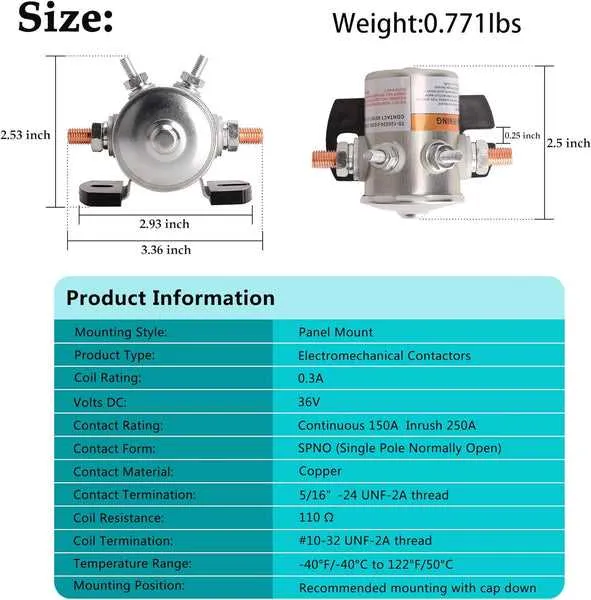

Solenoid: Acts as a high-current relay that engages and disengages power from the battery to the motor. It’s crucial that the solenoid functions properly to prevent power loss. If you hear a clicking noise without the vehicle moving, the solenoid might need replacing or cleaning.
Key Switch and Forward/Reverse Switch: These switches allow you to control the flow of energy to the motor. A worn or damaged key switch can result in intermittent power loss, while issues with the forward/reverse switch may cause erratic behavior or prevent movement altogether. Regular cleaning and inspection can prevent these problems.
Fuses and Circuit Breakers: Protect the system from overloads. If any part of the system overheats, fuses and breakers will trip to avoid damage. Always replace blown fuses with the exact specifications to avoid further issues.
Charger: The charger is essential for maintaining battery health. Overcharging or undercharging can significantly shorten the life of the battery pack. Make sure your charger is compatible and consistently functioning within its rated parameters.
Step-by-Step Guide to Wiring Your Ez Go 36 Volt Golf Cart
Start by ensuring that the battery pack is disconnected to prevent any electrical accidents. This is crucial for your safety.
- Connect the Main Power Cable: Begin by attaching the primary power cable from the battery pack to the main switch. Ensure the connection is tight and secure to prevent any loose contacts that could lead to inefficiency or damage.
- Link the Battery Packs: Each battery in the pack needs to be connected in series. Use appropriate cables to join the negative terminal of one to the positive terminal of the next. Continue this pattern until all batteries are linked.
- Ground the System: The negative terminal of the final battery should be connected to the frame of the cart. This provides a safe ground path for the system.
- Install the Motor Cables: Connect the motor leads to the corresponding terminals on the controller. Verify that the connections are labeled clearly and double-check the polarity. Incorrect connections may damage the motor.
- Attach the Controller to the Throttle: The throttle wire needs to be linked to the controller’s throttle terminal. This enables control over the cart’s speed and responsiveness. Make sure the connection is firm and the wire is not pinched.
- Install the Forward/Reverse Switch: Connect the forward/reverse switch to the appropriate terminals on the controller. Ensure that the switch is functioning properly and toggles smoothly between the two modes.
- Check All Connections: Before reconnecting the battery pack, review all connections once more. Tighten any loose terminals and check that the cables are not exposed to potential wear or corrosion.
- Reconnect the Battery Pack: Once everything is secured and checked, reconnect the battery pack. Test the cart by turning on the ignition and verifying that the motor runs as expected in both forward and reverse directions.
By following these steps carefully, your Ez Go 36-volt cart should be ready for optimal performance. Regular maintenance checks are also recommended to ensure the system remains in peak condition.
Troubleshooting Common Electrical Issues in Ez Go 36V Systems
If the cart isn’t responding or exhibits intermittent power, start by inspecting the battery pack. A common cause is poor connection at the terminals. Ensure terminals are clean and free of corrosion. Tighten connections if loose, and check for any signs of battery damage. Replace batteries that show signs of wear or underperformance.
Another issue could be with the motor or controller. If the vehicle stalls unexpectedly, check for faults in the controller. A faulty controller can lead to erratic behavior or no power at all. Test the controller with a multimeter to verify proper functionality. Replace if necessary.
Inspect the key switch for continuity. A defective key switch can prevent the system from turning on. Use a continuity tester to ensure the switch closes when in the “on” position. If there’s no continuity, replace the key switch.
For electrical short circuits, check all cables and connectors for any exposed wires or signs of wear. A short may occur if wires are pinched, cracked, or improperly connected. Replace damaged wires and use electrical tape or heat shrink tubing to protect connections from further damage.
| Problem | Potential Cause | Solution |
|---|---|---|
| Vehicle not starting | Loose or corroded battery terminals | Clean terminals, tighten connections, and check for battery damage |
| Intermittent power | Faulty controller or motor | Test controller with a multimeter and replace if defective |
| No response when turning key | Defective key switch | Test switch with continuity tester, replace if necessary |
| Short circuit | Damaged wires or exposed cables | Inspect wires, replace damaged sections, protect with tape or shrink tubing |
Check the solenoid as well. If it’s not clicking when the pedal is pressed, it could be faulty. Measure the voltage across the solenoid to confirm if it’s receiving power. If no voltage is present, inspect the associated relay and controller for faults.
Lastly, ensure the pedal switch is functioning properly. If the cart doesn’t start or responds erratically, the pedal switch might be defective. Test for continuity and replace the switch if it fails to trigger the start sequence.
