Wiring Diagram for Bosch 02 Sensor with Step by Step Instructions

When diagnosing or replacing the oxygen monitor on modern vehicles, it is crucial to comprehend the connection setup for the device controlling air-fuel ratio regulation. A precise grasp of the component’s interaction with the vehicle’s engine control unit (ECU) is necessary for accurate repairs or replacements.

Start by identifying the wire color code and pinouts associated with this monitoring tool. Typically, you’ll find a signal wire, a power wire, and a ground connection. The power wire is often 12V, while the ground should be linked to the vehicle’s chassis or engine block. The signal wire transmits voltage fluctuations corresponding to oxygen levels in the exhaust gases.

For effective troubleshooting, check the wire connections to ensure they align with factory specifications. A faulty ground connection or a power issue can cause incorrect readings or trigger the check engine light. Pay attention to the correct placement of each wire on the ECU’s terminals to avoid communication failure between the sensor and the control unit.

To ensure accurate data transmission, always use high-quality connectors and make sure no wires are exposed to excessive heat or moisture. A reliable connection guarantees proper function, enhancing the vehicle’s performance and fuel efficiency.

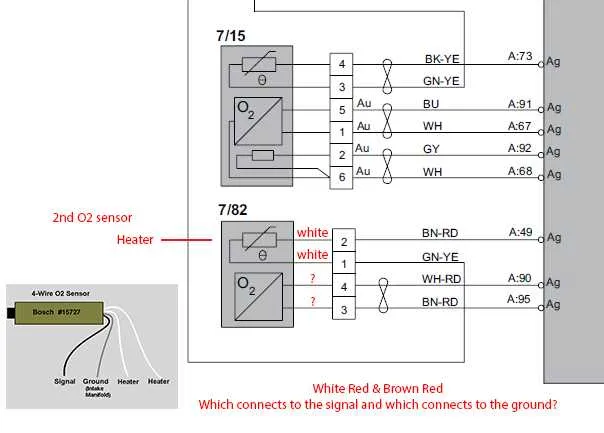

02 Oxygen Monitoring Component Circuit Setup

When connecting the oxygen monitoring component, follow this specific order: the signal wire should be routed to the engine control unit (ECU), ensuring a secure connection for accurate readings. The power supply is typically drawn from the vehicle’s main power line, with a grounding point at the chassis or engine block.

Make sure the heating element is connected to a dedicated power source, which allows it to reach operational temperature faster. This is crucial for reliable operation, especially during cold starts. Typically, this heating circuit uses a 12V line, but verify the voltage requirements specific to your setup.

The white or gray wire is often used for the signal, providing real-time feedback on the oxygen content in the exhaust gases. Double-check the wire for continuity to prevent faulty readings. The reference ground is critical, as it ensures stable communication between the component and the ECU.

For vehicles with multiple monitoring components, use separate ground connections to avoid interference. Each unit may have its own voltage range and wiring nuances, so consult the manufacturer’s specifications for proper calibration.

Ensure all connections are securely fastened and free of corrosion. A loose connection can lead to inaccurate feedback, affecting overall engine performance and fuel efficiency.

If working with a multi-wire configuration, verify each wire’s position using a continuity tester before proceeding with the installation. A mistake in wiring could trigger error codes and affect vehicle diagnostics.

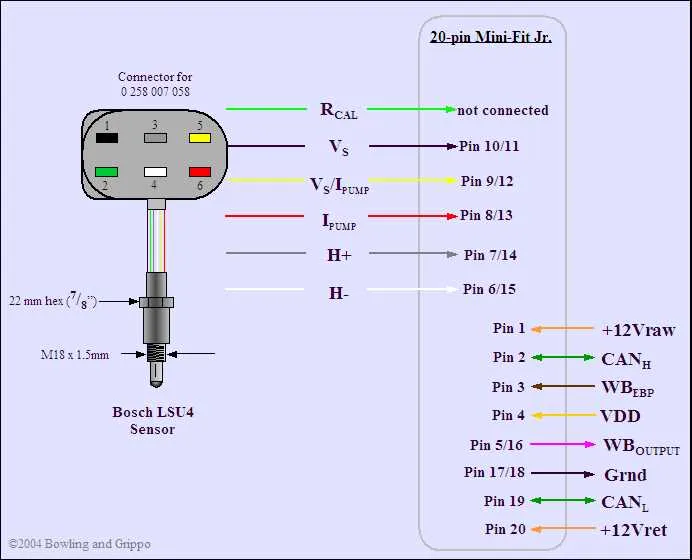

Understanding O2 Sensor Wiring Color Codes

The color codes for oxygen monitor connections are crucial for proper installation and functionality. Ensure accurate identification of each wire to prevent miswiring and potential damage to the components.

The black wire is typically used for ground connections. It should be attached to a solid, corrosion-free grounding point in the vehicle. The white wire, usually associated with the signal, carries data from the oxygen monitor to the ECU (Engine Control Unit). This wire should be routed carefully to avoid interference with other systems.

The gray wire is often linked to the heater element, responsible for warming up the device during cold starts. It should be connected to a reliable 12V power source to ensure the heater receives the correct voltage. In some cases, a red wire may also indicate a power line, but it’s crucial to verify this with the specific part number or manufacturer specifications.

The final wire color, typically blue, might be used for the second signal or heater circuit in dual-sensor configurations. This color might vary depending on the brand, but it is important to cross-check with the wiring manual before making any connections.

Incorrect connections or using mismatched wires can lead to erroneous readings and affect engine performance. Always consult the vehicle’s service manual or manufacturer documentation for precise wiring details.

Steps to Diagnose Faulty Oxygen Monitoring Component Connections

Begin by ensuring that the power supply to the vehicle is turned off before inspecting any components.

1. Check for Visible Damage: Inspect the connection points for signs of wear, corrosion, or broken wires. Pay special attention to areas near the exhaust manifold where heat can cause degradation.
2. Verify Electrical Continuity: Use a multimeter to check for continuity between the wires. No continuity indicates a break in the circuit that needs repair or replacement.
3. Inspect Grounding: Ensure that all grounding points are clean and secure. A poor ground connection can cause erratic readings and improper function.
4. Test Voltage Signals: With the vehicle running, measure the voltage signal on the input and output of the component. Voltage should fluctuate between 0.1V and 0.9V in most systems. Deviations suggest issues.
5. Inspect Heater Circuit: If the system includes a heater element, check the resistance of the heater circuit. A value outside the normal range can point to a faulty heater element or related wiring issues.
6. Check for Short Circuits: Use the multimeter to check for shorts between the signal and ground wires. A short circuit will cause the component to malfunction, and must be addressed immediately.
7. Monitor ECU Data: Connect a diagnostic scanner to the ECU to review error codes related to the component. Codes such as “P0130” or “P0141” often indicate specific issues with the connections or electrical components.
8. Test Component with an Oscilloscope: If possible, use an oscilloscope to view the signal waveform. A flat line or irregular waveform is a clear sign of malfunction in the component or its connection.

By following these steps, you can accurately identify faults in the connections or related components of the monitoring system, ensuring proper function and performance.

Common Electrical Issues and Solutions in O2 Monitors

Ensure a clean and secure connection at the sensor’s plug to prevent voltage drops or intermittent faults. Corroded or loose connections are a common source of malfunction, causing erratic readings or failure to detect oxygen levels. Use dielectric grease on connectors to protect against moisture and corrosion.

Inspect the ground wire for continuity. A weak or broken ground connection can result in inaccurate data, causing the engine control unit (ECU) to receive improper input. If the ground wire is damaged, replace or reattach it to a solid, uncorroded metal surface on the vehicle frame.

Check for proper voltage supply, typically 12V, at the power wire leading to the oxygen sensor. Insufficient voltage can cause underperformance or prevent the unit from functioning entirely. If the voltage is low, trace the circuit back to the fuse or relay and address any issues found.

Verify the integrity of the signal wire running from the sensor to the ECU. A short to ground or an open circuit can lead to faulty readings or complete sensor failure. Inspect the wire for cuts, abrasions, or kinks that might cause a short. Replace any damaged wiring as needed.

Ensure that the heater circuit is functioning properly. If the heater inside the unit fails, it may not reach optimal operating temperature, leading to slow response times or inaccurate readings. Test the heater circuit with a multimeter and replace any faulty components.

In some cases, the sensor may be incorrectly installed, causing a misalignment of the connection points. Double-check the sensor’s orientation and fit, ensuring it’s installed as per manufacturer guidelines to avoid communication issues.
