Comparison of Photosynthesis and Cellular Respiration Using a Venn Diagram

Start by mapping shared processes like ATP generation. Both chloroplasts and mitochondria rely on electron transport chains, chemiosmosis, and ATP synthase to create usable energy. This overlap illustrates a fundamental unity in biological energy transformation despite their distinct functions.

Note the direction of energy flow: green tissue captures sunlight to build glucose, while intracellular organelles dismantle it to release ATP. One constructs from CO₂ and H₂O, the other deconstructs glucose into CO₂ and H₂O. This inverse relationship highlights a closed-loop system crucial for life cycles.

Oxygen and carbon dioxide play mirrored roles. One process emits O₂ as a byproduct of water splitting, the other consumes it to drive oxidative phosphorylation. Meanwhile, the cycle completes when CO₂ is absorbed by foliage and later regenerated by metabolic breakdown.

Focus on energy carriers: both cycles rely on NADP⁺/NADPH or NAD⁺/NADH to shuttle electrons. These coenzymes are essential for maintaining redox balance and energy transfer, serving as common threads between anabolic and catabolic pathways.

Understand timing and location. One set of reactions occurs only in light and within chloroplasts; the other operates constantly within mitochondria. This spatial and temporal separation ensures efficiency and prevents biochemical interference.

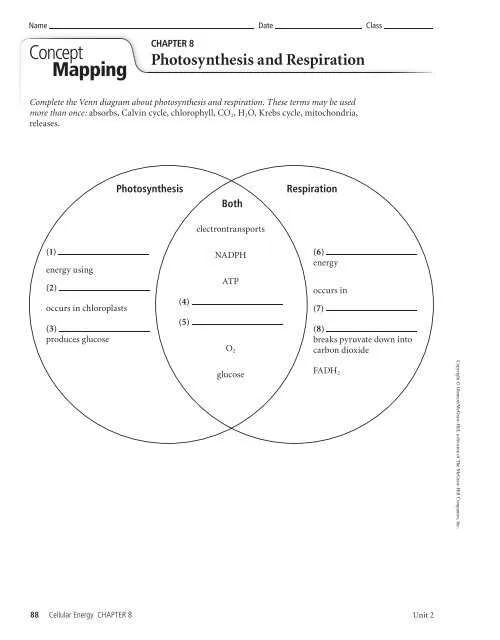

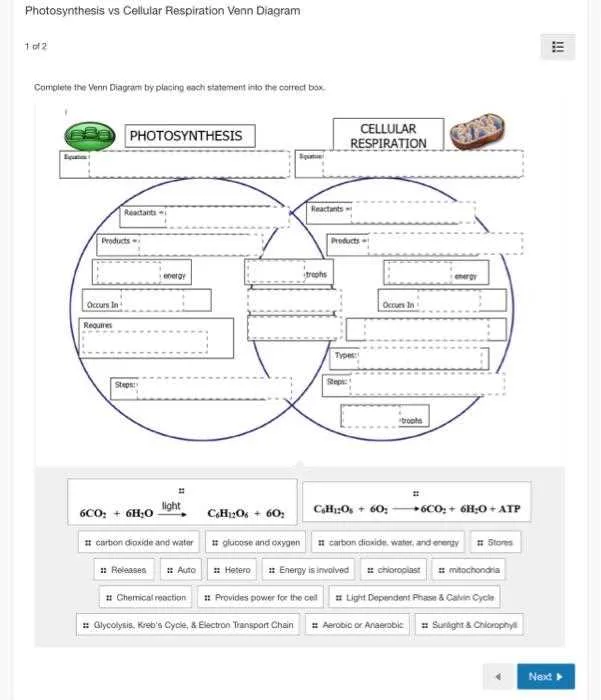

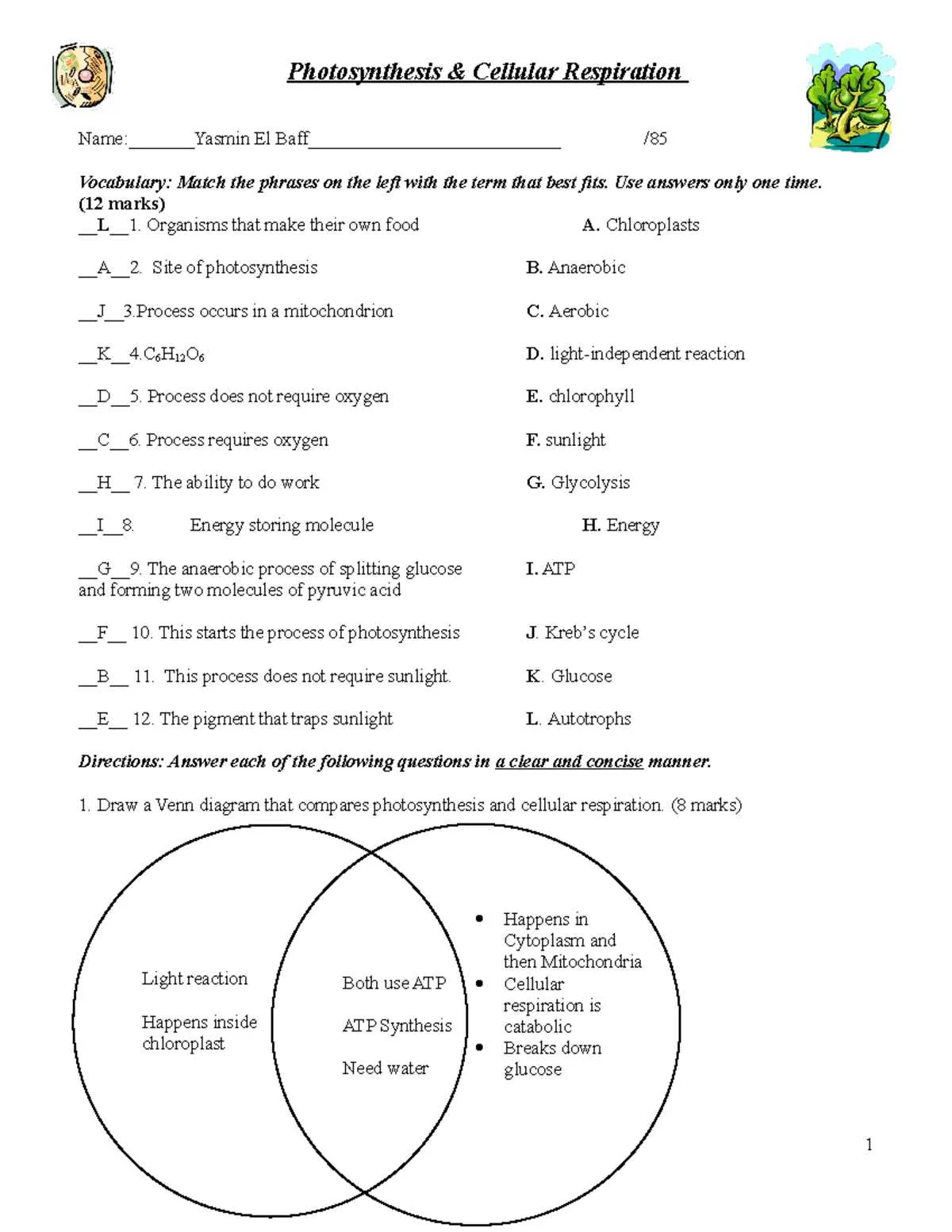

Venn Diagram: Photosynthesis and Cellular Respiration

Compare autotrophic glucose synthesis in chloroplasts with heterotrophic energy extraction in mitochondria by listing shared and distinct biochemical pathways. Place carbon dioxide uptake and oxygen release under light-driven reactions, while associating oxygen consumption and carbon dioxide production with aerobic breakdown of glucose.

In the overlapping section, highlight ATP generation, involvement of electron transport chains, reliance on membrane-bound organelles, and the role of redox reactions in transferring energy. Emphasize shared cofactors like NAD(P)+/NAD(P)H and the central importance of ATP synthase in producing usable energy.

Exclude fermentation and other anaerobic processes to maintain focus on oxygen-dependent mechanisms. Mention how both processes contribute to energy balance: one by building glucose, the other by extracting energy from it.

Use terms like oxidative phosphorylation, photolysis, Calvin cycle, glycolysis, Krebs cycle, and chemiosmosis to enrich comparison. Group molecular inputs and outputs precisely: CO₂, H₂O, light, O₂, C₆H₁₂O₆, and ATP, clearly assigning them to the respective processes.

How to Construct a Comparative Visualization of Energy Conversion Processes

Start by drawing two overlapping circles to represent each metabolic pathway. Label one for the light-driven synthesis of glucose and the other for the breakdown of organic molecules to release ATP.

In the non-overlapping section of the synthesis process, include details such as chloroplast location, CO₂ intake, H₂O usage, sunlight dependency, O₂ release, and glucose production.

For the catabolic mechanism, list mitochondria as the site, O₂ consumption, glucose oxidation, CO₂ output, and ATP generation as primary attributes.

In the intersecting space, mention shared traits: both involve energy transformation, rely on electron transport chains, utilize enzymes, occur in eukaryotic cells, and are vital for organism survival.

Ensure accuracy in terms: quantify ATP yield (~36 units for oxidative reactions), specify input/output molecules, and highlight the role of redox reactions in both systems.

Key Overlapping Functions Between Photosynthesis and Cellular Respiration

Prioritize the ATP cycle: Both biochemical pathways rely on the formation and utilization of adenosine triphosphate. While light-driven reactions synthesize ATP using sunlight, mitochondria regenerate ATP from ADP during oxidative phosphorylation. This commonality supports nearly all energy-dependent cellular functions.

Utilize electron carriers efficiently: NADP⁺ and NAD⁺ are central to redox reactions in both systems. These cofactors shuttle electrons during electron transport chains, enabling gradients that power ATP synthesis. Without these molecules, energy transduction would halt.

Regulate with feedback loops: Metabolic intermediates like glucose-6-phosphate and citrate signal rate changes across both pathways. These feedback signals synchronize the pace of carbon processing, ensuring energy supply aligns with demand.

Manage proton gradients: Both chloroplasts and mitochondria exploit membrane-bound complexes to establish electrochemical gradients. The resulting proton motive force drives ATP synthase activity, a critical shared mechanism.

Cycle carbon compounds: Glyceraldehyde-3-phosphate serves as a key intermediate in both Calvin and glycolytic sequences. This molecule forms the intersection for energy storage, synthesis of macromolecules, and immediate energy release.

Using Venn Diagrams to Clarify Energy Flow in Plant and Animal Cells

Start by segmenting energy transformations in green cells versus those in muscle fibers.

• List light-driven glucose synthesis processes on the left, emphasizing chlorophyll, carbon dioxide intake, and oxygen output.
• On the right, outline glucose breakdown pathways occurring in mitochondria, highlighting oxygen consumption and ATP production.
• In the center, place shared elements: glucose usage, ATP involvement, and key molecules like pyruvate and NADH.

To deepen clarity:

1. Use arrows to indicate directionality of matter exchange–CO₂ uptake vs. release, O₂ generation vs. consumption.
2. Label each section with specific organelles: chloroplasts for synthesis, mitochondria for energy release.
3. Include metrics: typical ATP yield (~36 units), ratio of oxygen used per glucose molecule (6:1).

Finalize with a cross-comparison:

• Highlight dependency loop–green tissue creates substrates consumed by muscle fibers.
• Note feedback signals: energy demand from active tissues drives increased oxygen intake and glucose transport.
