Comprehensive Analysis of the Carbon Iron Phase Diagram and Its Structural Transformations

To optimize steel properties, focus on the carbon content range from 0.02% to 2.1% and temperature intervals between 723°C and 1493°C. Within these limits, transformations occur that dictate mechanical behavior and microstructure. Precise control of cooling rates near the eutectoid temperature (~727°C) ensures formation of desirable constituents like pearlite or bainite.

At temperatures above 1147°C, the austenitic field dominates, enabling dissolution of carbon in gamma iron, which is critical for heat treatment processes such as hardening. For compositions exceeding 0.76% carbon, the emergence of cementite phases significantly influences hardness and brittleness. Maintaining a carbon balance around this threshold allows tailored strength without excessive brittleness.

Recommended practice: For achieving high tensile strength combined with toughness, anneal alloys slightly below the critical temperature to stabilize ferrite and limit carbide precipitation. Avoid prolonged exposure to temperatures in the hypereutectic range to prevent coarse carbide networks that degrade performance.

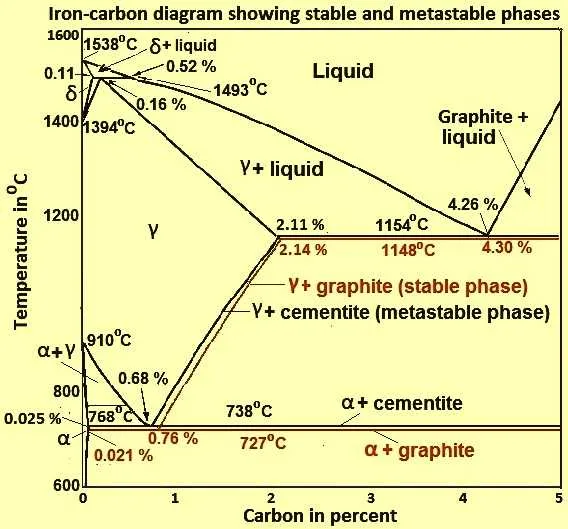

C Fe Phase Diagram

To optimize steel properties, maintain carbon content below 0.8% for austenite formation at elevated temperatures and avoid excessive carbide precipitation.

• Below 727°C, eutectoid transformation occurs at 0.76% C, producing pearlite from austenite decomposition.
• Above 1147°C, pure iron exists as delta-ferrite with limited carbon solubility (~0.02%).
• Between 727°C and 912°C, ferrite and austenite coexist, influencing mechanical strength and ductility.
• At 1495°C, iron melts; carbon solubility in liquid phase reaches about 4.3%, defining cast iron compositions.

Key points for heat treatment:

1. For hypoeutectoid steels (C
2. Hypereutectoid steels (C > 0.76%) develop cementite networks; tempering is critical to reduce brittleness.
3. In cast irons (>2.0% C), graphite morphology and distribution control hardness and machinability.
4. Rapid cooling from austenite region promotes martensitic transformation, enhancing hardness but reducing toughness.

Precise temperature and composition control based on iron-carbon equilibrium is essential for targeted microstructure engineering.

Interpreting the C-Fe Equilibrium for Steel Heat Treatment

To optimize steel properties, precisely control temperature and carbon content within the iron-carbon system boundaries. For hypoeutectoid steels (carbon below 0.76%), austenite forms above 727°C, transforming into ferrite and cementite on cooling. Holding steel slightly above this temperature ensures complete austenitization for uniform microstructure.

Hypereutectoid steels (carbon above 0.76%) develop proeutectoid cementite before cooling to the eutectoid transformation temperature. Avoid overheating above the upper critical boundary to prevent grain coarsening, which deteriorates toughness.

Quenching from the austenite region yields martensite; cooling rate must exceed the critical cooling speed defined by the transformation curves. For steels with 0.4–0.6% carbon, rapid cooling from 800–850°C produces a hard, brittle structure suitable for wear resistance.

Tempering temperatures should correspond to carbon content: lower carbon steels require higher tempering heat to reduce brittleness. For example, 0.2% carbon steels temper best around 550°C, while 0.8% carbon steels soften efficiently at 400–450°C.

Understanding the boundaries between ferrite, austenite, and cementite stability zones enables precise adjustment of heat treatment parameters–holding times, temperatures, and cooling rates–to tailor hardness, ductility, and strength in final steel products.

Impact of Carbon Content on Microstructure Development in C Fe Alloys

Maintaining carbon concentration below 0.8 wt% ensures predominantly ferrite and pearlite microconstituents, which enhance ductility and toughness. Increasing carbon beyond this threshold promotes the formation of cementite networks, resulting in a harder, more brittle matrix dominated by pearlitic and ledeburitic structures.

At carbon levels under 0.02 wt%, the microstructure is primarily composed of ferrite with minimal pearlite, optimizing machinability. Between 0.02 and 0.8 wt%, alternating lamellae of ferrite and cementite develop, forming classic pearlitic colonies that balance strength and plasticity.

Exceeding 2.0 wt% carbon initiates a eutectic reaction, producing ledeburite–an interlocking mixture of austenite-derived phases and cementite–that drastically increases hardness but decreases impact resistance.

Controlling carbon content around 0.4 to 0.6 wt% favors fine pearlitic structures, critical for high-strength wire and rail steels, due to their refined interlamellar spacing.

For cast irons, carbon concentrations from 2.5 to 4.0 wt% encourage graphite formation within the iron matrix, which modifies thermal conductivity and wear resistance depending on graphite morphology and distribution.

Optimization of carbon concentration is essential for tailoring mechanical properties by influencing microconstituent morphology and distribution, thereby enabling precise control over hardness, ductility, and strength in iron-carbon alloys.

Using the C-Fe Equilibrium Map to Predict Mechanical Properties

Prioritize controlling carbon content between 0.2% and 0.8% to optimize tensile strength and ductility in steels. Within this range, the microstructure balances ferritic and austenitic constituents, enhancing toughness without excessive brittleness.

Adjusting cooling rates after heat treatment directly influences the transformation of austenite into martensite or pearlite. Faster quenching promotes martensitic formation, increasing hardness up to 700 HV but reducing ductility, while slower cooling favors pearlite, yielding moderate strength (~600 MPa) with better elongation.

For high-strength applications, maintain carbon near 0.6% and apply rapid cooling from the high-temperature region around 750°C to induce a fine martensitic structure, raising yield strength above 1200 MPa.

Conversely, steels with carbon below 0.3% subjected to controlled slow cooling will develop ferrite-pearlite textures, resulting in lower hardness (~150 HV) but improved impact resistance, suitable for structural uses demanding toughness.

Leveraging the solubility limits of carbon in iron phases enables prediction of carbide formation and its effect on wear resistance. Exceeding solubility thresholds at temperatures below 727°C leads to cementite precipitation, significantly increasing hardness but potentially causing brittleness.
