Complete Diagram for 7 Way Trailer Wiring and Connections

Ensure you correctly wire the 7-pin trailer plug for proper functioning of your towing system. Each pin corresponds to a specific function that needs to be wired in accordance with the vehicle’s system. Incorrect wiring may lead to malfunctioning lights, brakes, or even damage to the electrical components.

Pin 1 is dedicated to the ground connection, vital for the entire circuit’s operation. Make sure it’s securely grounded to avoid electrical faults. Pin 2 powers the left turn signal and brake light; verify the wire is correctly connected to the vehicle’s signal system. Pin 3 serves the right turn signal and brake light, following the same principles as Pin 2. Pay attention to correct polarity and solid connections.

Pin 4 handles the auxiliary power for charging or powering any additional systems on the towed vehicle. This connection should be fused to avoid overloads. Pin 5 provides the reverse light function; check for compatibility with your reverse lights to ensure visibility when backing up. Pin 6 delivers the running lights, often a constant 12V supply, ensuring that lights on the trailer are always on when the vehicle’s headlights are active.

Finally, Pin 7 supports the electric brakes. It is essential that this pin is connected to your trailer’s brake system, and it should be tested regularly to confirm proper brake activation when needed. Double-check all connections and ensure the insulation is intact to prevent shorts and other issues that may impair the towing experience.

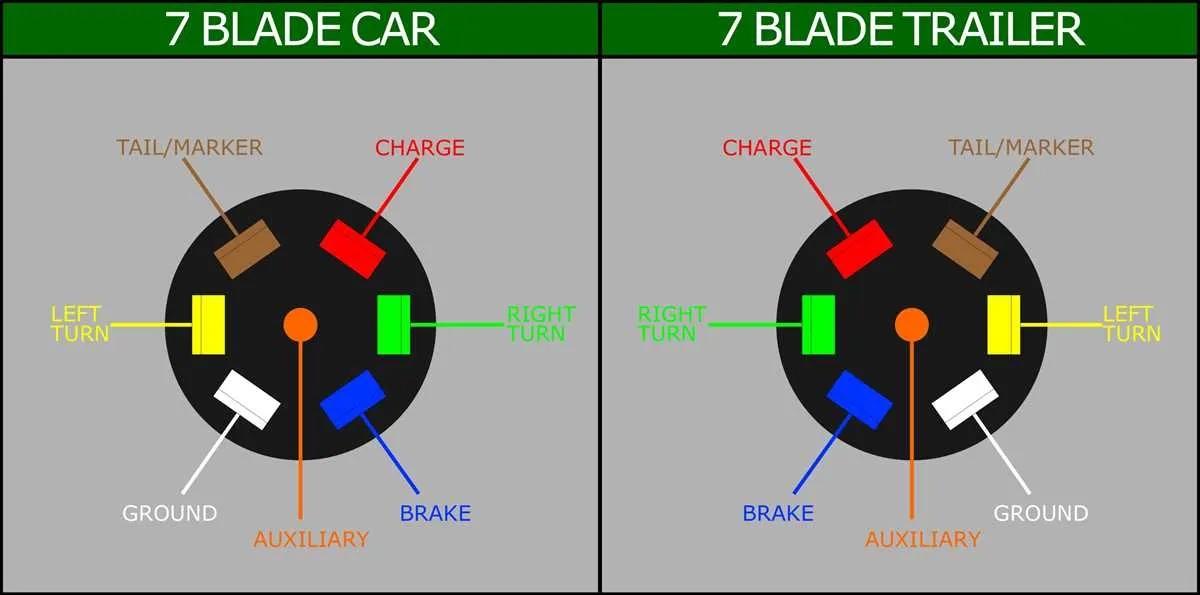

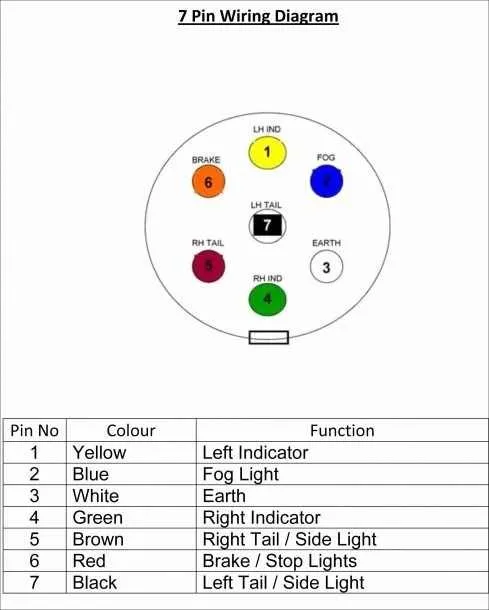

7-Pin Connector Wiring Configuration

For accurate and reliable electrical connection between vehicles and their towed units, refer to the standard wiring setup for a 7-pin connector. Each pin serves a specific function, ensuring compatibility and safety across different systems. Below is a breakdown of the functions:

Pin 1: Ground – This pin serves as the return path for electrical currents, ensuring a safe discharge of electricity.

Pin 2: Left Turn Signal – Used to activate the left turn indicator on the trailer.

Pin 3: Right Turn Signal – Controls the right turn signal on the towed unit.

Pin 4: Brake Lights – This pin is responsible for lighting up the brake lights of the towed unit when the towing vehicle applies the brakes.

Pin 5: Tail Lights – Provides power to the rear tail lights on the towed unit for visibility in low-light conditions.

Pin 6: Electric Brakes – Supplies power to the electric brakes of the trailer, if equipped, ensuring safe and synchronized braking.

Pin 7: Auxiliary Power – This pin can be used for various purposes, such as powering a battery or providing additional 12V power to the towed unit for accessories.

Ensure each connection is correctly wired to prevent short circuits or malfunctioning. Use high-quality connectors and check for corrosion regularly. For maximum reliability, follow manufacturer specifications for your specific setup.

Understanding the Function of Each Pin in a 7-Pin Connector

The first pin is responsible for providing ground. It is crucial for completing the electrical circuit and ensuring all components function properly.

Pin two supplies the 12V battery power. This voltage is typically used for charging the auxiliary battery on the connected equipment or providing power for specific accessories.

Pin three serves the left turn signal and brake light. It connects the vehicle’s indicator system to the equipment, signaling turns and braking actions.

Pin four is designated for the right turn signal and brake light. Similar to pin three, it controls the corresponding side of the vehicle’s lighting system.

The fifth pin is utilized for the reverse light. It ensures that the reverse light on the attached equipment illuminates when the vehicle shifts into reverse.

Pin six is for the electric brake circuit. This pin is linked to the braking system, allowing the vehicle to engage the electric brakes of the connected load when necessary.

Pin seven is used for the auxiliary power, typically supplying power for additional systems like hydraulic lifts, air brakes, or other specialized equipment needs.

How to Properly Wire a 7-Pin Connector for Your Vehicle

Start by identifying the correct wiring for your vehicle’s electrical system. A typical 7-pin setup includes connections for ground, brake lights, tail lights, reverse lights, turn signals, auxiliary power, and a brake controller. Ensure you have the proper wire gauge, usually 10-12 gauge for power and 14-16 gauge for smaller signals.

1. Ground (White): Connect the white wire to the vehicle’s frame or a designated ground point. A solid ground is crucial for proper functionality.

2. Brake Lights (Red): This wire connects to the brake light circuit, usually the red or yellow wire from the vehicle’s brake system.

3. Tail Lights (Brown): The brown wire should be connected to the vehicle’s tail light circuit. Check that it works with both the parking and running lights.

4. Turn Signals (Yellow/Green): The left turn signal is typically yellow, and the right turn signal is green. Connect these wires to the respective circuits in the vehicle.

5. Reverse Lights (Blue): The blue wire connects to the reverse light circuit. Ensure the wiring is connected to the vehicle’s reverse light switch.

6. Auxiliary Power (Black): The black wire should be connected to the vehicle’s battery or a dedicated 12V power source. This connection powers auxiliary equipment such as a camper or tools.

7. Brake Controller (Purple): The purple wire is used to control an electric brake system. Connect this wire to the vehicle’s brake controller if available.

After connecting the wires to the correct pins on the 7-pin connector, secure all connections with wire crimps or terminal connectors to ensure durability and prevent any loose connections. Double-check each circuit for continuity and function before finalizing the installation.

Test the connections with a tester or a test light to confirm proper functionality of all circuits, ensuring no fuses are blown and that each light or function operates as expected.

Common Wiring Issues and Troubleshooting Tips for 7-Pin Connections

Start by inspecting the ground connection. A poor or corroded ground is the most frequent cause of malfunction. Ensure the ground wire is securely attached to a clean, rust-free metal surface on both the vehicle and the connector.

Check for damaged or frayed wires. Wire wear can cause intermittent issues or complete failure. Inspect all wiring for cuts or abrasions, particularly in areas where the cable might be exposed to sharp edges or harsh conditions.

Verify proper pin alignment. Misalignment or bent pins can cause malfunctioning signals. Use a multimeter to check the continuity of each pin to ensure it’s properly connected.

• Check that the 12V power pin is properly wired and functional.
• Ensure that the brake light and turn signal pins are not shorted together.
• Verify that the auxiliary power supply is correctly configured for the intended accessory.

Test all connections for corrosion. Use dielectric grease on the pins to prevent moisture buildup, which leads to corrosion and electrical resistance.

If the system is still malfunctioning, check for blown fuses on both the vehicle and the connector. Fuses act as a safeguard against electrical overloads and need to be replaced if damaged.

For intermittent issues, especially with trailer lights, inspect the connector’s internal contacts for wear or misalignment. Loose contacts can cause flickering or failure of certain lights.

To diagnose the specific cause, systematically test each function. Use a tester to simulate the turn signal, brake light, and reverse light functions while checking for voltage at the corresponding pins. This will pinpoint where the issue lies.
