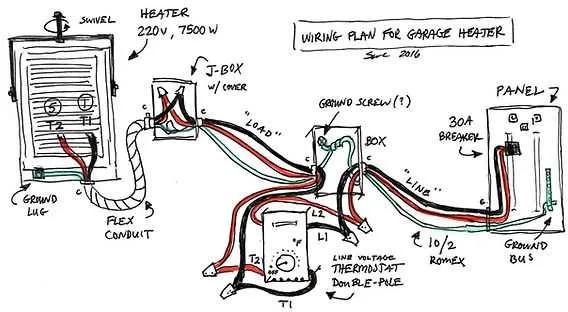

Cadet Baseboard Heater Wiring Diagram for 240V Installation and Setup
Ensure proper installation of your 240-volt heating system by following a detailed electrical layout. This setup involves direct connection to the main electrical panel, with a dedicated 20-amp breaker for safety. Utilize high-quality, heat-resistant wire (14/2 or 12/2 gauge, depending on the unit’s amperage) to avoid overheating. Always install a disconnect switch near the heater for easy operation and maintenance.
Important connections include the neutral wire, which must be properly grounded, and the live wires, which should connect directly to the heating unit’s terminals. Make sure that all connections are secure and well-insulated to prevent any short circuits. For optimal performance, consider using a line voltage thermostat to control the room temperature efficiently. This ensures that your heating unit runs only when needed, reducing energy consumption.
Double-check that the power is off before starting the installation process, and always adhere to local electrical codes. If you are unsure about any part of the installation, seek professional help to ensure your system operates safely and efficiently.
Installation Guidelines for 240V Electric Heating Units
Ensure all connections are properly insulated and that the power is turned off before starting any installation. Follow these steps carefully:
- Determine Power Source: Verify the electrical service meets the requirements of the system, typically requiring a 240V circuit.
- Use Proper Gauge Wire: Choose wire with an appropriate rating, usually 12 AWG or 10 AWG, based on the amperage of the system.
- Install a Double-Pole Circuit Breaker: This is essential to handle the higher voltage and provide protection from overcurrent.
- Connect the Wires to the Unit: Connect the two hot wires (usually black and red) to the terminal screws, ensuring tight connections to prevent overheating.
- Neutral and Grounding: If required, connect the neutral wire (if applicable) to the appropriate terminal. Ground the unit to ensure safety from electrical faults.
- Test the System: After installation, turn the power back on and use a multimeter to verify voltage at the unit, ensuring the system operates correctly.
It’s crucial to adhere to local electrical codes and regulations when working with high-voltage systems. If unsure, always consult with a certified electrician to ensure safe and proper installation.
Understanding the Basic Components of a 240V Electric Heating System
Start by identifying the key elements in any 240V electric heating setup: the power supply, the control unit, and the heating element. These three components work in tandem to provide efficient temperature control and safety in operation.
Power Supply: This is the main source of energy for the system. In a typical 240V setup, the power is delivered through two hot wires, each carrying 120V, which together combine to supply 240V of electricity. Ensure that the incoming current is correctly routed to prevent overloads.

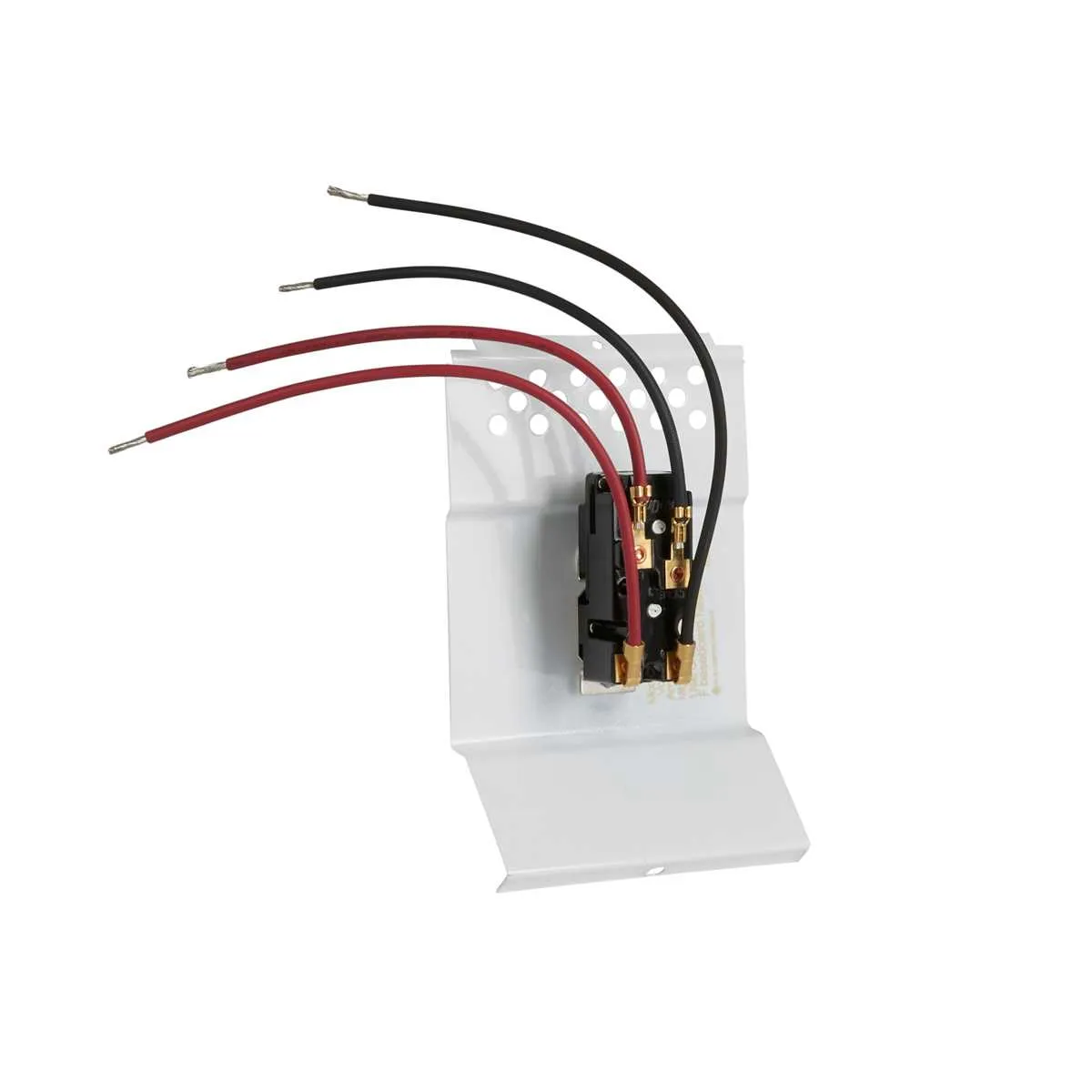

Control Unit: A thermostat or switch regulates the power that reaches the heating element. It monitors the temperature and adjusts the flow of electricity accordingly. Depending on the system, it can be hardwired or connected to a wall-mounted interface. Make sure the control unit is rated for the required voltage and amperage to ensure precise functionality.
Heating Element: This component converts electrical energy into heat. It consists of coils or conductive material that heats up when current passes through it. Proper installation and connection of the heating element are crucial to avoid short circuits or inefficiency.
Grounding: Safety is paramount. A properly grounded system prevents electrical hazards by redirecting excess current safely to the earth. Make sure all components are correctly grounded to avoid electric shocks or fire risks.
All these components must be compatible with each other in terms of voltage and amperage to guarantee safe and effective operation. Before proceeding with installation or repairs, always verify the specifications of each part to ensure they meet the necessary standards.
Step-by-Step Guide to Connecting a 240V Heating Unit
Ensure the power is turned off at the breaker box before starting any work. This will prevent any accidental electrical shocks while handling the installation.
1. Preparing the wires: Begin by stripping the insulation from the ends of the wires. Leave about ¾ inch of exposed copper to make secure connections. If using a ground wire, make sure it is long enough to reach the grounding terminal inside the unit.
2. Connecting the power supply: Attach the two hot wires (usually black and red) to the appropriate terminals, typically marked “L1” and “L2” inside the electrical box. These should be tightened firmly using a screwdriver to avoid loose connections.
3. Grounding the unit: Connect the ground wire to the grounding terminal, usually located at the bottom or side of the unit. This is crucial for safety and ensures the system is properly grounded to prevent any electrical faults.
4. Securing the connection box: Once all wires are connected, carefully position the electrical box back into place. Secure it tightly to the unit with the provided screws, ensuring no wires are pinched or exposed.
5. Testing the installation: Turn the power back on at the breaker box. Test the unit by adjusting the temperature settings and verifying that it heats up as expected. If there’s no power or the unit is not functioning correctly, double-check all connections for tightness and accuracy.
6. Final checks: Once everything is functioning correctly, cover the electrical components with the unit’s access panel. Make sure it is properly secured and no wires are left exposed.
Common Electrical Issues and How to Troubleshoot Electric Heaters
Incorrect Connection of the Power Supply – Ensure that the power wires are correctly connected to the appropriate terminals. If you’re experiencing intermittent or no heat output, check the connections between the power source and the unit. Use a multimeter to verify voltage levels at the input. If the voltage is below specification, there could be a loose or corroded terminal connection.
Overloaded Circuit – If the circuit breaker trips frequently, this could indicate an overloaded circuit. Verify that the amperage rating of the circuit matches the heater’s requirements. Using a higher-power device on the same circuit can cause overloading, resulting in tripped breakers. Reduce the load by switching off other high-power appliances or moving the heater to a different circuit if necessary.
Damaged or Frayed Wires – Inspect all external and internal cables for signs of wear, cuts, or exposure of wires. Damaged cables can lead to short circuits, electrical fires, or lack of power. If damaged, replace the cables immediately with the same gauge and insulation type specified in the user manual.
Defective Thermostat – A malfunctioning thermostat can cause inaccurate temperature control or prevent the unit from turning on altogether. Test the thermostat’s continuity using a multimeter. If there’s no continuity when the thermostat is set to the desired temperature, replace it with an appropriate model for your device.
Improper Grounding – If grounding is incorrectly installed or absent, electrical hazards could arise. Verify that the ground wire is securely connected to the unit’s designated terminal and the electrical panel. A properly grounded unit minimizes the risk of electrical shocks and ensures safe operation.
Improperly Sized Breaker – A breaker that’s too small for the unit can trip continuously. Ensure the breaker is properly rated to handle the heater’s current draw. Typically, 30-amp breakers are required for larger heating units, but refer to the product specifications for the exact rating.
