Understanding the Wiring Setup for a Six Prong Trailer Connector and Its Functions

To ensure proper connection between your towing vehicle and its attached load, follow the specific pin configuration for the 6-pin electrical system. This layout controls critical functions such as brake lights, turn signals, and auxiliary power. Correctly matching each wire to its assigned terminal prevents malfunctions and enhances safety on the road.

Key points to follow: The system includes circuits for ground, tail lights, left and right turn indicators, brake lights, and a 12V power supply. Confirm wire colors and corresponding terminals before installation, as mismatches can lead to lighting failures or short circuits.

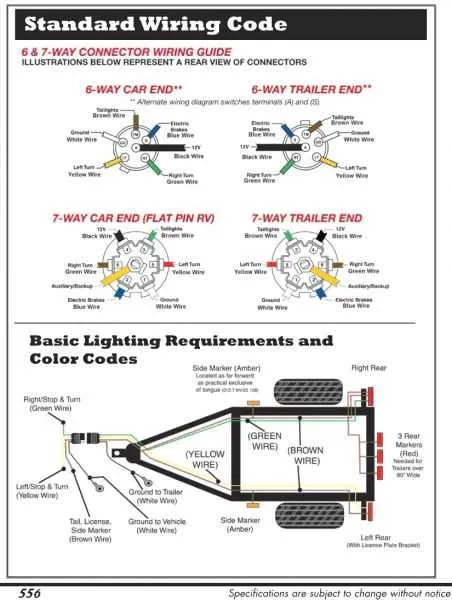

For efficient troubleshooting or assembly, refer to a clear schematic reflecting the six-contact connector layout. Using this, technicians and vehicle owners can identify each connection point quickly, ensuring that all functions activate correctly when signals are applied.

6 Prong Connector Layout

Use a color-coded chart to identify each pin’s function precisely. Typically, the six-pin setup includes circuits for tail lights, left and right turn signals, brake lights, an auxiliary 12V power source, and a ground connection. Ensure each cable corresponds exactly to these roles to prevent electrical faults.

Connect the green wire to the right signal and brake light circuit, and the yellow wire to the left signal and brake light. The brown wire usually powers running lights, while the white cable serves as the common ground. The black wire provides 12-volt auxiliary power, useful for charging or operating accessories. The blue wire is often assigned to the electric brake controller if equipped.

Verify each connection with a multimeter before securing terminals to avoid shorts or open circuits. Use waterproof connectors and secure all cables with proper clamps to resist vibrations and moisture exposure during travel. Label each wire on both ends for easier maintenance and future troubleshooting.

When replacing or upgrading the connector, ensure compatibility with the towing vehicle’s socket to maintain signal integrity and safety. Follow manufacturer specifications for wire gauge and terminal types, as using undersized cables can cause overheating or voltage drops.

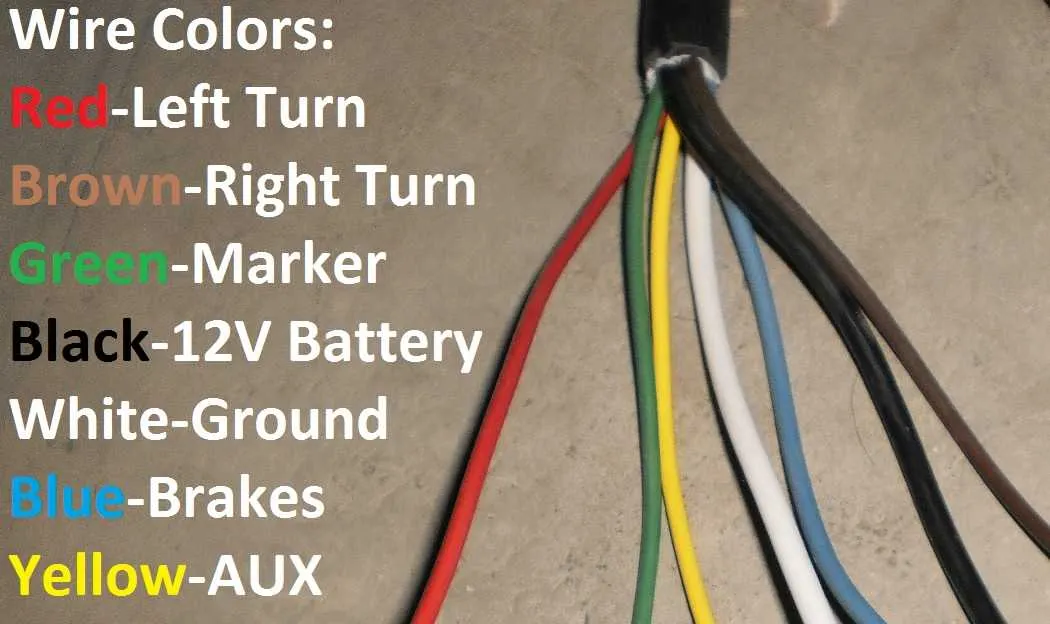

Identifying Each Wire Function in a 6-Pin Connector

Use the following guide to accurately determine the role of each cable within the 6-pin electrical plug for towing connections:

1. White wire: Acts as the ground line, ensuring proper electrical return and safety.
2. Brown wire: Powers the tail lights and running lamps on the towed unit.
3. Yellow wire: Controls the left turn signal and brake light functionality.
4. Green wire: Operates the right turn signal and brake light.
5. Blue wire: Supplies current to the electric brakes system if equipped.
6. Black wire: Provides 12-volt auxiliary power, often for charging or interior lighting.

Confirm each conductor’s purpose with a multimeter before final connection to avoid damage or malfunction. Labeling wires after identification simplifies future maintenance or troubleshooting.

Step-by-Step Guide to Wiring a 6 Pin Connector

Start by gathering all necessary tools and materials: a 6-pin connector, wires, a crimping tool, wire strippers, and a multimeter for testing connections.

1. Identify Pin Functions: Each pin on the 6-pin connector serves a specific purpose. The most common arrangement is as follows:

• Pin 1: Ground connection (white wire).
• Pin 2: Left turn signal (yellow wire).
• Pin 3: Right turn signal (green wire).
• Pin 4: Tail lights (brown wire).
• Pin 5: Electric brakes (blue wire).
• Pin 6: Auxiliary power (red wire).

2. Prepare the Wires: Strip about 1 inch of insulation off the ends of each wire you will be using. Make sure you don’t nick the copper strands while doing this.

3. Connect Each Wire to the Correct Pin: Use the crimping tool to attach each wire to the corresponding pin in the connector. Double-check each connection for a tight, secure fit to avoid any loose contacts.

4. Secure the Ground Wire: The ground wire is crucial for ensuring all functions work properly. It should be connected to a solid metal surface, preferably near the connector, to ensure a good ground connection.

5. Check for Proper Function: After everything is connected, test each wire for correct voltage using a multimeter. Check that the left and right signals, brake lights, and other functions work as intended.

6. Finalize the Connections: Once verified, use electrical tape or heat shrink tubing to secure the wires and prevent any short circuits. Ensure no exposed metal is visible.

7. Protect the Wiring: Use a protective cover or grommet around the connection to prevent wear and tear, especially if exposed to weather conditions or physical abrasion.

Troubleshooting Common Issues with 6 Pin Electrical Connections

Check for faulty connections first. Loose or corroded terminals often cause intermittent power loss. Clean and secure all connectors to ensure stable current flow.

If you encounter malfunctioning lights, start by inspecting the ground wire. A poor ground connection leads to erratic behavior in signal lights. Reattach or replace any damaged grounding cables.

When only certain functions fail (like brakes or turn signals), it’s likely due to a damaged wire or poor contact at the junction. Use a multimeter to test continuity for each function and repair any broken wires as needed.

For power supply issues, ensure the towing vehicle’s battery and fuses are functioning properly. A blown fuse can prevent specific functions from working, so check the fuse box and replace any damaged fuses.

Look for any short circuits caused by damaged insulation or exposed wires. These can cause multiple failures or a complete loss of function. Replace any damaged components immediately to avoid further damage.
