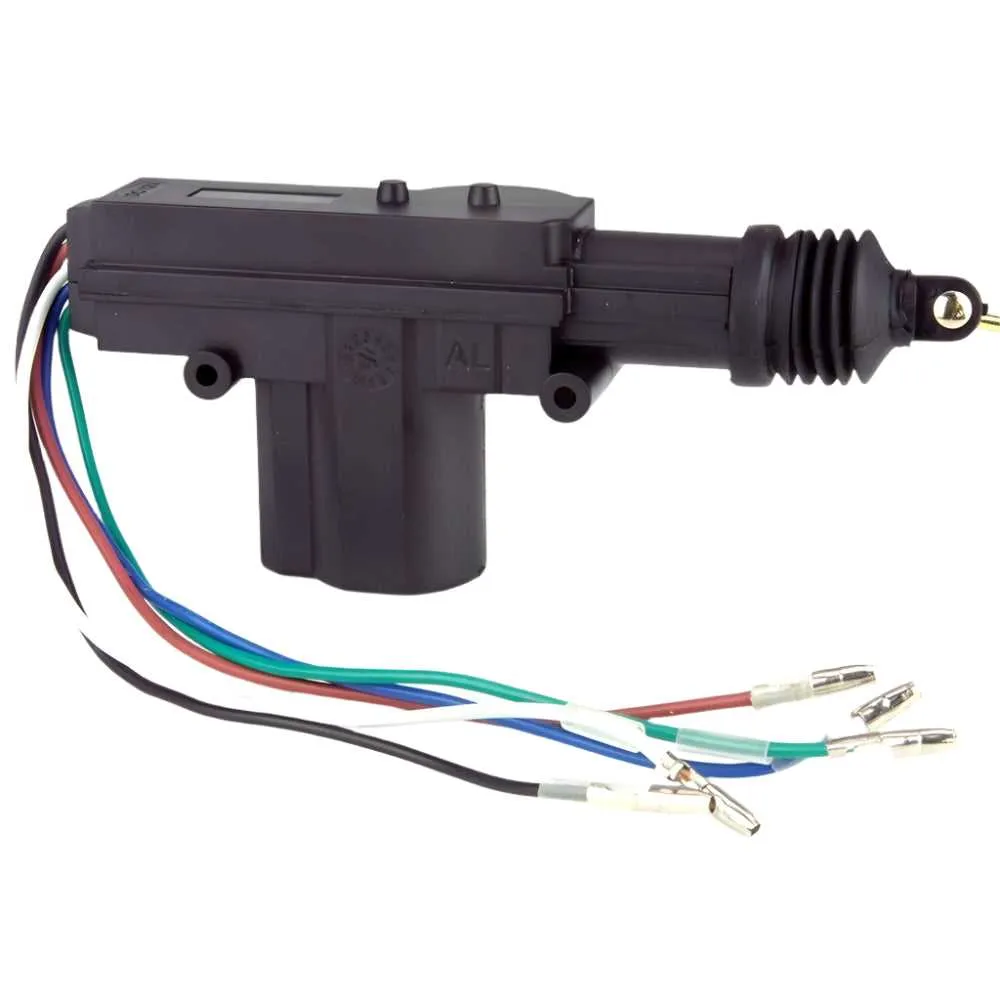

5 Wire Door Lock Actuator Wiring Diagram Guide and Troubleshooting Tips
If you’re working with a 5-pin setup for a vehicle’s entry system, make sure to follow the correct pinout for proper operation. The key is ensuring the correct routing between the control module and the mechanism responsible for securing the vehicle. The connections must align according to the system’s power requirements and signals for seamless activation and deactivation.
1. Pin 1 – Power Supply: This pin is typically linked to a stable 12V supply from the vehicle’s battery. It powers the entire mechanism, so a solid connection here is crucial for the unit’s functionality. Double-check that this pin is secure and not exposed to short circuits.
2. Pin 2 – Ground: This pin serves as the ground path for the system. It must be connected to a reliable chassis ground point. Ensure there is no resistance in the connection, as it can lead to malfunctioning or inconsistent performance.
3. Pin 3 – Activation Signal: The activation signal comes from the vehicle’s control unit. This connection allows the system to receive the input that triggers the mechanism. Pay attention to voltage levels to avoid overloading the system.
4. Pin 4 – Reverse Activation: This pin is responsible for the reverse signal, enabling the system to respond accordingly when unlocking or locking. Typically, this signal is sent when the vehicle recognizes a command to disengage. Ensure the wiring is insulated to avoid accidental shorts.
5. Pin 5 – Auxiliary Function: This pin can be used for extra features, such as an indicator light or additional sensors. Depending on your specific setup, check if the system includes a custom function that needs this connection.
Ensure that all pins are securely connected to their respective wires to avoid malfunctions. Incorrect wiring or loose connections can lead to inconsistent responses, affecting the security and ease of use of the system.
5 Pin Mechanism Connection Guide
Connect the first terminal to a 12V positive supply to power the system. The second terminal should be linked to the control unit or switch responsible for activating the locking/unlocking movement. For the third pin, establish a connection to the ground to ensure proper circuit completion. The fourth terminal operates the unlocking feature and must be attached to the negative relay or switch for that function. The fifth pin is used for securing the locking mechanism, requiring a dedicated negative connection for correct engagement.
Ensure the polarity of each connection is observed carefully to avoid malfunction. Double-check continuity with a multimeter before testing to confirm all points are properly linked. In case of failure to engage or disengage, inspect the control unit and its connections thoroughly to guarantee no shorts or loose contacts.
Understanding the Color Code for a 5-Wire Mechanism
To ensure proper functionality, follow the color code carefully when connecting a 5-wire system. Each color corresponds to a specific function in the setup.
Red typically represents the positive connection for activating the mechanism. Ensure this lead connects to a power source capable of supplying adequate voltage.
Black is the ground or negative connection. It should always be linked to a common ground to avoid electrical issues.
Blue is often used for controlling the reverse function, enabling the mechanism to move in the opposite direction. It must be connected to a controller or signal that initiates this action.
Green serves as the auxiliary control, usually for safety or secondary features. Double-check the system’s manual to confirm its precise role in your setup.
Yellow is reserved for triggering the primary motion or cycle. This wire often receives input from a central control unit or switch.
Before beginning installation, always verify each wire’s function with the manufacturer’s documentation, as variations can exist. Proper understanding of these connections will ensure smooth operation.
Step-by-Step Guide to Connecting the 5-Wire Device to a Locking System
Start by identifying the five terminals on the device. These are usually marked for clarity and play distinct roles in operation. One terminal will be the power input, typically connected to the vehicle’s or system’s power source.
The second terminal should be attached to a ground connection, ensuring the system completes its circuit and operates correctly.
Next, you’ll need to locate the terminals responsible for activation. These are generally used to send signals for the opening and closing functions. Ensure you connect them to the corresponding relay or control module based on your setup.
The final two terminals usually handle reverse functions–one for the opening motion and the other for the closing motion. These should be properly connected to the appropriate control points that govern the mechanism’s movements.
After securing all connections, verify that each terminal is firmly in place to prevent any disconnections during operation. Once all is connected, test the system by providing power and initiating the locking/unlocking process. Adjust as needed to ensure smooth functionality.
Common Issues and Troubleshooting Tips for 5-Wire Mechanism Connections
If you’re encountering problems with a 5-wire system, check the following points for potential issues:
- Misconnection or Loose Contacts: Ensure that all terminals are securely connected. Loose connections can prevent the proper functioning of the system. Double-check the terminals for corrosion or damage.
- Power Supply Issues: Verify that the power source is sufficient and stable. Voltage drops can affect performance. Use a multimeter to measure the voltage at the connection points.
- Signal Interference: Electromagnetic interference from nearby devices can cause malfunctioning. Try moving the system away from large motors or high-power appliances.
- Incorrect Component Integration: Double-check if the components you are using are compatible with each other. Some systems may require specific ratings to function properly.
If the system is still not responding after these checks:
- Test Individual Parts: Disconnect the mechanism from the rest of the components and test each one separately. This will help you isolate the faulty part.
- Check for Short Circuits: Use a multimeter to check for any shorts between the lines. A short can cause the mechanism to malfunction or not activate at all.
- Inspect for Physical Damage: Physical damage to the components, such as bent pins or frayed connections, can cause malfunctions. Replace damaged parts immediately.
By following these steps, you can pinpoint and resolve common problems with the 5-wire system. If issues persist, consider consulting a technician for more advanced troubleshooting.
