Detailed Diagram and Guide for 48 Inch John Deere L120 Belt Replacement and Maintenance

Ensure the drive loop for the 48″ cutting deck is arranged exactly as specified by the manufacturer to maintain optimal performance. Misalignment or incorrect tension can cause premature wear or slipping, reducing the efficiency of your equipment.

Follow the specific path of the power transmission loop around the pulleys and idlers to avoid damage. Each pulley position affects the engagement of the blades and the overall cutting quality. Pay attention to the orientation of the guide wheels and tensioner arms to achieve the correct pressure on the loop.

Replacement and adjustment require careful comparison with a reliable routing chart to confirm proper placement. Use high-quality replacement loops that match the original specifications in length and width to ensure smooth operation without unexpected breaks or stretching.

48″ Mower Deck Drive Routing Guide

For proper routing of the primary power transmission on the 48″ mower deck designed for the L120 series, follow the path starting at the engine pulley, then move to the tensioner arm pulley. From there, lead the belt under the deck shell and loop it around the spindle pulleys that drive the cutting blades. Ensure the belt sits firmly in all pulley grooves to avoid slipping during operation.

Pay attention to the spring-loaded idler, which maintains correct tension. When installing a new drive loop, position it so the tensioner arm can move freely without binding. Avoid twisting the loop; it must lie flat against all surfaces to maximize lifespan and efficiency.

Use the original equipment replacement component number recommended by the manufacturer for best fit and durability. Regularly inspect the routing for debris accumulation and wear points, especially near sharp edges on the deck housing and pulleys. Proper alignment prevents premature fraying and slipping.

If adjusting or replacing the transmission loop, loosen the mounting bolts on the tensioner assembly to allow easy removal and reinstallation. Verify the tension after installation by manually rotating the blades; the loop should maintain snug contact without excessive slack or tightness.

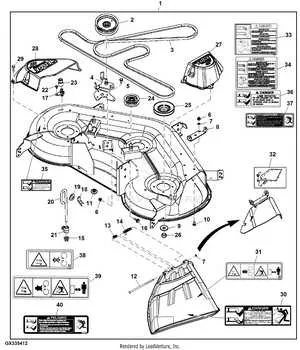

Identifying and Locating Each Drive Component on the 48 Deck

Start by examining the main pulley near the engine output shaft, which powers the mower’s cutting system. The primary loop responsible for deck rotation runs from this pulley to the spindle pulleys beneath the cutting blades.

The tensioner loop, a smaller circular element, maintains proper tension and prevents slippage on the deck assembly. It is positioned on the idler arm located above the deck frame.

Locate the transaxle loop at the rear, connecting the transmission pulley to the engine’s crankshaft pulley, which manages forward motion.

For precise identification, note the routing path: the largest loop spans from the engine crankshaft to the mower spindles; the secondary smaller loop engages the tensioner arm; and the longest loop runs toward the transmission pulley.

Each component can be accessed by lifting the mower deck and inspecting the underside, where pulleys and loops align in a clear, linear configuration. Always ensure proper tensioning and correct placement before reassembly.

Step-by-Step Guide to Replacing the Drive Strap on a 48″ Riding Mower Model L120

Begin by disengaging the spark plug wire to ensure safety. Remove the mower deck by pulling the release pins and lowering the cutting assembly. Locate the primary transmission strap connecting the engine pulley to the deck. Use a wrench to loosen the tensioner pulley bolt, allowing the old strap to slip off easily.

Inspect the pulleys for wear or debris, cleaning or replacing as needed. Position the new drive loop around the engine’s crankshaft pulley first, then route it carefully over the idler and tensioner pulleys. Adjust the tensioner to apply firm pressure without over-tightening, preventing premature wear or slipping.

Reattach the mower deck by aligning the lift pins and securing the release clips. Reconnect the spark plug wire. Test the drive system by engaging the blades and moving the mower forward to confirm smooth operation and proper strap tension.

Troubleshooting Common Drive Problems on the 48″ Riding Mower

Check the tension of the primary transmission strap first. A loose or worn drive loop causes slipping and inefficient power transfer.

• Inspect the main drive loop for cracks, fraying, or glazing. Replace if any damage is present.
• Adjust the idler pulley to restore proper tension. Use the adjustment bolts to increase pressure without over-tightening.
• Verify pulleys for misalignment. Misaligned wheels cause premature wear and noise; realign using the frame slots.

Address belt slipping by cleaning the pulleys from dirt, debris, or oil buildup that reduces friction.

1. Remove grass clippings and grease with a cloth and mild detergent.
2. Check for worn bearings in the idler and spindle assemblies and replace if noisy or stiff.
3. Examine the clutch for engagement issues, ensuring it fully grips the pulley during operation.

Replace any damaged or stretched loops immediately, as continued use leads to blade stoppage or uneven cutting.

• Always use manufacturer-approved replacements for compatibility and durability.
• After replacement, test mower under load to confirm smooth operation without slipping or unusual noises.
