Ford 4.6 Belt Diagram Guide for Proper Engine Serpentine Belt Installation

When replacing or adjusting the serpentine loop, ensure you follow the correct routing order to avoid damage or improper function. The drive system in this particular model is crucial for ensuring all ancillary components, such as the alternator, air conditioning compressor, and power steering pump, work efficiently. Proper installation requires a step-by-step approach with attention to the direction of rotation and tension specifications.

First, identify the tensioner location. This key part is responsible for maintaining correct belt tension. If incorrectly set, it can cause excessive wear or premature failure of the loop, leading to engine performance issues. The tensioner is generally located near the bottom of the engine, easily identifiable by its spring-loaded mechanism. Before starting any installation, make sure to relieve tension using a wrench, turning the pulley counterclockwise.

Follow the component layout carefully–start by connecting the pulley of the alternator, passing the loop over the water pump, and ensuring it is seated correctly on the crankshaft pulley. Check the routing near the air conditioning system to avoid twists or misalignment. Pay particular attention to the proper seating of the loop on each pulley groove to prevent slipping during operation.

Double-check all connections before tightening the tensioner. A misaligned setup can cause significant damage, including overheating of engine components or loss of power steering. Always verify the entire system is functioning smoothly by manually rotating the pulleys after installation.

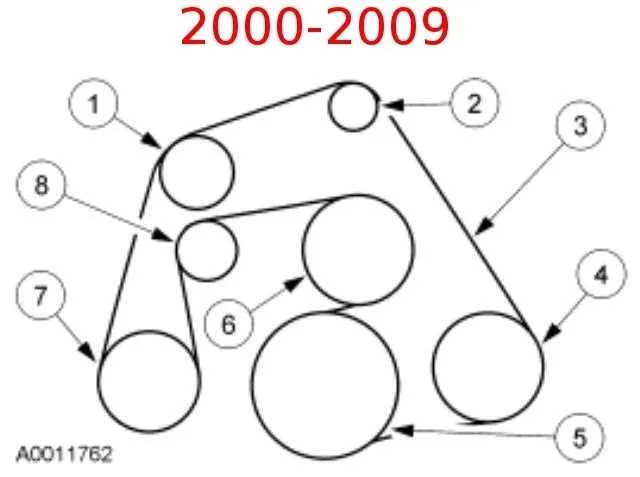

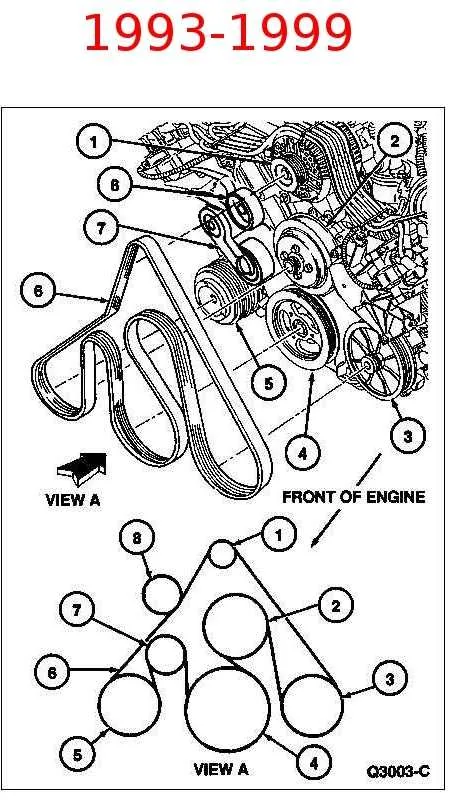

Engine Serpentine Layout for 4.6L V8 Models

To ensure proper engine function, follow the specific routing for the serpentine system in 4.6L V8 vehicles. The belt should be routed over the crankshaft pulley, around the tensioner, and through the alternator, water pump, and power steering pump pulleys. This layout provides optimal performance for each component, reducing wear and maintaining proper system tension.

Begin by positioning the belt around the crankshaft and move clockwise, passing through the water pump, followed by the tensioner, and finally securing it through the alternator. Ensure the belt aligns correctly with all pulleys to avoid slipping or misalignment. A visual reference for the system layout can significantly reduce installation time and error.

Regular inspection is crucial. Look for signs of fraying, cracking, or significant wear to prevent sudden failures. Pay close attention to the tensioner’s condition, as a worn tensioner can cause improper belt tension, leading to operational inefficiencies or damage to the components connected by the system.

If replacing the belt, make sure the new part is of the correct size and material type. The belt must be tight enough to avoid slippage, but not over-tightened, as this can damage pulleys or cause excessive wear. Using an automatic tensioner is recommended for consistent pressure maintenance.

Always consult your vehicle’s manual for the exact specifications regarding routing and installation to ensure long-lasting performance and reliability.

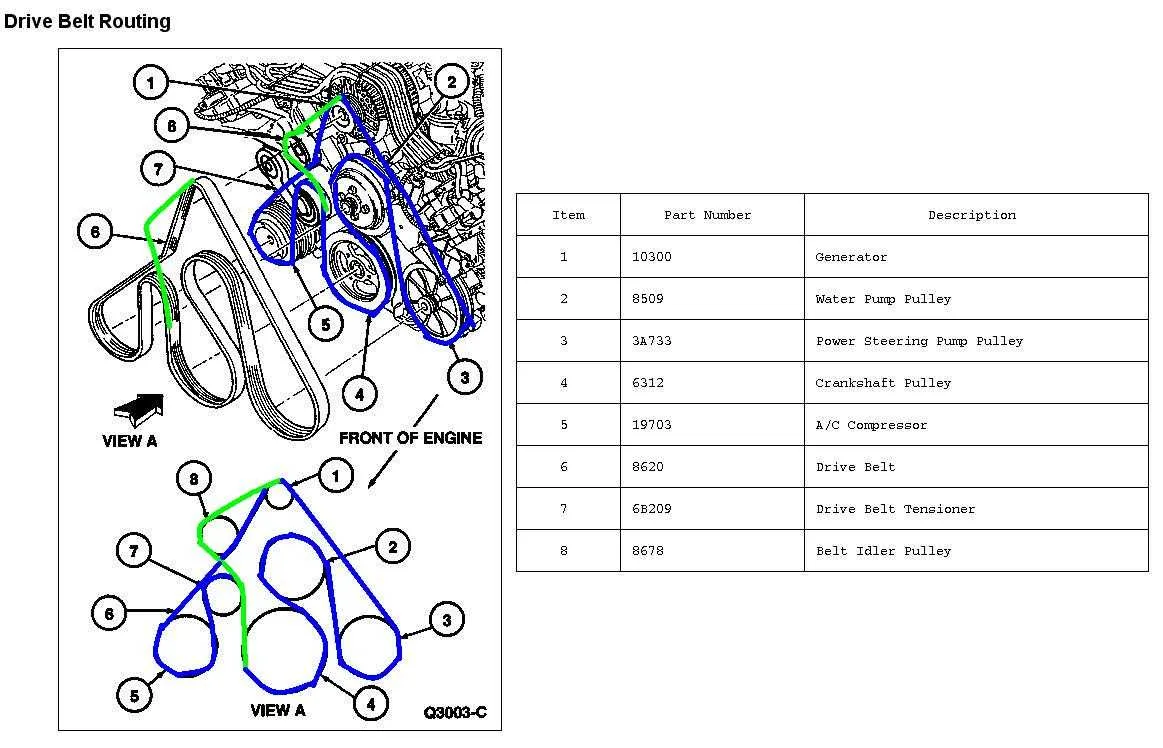

Understanding the Routing of the Serpentine System for the 4.6L V8 Engine

When working on the serpentine system for this specific V8 engine, ensure to follow the correct routing path for optimal operation. The proper alignment and tension are crucial to prevent premature wear on components and avoid engine performance issues.

• The tensioner pulley should be positioned to maintain correct pressure, ensuring that all attached components receive enough force to function smoothly.
• The alternator is typically placed at the top or bottom of the routing system. Ensure the belt runs around the alternator’s pulley in a manner that avoids over-tightening, as this can lead to unnecessary strain on the bearings.
• For the water pump, the routing should maintain a secure connection to prevent slippage, which could cause overheating or even engine failure.
• The idler pulley must be installed at the correct location, ensuring that the belt runs smoothly over it without friction. This component helps maintain the system’s balance.
• Ensure the air conditioning compressor pulley is correctly aligned in the sequence to avoid unnecessary wear. This is a key element for maintaining system pressure and efficiency.

For accurate installation, always refer to the factory manual to ensure that all pulley positions are followed precisely. Improper installation can lead to belt slippage, poor performance, and eventual engine damage.

Step-by-Step Guide to Replacing the Serpentine Belt on a 4.6 Ford

1. Begin by lifting the front end of the vehicle using a jack and securing it with jack stands. Ensure the car is on a flat surface before starting the replacement process.

2. Locate the tensioner pulley. You’ll need to relieve tension from the system to remove the old component. Using a wrench or a ratchet, turn the tensioner in a counter-clockwise direction until there is enough slack to remove the drive component.

3. Examine the routing path of the existing component. Note how it loops around pulleys, as this will be crucial for installing the new one. If necessary, refer to the factory service manual for specific details on routing.

4. Once the tension is released, carefully slide the drive component off the pulleys, starting from the farthest point from the tensioner. Keep the old part for reference when installing the new one.

5. Install the new component by following the same routing path. Ensure it fits snugly around the pulleys without twisting. Be careful not to force the new piece onto any part of the system.

6. Re-engage the tensioner pulley by rotating it back into its original position. Ensure that the new part is tight and properly positioned on all pulleys.

7. Double-check the alignment of the new component to confirm that it sits correctly. Any misalignment could cause premature wear or failure.

8. Lower the vehicle, and start the engine. Listen for any unusual sounds that could indicate improper installation. If the system runs quietly, the replacement is successful.

9. Finally, dispose of the old component properly, and monitor the system over the next few days for any signs of wear or malfunction.

Troubleshooting Common Issues with the 4.6 Ford Belt System

If you experience squealing noises, check the tension of the pulley and adjust it if needed. Loose or worn pulleys can cause the drive components to slip, leading to inefficient power transfer. Replacing the pulley might be necessary to restore smooth operation.

Another common problem is misalignment. Inspect all components for wear, and ensure the alternator and other accessories are properly aligned. Misalignment can cause premature wear on the system, leading to failure. If the components are aligned correctly, the belt should run straight without deviation.

If overheating occurs, verify the condition of the cooling system components, as excessive heat can affect the performance of the drive mechanisms. A malfunctioning water pump or faulty cooling fan may put additional strain on the system, increasing the likelihood of breakdowns.

Examine the pulleys for corrosion or damage, as this can affect the efficiency of the system. Rust on the components can increase friction, leading to premature wear. If corrosion is found, replacing the affected pulley will help restore optimal function.

To prevent premature failure, regularly inspect the tensioner. If the tension is too high or too low, the system will not operate at peak efficiency. The proper tension should be maintained to avoid unnecessary wear and tear.

If the serpentine mechanism begins to make a grinding or chattering sound, this could indicate an issue with the bearings in the alternator or other accessory components. Replace any bearings that show signs of wear to avoid damaging the entire system.
