Complete Guide to 3 Way Wiring Diagrams and Their Applications

To set up a system that allows you to control a light from two different locations, follow this structured approach. First, connect a single-pole double-throw switch at each control point, ensuring the wiring between them is precise and error-free. The key is in managing the flow of electricity between these switches, which can alter the current path depending on the position of the toggles.

Ensure both control points are wired in such a way that the path of current alternates between the two terminals on each switch. When correctly configured, this system enables seamless control over your lighting setup from multiple positions, making it ideal for long hallways, stairways, or expansive rooms.

For the safest and most effective installation, use high-quality components and double-check the connections before powering the circuit. Remember that improper configuration can lead to malfunctioning switches, so verify that the current flow adheres to the intended design. Always prioritize safety by cutting off power at the main panel before working with any electrical components.

By following these steps, you’ll ensure a durable and reliable electrical setup that enhances user convenience without compromising on safety.

How to Connect a Switch for Multi-location Control

For controlling a single light from two separate points, you need to install a system with two switches connected through a common traveler line. The following steps outline the process:

1. Install the first switch: The first switch should be connected to the power source, where the line (hot) wire enters. Connect this wire to the terminal of the switch.
2. Connect the second switch: The second switch will be connected to the light fixture. Use the traveler wires to connect the switches, ensuring that the common terminal of the second switch leads to the light.
3. Link the traveler wires: The traveler wires should be connected between the switches. These are typically marked as “T1” and “T2” on both switches. Make sure both wires are of equal length to maintain correct functionality.
4. Connect the light fixture: Finally, connect the light fixture to the second switch. The common terminal on the switch should connect to the light fixture, ensuring that it turns on or off based on the position of either switch.
5. Ensure safety: Always turn off the power before starting any installation and double-check all connections to avoid short circuits.

Once installed, toggling either switch will allow you to control the light from both locations. The key is ensuring the common traveler connections are accurate and that the switch terminals are correctly identified.

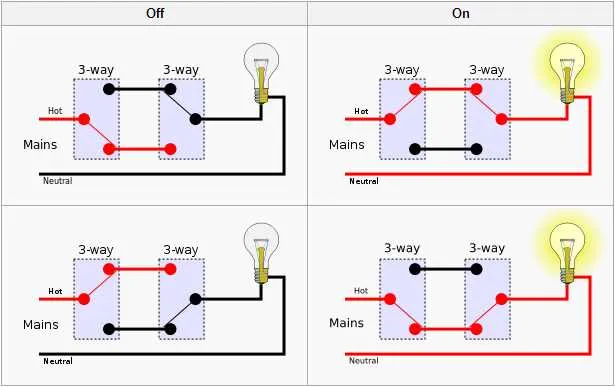

Understanding the Basic Components of a 3-Way Switch Circuit

To effectively control lighting from two separate locations, you need to understand the core components of a three-way switch circuit. First, there are two switches: one for the input of power and the other for the output, each with three terminals. The power source connects to the common terminal of the first switch. The second switch has a similar configuration, with its common terminal connecting to the light fixture.

Next, the travelers: two wires run between the switches, connecting the traveler terminals. These wires carry current depending on which switch is toggled, controlling the flow to the light. Ensure that the traveler wires are installed properly, as they are key to determining the current path.

The light fixture itself, connected to the second switch, completes the circuit. Depending on the position of the switches, the flow of electricity is either allowed or interrupted, turning the light on or off. A grounding wire should also be included for safety, typically attached to each switch and the fixture itself.

Properly labeling and wiring the components during installation ensures correct functionality, reducing the risk of electrical faults. Always verify the wire colors and terminals before making connections to prevent confusion and potential hazards.

Common Mistakes in 3-Switch Circuit Installations

Incorrectly connecting the traveler wires is a frequent error in multi-switch systems. Ensure that the traveler terminals on both switches are connected properly, as reversing them can lead to malfunction. A good practice is to double-check continuity between the switches using a tester.

Another common issue is misidentifying the common terminal. In most installations, this terminal should connect to the power source or the light fixture, depending on the configuration. Incorrect placement can prevent the circuit from functioning correctly.

Improper grounding is another mistake. Always connect the ground wire securely to the metal box and the switches. Failing to do so increases the risk of electric shock and can also cause the switches to fail over time.

Using incorrect wire gauge is a serious issue. Always ensure the gauge is appropriate for the current load of the system to prevent overheating. Typically, 14 AWG wire is used for 15-amp circuits, but this can vary based on local electrical codes.

Finally, neglecting to test the entire system after installation can lead to undetected issues. Always verify the switches work as intended, checking both directions for proper functionality and ensuring the light turns on and off as expected.

How to Troubleshoot and Repair a Faulty 3-Way Switch Setup

1. Check the power source – Ensure the circuit is receiving power. Use a multimeter to verify that the incoming voltage is correct at the power supply side of the switches. If there’s no voltage, trace back to the breaker panel and reset the circuit breaker if necessary.

2. Inspect the switches – Turn off the power and remove the switch covers. Look for loose or disconnected terminals. If the screws are tight, examine the switch for physical damage, corrosion, or burnt terminals. Replace any faulty switches.

3. Test the continuity of the conductors – With a multimeter, check the continuity between the terminals of each switch. A break in continuity usually indicates a faulty wire, which must be replaced or reconnected. For damaged wires, ensure they are properly insulated and securely connected.

4. Identify incorrect connections – A common issue in these setups is miswiring. Double-check the connections at each switch, especially the traveler and common terminals. Refer to the specific configuration of your setup to ensure all connections match the correct terminal assignments.

5. Verify the function of the load – If the light does not turn on despite a correctly wired system, check the light fixture. Replace any blown bulbs or defective components in the fixture. Ensure the fixture is receiving the expected voltage when the switches are flipped.

6. Re-test the system – After performing repairs, turn the power back on and test the system. If the lights respond to each switch and the wiring is correct, your setup should be fully functional.
